UM MONITOR PARA TODAS AS FUNÇÕES
Leve sua construção para o próximo nível com este extraordinário monitor de 14,5”. Mostre métricas do sistema, calendários, aplicativos de clima ou chat no jogo.
TOUCHSCREEN CAPACITIVA DE 5 PONTOS
ALTAMENTE CUSTOMIZÁVEL COM WIDGETS FÁCEIS DE USAR
TELA LCD INCRÍVEL DE 14,5″ (2560×720 @ 60Hz)
PERSONALIZE DO SEU JEITO
WIDGETS PODEROSOS
Desbloqueie todo o potencial do touchscreen LCD de 14,5″ CORSAIR XENEON EDGE com widgets, extensões poderosas de software para turbinar sua produtividade e desempenho. Explore o Elgato Marketplace e descubra uma coleção crescente de widgets úteis para ampliar as funções do XENEON EDGE.
SEU SETUP DO SEU JEITO
UNIVERSAL, VERSÁTIL, COMPATÍVEL
CONTROLE COM o iCUE
A tela sensível ao toque capacitiva multitoque de 5 pontos simplifica a interação com widgets, apps e jogos. Use como monitor extra no Windows ou use o CORSAIR iCUE para criar layouts personalizados e uma grade de widgets personalizada.
COLOQUE-O EM QUASE QUALQUER LUGAR
O XENEON EDGE inclui 14 ímãs integrados que permitem que ele seja montado em um painel de metal, dentro do gabinete ou na cobertura de uma fonte de alimentação.
SUPORTES DE BRAÇO AV INTEGRADOS
Com dois pontos de montagem ¼″-20 inclusos, o XENEON EDGE pode ser acoplado a um Elgato Multi-Mount ou a qualquer braço AV padrão.
BRILHANTE E NÍTIDO
AGRADÁVEL AOS OLHOS
Com resolução nativa de 2560 × 720, taxa de atualização de 60Hz, painel AHVA com amplos ângulos de visão e cores vibrantes, a tela fica incrível em qualquer lugar que você quiser usar.
COMPANHEIRO COMPACTO
FACILMENTE PORTÁVEL
Com seu formato compacto, suporte ao modo USB-C DP-Alt e suporte magnético angulado, este monitor é perfeito para uso em qualquer lugar. Ele também suporta conexões HDMI de tamanho normal.
Melhore seu XENEON EDGE com papéis de parede criados especificamente para sua resolução nativa de 2560x720. As imagens são otimizadas para caber sem esticar ou redimensionamento. Atualize seu visual com designs tão nítidos quanto sua tela.
The XENEON EDGE does not have a built-in battery and must be powered externally. It draws power via a USB-C to USB-C cable (included), a USB-C to internal USB 2.0 header cable (included), or a USB-C to USB-A cable. The USB-C port can receive both video signal and power through a single cable from compatible devices that have Thunderbolt or USB 4.
The XENEON EDGE can be used as a standalone monitor - Windows will detect it as another screen where you can run applications, change backgrounds, and perform any normal monitor functions. However, due to its unique 2560x720 resolution and 14.5" size, it's designed primarily as a secondary display or companion screen for specific use cases.
You do not need iCUE software to use the XENEON EDGE as a basic touchscreen monitor. Windows will detect it as a standard monitor that you can extend or duplicate. However, iCUE is required if you want to use custom widget layouts, system monitoring dashboards, profile switching controls, and other advanced iCUE-integrated features.
The XENEON EDGE can be used as an additional touchscreen monitor with macOS, but it is not compatible with the macOS version of iCUE software. This means you will not be able to use any iCUE features, custom widgets, or system monitoring dashboards on Mac - only basic external display functionality.
The XENEON EDGE includes a detachable magnetic stand for desktop use. Additionally, it features 14 built-in magnets on the backplate for attachment to any metal surface, 360mm radiator mounting compatibility (fits where three 120mm fans would mount), and two 1/4-20" threaded mounting points compatible with standard camera tripods and AV arms including Elgato Multi-Mount systems.

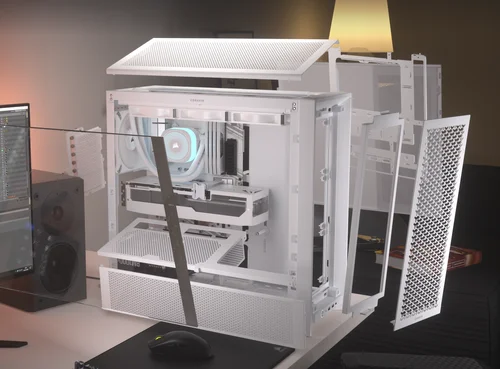

The XENEON EDGE is compatible with any case that can fit a 360mm radiator mount. Some examples are our 6500 Series, 7000 Series, 3500 Series, 5000 Series, and FRAME 4000D Series cases as particularly great candidates, especially when using the triple fan mount adjacent to the motherboard tray which provides an unimpeded view through transparent side panels.
The XENEON EDGE includes three cables: an HDMI to DisplayPort cable (1.8m/6 ft), a USB-C to USB Type-C DP Alt Mode cable (1.8m/6 ft), and a USB-C to USB 9-pin internal motherboard header connector cable (70cm/2.3 ft) for internal case mounting.
Yes, the XENEON EDGE is fully compatible with Elgato Virtual Stream Deck. You can create Stream Deck key layouts directly on the XENEON EDGE screen and customize it with on-screen shortcuts, quick access to tools and plugins, and drag-and-drop actions for your applications, creating unlimited virtual keys for streamlined workflows.
The XENEON EDGE includes a 3-year warranty backed by the CORSAIR global technical support team, which also includes a Zero Dead Pixel Guarantee for the duration of the warranty period.
Yes, the XENEON EDGE supports custom wallpapers. For optimal display without stretching or scaling, wallpapers should be specifically designed for its native 2560x720 resolution. Images optimized to this exact resolution will fit seamlessly on the screen.
The XENEON EDGE features an AHVA (Advanced Hyper-Viewing Angle) panel, which is IPS-equivalent technology. This provides wide viewing angles and vibrant colors with 16.7M display colors (8-bit RGB) and a peak brightness of 350 cd/m².
The XENEON EDGE measures 372mm in length, 120mm in width, and 22mm in height (case dimensions). The display itself is 14.5 inches measured diagonally with a 32:9 aspect ratio. The unit weighs 1.674kg.
The XENEON EDGE features a 5-point multi-touch capacitive touchscreen, allowing you to interact with widgets, apps, and games using multiple fingers simultaneously for gestures and multi-touch interactions.
Yes, the XENEON EDGE supports both vertical and horizontal orientation. You can rotate the display based on your mounting preference and use case, whether mounted inside a case, on the desk stand, or using the magnetic or threaded mounting options.
No, the XENEON EDGE does not have HDR certification or support. It features standard dynamic range (SDR) display with a peak brightness of 350 cd/m² and 8-bit RGB color depth.
