MANUAL | QUICK START GUIDE

FRAME 5000D SERIES LCD MOUNTING KIT

MOUNTING KIT FOR XENEON EDGE

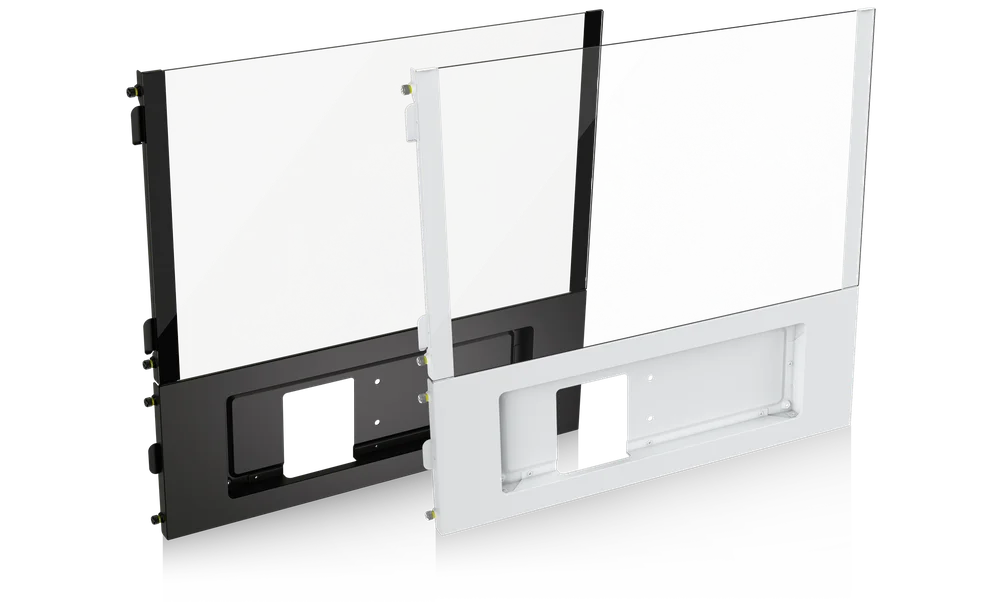

FRAME 5000 Series LCD Mounting Kit QSG visual

BEFORE YOU START

IMPORTANT: Handle glass with care. This product is made with tempered glass. Avoid storage on or contact with hard surfaces like ceramic/porcelain tile, stone, masonry, or concrete. CORSAIR recommends removing all tempered glass side panels before placing the case or building on a hard surface. If necessary to place your finished build on a hard surface, it is recommended to elevate or isolate your case from the surface to avoid accidental contact, potential damage, or injury.

Replacement panels are available at corsair.com. Contact help.corsair.com for any assistance.

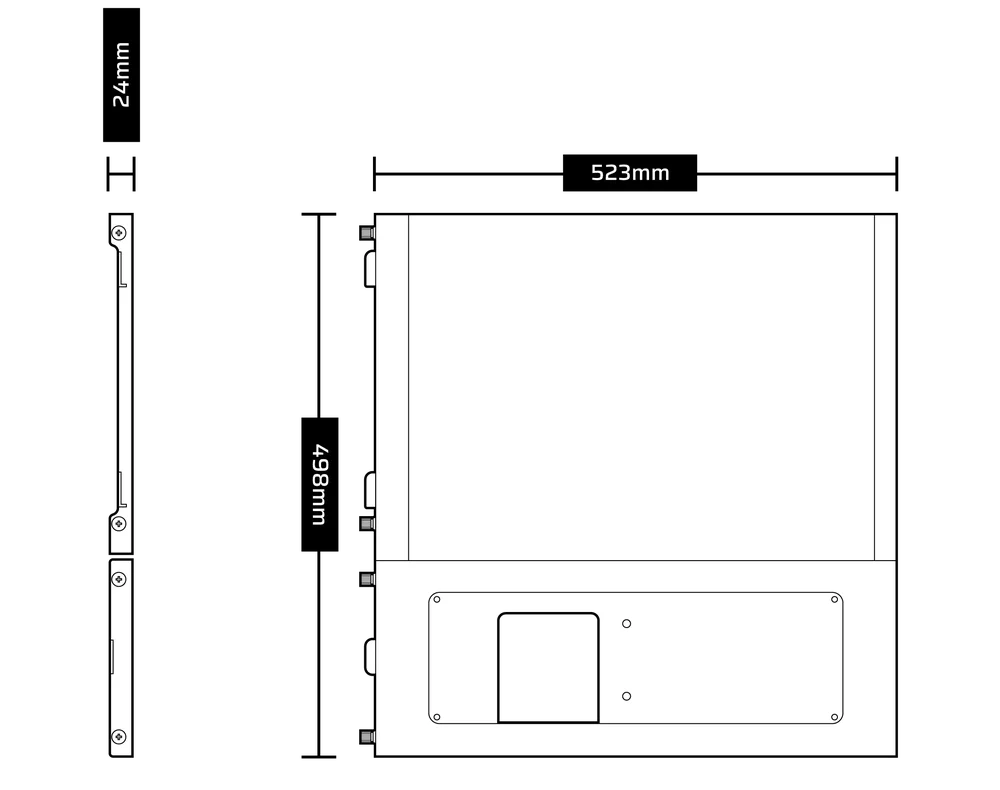

DIMENSIONS

KIT CONTENTS

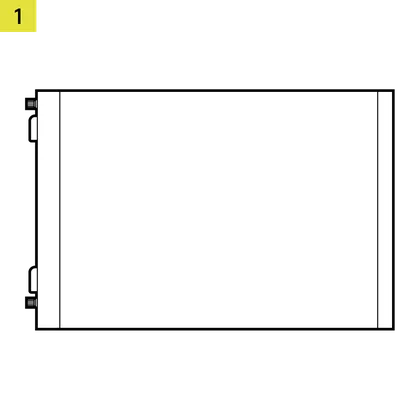

Top Panel of the LCD Mounting Kit for FRAME 5000D - QSG

1x Upper Glass Side Panel

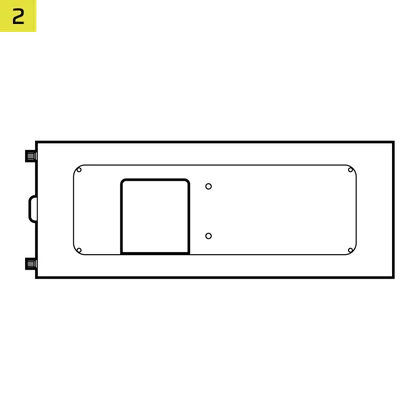

Lower panel of the LCD Mounting Kit for FRAME 5000D - QSG

1x LCD Screen Mounting Bracket

2x 1/4"-20 Screws

VIDEO TUTORIAL

PREPARE YOUR FRAME 5000D

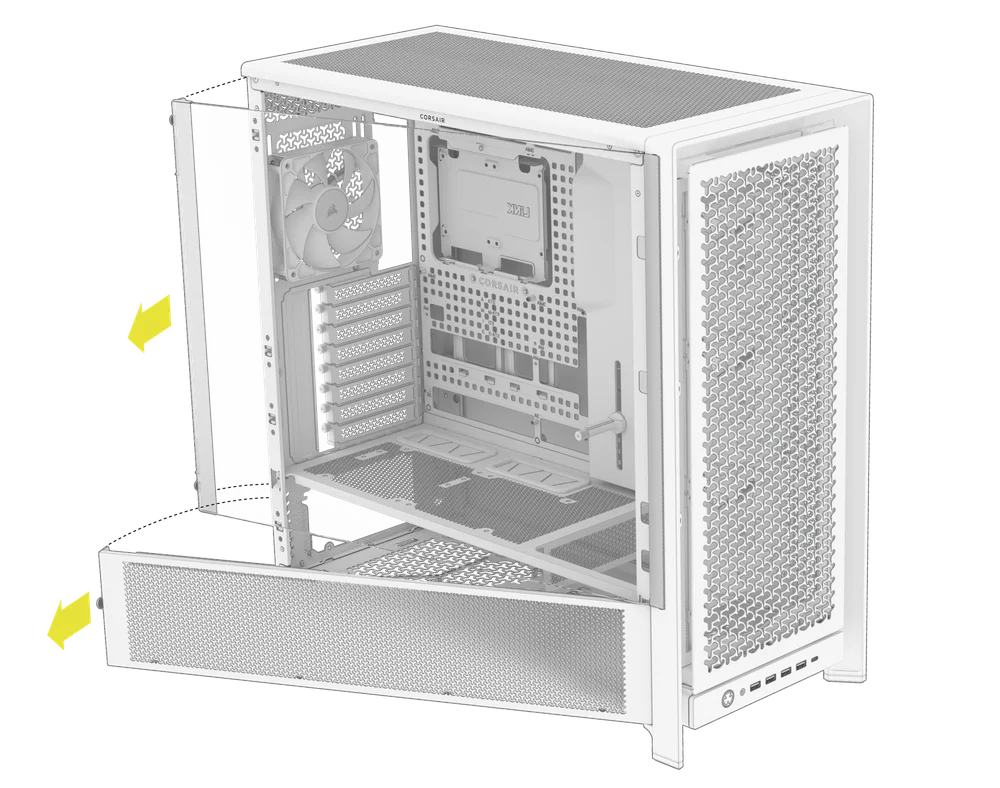

Unscrew and remove the top three-quarter side glass panel and the lower quarter mesh side panel.
Unscrew and remove the steel side panel.
Unplug and remove your GPU.
Remove the GPU Anti-sag Stabilization Arm mini mount if one is installed.

Unscrew and remove the stock PSU shroud.

NOTE: The stock PSU shroud on the 5000D cannot be reinstalled without interfering with the XENEON EDGE bracket. If you have fans mounted on the shroud, remove them before taking it out.

PSU Shroud removal from FRAME 5000D - QSG

NOTE: To retain the option of vertically mounting your GPU or using fans above the PSU, you can install the compact PSU shroud (sold separately).

OPTIONAL: Install the compact PSU shroud (sold separately).
Reinstall the GPU Anti-sag Stabilization Arm mini mount.
Reinstall and connect your GPU.

PREPARE THE LCD SCREEN MOUNTING BRACKET

Attach the XENEON EDGE to the LCD Screen Mounting Bracket (2) and secure it with the two 1/4"-20 Screws (3) included with the kit.

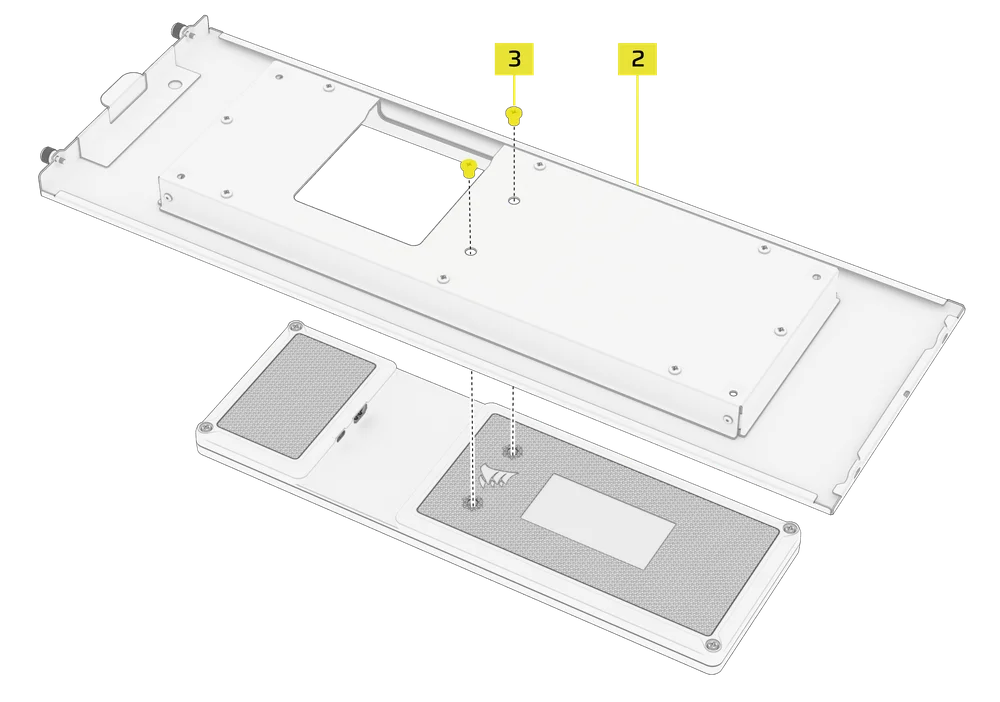

Xeneon Edge being mounted onto the bracket of the FRAME 5000D LCD Mounting Kit - QSG

Route the HDMI-to-DisplayPort cable (included with your XENEON EDGE) through the dedicated opening at the back of the case, and connect it to the DisplayPort output on your computer or GPU.
Connect one end of the internal USB Type-C cable (included with your XENEON EDGE) to an available USB header on your motherboard.
Connect the other ends of the HDMI-to-DisplayPort and USB Type-C cables to the corresponding ports on the back of the XENEON EDGE panel.

NOTE: For detailed instructions on how to connect your XENEON EDGE cables, please visit the XENEON EDGE Quick Start Guide.

INSTALL THE LCD MOUNTING KIT PANEL AND BRACKET

Pull any excess cable slack into the PSU chamber for clean cable management.
Attach the Upper Glass Side Panel (1) and secure it with the captive screw.

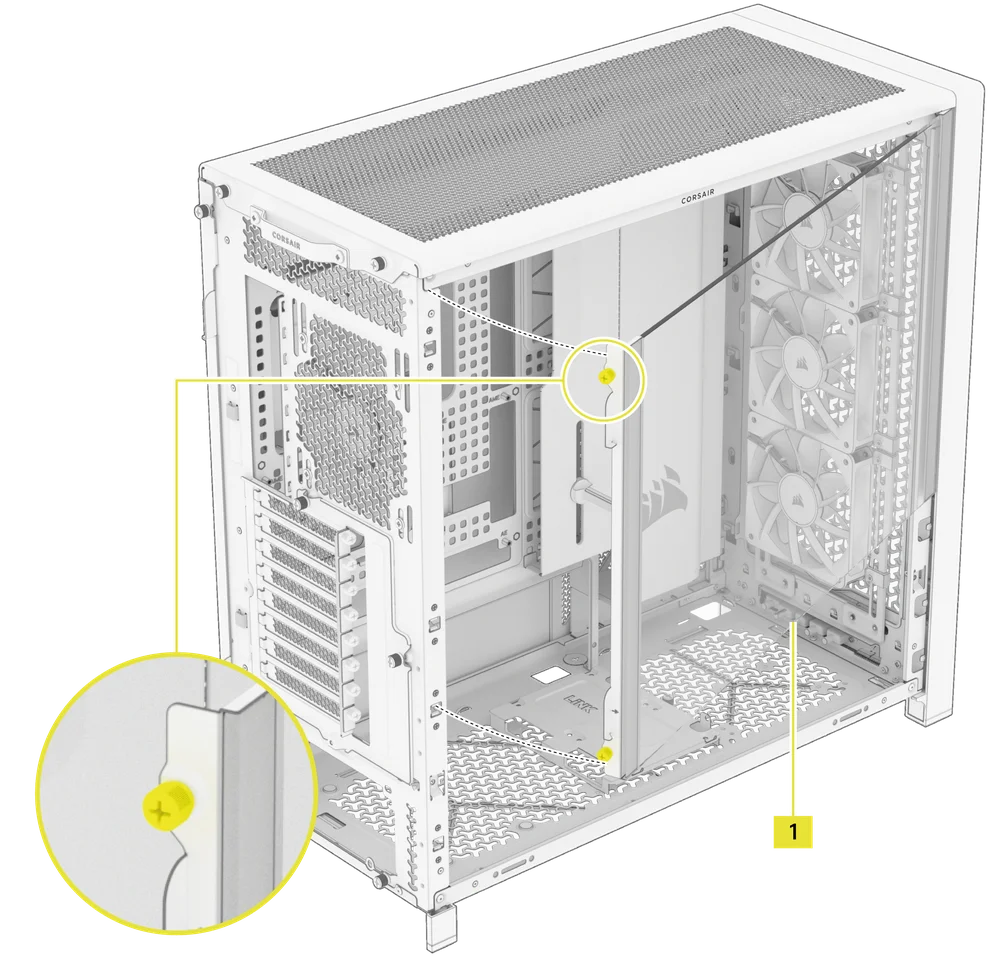

Glass panel mounting - LCD Mounting Kit for FRAME 5000D - QSG

Attach the LCD Screen Mounting Bracket (2) with your XENEON EDGE to the PC case and secure it with the pre-attached captive screws.

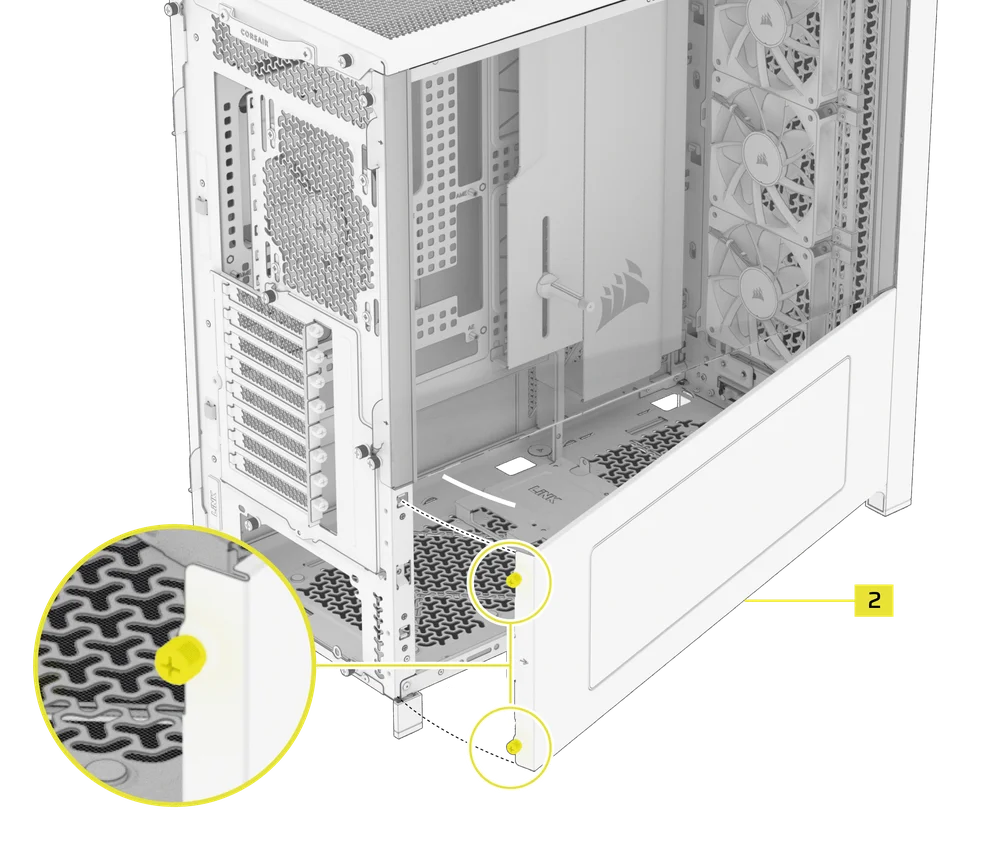

LCD Mounting Kit for FRAME 5000D - lower bracket mounting - QSG

Re-attach the steel side panel to the case and screw all exterior screws in to secure the paneling, as well as the XENEON EDGE.

ADDITIONAL INFORMATION

CORSAIR FRAME 5000D quick start guide

CORSAIR XENEON EDGE quick start guide

WARRANTY

The FRAME 5000D Series LCD Mounting Kit has a 2-year warranty.

LEGAL

© 2025 CORSAIR MEMORY, Inc. All rights reserved. CORSAIR and the sails logo are registered trademarks of CORSAIR in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured.
