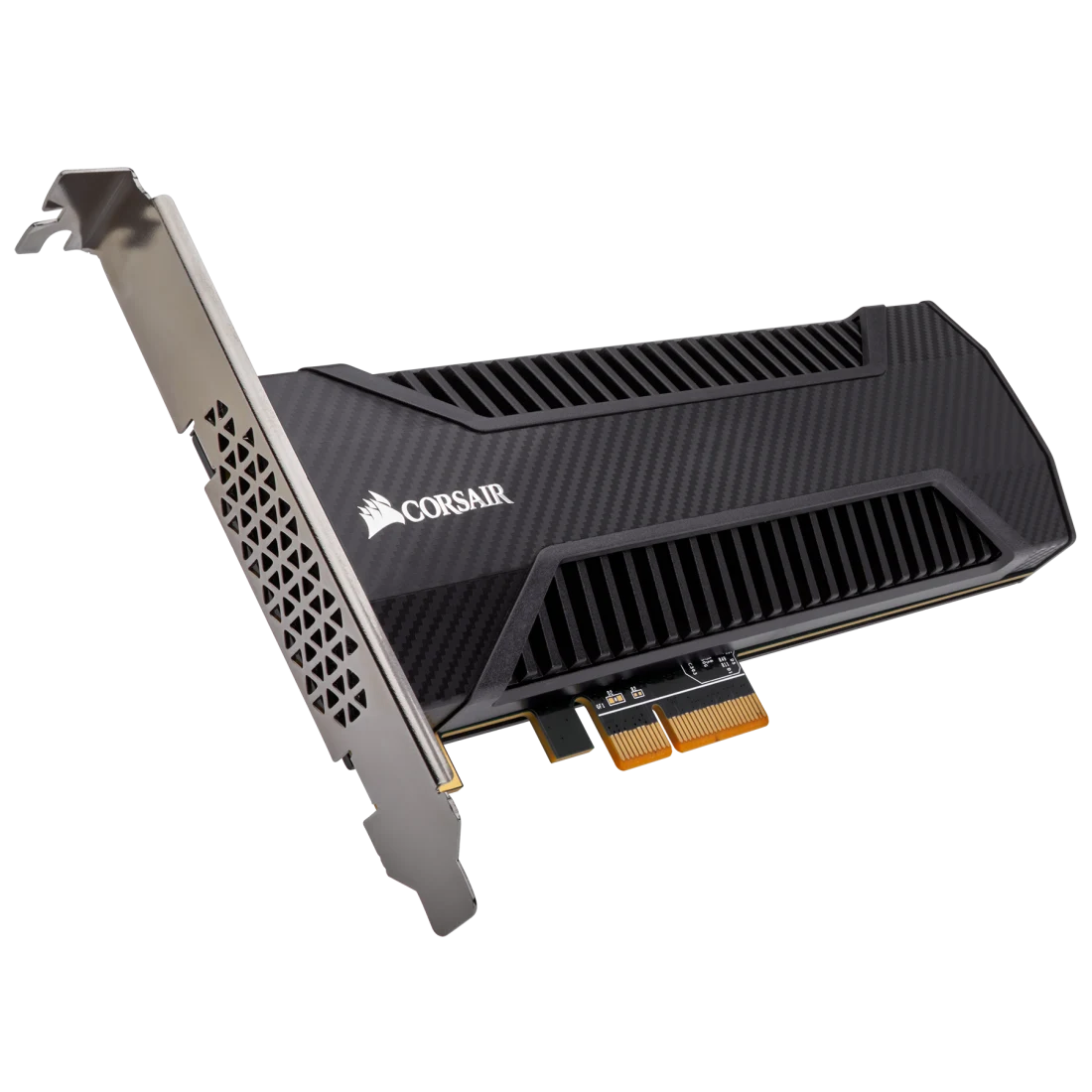

Neutron Series™ NX500 1600GB NVMe PCIe AIC SSD

The CORSAIR Neutron NX500 NVMe PCIe AIC SSD is up to 5x faster than SATA SSDs and NVMe powered to deliver ultra-fast gaming performance. The specially designed heat sink is engineered to maintain optimal performance.

SKU: CSSD-N1600GBNX500

Overview
Tech Specs
Guides
Package Contents

Never Fall Behind

The CORSAIR Neutron NX500 NVMe PCle AIC SSD is up to 5x faster than SATA 3 SSDs and NVMe powered to deliver previously out-of-reach sequential and IOPS read and write speeds. The specially designed heatsink not only looks great in your build, but ensures unthrottled performance and cooler temperatures. The Neutron NX500 makes sure professional gamers, workstation owners, and content creators get the job done with ease.

NVMe INTERFACE FASTER THAN SATA 3.0

Up to 5X faster in sequential read and write than SATA 3.0 6Gbps.

PCI EXPRESS SSD GEN 3.0 X4

The NX500 accesses your PC’s PCI Express bandwidth and puts your data in the fast lane, leaving SATA SSDs in the dust.

DEDICATED COOLING

High-surface-area heatsink from the cooling experts at CORSAIR keeps your storage cool and always at peak performance.

MULTI-LEVEL CELL (MLC) ENDURANCE

Better reliability and higher performance than Triple-Level Cell (TLC) NAND SSDs.

HIGH-BANDWIDTH, LOW-LATENCY STORAGE

Easily handles demanding gaming, productivity, and content creation workloads.

COMPATIBLE WITH CORSAIR SSD TOOLBOX

Support for over-provisioning, Secure Erase, disk cloning and firmware updates, or monitor S.M.A.R.T attributes and SSD health, all from your desktop.

Upgrade to Cutting Edge

Supercharge your gaming experience with next-level bandwidth and incredible speed. Welcome to the fastest SSD CORSAIR has ever made.

Five-Year Warranty

Dedicated support from our world-class CORSAIR customer support team.

Tech Specs

Storage Form Factor	Add-in Card (AIC)
Storage Temperature	-40°C to +85°C
SSD Max Sequential Read ATTO	Up to 3000MB/s
Endurance	2793TBW
Storage Humidity	93% RH (40° C)
SSD Package Contents	Neutron Series™ NX500 NVMe PCIe AIC SSD \| Low profile bracket \|x4 Screws \|Quick start guide \| Warranty card
SSD Compatibility	Form Factor: Add-in Card (AIC) Supported Platforms: Intel® 100, 200, X99, X299 Chipsets AMD Socket AM4 Platform
Form Factor	Add-in Card (AIC)
Vibration	20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
SSD Shock	1500 G
SSD Operating Temperature	0°C to +70°C

NAND Technology	MLC, Toggle NAND
SSD Smart Support	Yes
SSD Max Sequential Write CDM	Up to 1600MB/s
SSD Max Sequential Read CDM	Up to 2800MB/s
Max Random Read QD32 IOMeter	300K IOPS
Max Random Write QD32 IOMeter	270K IOPS
SSD Max Sequential Write ATTO	Up to 2300MB/s
Capacity	1600 GB
Interface	PCIE* 3 x 4
Weight	0.475kg
Memory Type	PCIe Gen 3.0 x4

Capacity: 1 GB is 1 Billion Bytes. Some of the listed capacity on a flash storage device is used for formatting and thus not available for data storage. The actual available capacity for data storage is less than the capacity stated on the products.
Performance: Performance rating based on internal testing at CORSAIR at the time of launch. Performance depends on the host platform, usage, and other variables.
Endurance: Endurance rating based on JEDEC JESD218 standard client workload. Individual drive endurance and health status depends on actual usage and may be less than rated endurance.

Neutron Series™ NX500 NVMe PCIe AIC SSD

Low profile bracket

x4 Screws

Quick start guide

Warranty card
