VS Series电源的外壳尺寸只有125mm长，可以轻松装入几乎所有时尚的PC机箱中。
120mm可控式低噪音冷却风扇，仅在电源处于高负载时才会运行，低负载时减慢转速，实现静音运行。
VS Series与所有美商海盗船电源一样名不虚传，无论您选择的是哪一个功率的电源，都可以持续满负荷提供电力。

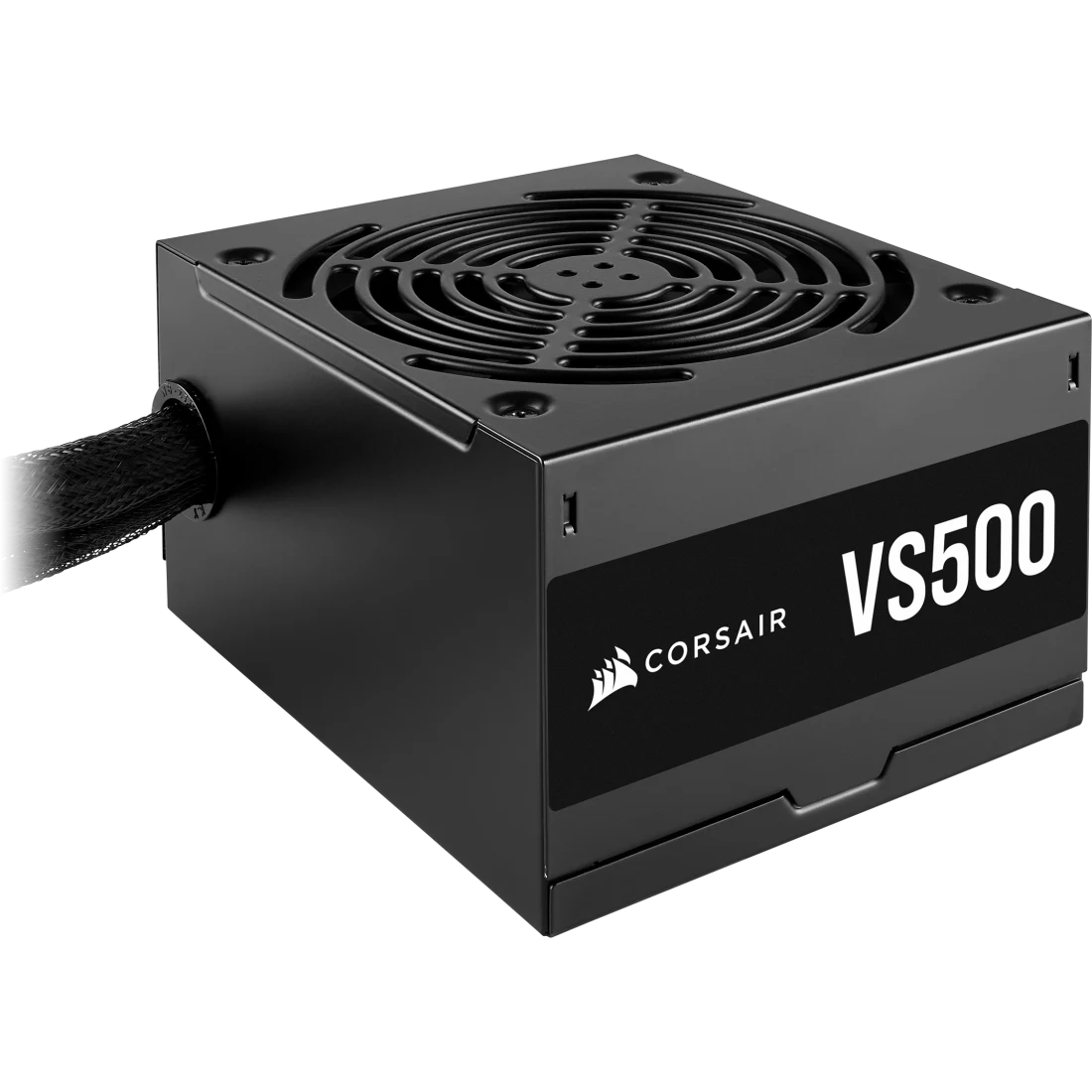

500W
VS Series PSU
额定“峰值”PSU
具有粉末喷涂外壳的黑色线缆，与您的PC式样相得益彰。
美商海盗船全球技术支持团队提供的三年保修。
| 型号 | RPS0031 | |
|---|---|---|
| 部件号 | CP-9020223 | |
| 额定交流输入 | ||
| 交流输入 | 100-240V | |
| 输入电流 | 10A-5A | |
| 频率 | 47~63Hz | |
| 最大负载 | 最大输出 | |
| +5V | 20A | 120W |
| +3.3V | 24A | |
| +12V | 40A | 480W |
| -12V | 0.3A | 3.6W |
| +5Vsb | 3A | 15W |
| 总功率 | 500W | |
| Special Technology | None |
|---|---|
| PATA Connector | 2 |
| Protections | OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power) |
| EPS Connector | 1 |
| SATA Connector | 6 |
| Fan Bearing Technology | Sleeve Bearing |
| Modern Standby | No |
| Dimensions | 150mm x 86mm x 125mm |
| Modular | No |
| PSU Compatibility | ATX12V v2.31 and EPS12V 2.91 standards |
| Cable Type | Sleeved and Flat Black Cables |
| Floppy Connector | 1 |
| PCIe Connector | 2 |
|---|---|
| Zero RPM Mode | No |
| PSU Form Factor | ATX |
| Multi GPU Ready | No |
| Fan Size MM | 120mm |
| Continuous Power W | 500 Watts |
| ATX Connector | 1 |
| ATX12V Version | v2.31 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Certified |
| Warranty | 3 Years |
| Weight | 1.88kg |
