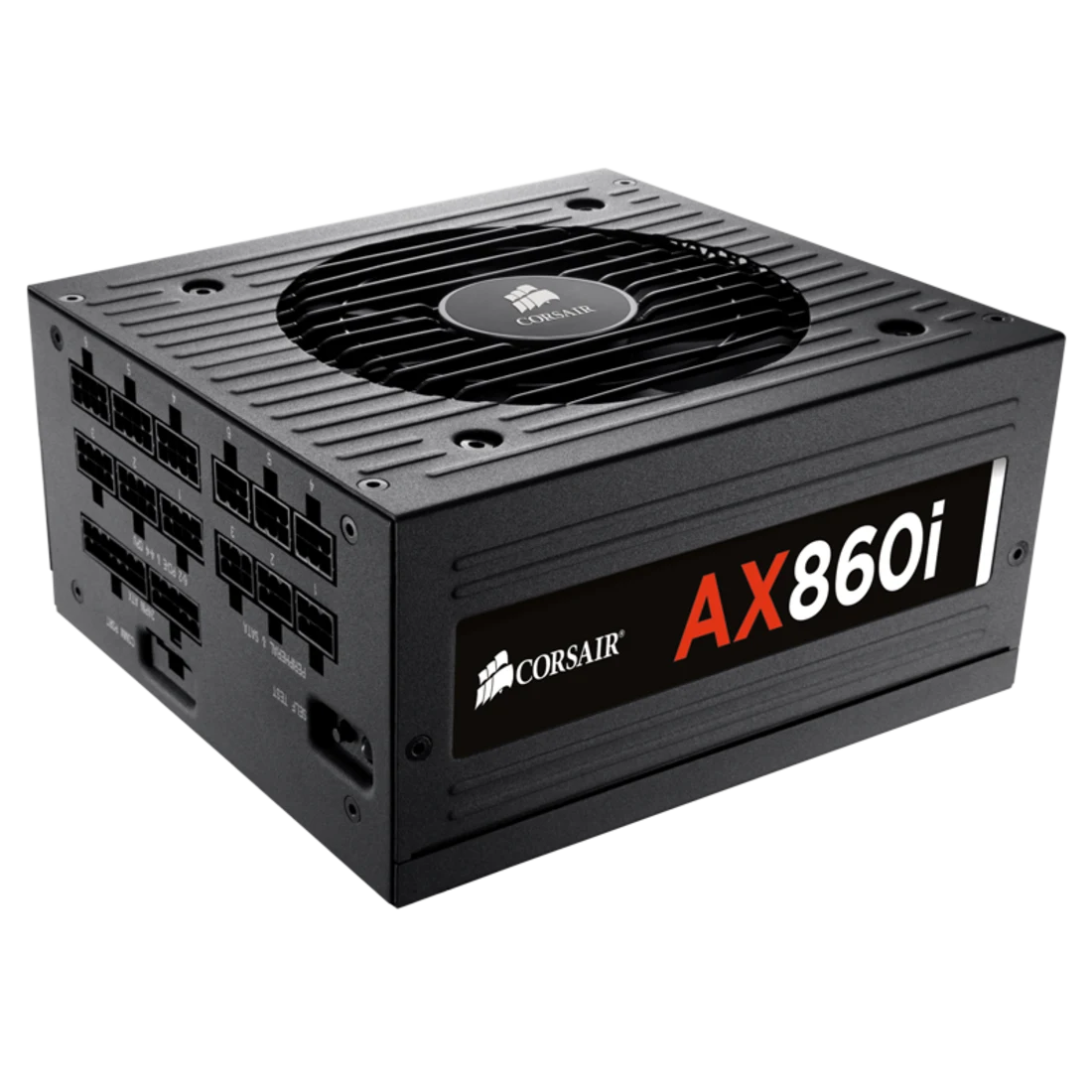

Digitales AX860i ATX Netzteil – 860 Watt Vollmodularnetzteil
Die revolutionären Netzteile der AXi Series™ bieten als erste Netzteile für Desktop-PCs die Kombination von DSP-Steuerung (digitaler Signalprozessor) und CORSAIR iCUE-Technologie, die ein noch nie da gewesenes Niveau an Überwachung und Steuerung erlaubt. Der DSP im AX860i stellt sich während des Betriebs ein und sorgt so für eine unglaublich effektive Spannungsregelung, eine Effizienz, die mit der 80 PLUS® PLATINUM-Zertifizierung ausgezeichnet wurde, und eine saubere und stabile Stromversorgung.
PSU Wattage
SKU: CP-9020037-UK
- Technische Daten
- Downloads
- Hilfe-Anleitungen
- Lieferumfang
Technische Daten
| EPS Connector | 2 |
|---|---|
| SATA Connector | 12 |
| Fan Bearing Technology | Dual Ball Bearing |
| Dimensions | 150mm x 86mm x 160mm |
| Modular | Fully |
| PSU Compatibility | ATX12V v2.4 and EPS12V 2.92 standards |
| Cable Type | Low-Profile, All Black |
| Floppy Connector | 2 |
| PCIe Connector | 6 |
| Zero RPM Mode | Yes |
| PSU Form Factor | ATX |
| Single Multiple 12V Rail Toggl | Yes |
|---|---|
| Multi GPU Ready | Yes |
| Fan Size MM | 140mm |
| Continuous Power W | 860 Watts |
| ATX Connector | 1 |
| ATX12V Version | v2.4 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Platinum |
| Warranty | 10 Year |
| Weight | 3.85kg |
Treiber
Corsair Link
AX860i power supply
Modular cable pack
Accessory bag with mounting hardware, cable ties, and case badge
Installation Guide
