技术规格
| Special Technology | DSP, GaN Totem Pole PFC |
|---|---|
| PATA Connector | 9 |
| Protections | OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power) |
| EPS Connector | 2 |
| SATA Connector | 16 |
| Fan Bearing Technology | Fluid Dynamic Bearing |
| Modern Standby | No |
| Dimensions | 150mm x 86mm x 200mm |
| Modular | Fully |
| PSU Compatibility | Conforms to ATX12V v2.4 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards | Delivers 1600 watts of co |
| Intel C6C7 Sleep State Compat | Yes |
| Cable Type | Low-Profile, All Black |
| Floppy Connector | 2 |
| PCIe Connector | 10 |
|---|---|
| Zero RPM Mode | Yes |
| PSU Form Factor | ATX |
| Single Multiple 12V Rail Toggl | Yes |
| Multi GPU Ready | Yes |
| Fan Size MM | 140mm |
| Continuous Power W | 1600 Watts |
| ATX Connector | 1 |
| ATX12V Version | v2.4 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Titanium |
| Warranty | 10 Year |
| Weight | 5.15kg |

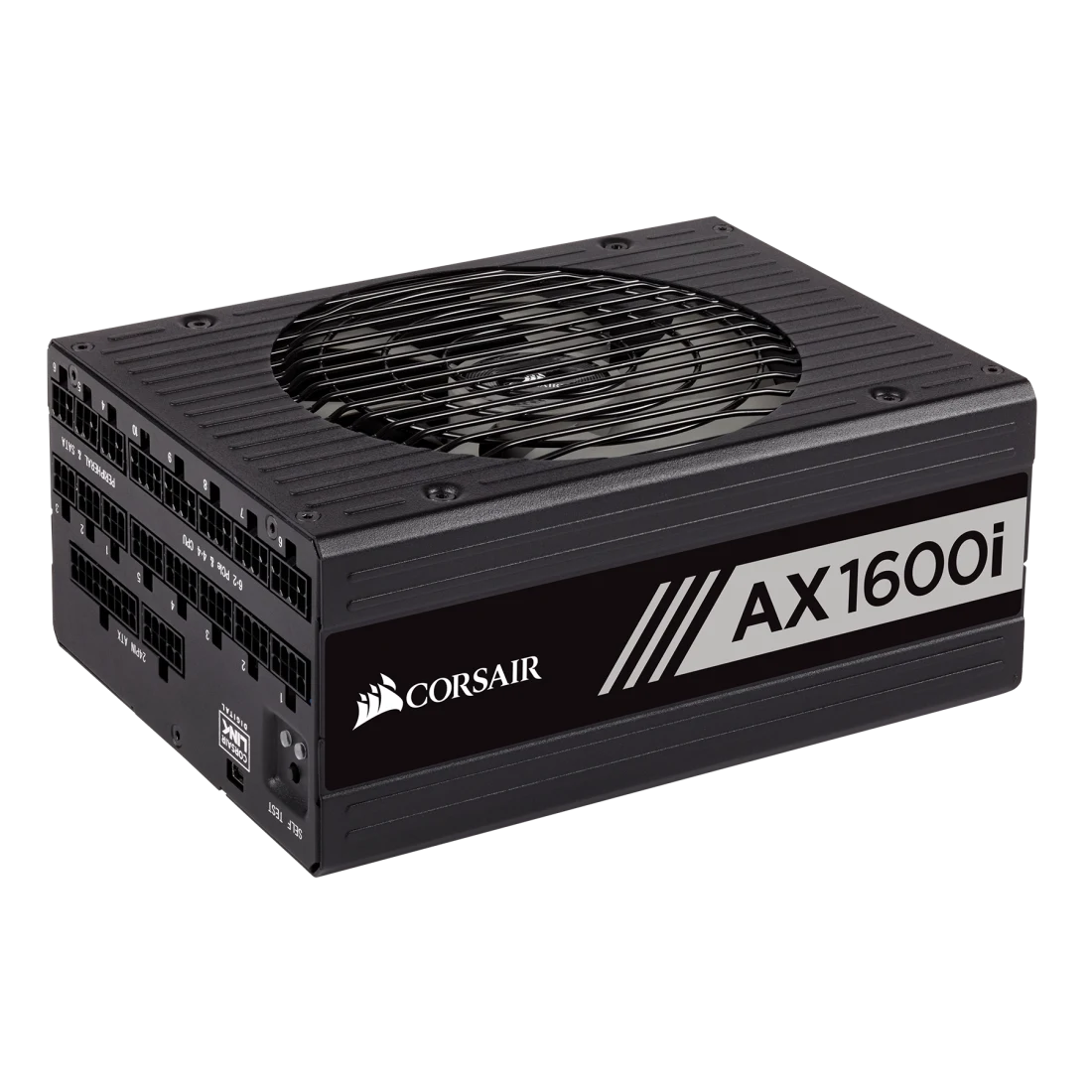

AX1600i Digital ATX Power Supply
User manual
AC power cord
Cable ties
“Velcro” cable straps
Mounting screws
CORSAIR case b
