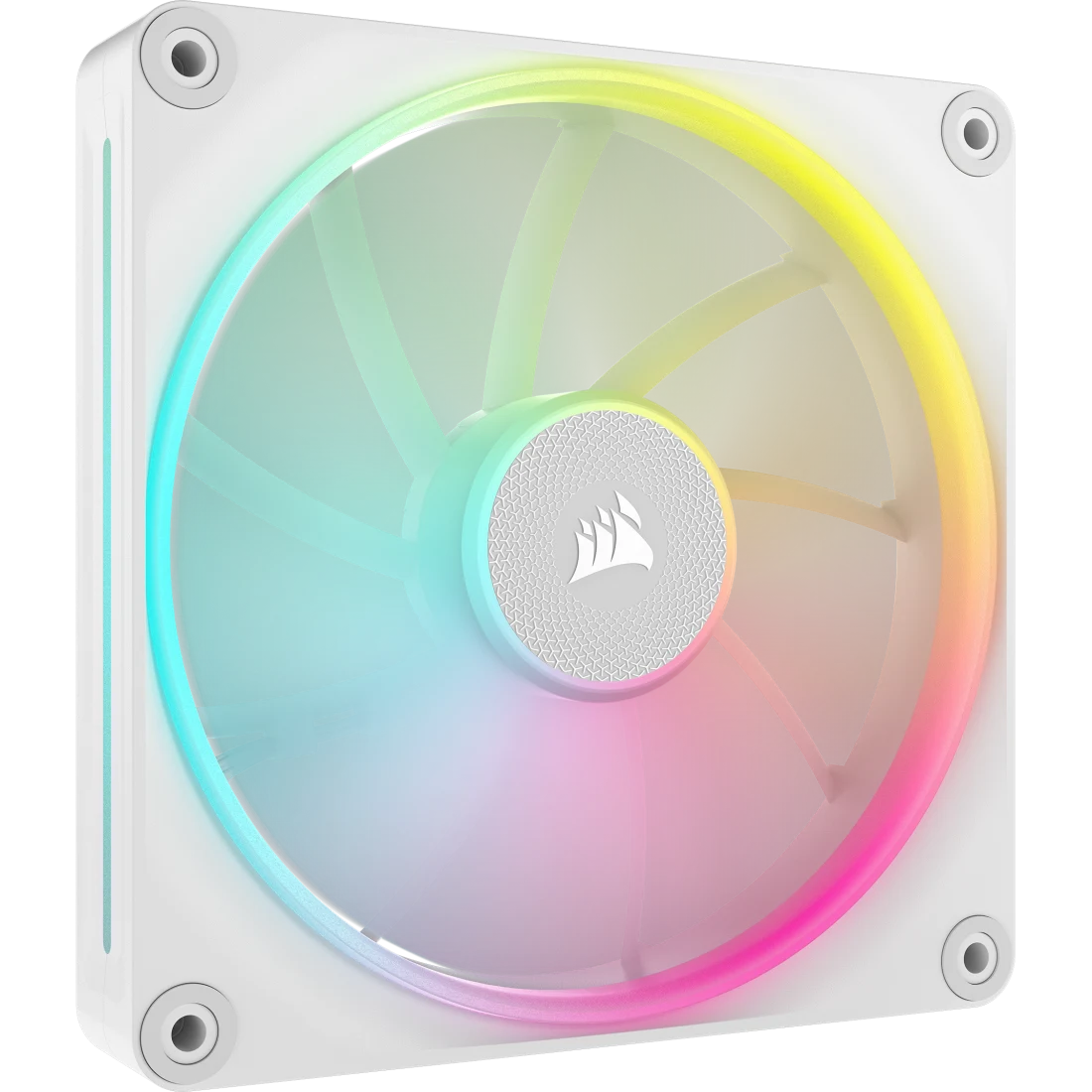

iCUE LINK LX140 RGB 140mm PWM Single Fan Expansion - White
Includes
- 18 RGB LEDs per fan spread across dual light loops
- AirGuide technology for concentrated cooling
- Magnetic Dome bearing for minimal noise
- Requires iCUE LINK System Hub (included with LX RGB Starter Kits)
- QuikTurn Fan Screws for rapid installation
Color
Color:
Fan Package Quantity
Fan Size
MORE TO CONSIDER
iCUE LINK Cable, 1x 600mm with Straight/Slim 90° connectors, White
CORSAIR PC DIY PRECISION TOOLKIT
iCUE LINK LX140 RGB 140mm PWM Fans Starter Kit - White
Save£25.00
Features
iCUE Enabled Product
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.LEARN MORE
- Overview
- Tech Specs
- Downloads
- Guides
- Package Contents
iCUE LINK LX RGB
PERFORMANCE COOLING FANS
PROVEN COOLING PERFORMANCE
CORSAIR AIRGUIDE TECHNOLOGY
iCUE LINK SMART COMPONENT ECOSYSTEM
REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
FIVE-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
| DIMENSIONS | CONTROL STYLE |
| 140mm x 25mm | PWM |
| STATIC PRESSURE | AIRFLOW (MAX) |
| 0.11mm - 4.86mm H₂0 | 10.74 - 84.7 CFM |
| RPM RANGE | NOISE LEVEL (MIN) |
| 350 - 2000 | 10 - 36 dBA |
Overview
Description
Key Features
-
iCUE LINK Single-Cable Connectivity
One universal connector daisy-chains to other iCUE LINK components — no cable spaghetti, no splitters. If it plugs in, it works. -
Magnetic Dome Bearing (10-36 dBA)
Near-frictionless operation keeps noise at 10 dBA during idle — quieter than a whisper. Scales to 36 dBA at full 2000 RPM when cooling demands it. -
Dual Light Loop RGB (18 Addressable LEDs)
Inner and outer LED rings create depth and dimension. Exclusive Time Warp lighting mode in iCUE creates optical illusions, thanks to an individual MCU in each fan. -
AirGuide Static Pressure Technology (4.86 mm H₂O)
Anti-vortex stator vanes concentrate airflow into a focused cone. Pushes air through radiator fins and restrictive heatsinks more effectively than open-blade designs.
Use Cases
-
RGB showcase builder (addressable lighting, iCUE sync, visual impact)
Dual light loops with 18 addressable RGB LEDs create depth impossible with single-ring fans. Exclusive Time Warp mode in iCUE generates optical illusions. iCUE LINK lighting effects sync with RAM, coolers, and peripherals for unified themes. -
First-time liquid cooler user (easy installation, iCUE LINK simplicity)
One cable per fan — that's it. Daisy-chain to the iCUE LINK hub in any order with universal connectors. QuikTurn screws install with a single twist. No RGB splitters, no ARGB headers, no cable management nightmare. -
Quiet / silent PC builder (low dBA priority, fan curves optimized for noise)
Magnetic Dome bearings deliver 10 dBA at idle — quieter than ambient room noise. PWM control lets you set custom curves in iCUE: silent at 350 RPM during browsing, ramping up to 2000 RPM only when thermals demand it. -
High-performance overclocker (maximum cooling capacity, large radiator)
4.86 mm H₂O static pressure forces air through radiator fins effectively. AirGuide stator vanes concentrate 84.7 CFM into a focused cone. 140mm size moves more air than 120mm fans at lower RPM for better noise-to-performance ratio.
Tech Specs
| Weight | 0.324kg |
|---|---|
| Fan Airflow | 10.74 - 84.7 CFM |
| Fan Model | LX SERIES |
| Flow Type | STATIC PRESSURE |
| LINK Compatibility | RGB |
| Fan Static Pressure | 0.11 - 4.86 mm-H20 |
| Speed | 350 – 2000 RPM ±10% |
| Sound Level | 10 - 36 dBA |
|---|---|
| PWM Control | Yes |
| Power Draw | 0.45A |
| Package Quantity | 1 |
| LED Color | RGB |
| Fan Size | 140mm x 25mm |
| Bearing Type | Magnetic Dome |
