CORSAIR FRAME 5000D SERIES

• To remove the top Three-Quarter Side Glass Panel (B), unscrew the two captive thumbscrews on the back of the case and swing the glass off the tabs in the front of the case.

• To remove the lower Quarter Mesh Side Panel (C), unscrew the captive thumbscrew on the back of the case and swing it off the tabs in the front of the case.

• To remove the Steel Side Panel (Q), unscrew the two captive thumbscrews on the back of the case and swing it off the tabs in the front of the case.

• Pull the Front Panel (O) outward. It is secured by two ball snaps at the top and two at the bottom.

• Unscrew the two captive thumbscrews at the rear, then gently pull the rubberized strap backward to remove the Top Panel (J).

• FRAME 5000D RS
• FRAME 5000 RS ARGB

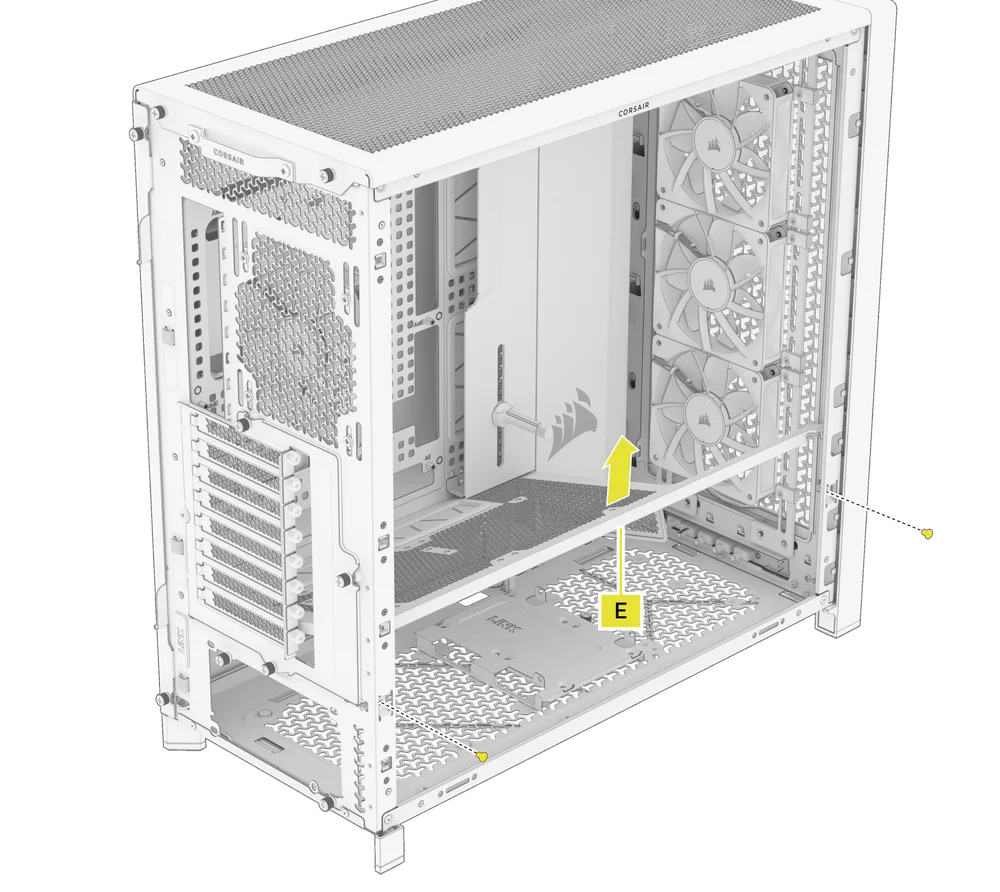

• To remove the PSU shroud (E), unscrew the two screws located along the side of the front and rear panel of the case, then lift the shroud out.

• FRAME 5000D WOOD

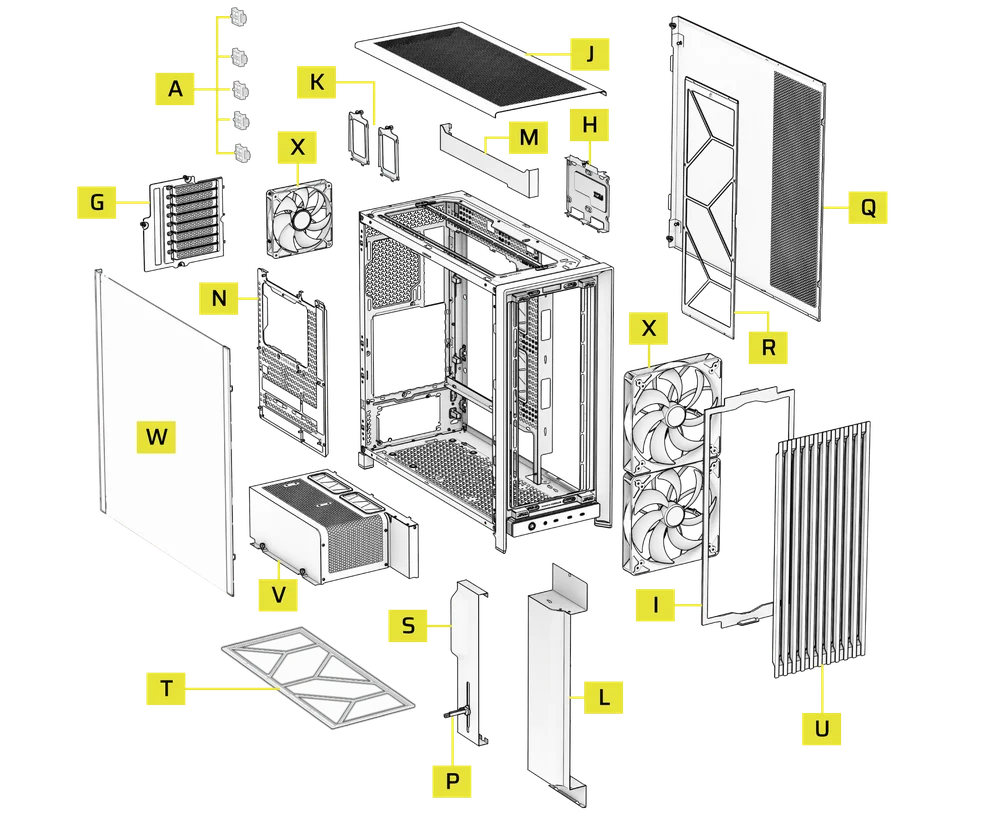

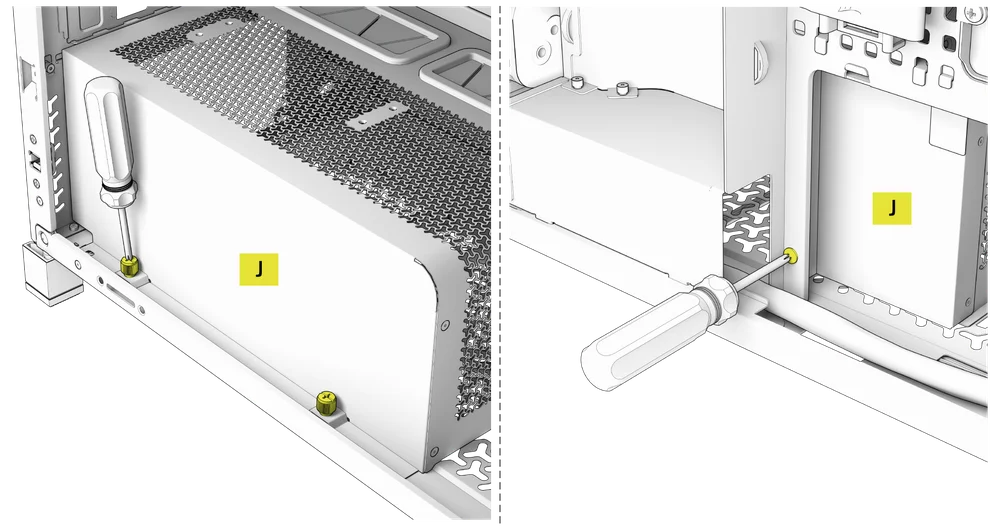

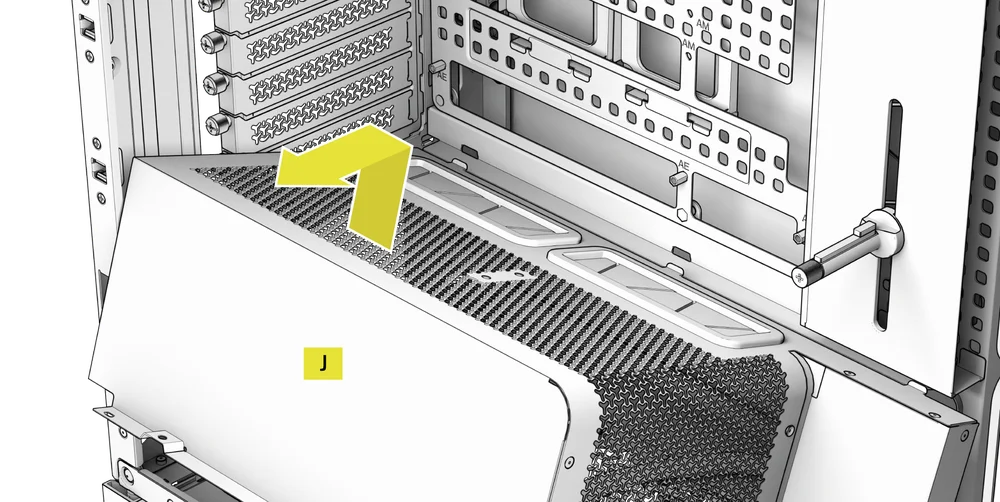

The Compact PSU Shroud (J) is secured with two screws accessible from the left side of the case and one screw securing it to the motherboard tray from the right side.

• Remove the three screws.

• Lift the outer side of the shroud to disengage the tabs on the inner side, then lift the shroud out of the case.

The FRAME 5000D comes equipped with the Side Cable Shroud (L) pre-installed. For enhanced airflow, you can swap it out with the provided Side Fan Mounting Bracket (1), included in the accessories.

• Remove the screw at the top of the Side Cable Shroud (L), then tilt the shroud outward to detach it.
• Align the bottom notches of the Side Fan Mounting Bracket (1) with the corresponding holes at the bottom of the case, and secure it using the top screw.

The Side Motherboard Cable Shroud (S) is secured by a single screw on its back side.

• Remove the screw on the back of the Side Motherboard Cable Shroud (S).
• Unhook the bottom part of the shroud from the motherboard tray.

The Upper Motherboard Cable Shroud (M) is secured by a single screw on its back side.

• Remove the screw on the back of the Upper Motherboard Cable Shroud (M).
• Unhook the left side of the shroud from the motherboard tray.

The RapidRoute 2.0 Motherboard Tray (N) is secured into place by four screws on its back side.

• Remove the four screws on the back of the RapidRoute 2.0 Motherboard Tray (N).
• Tilt the bottom part of the tray outward to remove it.

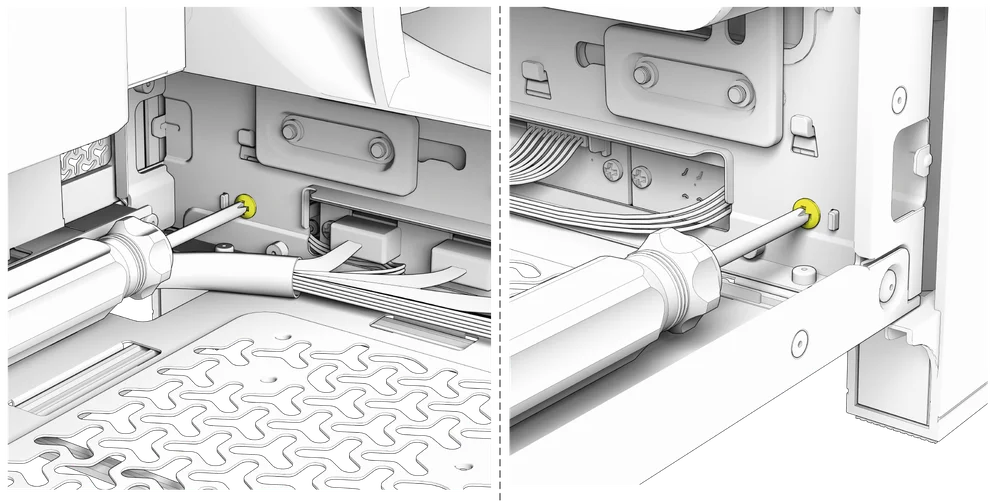

The Front Panel I/O is held in with two screws on the bottom of the case.

• To remove it, simply unscrew these two screws, and the entire Front Panel I/O assembly can be lifted out.
• To reinstall the Front Panel I/O or to install a new one, place the assembly back in position and secure it with the same two screws.

The FRAME 5000D supports mITX, mATX, ATX and E-ATX motherboards, including ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards with reverse connectors.

• Align your motherboard with the standoffs and secure it using the Motherboard Screws (8).

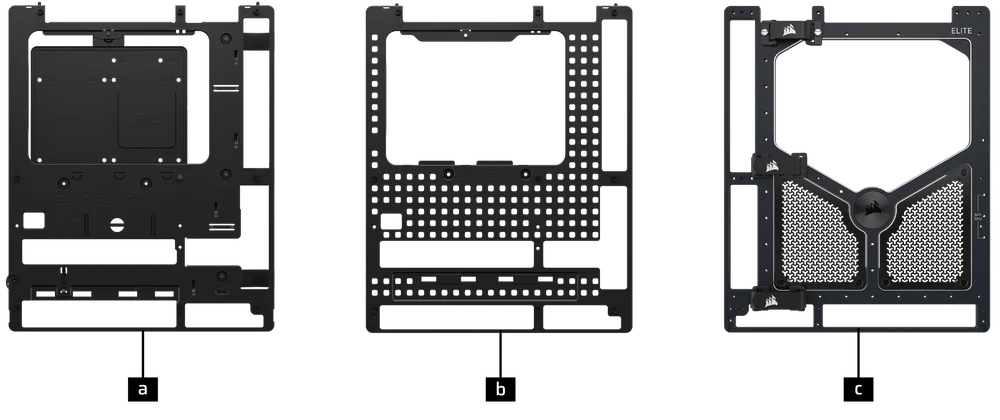

The FRAME 5000D Series includes a RapidRoute 2.0 motherboard tray, with additional tray options available (sold separately) to customize your build:

The FRAME 5000D includes a Reverse Connector Magnetic Strip (2), designed to cover the exposed edge of the reverse connector holes in the motherboard tray.

• Align the Reverse Connector Magnetic Strip (2) to your standoffs and adjust side to side to close the gap on your motherboard.

If you're installing a motherboard with reverse connector compatibility, the Reverse Connector Magnetic Strip (2) can be used to fill the gap around the 24-pin ATX port, providing a cleaner and more polished appearance.

When installing a standard motherboard, you can slide the Reverse Connector Magnetic Strip (2) behind the board, aligning it with the standoffs, to cover the reverse connector slot and conceal any wires running along the motherboard tray for a cleaner look.

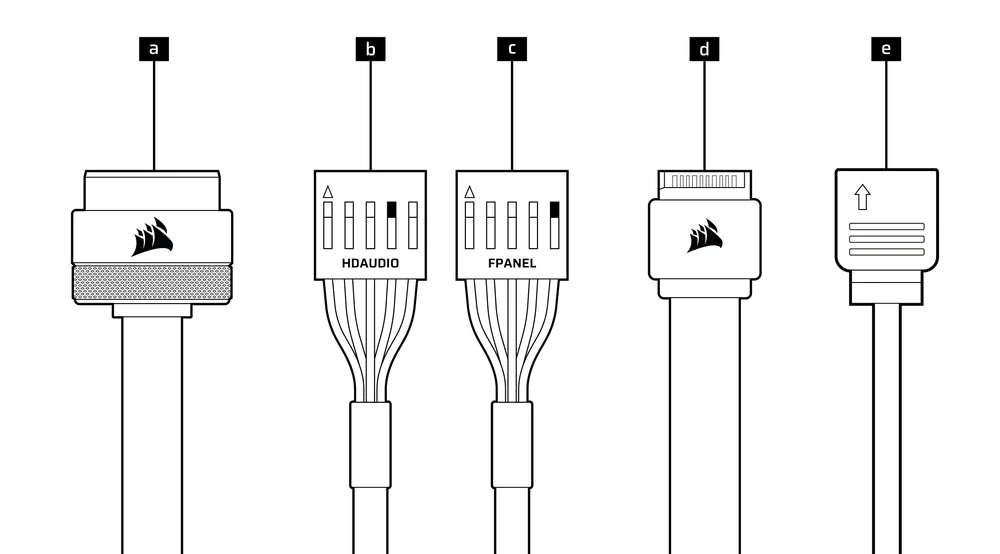

• Connect the FPANEL plug to the front panel I/O header on your motherboard, aligning it with the keyed layout. This header is often labeled JFP1 on some motherboards.

• Use the included Front I/O Adapter (4) to connect the FPANEL plug to the individual front panel header pins.

• FRAME 5000D RS
• FRAME 5000D RS ARGB

• FRAME 5000D WOOD

• FRAME 5000D RS
• FRAME 5000D RS ARGB

• FRAME 5000D WOOD

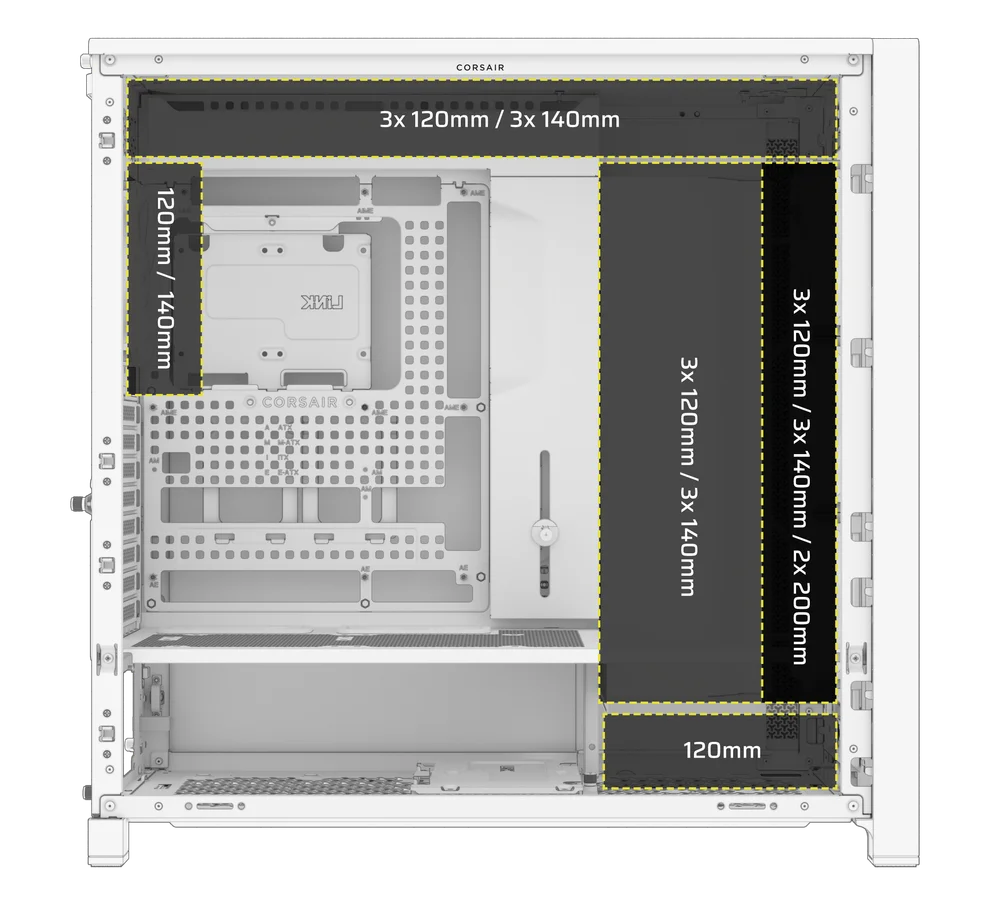

CORSAIR's InfiniRail™ is an innovative fan and radiator mounting system designed to offer exceptional flexibility and ease of use in PC case builds. Unlike traditional cases with fixed mounting points, InfiniRail™ utilizes adjustable steel rails that allow users to slide and position fans and radiators precisely where needed.

The FRAME 5000D features two of these InfiniRail™ systems; one on the top and one on the front.

• Loosen the set screws on the front and/or top rails to allow for fan installation adjustments.

• Adjust the the front and/or top rails for your fans according to the markings on the case.

• The top panel supports 120mm or 140mm fans.
• The front panel supports 120mm, 120mm offset, 140mm, or 200mm fans.

Installing 120mm or 140mm Fans

To install 120mm or 140mm fans using the front InfiniRail™ Fan Mounting System, you need to install the InfiniRail™ Fan Mounts (3). Use four mounts per fan, two on each side of the rails.

• Clip the InfiniRail™ Fan Mounts (3) onto the rails by anchoring the inner edge of each mount first, then snapping the outer edge into place.
• Slide the mounts along the rails to align them with your fan mounting points.

• Align your fans to the mounting tabs on the InfiniRail™ Fan Mounts (3) and secure them by screwing QuikTurn Fan Screws (6) into the fan frame.

• Once aligned, you can lock the setup in place with the InfiniRail™ Fan Mount Lock Screws (12).

Installing 200mm Fans

• Align your fans to the InfiniRail™ fan mounting slots and secure them by screwing QuikTurn Fan Screws (6) into the fan frame.

• Align your fans to the InfiniRail™ fan mounting slots and and secure them by screwing QuikTurn Fan Screws (6) into the fan frame.

To install fans on the side, ensure you have the Side Fan Mounting Bracket (1) installed.

• Align your fans to the fan mounting slots, and and secure them by screwing QuikTurn Fan Screws (6) into the fan frame.

• Align your fans to the fan mounting holes on the PSU Shroud (E)
• Secure the fans with Long Fan Screws (7).

• Remove the Combination Drive Plate (H) on the bottom of your case.

• Align your fans to the fan mounting holes.
• Secure the fans with Long Fan Screws (7).

• Align your fan to the fan mounting holes.
• Secure the fan by screwing in QuikTurn Fan Screws (6).

FRAME 5000D has fill / drain ports pre-punched in the top and bottom panels for a Hydro X open loop liquid cooling setup.

• Remove the port covers by gently prying them off with a flathead screwdriver.

The FRAME 5000D offers several locations to mount a radiator for liquid cooling, with the front and top locations featuring an adjustable InfiniRail fan mount. Please refer to the Fan Installation section for details on using the InfiniRail Fan Mounting System.

Please refer to the following article before installing a 420mm radiator:
How to Front Mount a 420mm AIO in the FRAME 5000D

Top mounting provides optimal noise performance, but other mounts can be utilized based on your build preferences. Consult your cooler's product manual for more tips on usage and best practices.

The FRAME 5000 Series includes up to two Combination Drive Plates (H) - each capable of mounting one HDD and two SSDs simultaneously - as well as two dedicated 2.5" SSD Trays (K).

Unscrew the thumbscrew securing the Combination Drive Plate (H), then remove the plate.

Install the SSD(s) onto the Combination Drive Plate (H) by securing it to the bottom of the plate using the included SSD Screws (9).

Install the HDD onto the Combination Drive Plate (H) by securing it from the sides using the included HDD Screws (8).

The Combination Drive Plate (H) also serves as a mounting location for an iCUE LINK System Hub controller, if one is used. If you install a HDD on the Combination Drive Plate you will need to put the System Hub in a different location.

Reinsert the Combination Drive Plate (H) into its designated slot in the case, then secure it by tightening the thumbscrew clockwise.

Unscrew the thumbscrew securing the SSD Tray (K), then remove the tray.

Install the SSD onto the SSD Tray (K) by securing it from the bottom using the included SSD Screws (9).

Reinsert the SSD Tray (K) into its designated slot in the case, then secure it by tightening the thumbscrew clockwise.

• Install the PSU with the fan facing down.
• Secure the PSU using screws at the rear panel.

The FRAME 5000D is fully compatible with all SHIFT power supplies with side-mounted connectors and installs identically to a standard ATX PSU.

The included PCI bracket allows the FRAME 5000D to support both horizontal and vertical GPU mounting configurations.

• Unscrew the PCIe slot covers and remove them.

• Insert the card into the PCIe slot until it clicks into place with the PCIe slot's retention retention mechanism.
• Align the bracket with the PCIe slots and secure the card to the case.

The FRAME 5000D supports vertical GPU mounting with the included PCI plate and a PCIe Riser Card (sold separately).

• Uninstall the PCI Plate (G) by removing the three screws at the rear of the case.

• Rotate the PCI Plate (G) 90 degrees counterclockwise so that the PCIe slot cover thumbscrews face upward.

• Re-screw the three previously removed thumbscrews.

• Install the Vertical Mount Standoffs (11) from the accessory box to the top of the PSU shroud. There are two locations for standoffs, so choose the location that best suits the size of your GPU in relation to how far it is from the side panel.

• Mount the PCIe Riser Card (sold separately) to the standoffs using two of the screws included with the Vertical Mount Standoffs (11).

• Mount the GPU into the PCI bracket by firmly seating it into the riser card until it clicks, then secure it with a thumbscrew.

The GPU Anti-Sag Stabilization Arm supports your graphics card, preventing it from bending or sagging under the weight of its heatsink. This not only helps maintain the card’s longevity but also contributes to a cleaner, more professional-looking build.

• Adjust the GPU Anti-Sag Stabilization Arm (P) by loosening the front-facing thumbscrew and sliding it up or down.

If your GPU fan or other parts come into contact with the rubber arm, use the included GPU Anti-Sag Stabilization Arm Rubber Spacer (13) from the accessory box to ensure clearance from any moving parts.

• Attach the self-adhesive Anti-Sag Arm Rubber Spacer (13) to the GPU Anti-Sag Arm (P).

• FRAME 5000D RS
• FRAME 5000D WOOD

Please visit the CORSAIR RS Series Quick Start Guide for instructions on fan installation.

• FRAME 5000D RS ARGB

Please visit the CORSAIR RS ARGB Series Quick Start Guide for instructions on fan installation.

The FRAME 5000D includes three pre-installed removable dust filters, plus an additional filter in the accessory box.

• To remove the Front Fan Filter (I), tilt the plastic filter frame towards the top of the case, pulling from the bottom.

• To remove the magnetic Steel Side Panel Filter (R), pull at the center to flex the frame, then detach the ends from the locking points and lift the filter away.

• To remove the Bottom Filter (T), grip the edge of the filter's frame and pull it away from the case - it will slide out easily.

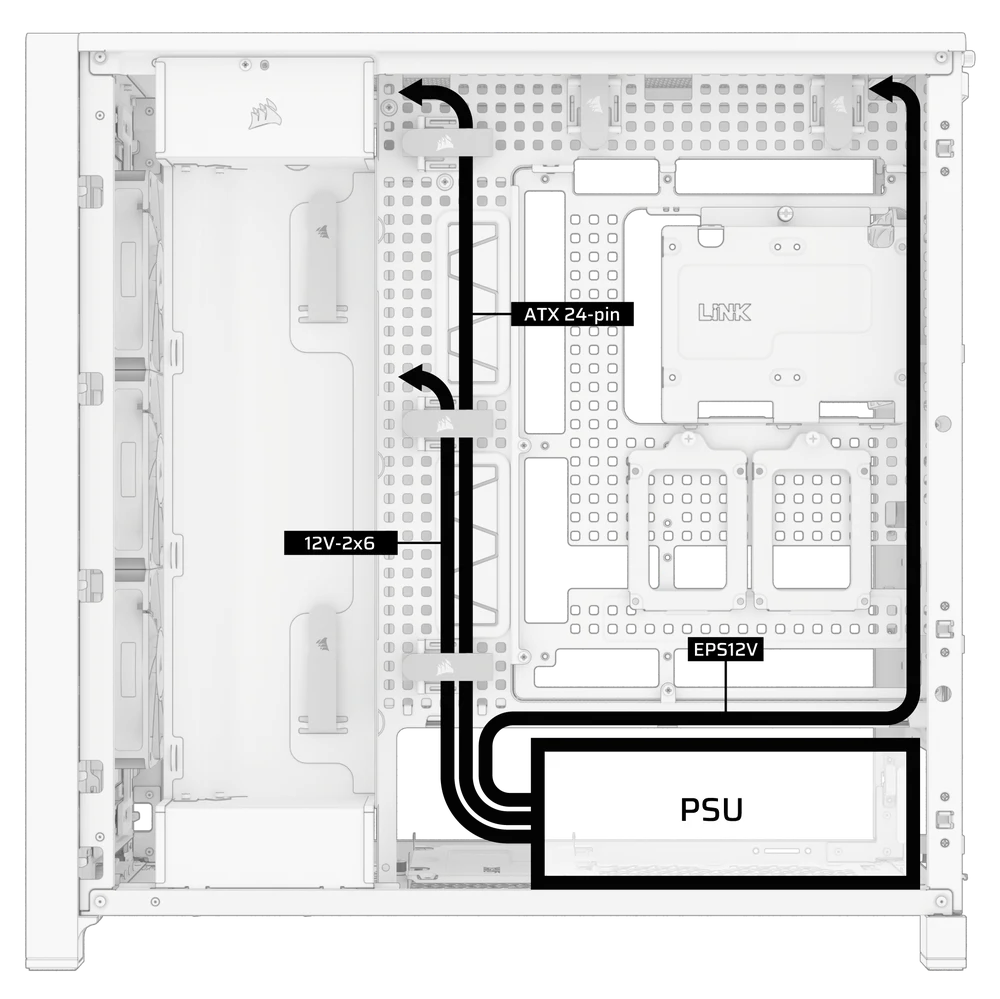

FRAME 5000 Series cases feature the RapidRoute 2.0 cable management system, identified by the distinctive squircle patterns throughout the case. Wherever you see these squircles, you’ve found a pegboard-compatible mounting point.

Your case comes with five pre-installed ratcheting cable mounts. Each strap is designed to securely cinch cables against the mount's plastic base. You can reposition these mounts in any orientation to suit your cable management needs.

Removing a RapidRoute Part

• To remove a RapidRoute 2.0 Ratcheting Strap Mount, pull the plastic plunger located at its center.

• Pull the mount off of the squircle, tilting it off in the direction of the retaining hook.

• Position the RapidRoute 2.0 Ratcheting Strap Mount where you would like it and repeat the previous steps in reverse to re-position the clip. Install the hook & loop strap on one side of the clip.
• Run your cables through the channel, then run the strap overtop the cables through the other side of the strap mount to cinch the cables against the mount and motherboard tray.

The FRAME 5000D includes other various cable management features such as:

• Variable internal/external hook and loop straps for the rear of the case.
• Zip tie points are strategically placed for routing power cables to specific devices.
• iCUE LINK cable hooks in the top panel to securely hold iCUE LINK cables without permanent attachment.
• Supports most reverse connector motherboards (MSI, ASUS, GIGABYTE) that feature connectors on the rear of the board for a build with no visible motherboard cables.
• A dedicated location for your iCUE LINK System Hub.
• If you don’t feel like spending much time on cable management and don’t want your cables visible through the bottom mesh quarter-panel, swap the translucent insert for the color-matched blank-out insert included in the Accessory Box.
• All grommets included are DoubleShot grommets, meaning they are shot from two different rubbers, a hard outer to keep the grommet seated, and a softer inner rubber for easier cable passage.
• There are included RapidRoute 2.0 cable looms that let you wrap very long wires like an extension cord based on your length needs.


CC-8901189 - FRAME 5000D ELITE Wood Ripple Front Panel, Black / Walnut
CC-8901190 - FRAME 5000D ELITE Wood Ripple Front Panel, White / Oak
CC-8901187 - FRAME 5000D Wood Slat Front Panel, Black / Walnut
CC-8901188 - FRAME 5000D Wood Slat Front Panel, White / Oak
CC-8901179 - FRAME 5000D Full Tempered Glass Replacement Panel, Black
CC-8901180 - FRAME 5000D Full Tempered Glass Replacement Panel, White

CORSAIR FRAME 5000D Series computer cases have a 2-year warranty.
