High static pressure for efficient radiator or heatsink cooling
Cooling today’s high-performance PCs is a complex task, and a single fan design can’t meet every need. The fan you use to pull hot air out of your case might not be the best fan to mount flush against a heatsink or radiator.

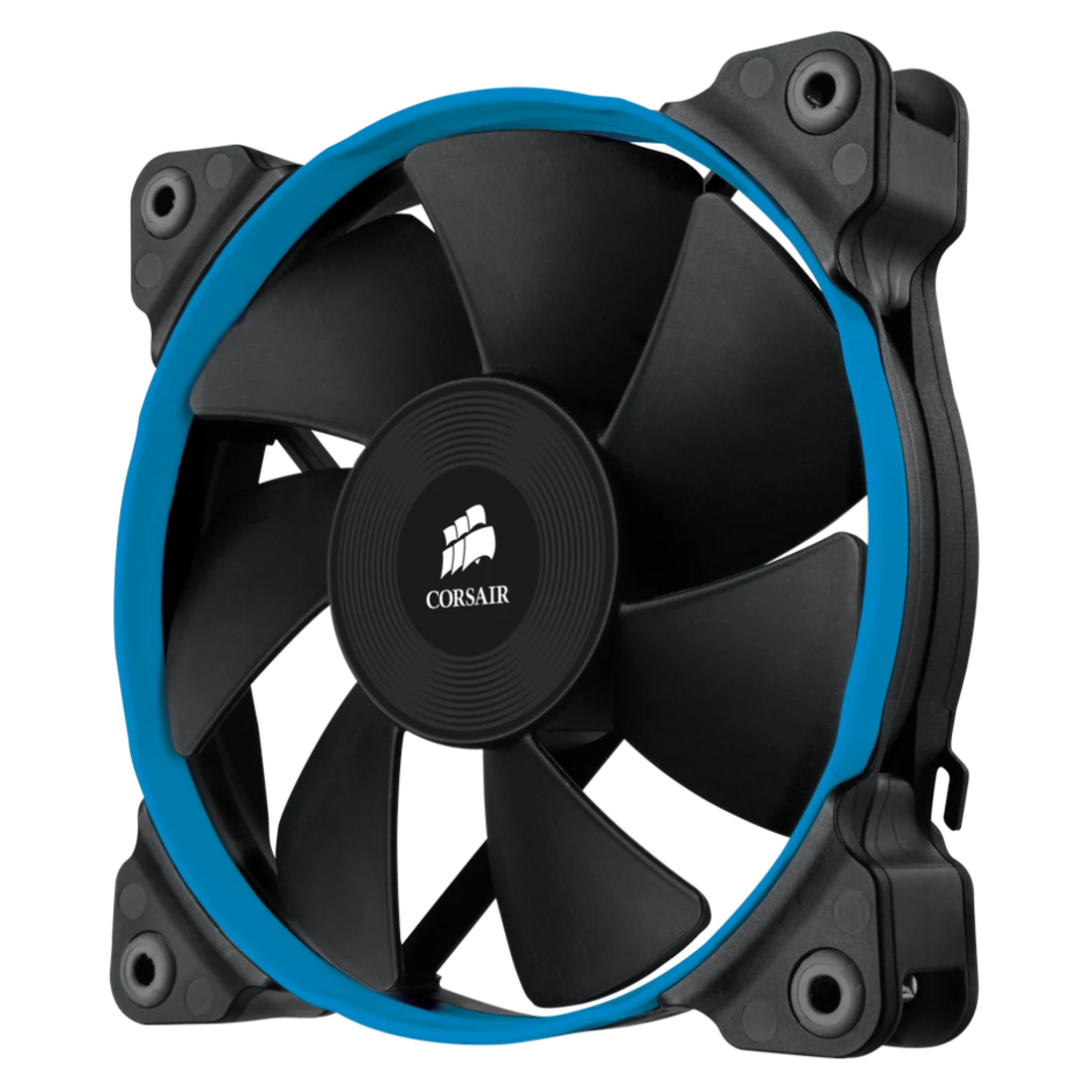

Static pressure is the measure of how well a fan can push air in this type of highly restrictive environment, and this is where the SP120 excels. It’s an ideal solution for radiator and heatsink use, as well as drive bay intakes, and other locations where you’re mounting a fan directly adjacent to a heat source.
For high-volume cooling in less restrictive environments, like case exhaust or side intakes, check out our AF series of high-volume fans.
Performance
| SP120 High Performance Edition | SP120 Quiet Edition | |
| Size | 120mm x 25mm | 120mm x 25mm |
| Operating Voltage | 7V - 12V | 7V - 12V |
| Performance at 12V | Performance at 12V | |
| Airflow | 62.74 CFM | 37.85 CFM |
| Static Pressure | 3.1 mmH20 | 1.29 mmH20 |
| Sound Level | 35 dBA | 23 dBA |
| Speed | 2350 RPM | 1450 RPM |
| Power Draw | 0.18 A | 0.08 A |
