Efficient, low-noise heatsink and radiator cooling with PWM control

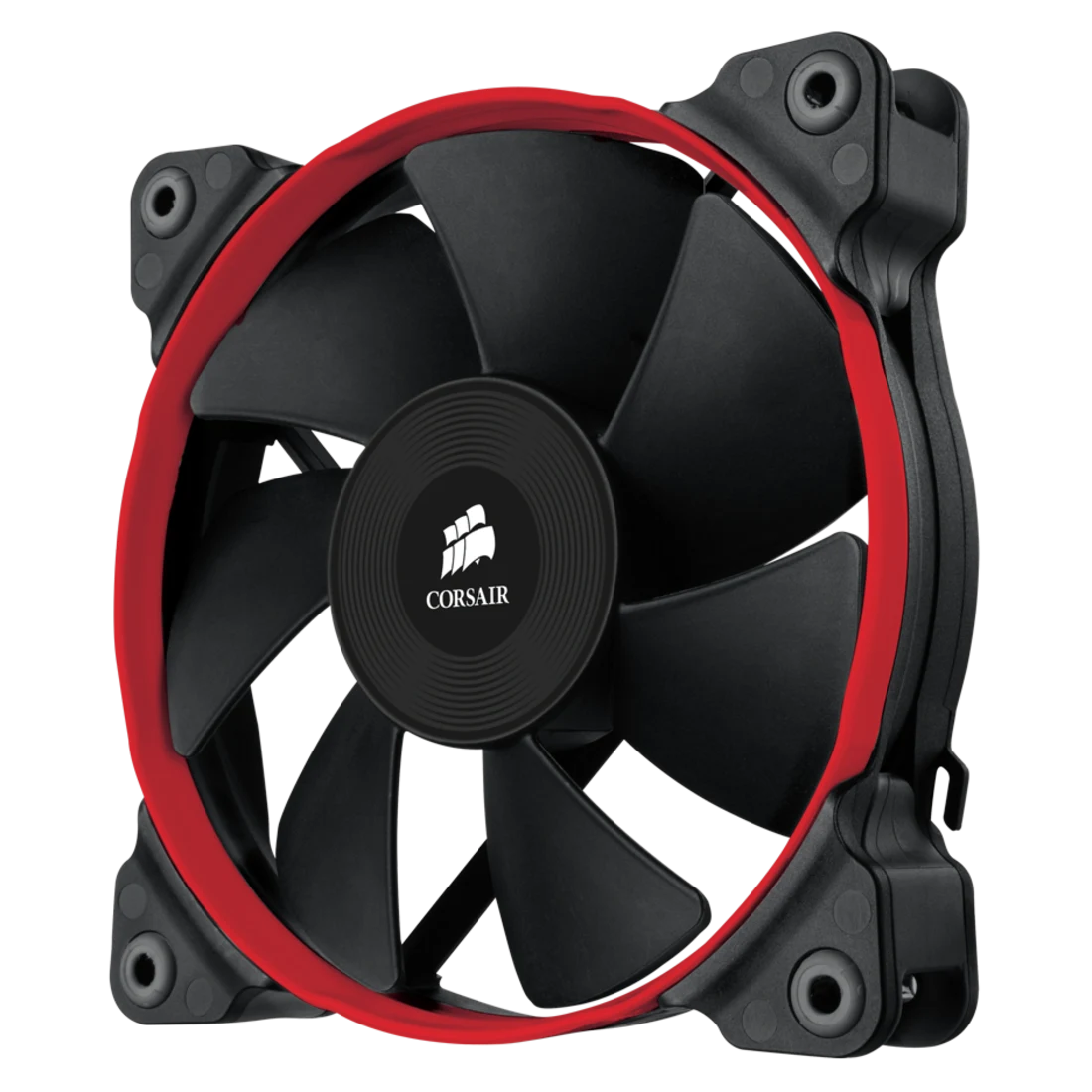

The wide body, low-pitch blades of the SP120 fans combined with the custom housing provides outstanding static pressure and airflow through heatsinks or radiators. With rubberized corners, a quiet and reliable Advanced Hydraulic Bearing, and PWM support for increased fan speed control, the SP120 truly is the strong, silent type.
Included in the box are the three user-replaceable colored rings, in red, blue, and white, so you can customize your fan to match your case’s components. Each fan also features blacked-out wires and connectors, so your build looks elegant and clean when done.
Features
- Outstanding static pressure of up to 1.29 mmH20
- 4-PIN PWM Support for increased fan speed control
- Seven wide body, low-pitch custom blades for optimal static pressure at very low noise levels
- Custom fan enclosure for ducting air in the right direction with minimal interference
- Advanced hydraulic bearing for reliable, quiet operation

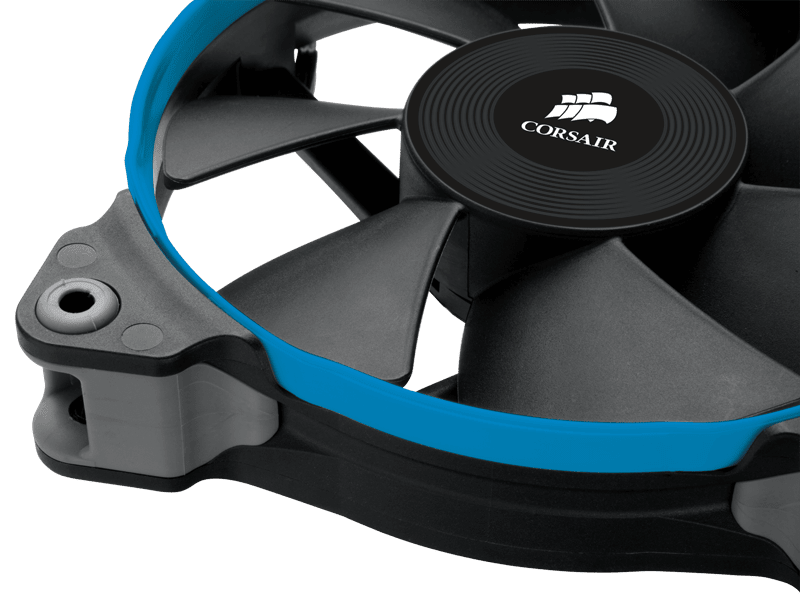

- Rubberized corners for sound damping when installed with standard screws
- Replaceable colored rings so you can match your fans to your case
Performance
| SP120 PWM High Performance Edition | SP120 PWM Quiet Edition | |
| Size | 120mm x 25mm | 120mm x 25mm |
| Operating Voltage | 7V - 12V | 7V - 12V |
| Performance at 12V | Performance at 12V | |
| Airflow | 62.74 CFM | 37.85 CFM |
| Static Pressure | 3.1 mmH20 | 1.29 mmH20 |
| Sound Level | 35 dBA | 23 dBA |
| Speed | 2350 RPM | 1450 RPM |
| Power Draw | 0.18 A | 0.08 A |
