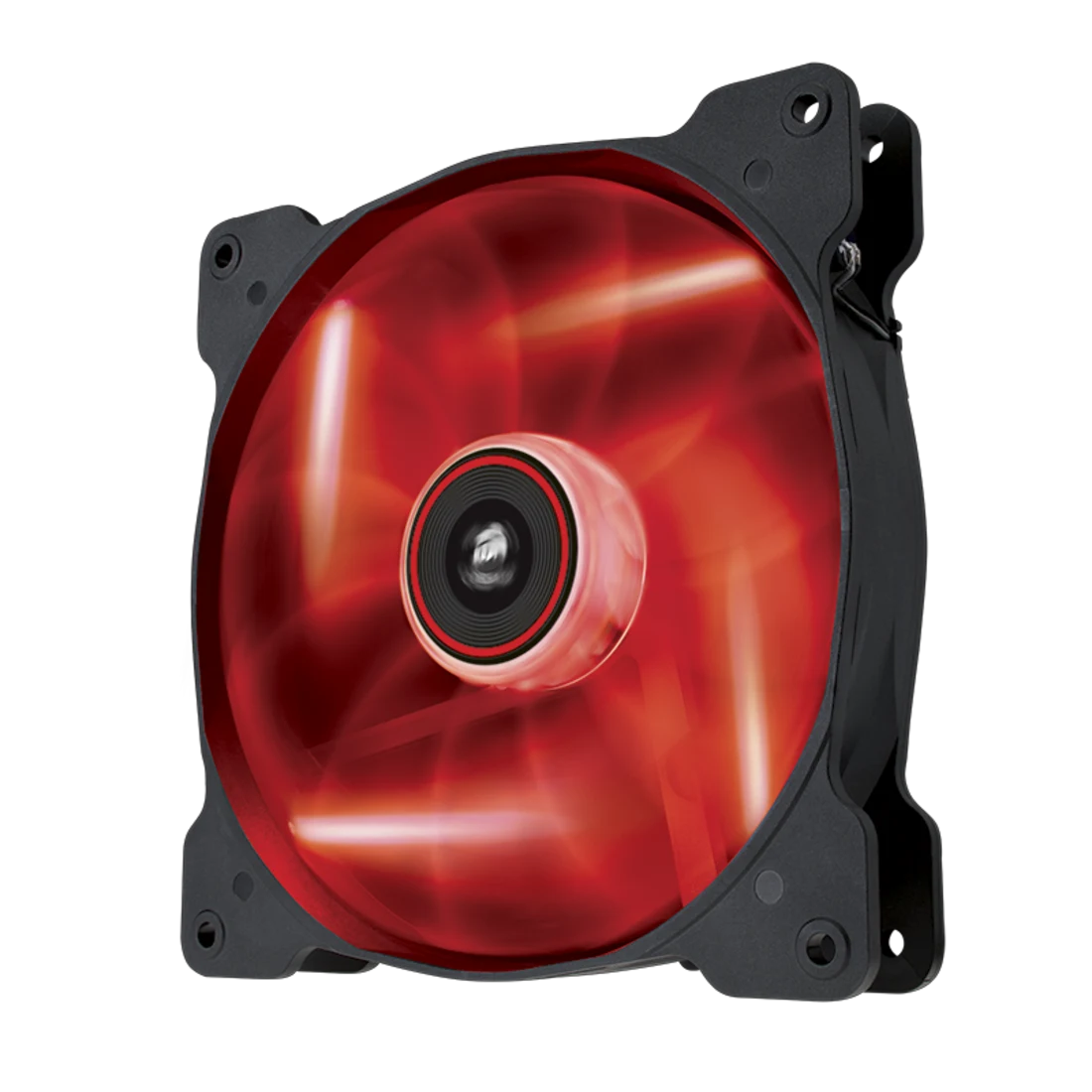

Air Series™ AF140 LED Red Quiet Edition High Airflow 140mm Fan

CORSAIR Air Series™ LED high airflow PC case fans combine efficient, low-noise airflow with striking LED lighting.
SKU: CO-9050017-RLED

Superior cooling performance and LED illumination

Corsair Air Series LED high airflow PC case fans combine efficient, low-noise airflow with striking LED lighting. The custom-molded blades are designed for high-volume air delivery with less noise and turbulence than typical case fans. They’re translucent, with a frosted texture, so the light from the four LEDs adds a dramatic effect.

Tuned for high-airflow, large volume cooling

Air Series AF fan models perform best in unrestricted spaces with at least 3cm of clearance, and they’re ideal for mounting at the rear or top of your PC case as exhaust fans for your PC’s motherboard and CPU, graphics accelerators, and other components that fill the case with heat. They work equally well as unrestricted intake fans for areas like side panels or bottom intakes.

For high restriction areas like hard drive cages or in other tight spaces where there’s less air volume, check out our Air Series SP models of high static pressure fans.

Better performance than standard case fans

Air Series AF fan models are designed to outperform standard case fans. The blades are custom-molded for optimal airflow, and they’re ultra-thin for less noise and turbulence. The sleeved bearing system reduces vibration for quiet operation.

Performance

AF120 Quiet Edition LED AF140 Quiet Edition LED
Size 120mm x 25mm 140mm x 25mm
Operating Voltage 7V - 12V 7V - 12V
Performance at 12V Performance at 12V
Airflow 52.19 CFM 66.4 CFM
Static Pressure .75 mmH20 .80 mmH20
Sound Level 25.2 dBA 25.5 dBA
Speed 1500 RPM 1200 RPM
Power Draw 0.40 A 0.23 A

Superior cooling performance and LED illumination

Corsair Air Series LED high airflow PC case fans combine efficient, low-noise airflow with striking LED lighting. The custom-molded blades are designed for high-volume air delivery with less noise and turbulence than typical case fans. They’re translucent, with a frosted texture, so the light from the four LEDs adds a dramatic effect.

Tuned for high-airflow, large volume cooling

Air Series AF fan models perform best in unrestricted spaces with at least 3cm of clearance, and they’re ideal for mounting at the rear or top of your PC case as exhaust fans for your PC’s motherboard and CPU, graphics accelerators, and other components that fill the case with heat. They work equally well as unrestricted intake fans for areas like side panels or bottom intakes.

For high restriction areas like hard drive cages or in other tight spaces where there’s less air volume, check out our Air Series SP models of high static pressure fans.

Better performance than standard case fans

Air Series AF fan models are designed to outperform standard case fans. The blades are custom-molded for optimal airflow, and they’re ultra-thin for less noise and turbulence. The sleeved bearing system reduces vibration for quiet operation.

Performance

AF120 Quiet Edition LED AF140 Quiet Edition LED
Size 120mm x 25mm 140mm x 25mm
Operating Voltage 7V - 12V 7V - 12V
Performance at 12V Performance at 12V
Airflow 52.19 CFM 66.4 CFM
Static Pressure .75 mmH20 .80 mmH20
Sound Level 25.2 dBA 25.5 dBA
Speed 1500 RPM 1200 RPM
Power Draw 0.40 A 0.23 A

Tech Specs

Weight0.19
Fan TypeQuiet Edition
Fan Airflow66.4 CFM
Fan ModelAF Series
Flow TypeAIRFLOW
LINK CompatibilityNone
Fan Static Pressure.80 mm-H2O
Speed1200 RPM
Sound Level25.5 dBA
PWM ControlNo
Power Draw0.23 A
Package Quantity1
Operating Voltage7V - 12V
LED ColorRED
Fan Size140mm x 25mm
Bearing TypeSleeve
Fan Warranty2 Year
x1 Air Series AF140 LED Quiet Edition High Airflow 140mm Fan
Mounting Screws
Warranty leaflet
