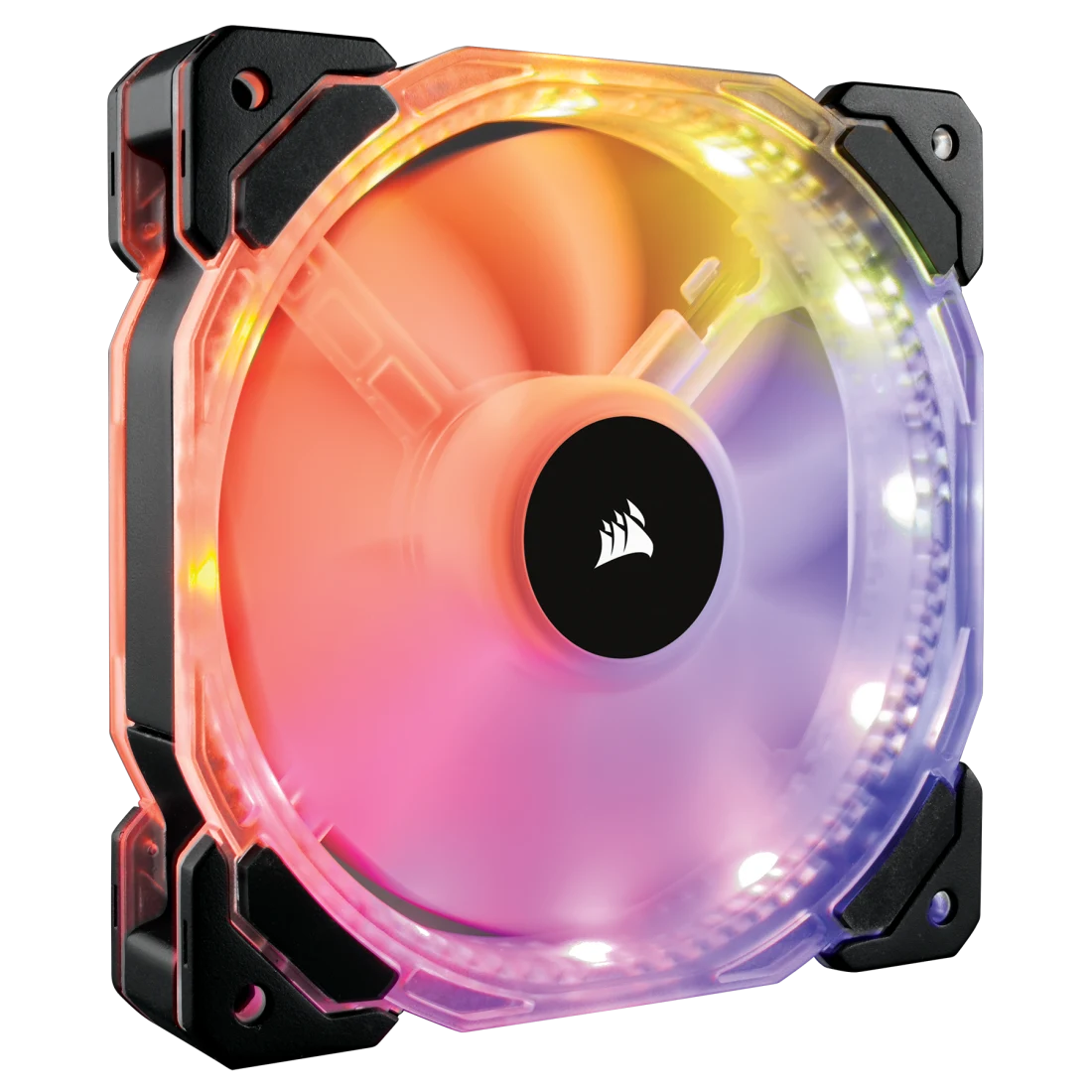

The CORSAIR HD140 RGB LED PC case fans combine 12 independent frame mounted RGB LEDs and excellent air delivery, bringing a stunning element to your rig.
Set your fans to stun with fading, breathing, blinking and other LED modes. The HD140 RGB LED fans are tailor-made for those seeking to make their rigs outshine all others.
Each of the 12 RGB LEDs, built directly into the fan frame, are fully customizable, unlocking nearly endless customization and lighting effects.
Allows you to cycle through lighting effects, effect speeds, and individual RGB LED colors.
600 -1350 PWM control range.
Provides improved performance over standard case fans.
Ultra-thin fan blades ensure less vibration, noise and turbulence.
With 12 independent LEDs and 7 unique lighting modes, the HD140 presents a myriad of lighting combinations, all waiting to be discovered. Choose a theme that matches your build or have it stand out, it’s up to you.
CORSAIR iCUE software brings your system to life with dynamic RGB lighting synchronized across all your iCUE compatible products, including fans, RGB LED light strips, keyboards, mice and more.
| Weight | .28kg |
|---|---|
| Fan Airflow | 74 CFM |
| Fan Model | HD Series |
| Flow Type | STATIC PRESSURE |
| LINK Compatibility | RGB |
| Fan Static Pressure | 1.85 mm-H2O |
| Speed | 600 - 1350 +/- 10% |
| Sound Level | 28.6 dBA |
| PWM Control | Yes |
|---|---|
| Power Draw | 0.30 A |
| Package Quantity | 1 |
| Operating Voltage | 7V - 13.2V |
| LED Color | RGB |
| Fan Size | 140mm x 25mm |
| Bearing Type | Hydraulic |
| Fan Warranty | 2 Year |
