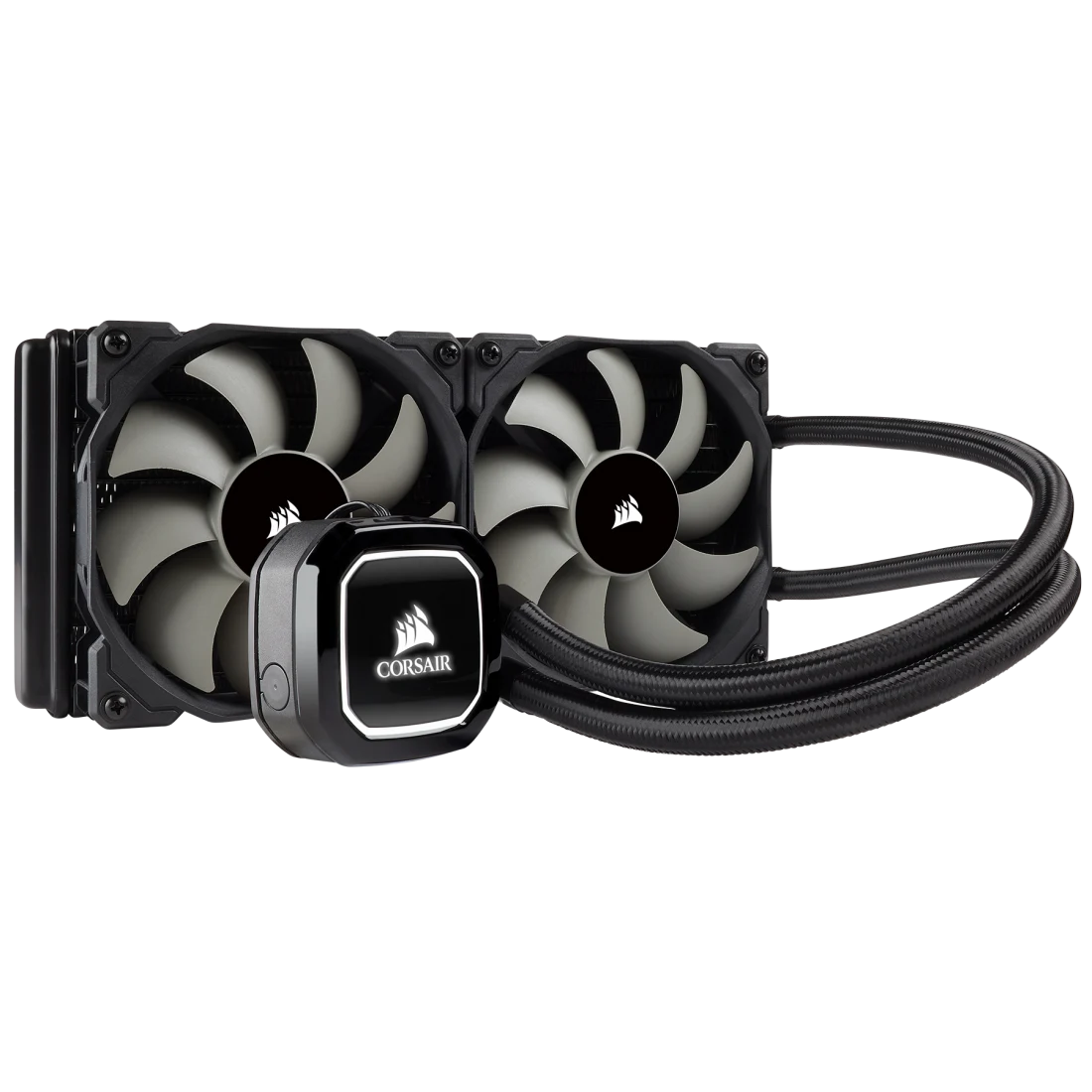

The CORSAIR Hydro Series H100x is an extreme performance liquid CPU cooler that packs dual 120mm fans and a 240mm radiator into a simple, no-fuss package.
Experience lower CPU temperatures with a 240mm high-density radiator for maximum cooling surface area and performance.
Two CORSAIR SP Series 120mm PWM fans provide powerful cooling with fans that run from 600 RPM to 1,700 RPM, making it easy to minimize noise or maximize airflow.
White LED-lit pump head adds a touch of brilliance to any system build.
Thermally optimized cold plate and low-noise pump design for more efficient, quieter cooling.
Modular tool-free mounting bracket for quick and easy installation onto all current AM4, LGA 1151 and LGA 2066 socket CPUs.
| Lighting | WHITE |
|---|---|
| Cooling Warranty | 5 Year |
| Fan Static Presssure | 2.08 mm-H2O |
| AMD Processors Supported | Ryzen, Phenom II, Athlon II, FX, A-Series, Opteron, Sempron, Athlon 64 |
| Intel Processors Supported | Core i9, i7, i5, i3, Pentium, Celeron |
| Fan Control Method | PWM |
| Tubing Material | White Sleeved Low-Permeation Rubber |
| Tubing Length | 380mm |
| Coldplate Dimensions | 56 x 56mm |
| Noise Level | 37 dBA |
| Radiator Size | 240mm |
| Cooling Socket Support | Intel 1700, Intel 1200, Intel 1150, Intel 1151, Intel 1156, Intel 2011, Intel 2066, Intel 1366, AMD AM5, AMD AM4 |
| PWM | Yes |
|---|---|
| Fan Speed | 1700 RPM |
| Fan Dimensions | 120mm x 25mm |
| Cold Plate Material | Copper |
| Number of Fans | 2 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 275mm x 120mm x 27mm |
| Lighting Effects | WHITE |
| Weight | 1.664kg |
| Fan Airflow | 57.2 CFM |
| Fan Model | SP Series |
| Fan Static Pressure | 2.08 mm-H2O |
