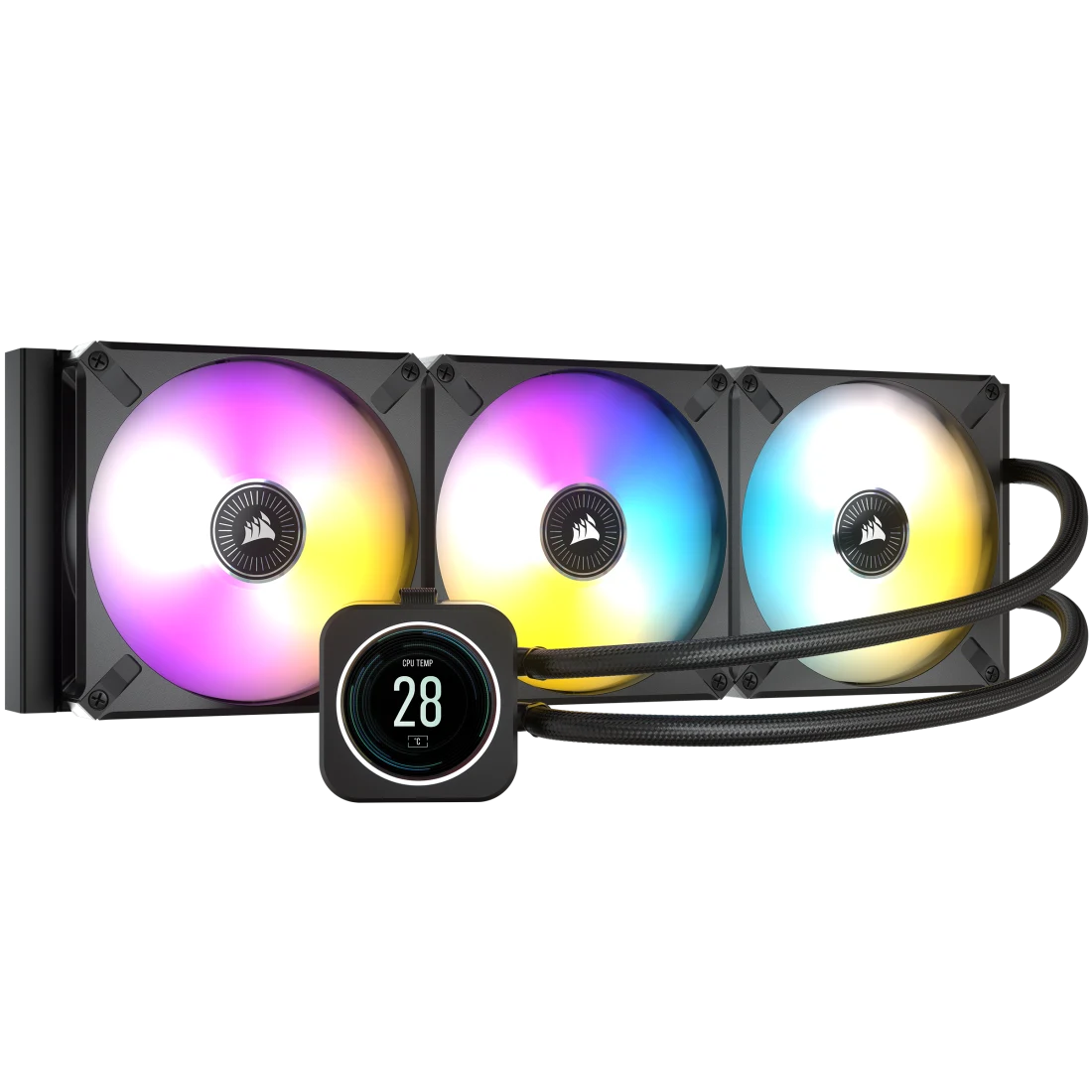

iCUE H170i ELITE LCD Display Liquid CPU Cooler
The CORSAIR iCUE H170i ELITE LCD Display Liquid CPU Cooler delivers powerful, customized cooling for the most ambitious PC builds, with a personalized LCD screen and three cutting-edge CORSAIR ML140 RGB ELITE PWM fans.
Radiator Size
MORE TO CONSIDER
Features
iCUE Enabled Product
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.LEARN MORE
SKU: CW-9060063-WW
- Overview
- Tech Specs
- Downloads
- Guides
- Package Contents
ELITE LCD
YOUR OWN PERSONALIZED LCD DASHBOARD
Upload your own animated GIFs and images or choose from numerous pre-installed screens and lighting profiles for groundbreaking system lighting and customization options.
DISPLAY SCREEN PREVIEW
LIGHTING PROFILES
BRILLIANT IPS LCD DISPLAY
Showcase your favorite animated GIF, funniest meme, your team's logo, or any images you like on a custom 2.1" IPS LCD screen with 480x480 resolution and ultra-bright 600cd/m² backlight.
30FPS
PANEL
24 BIT
HIGH-PERFORMANCE PUMP HEAD WITH RGB LED RING
Don't sacrifice performance to thermal throttling. A powerful, low-noise pump head ensures you can squeeze every last MHz out of compatible CPUs.
UPGRADE EVERYTHING
NEXT GENeration Fans to Elevate Your CPU Cooling
All-new CORSAIR ML RGB ELITE magnetic levitation fans with eight RGB LEDs per fan and AirGuide technology channel airflow for extreme CPU cooling performance.
ZERO RPM MODE
Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely at low temperatures, eliminating fan noise.
LOW-NOISE
FAN MODE
SPLIT-FLOW COPPER COLD PLATE
An optimal cold plate design and a high-density stack of 128 micro-skived fins-per-inch provides highly efficient cooling at all loads.
AVAILABLE IN THREE RADIATOR SIZES AND PERFORMANCE LEVELS
LGA 1700 READY
Each ELITE LCD cooler comes complete with all the mounting hardware you need for modern platforms, including AMD AM5, AM4 and Intel LGA 1200 and LGA 1700, and installs in just minutes.
| SOCKET COMPATIBILITY | ||
|---|---|---|
 | AM5, AM4, sTRX4/sTR4 | |
 | LGA 1700, 1200, 115x, 2066, 2011 | |
FIVE YEAR WARRANTY
UNITE YOUR SETUP
Tech Specs
| Product Length | 457 |
|---|---|
| Product Width | 140 |
| Product Height | 120 |
| Cooling Warranty | 5 Year |
| AMD Processors Supported | Ryzen Threadripper, Ryzen, Phenom II, Athlon II, FX, A-Series, Opteron, Sempron, Athlon 64 |
| Intel Processors Supported | Core i9, i7, i5, i3, Pentium, Celeron |
| Fan Control Method | Digital |
| Tubing Material | Black Sleeved Low-Permeation Rubber |
| Tubing Length | 450mm |
| Coldplate Dimensions | 56x56mm |
| Noise Level | 10 – 31.8 dBA |
|---|---|
| Radiator Size | 420mm |
| Cooling Socket Support | Intel 1700, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2066 | AMD AM5, AM4, sTRX4, sTR4 |
| Fan Dimensions | 140mm x 25mm |
| Number of Fans | 3 |
| Radiator Material | Aluminum |
| Weight | 3.068kg |
| Fan Airflow | 15 – 82.9 CFM |
| Fan Model | ML ELITE Series |
| Fan Static Pressure | 0.30 – 2.06 mm-H2O |
H170i ELITE LCD Liquid CPU Cooler
Mounting kit for all modern CPU sockets
Three ML ELITE RGB PWM 140mm fans
Fan and radiator mounting screws
iCUE Commander CORE fan and RGB controller
Thermal compound (pre-applied)
USB Y-Splitter
