XR5 V2
CUSTOM COOLING RADIATOR

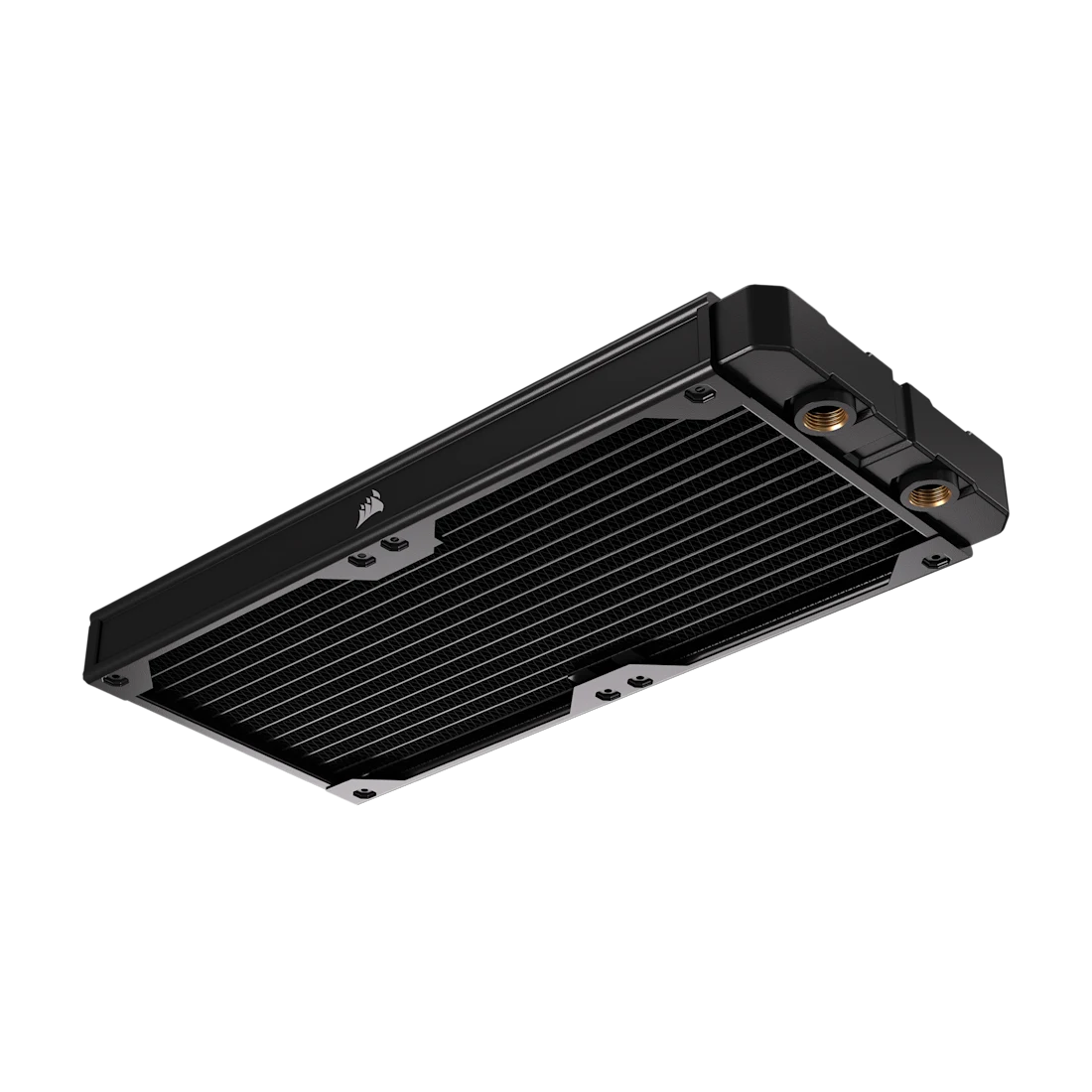

Hydro X Series XR5 280 V2 Custom Cooling Radiator
- Extreme custom cooling performance
- Optimized support for iCUE LINK fans
- 30mm radiator thickness delivers easy installation
- 25-micron cooling fins for high thermal transfer
- High-quality polyurethane coating
$104.99Current price: $104.99
SKU: CX-9034001-WW
- Overview
- Tech Specs
- Guides
- Package Contents
BUILT FOR AMBITION
EXTREME PERFORMANCE
Fan mounts on each side of the radiator give the flexibility to build high-performance push-pull configurations or scale up airflow in more complex layouts. Whether you’re chasing lower temps or assembling a showcase loop, the XR V2 Series delivers the thermal headroom needed for serious custom cooling.
CPU WATER BLOCK
OPTIMIZED FOR iCUE LINK
Carefully positioned inlet and outlet ports enable full connectivity for iCUE LINK devices on both sides of the radiator. This allows for flexible fan configurations, including push-pull setups, while keeping cable routing clean and straightforward.
BUILT TO PERFORM
HIGH SURFACE AREA
A 30mm-thick radiator with 25-micron cooling fins provide a high thermal transfer rate optimized for CORSAIR high-performance copper water blocks. The dual fin arrangement improves heat dissipation efficiency, making this an ideal radiator for the most demanding setups where every degree counts.
PROTECT AND GUIDE
EASY AND SAFE MOUNTING
Screw Protection Plates prevent long or over-tightened screws from damaging the radiator core, while integrated Fan Screw Guides ensure easy installation.
UNIVERSAL SUPPORT
STANDARD G1/4" THREADS
The inlet and outlet ports use standard G1/4" BSPP threading, ensuring broad compatibility with a wide range of fittings and custom cooling components. Whether using soft or hard tubing, straight or angled adapters, the ports integrate cleanly into any setup and support everything from high-flow loops to compact builds.
THREE-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Tech Specs
| Material | Copper / Brass |
|---|---|
| Compatible Materials | Only mix with other copper / brass products |
| Screw Thread Size | M4xP0.7 |
| Port Thread | G1/4" BSPP |
| Radiator Thickness | 30mm |
| Max Operating Temperature | 60°C coolant temperature |
| Compatible Coolants | CORSAIR XL or equivalent |
| Color | BLACK |
|---|---|
| Cooling Warranty | 3 Year |
| Number of Fans | 2 |
| Radiator Dimensions | 310mm x 140mm x 30mm |
| Model | Radiator |
| Weight | 1.039kg |
XR5 280
8 x M4x6mm screws
8 x M4x30mm screws
8 x M4x35 screws
