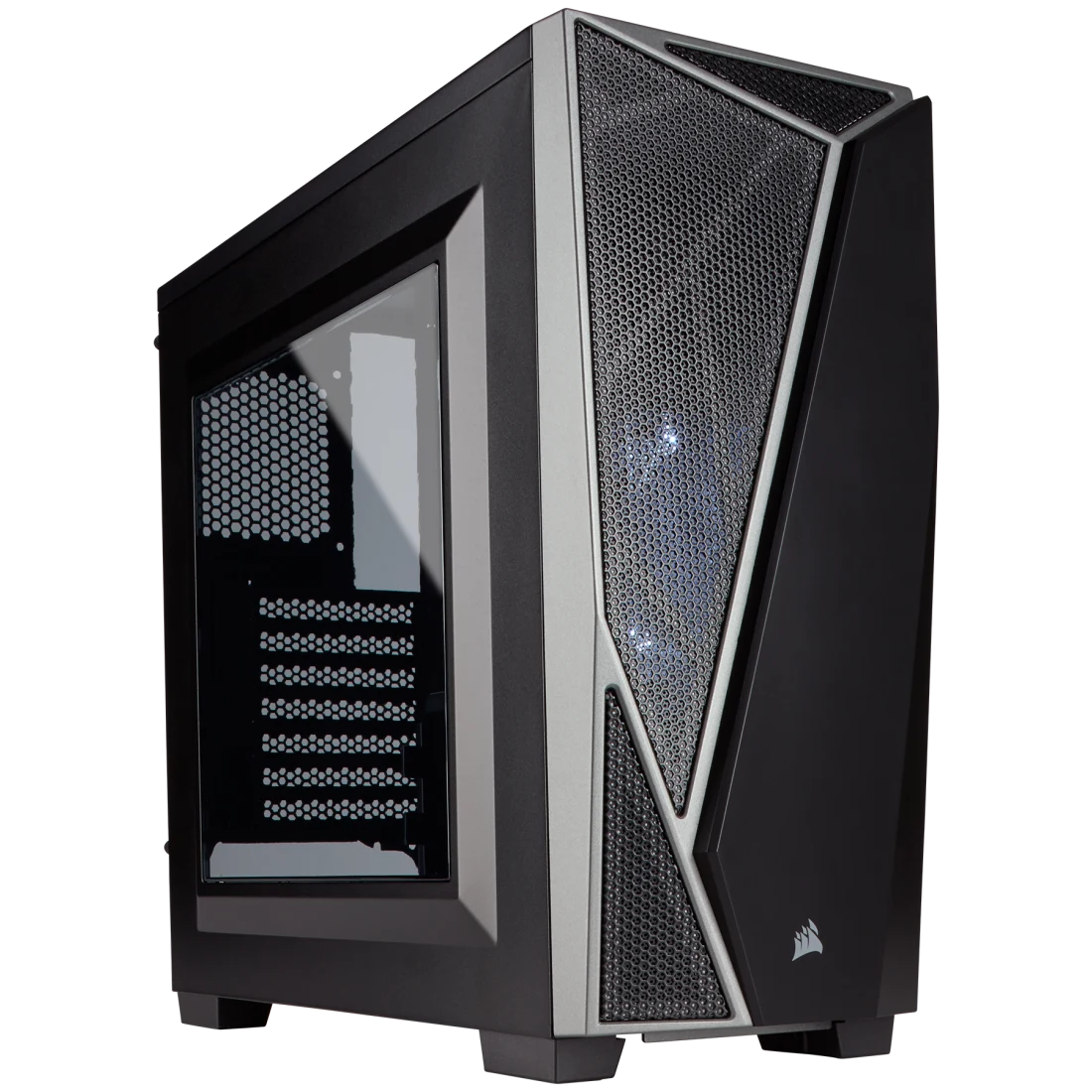

The Carbide Series SPEC-04’s angular, hard-edged exterior features bold styling for a remarkable look.
The asymmetrical, hard-edged design brings bold styling to your build.
Hide your cables behind the motherboard tray to keep your build looking tidy and out of the airflow path for improved cooling.
Excellent cooling potential with one 120mm LED front fan pre-installed.
Three HDD and two SSD drive cages are easy to install and keep your system and cables looking clean.
Featuring a high-speed USB 3.0 port and additional ports for all modern connections.
A clean case keeps your components cooler and running longer.
The slep, tinted window shows off the roomy interior, which fits up to five 120mm fans and can accommodate ample storage configurations.
The clean, side I/O panel and USB 3.0 port, cable routing cutouts and tie downs, and built-in dust filters combine for you to build a system that’s as bold as the SPEC-04’s design.
| Case Supported | Mini-ITX | MicroATX | ATX |
|---|---|
| Case Height | 489 |
| Case Length | 441 |
| Case Width | 191 |
| Case Form Factor | MID TOWER |
| Motherboard Support | Mini-ITX | MicroATX | ATX |
| Case Size | Mid-Tower |
| Radiator Compatibility | 120mm |
| Case Window | Acrylic |
| Case Dimensions | 492mm x 201mm x 433mm |
| Compatible Liquid Coolers | H55, H60, H75, H80i |
| Case Warranty | 2 Year |
|---|---|
| Internal 3.5" Drive Bays | 3 |
| Internal 2.5" Drive Bays | 2 |
| Maximum CPU Cooler Height | 150mm |
| Maximum PSU Length | 225mm |
| Case Drive Bays | (x3) 3.5in (x2) 2.5in |
| Maximum GPU Length | 370mm |
| Weight | 5.5kg |
| Case Expansion Slots | 7 |
| Case Power Supply | ATX (not included) |
| Case Material | Steel |
