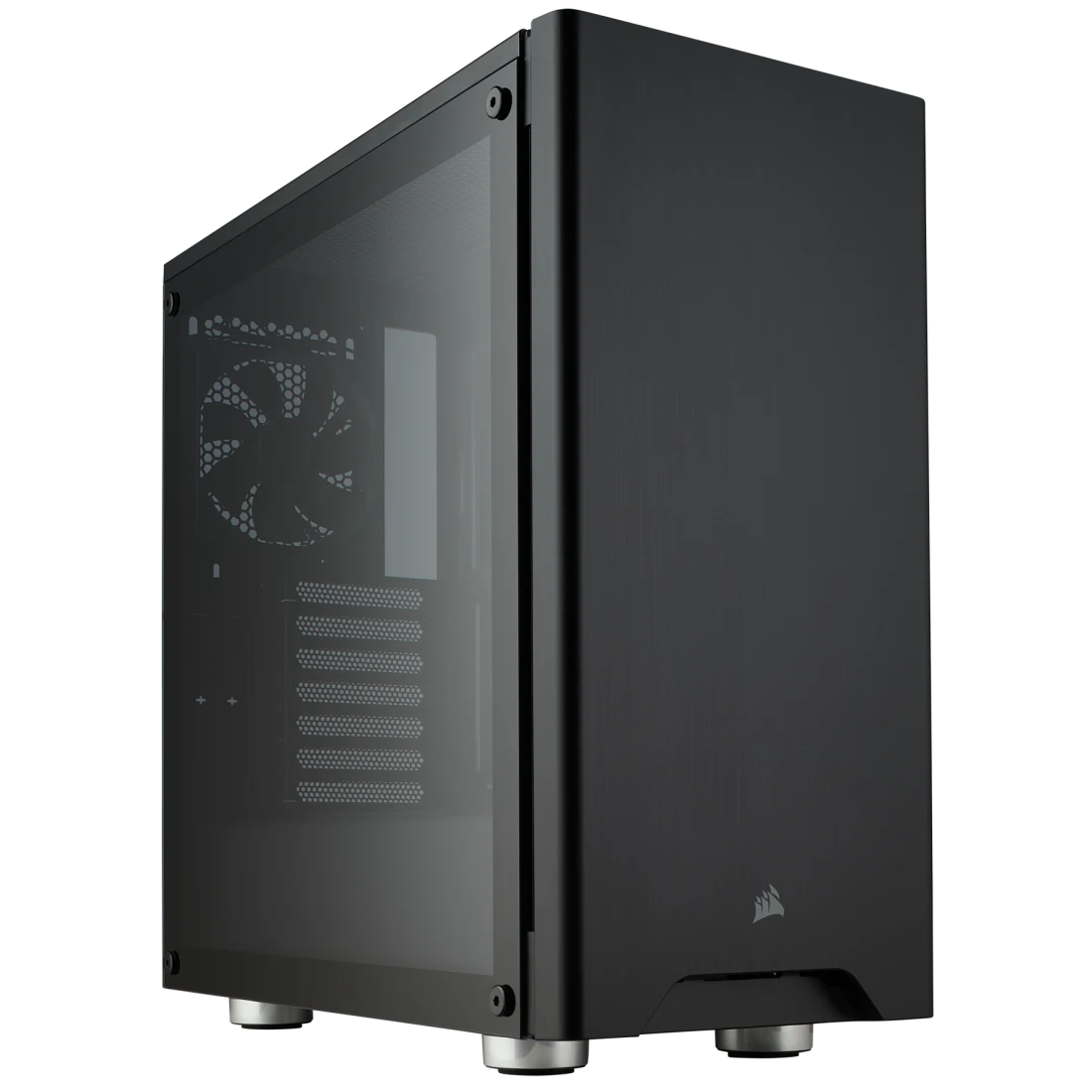

The CORSAIR Carbide Series 275R is a compact mid-tower ATX case that matches minimalist design and a beautiful tempered glass window with a straightforward interior layout and versatile cooling options.


Tempered glass side panel shows off your system in style.
Clean lines, curved edges with soft accent lighting.


Simple and intuitive internal layout enables easy and quick building.
Room for up to six 120mm fans, or up to a 360mm radiator in front, 240mm radiator at top, and 120mm radiator in the rear.
Rugged-construction steel drive trays provide ample room for additional SSDs and hard drives.

Dedicated cable routing compartment enables effortlessly clean builds.
Two included 120mm fans ensure cool air is directed to the hottest components, without any interference from drive cages.

| Case Supported | Mini-ITX | MicroATX | ATX |
|---|---|
| Case Height | 436.5 |
| Case Length | 446 |
| Case Width | 211 |
| Case Form Factor | MID TOWER |
| Motherboard Support | Mini-ITX | MicroATX | ATX |
| Case Size | Mid-Tower |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Case Window | Tempered Glass |
| Case Dimensions | 460mm x 215mm x 455mm |
| Compatible Liquid Coolers | H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i |
| Case Warranty | 2 Year |
|---|---|
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 4 |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 180mm |
| Case Drive Bays | (x2) 3.5in (x4) 2.5in |
| Maximum GPU Length | 370mm |
| Weight | 8.47kg |
| Case Expansion Slots | 7 |
| Case Power Supply | ATX (not included) |
| Case Material | Steel |
