FRAME 5000D
WORKSTATION
MID-TOWER PC CASE
FRAME 5000D WORKSTATION Modular Mid-Tower PC Case - White
- A roomy chassis with 9 PCI slots for multi-GPU builds
- Steel side panels feature sound dampening material
- GPU immobilization and anti-sag options
- Support for SSI-EEB/CEB, reverse-connector motherboards
- Dual 200mm intake fans for quiet, powerful airflow
- Optional UV printing and custom hardware configurations available
Current price: $189.99
Cases Color
Black
White
Color:
SKU: CC-9011331-WW
Current price: $189.99
- Overview
- Tech Specs
- Downloads
- Guides
FRAME 5000D
SUPERSIZED
FILL IT UP WITH THE LATEST HARDWARE
The spacious interior is fully compatible with SSI-EEB/CEB motherboards for servers as well as more traditional ATX, E-ATX, and motherboards with reverse connectors.
GPU OPTIMIZED
BUILT FOR DEMANDING WORKLOADS
The interior of the FRAME 5000D WORKSTATION is made for multi-GPU builds with ample vertical clearance for up to four dual-slot GPUs for advanced rendering, CAD, and AI workloads.
PEACEFULLY POWERFUL
BUILT TO ELIMINATE NOISE
The steel side panels feature embedded sound dampening materials for quiet operation, while the massive 200mm intake fans in the ventilated front panel and rear 140mm exhaust fan provide continuous airflow with very little noise.
EXPANSION IS ENCOURAGED
PLENTIFUL STORAGE
Abundant storage options include dual HDD/SDD combo trays and two dedicated 2.5" SSD trays for a total of 2x 3.5" HDDs and up to 6x 2.5" SSDs for those who need more than just M.2 drives.
WIDE COOLING FLEXIBILITY

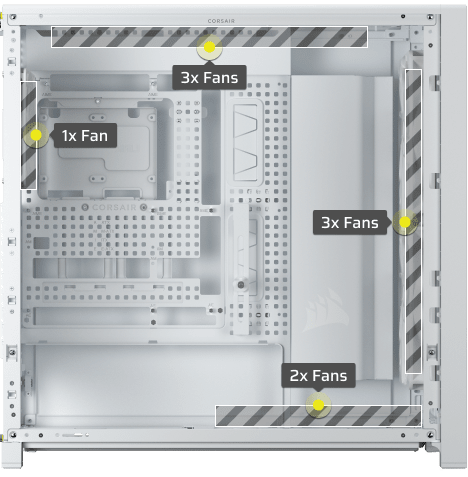

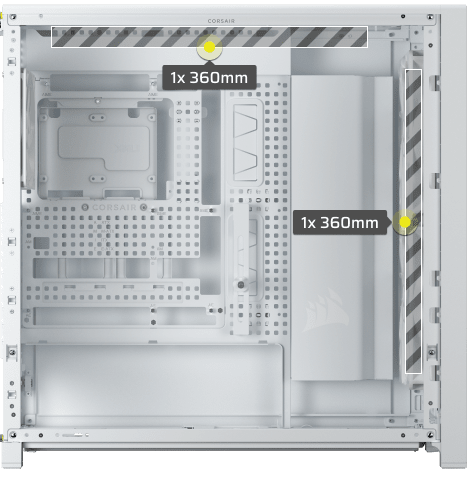

Customize your cooling setup with room for up to 9x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators in the roof and front.
The FRAME 5000D WORKSTATION has a cavernous interior designed for high-powered builds and abundant cooling.
TWO-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
MODERN FRONT PANEL I/O
Puts your connections within easy reach, including 2x USB 3.2 Gen 1 Type-C ports, 1x USB 3.2 Gen 2x2 Type-C port, and a combination audio/microphone jack.
TAILOR MADE
MODULAR AND CUSTOMIZABLE
The FRAME 5000D WORKSTATION is a flexible and powerful platform that can be customized to fit your exact needs. CORSAIR offers UV printing options for personalized branding, as well as bespoke chassis configurations for a wide variety of build diversity thanks to the FRAME Modular Case System.
Tech Specs
| Case Supported | Mini-ITX | MicroATX | ATX | E-ATX (305mm x 277mm) | SSI-CEB | SSI-EEB |
|---|---|
| Case Height | 542mm |
| Case Length | 556mm |
| Case Width | 250mm |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Case Size | Mid-Tower |
| Case Window | Tempered Glass |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Maximum CPU Cooler Height | 175mm |
| Case Front IO | (1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out |
| Maximum GPU Length | 450mm |
| Weight | 15.48kg |
| Case Expansion Slots | 8 horizontal + 3 vertical |
| Case Power Supply | ATX |
| Radiator Support - Top | 420mm, 360mm, 280mm, 240mm |
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Bottom | None |
| Radiator Support - Side | None |
|---|---|
| Radiator Support - Rear | 140mm, 120mm |
| Fan Support - Top | 3x 120mm, 3x 140mm |
| Fan Support - Front | 3x 120mm, 3x 140mm, 2x 200mm |
| Fan Support - Bottom | 4x 120mm |
| Fan Support - Side | None |
| Fan Support - Rear | 1x 120mm, 1x 140mm |
| Front IO Motherboard Connections | 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS Series |
| Dust Filtration | Yes |
| Cable Routing Space | 42mm |
| RapidRoute Included | Yes |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
