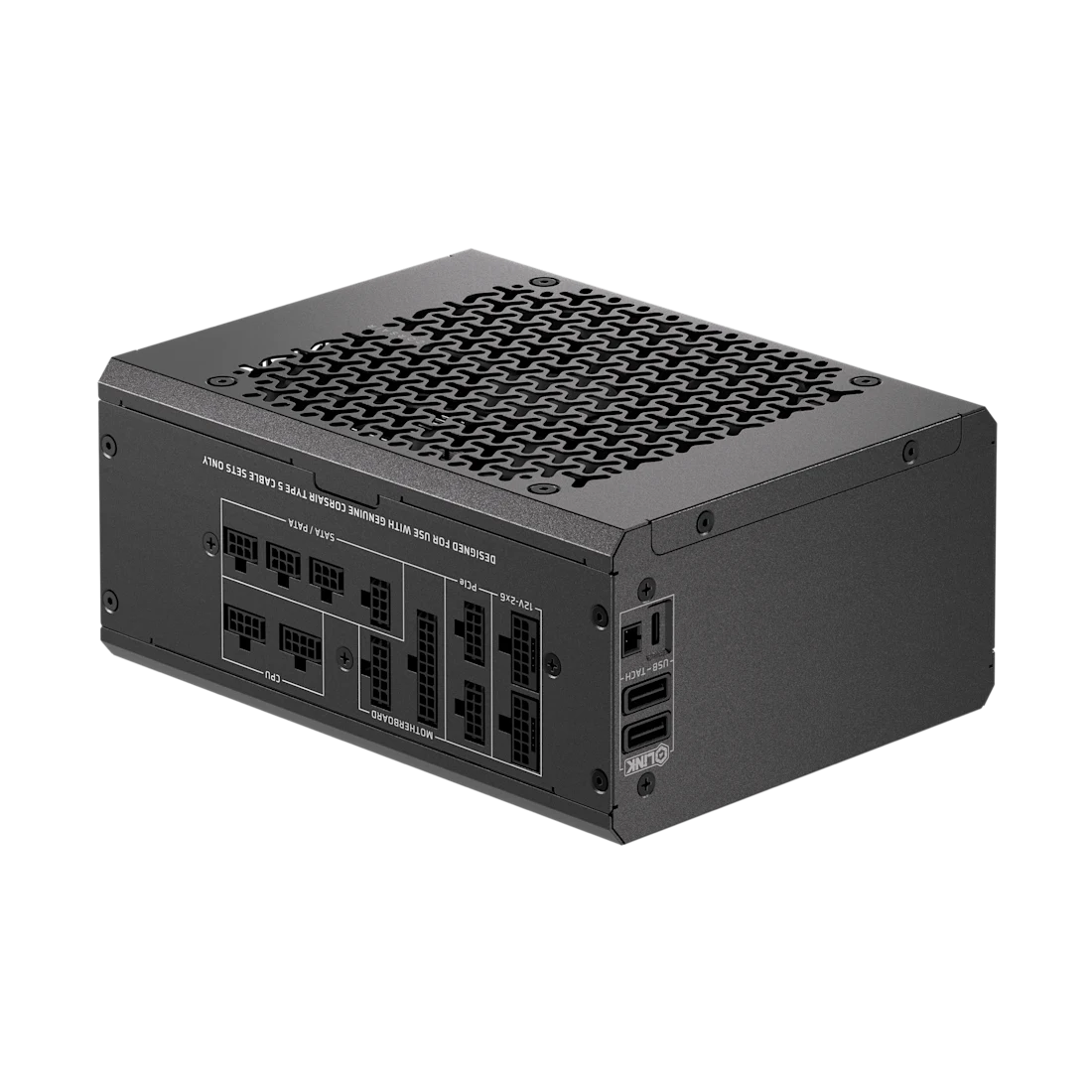

HX1500i SHIFT Fully Modular Platinum ATX Power Supply

  • Integrated iCUE LINK System Hub
  • Side-mounted SHIFT connectors
  • Cybenetics Platinum efficiency
  • Dual native 12V-2x6 cables for high-end GPUs
  • 105°C-rated 100% Japanese electrolytic capacitors
  • 10-year warranty
$449.99Current price: $449.99
This product qualifies for free shipping
60-days risk free returns

PSU Wattage

1000 Watts
1200 Watts
1500 Watts

Features

iCUE Enabled Product

CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.LEARN MORE

SKU: CP-9020269-NA

HXi SHIFT SERIES

PLATINUM-CERTIFIED DIGITAL POWER SUPPLY

SINGLE-CABLE CONNECTIVITY FOR EASY DIY PC BUILDING

iCUE LINK Smart Component Ecosystem

Redefine the way you build a DIY PC with a groundbreaking single-cable technology that automatically detects and configures your PC fans, CPU coolers, and other internal components.



THE EASY WAY TO BUILD A PC

Reduce cable clutter with a network of smart, interconnected components.

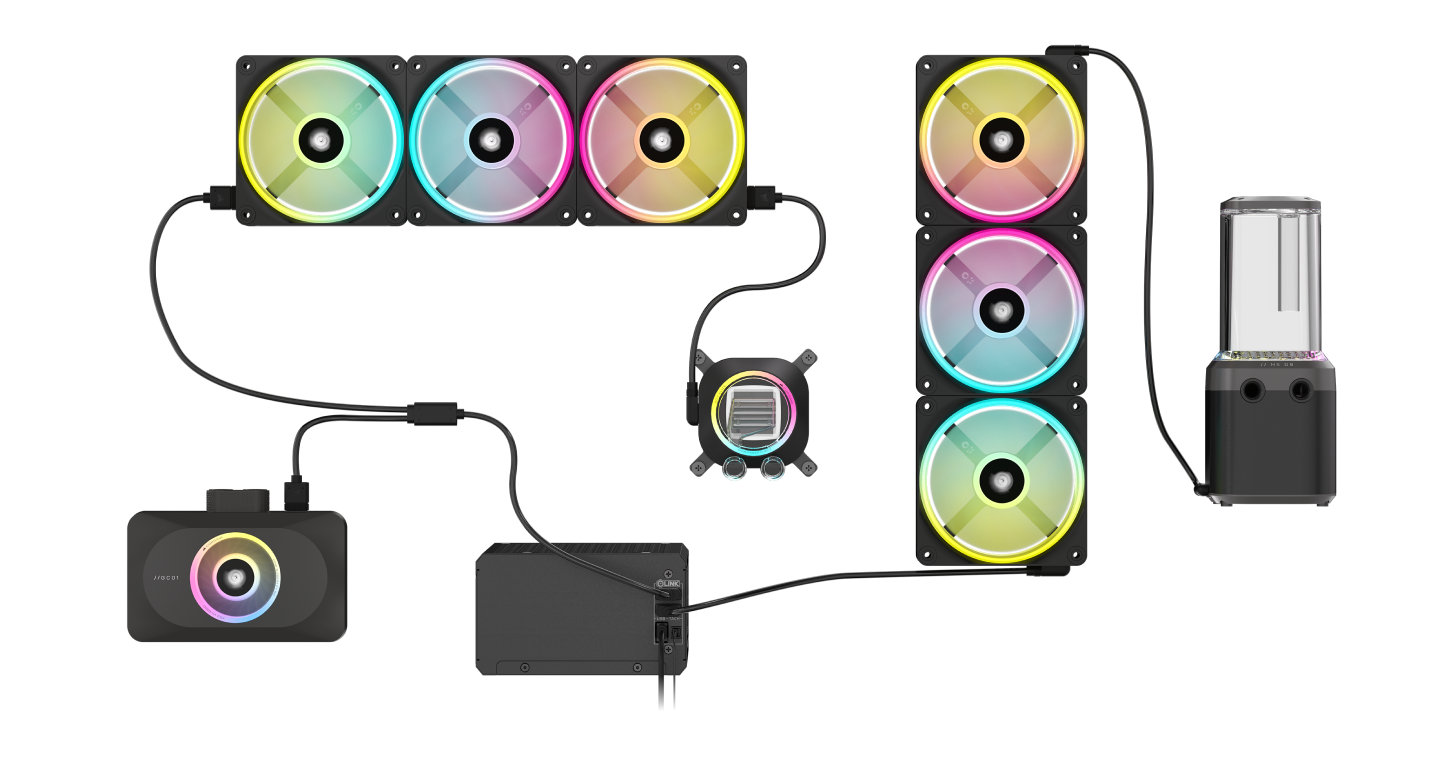

LINK YOUR COMPONENTS

The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.

UNITE YOUR SETUP

Each component connects directly to the next, creating a chain of devices.

READY TO COOL

INTEGRATED iCUE LINK SYSTEM HUB

The first CORSAIR power supply to feature an iCUE LINK System Hub to give you control of up to 24 iCUE LINK devices for next-level cooling and lighting customization.

EASY ACCESS

SIDE-MOUNTED CONNECTIONS

The fully-modular connections have all been shifted to the side of the PSU, allowing for easy access and simplifying hardware upgrades and cable management. Includes a debossed PVC cable kit with smaller Type-5 connectors for easy cable routing and a premium look.

*30mm of clearance between the PSU and side panel is required.
PSU CASE COMPATIBILITY GUIDE

CYBENETICS PLATINUM CERTIFIED

Steady power output at up to 91% overall efficiency and Cybenetics™ Platinum certified for lower power consumption, less noise, and cooler temperatures.

DOUBLE DOWN

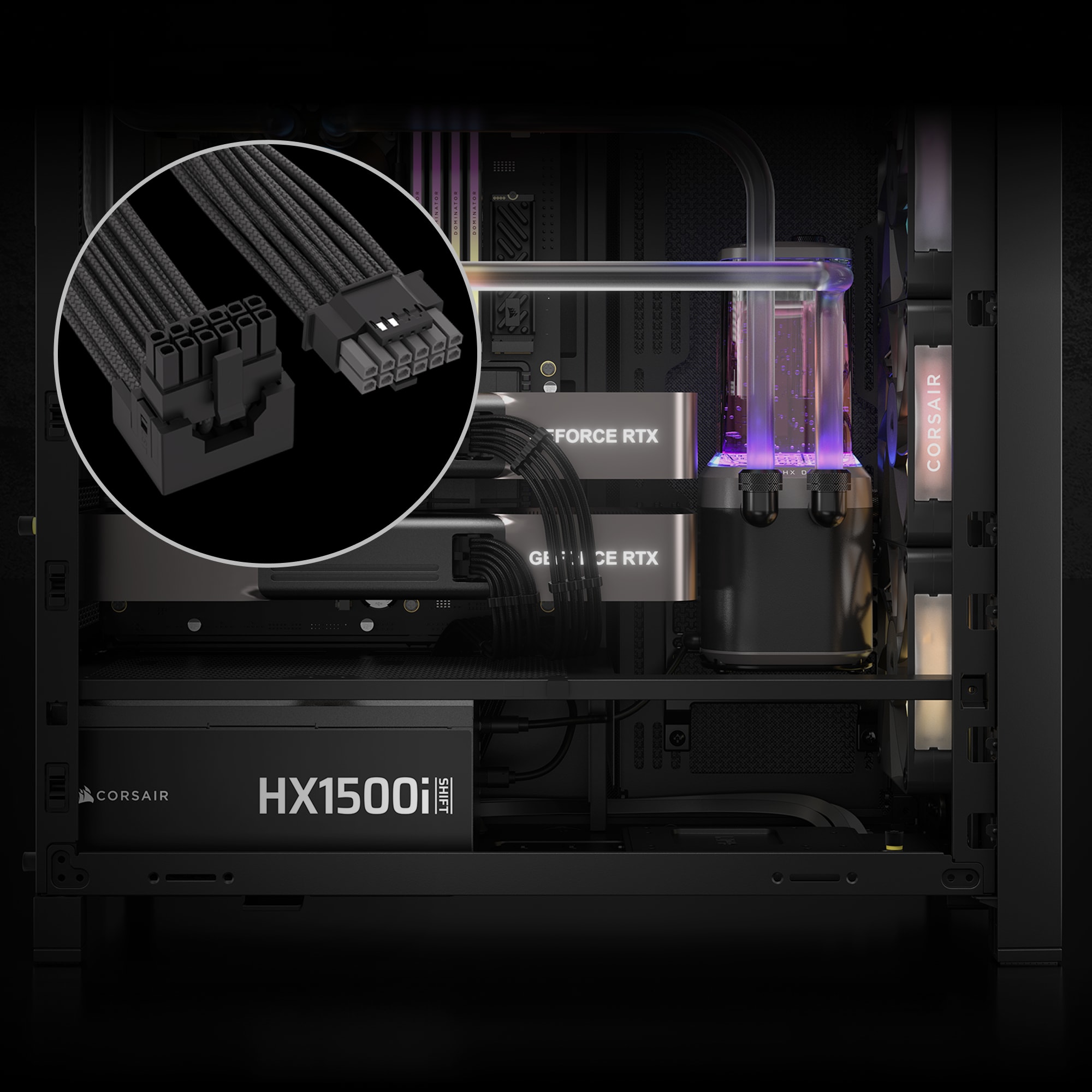

DUAL 12V-2x6 GPU POWER CABLES

THE CORSAIR HX1500i SHIFT has two 12V-2x6 cables, capable of up to 1200W of reliable power output for the most ambitious builds aimed at 4K gaming and machine learning workloads.

FUTURE PROOF

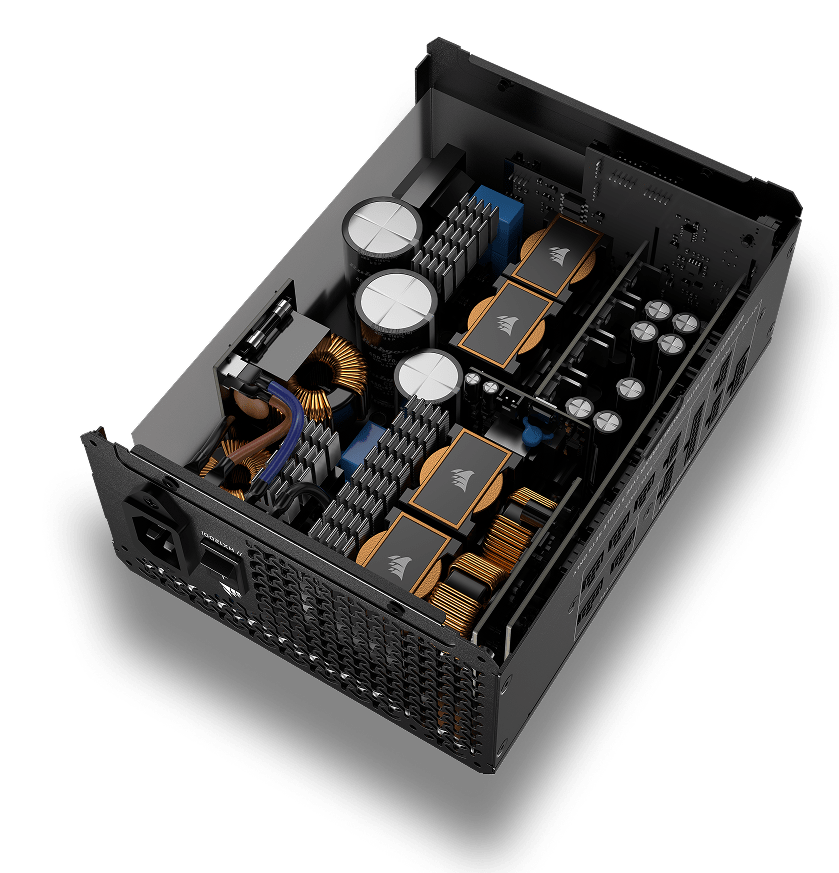

ATX 3.1 COMPLIANT AND PCIe 5.1 READY

HXi SHIFT series power supplies feature a fully digital design for tighter electrical power regulation, quick regulation to variable power loads, and the ability to monitor and adjust OCP settings within iCUE.

*Illustration for reference only, models may differ.

LOW NOISE

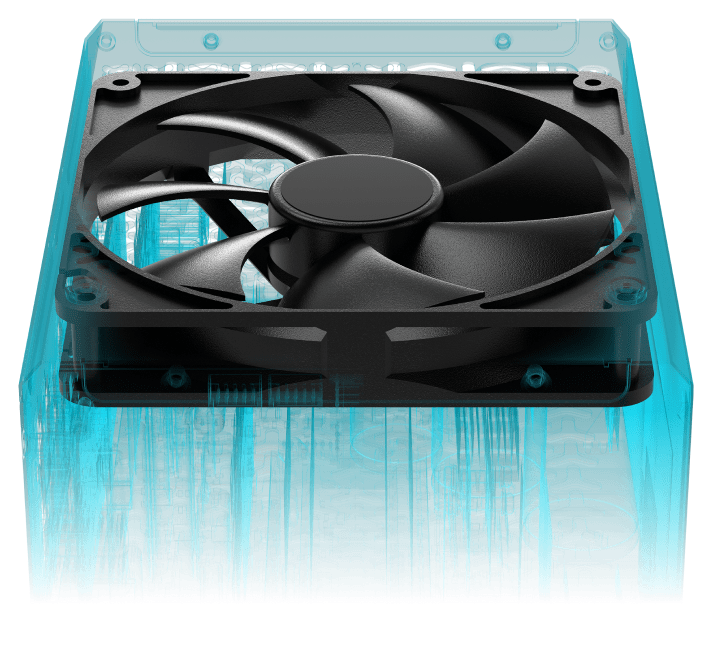

QUIET OPERATION WITH ZERO RPM MODE

A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

FAMOUSLY RELIABLE

DESIGNED TO TAKE THE HEAT

105°C-RATED JAPANESE CAPACITORS
Built with 100% industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

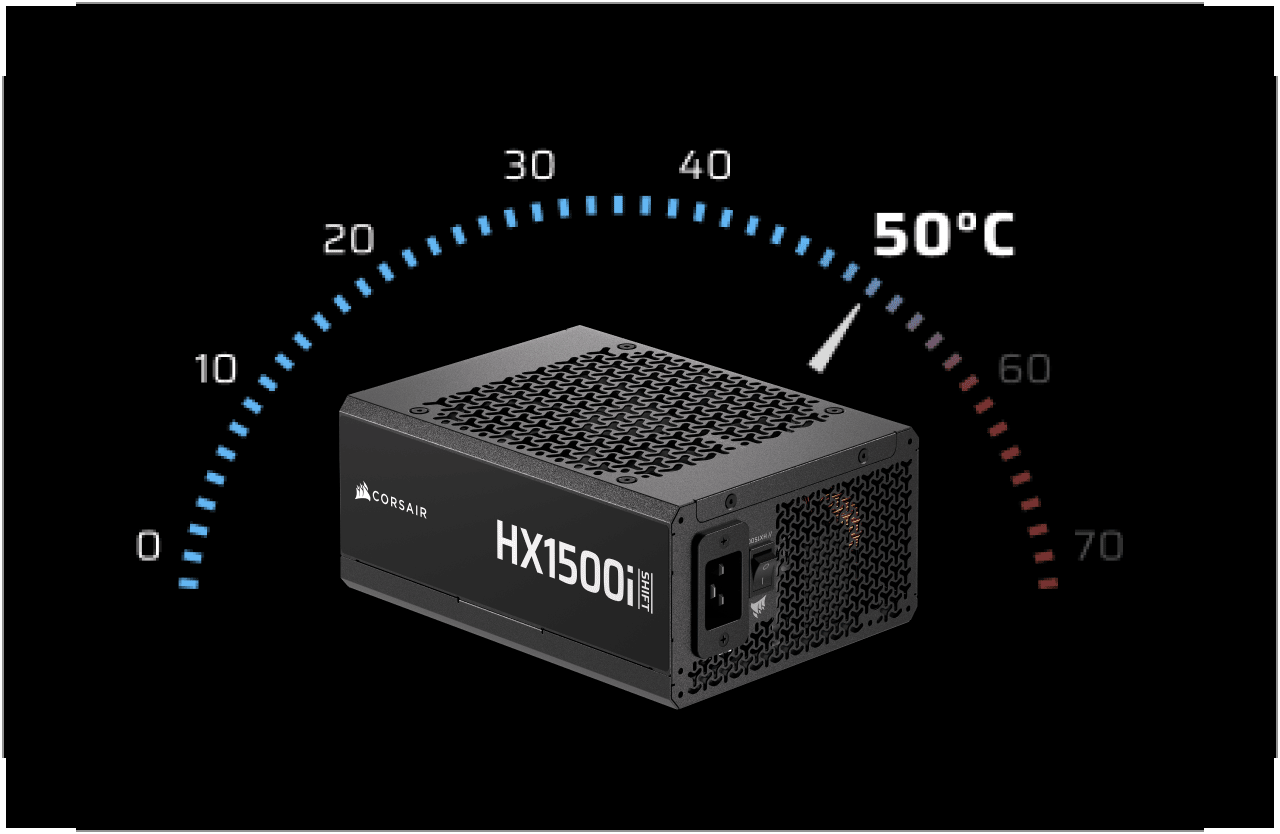

50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power even under high-stress conditions.
warranty logo
TEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.

HX1500i SHIFT POWER TABLE

MODEL
RPS0196
PART NO.
75-005797
AC INPUT RATING
AC INPUT
100V–240V
200V–240V

(Only for Korea and India)
INPUT CURRENT
15A–9A
10A
FREQUENCY
47Hz–63Hz

Max LOAD
Max OUTPUT
+3.3V
25A
150W
+5V
25A

+12V
125A
1500w
+5VSB
3.5A
17.5W
TOTAL POWER
1500W: 115V–240V

1200W: 100V-115V

HX1500i SHIFT POWER TABLE

QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
QTY
1
CABLE
ATX Motherboard (24-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
610mm
TOTAL LENGTH
610mm
(± 10mm)
CABLE TYPE
Debossed
QTY
2
CABLE
ATX12V / EPS12V (4+4-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
650mm
TOTAL LENGTH
650mm
(± 10mm)
CABLE TYPE
Debossed
QTY
2
CABLE
8-pin PCIe (6+2-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
650mm
TOTAL LENGTH
650mm
(± 10mm)
CABLE TYPE
Debossed
QTY
2
CABLE
90° 12V-2x6 to 2x 8-pin PCIe (6+2-pin) - Modular
CONNECTORS PER CABLE
2
TOTAL CONNECTORS
4
CONNECTOR SPACING
650mm
TOTAL LENGTH
650mm
(± 10mm)
CABLE TYPE
Debossed
QTY
2
CABLE
90° 12V-2x6 to 600W 12V-2x6 (12+4-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
650mm
TOTAL LENGTH
650mm
(± 10mm)
CABLE TYPE
Debossed
QTY
3
CABLE
4 SATA - Modular
CONNECTORS PER CABLE
4
TOTAL CONNECTORS
12
CONNECTOR SPACING
445mm,
155mm,
155mm,
155mm
TOTAL LENGTH
800mm
(± 10mm)
CABLE TYPE
Debossed
QTY
2
CABLE
4 PATA - Modular
CONNECTORS PER CABLE
4
TOTAL CONNECTORS
8
CONNECTOR SPACING
450mm, 100mm, 100mm, 100mm
TOTAL LENGTH
750mm
(± 10mm)
CABLE TYPE
Debossed
QTY
1
CABLE

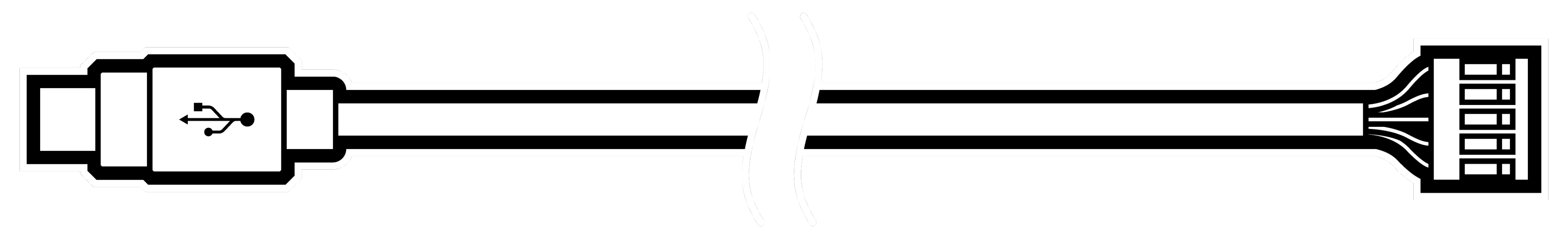

USB (Type-C to USB 10-pin Header) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
525mm,
TOTAL LENGTH
5250mm
(± 25mm)
CABLE TYPE
Round
QTY
1
CABLE

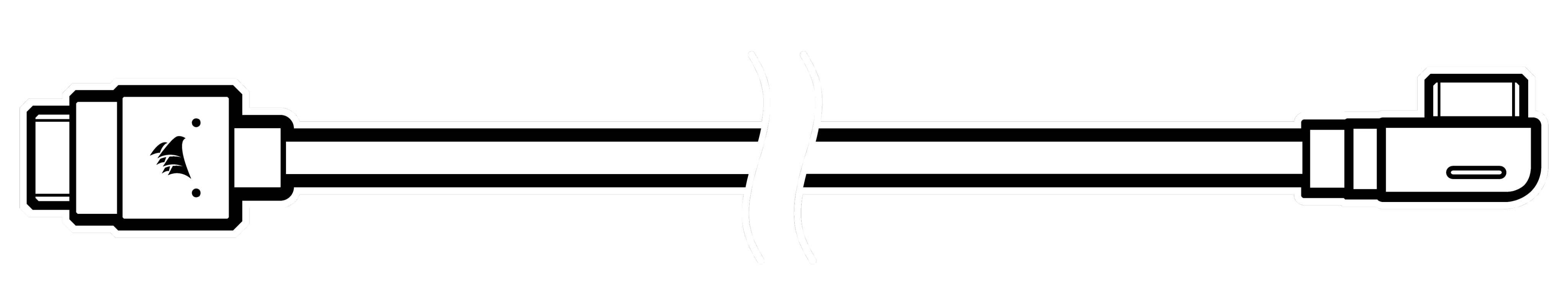

iCUE LINK to 90° iCUE LINK - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
200mm
TOTAL LENGTH
200mm
(± 25mm)
CABLE TYPE
Round
QTY
1
CABLE

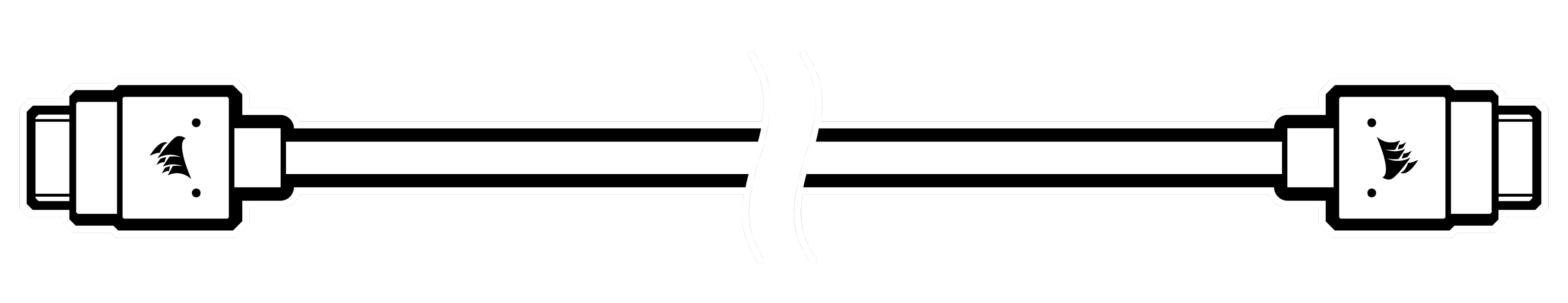

iCUE LINK to iCUE LINK - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
600mm
TOTAL LENGTH
600mm
(± 25mm)
CABLE TYPE
Round

Tech Specs

Cybenetics EfficiencyPlatinum
Cybenetics NoiseA
Special TechnologyDSP
PATA Connector8
EPS Connector2
SATA Connector12
Fan Bearing TechnologyFluid Dynamic Bearing
Modern StandbyYes
Dimensions200mm x 150mm x 86mm
ModularFully
Cable TypeType 5
PCIe Connector6
Zero RPM ModeYes
PSU Form FactorATX
Fan Size MM140
Continuous Power W1500 Watts
ATX Connector1
ATX12V Version3.1
MTBF Hours100,000 hours
Warranty10 Year
Weight4.348kg

HXi SHIFT Series ATX Power Supply
Power cord
DC Cables
Mounting screws
Cable ties
