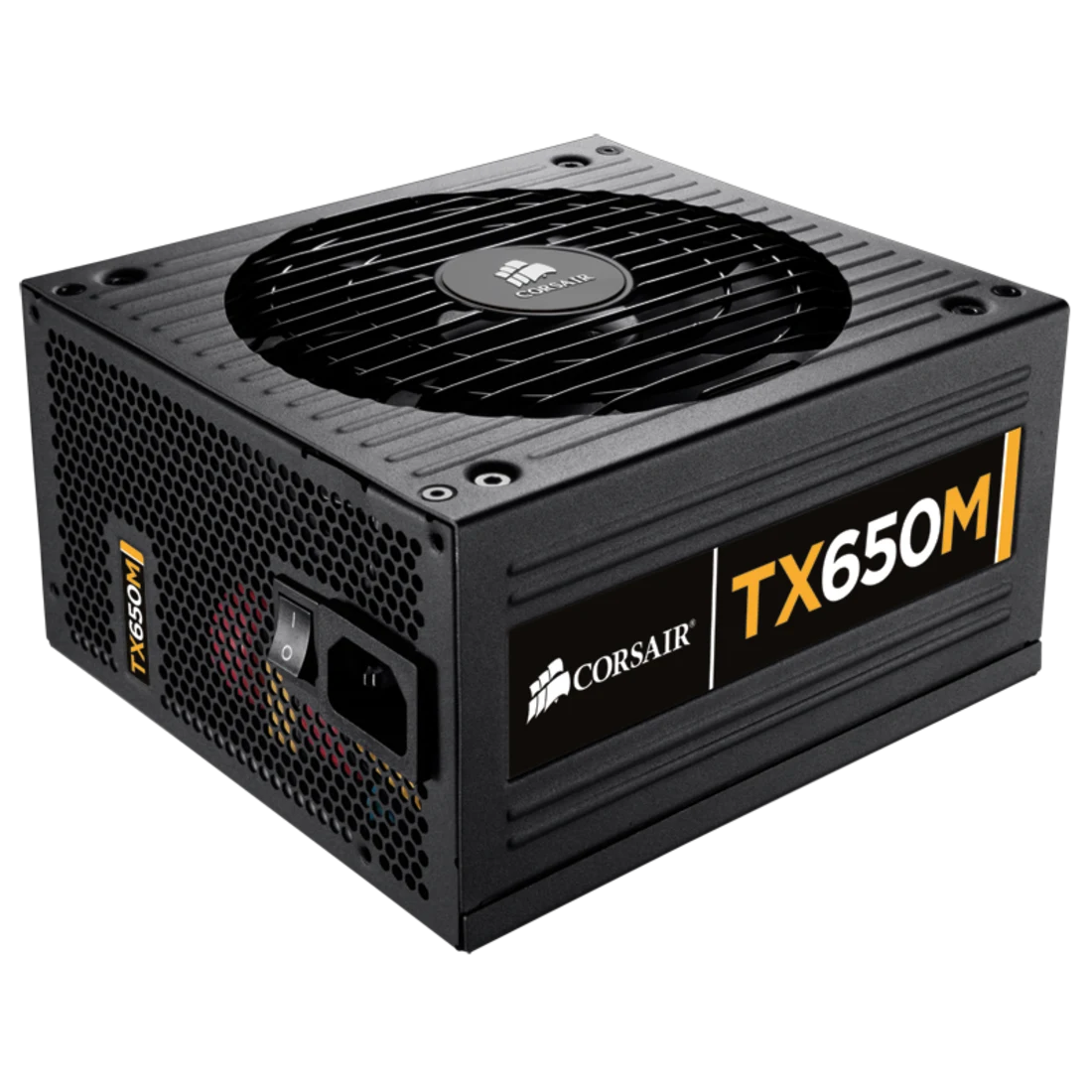

Based on the award-winning Enthusiast Series TX V2 line, Enthusiast Series Modular PSUs add a modular cabling system for improved installation flexibility. They provide a great combination of exacting performance standards and affordability.
The modular cabling system includes a complete set of flat, detachable cables that allow you to use only the ones you need. This allows you to reduce clutter for a clean-looking system with improved airflow. The attached ATX cable is fully-sleeved for superior protection. And, all cables are extra long to support full-tower PC systems.
80 PLUS Bronze is your guarantee that your Enthusiast Series Modular power supply will deliver 85% efficiency or higher at 50% load. Superior efficiency is essential in a high performance power supply — it runs quieter, generates minimal excess heat, and saves you money every month.
Enthusiast Series Modular is designed for reliable operation in high-performance PCs where clean, stable power is important. It’s rated for full, continuous power delivery at an ambient temperature of up to 50° Celsius. The ultra-quiet, double ball-bearing fan delivers excellent airflow with exceptionally
The fan doesn’t even spin under light to medium loads – that is, a lot of the time that you use your PC. And when you’re pushing it hard, the Enthusiast Series TX-M varies its fan speed in response to temperature, so the 140mm double ball bearing fan spins only as fast as it needs to. The result is exceptionally low noise levels.
A single high-amp +12V rail offers simple configuration and greater compatibility with the latest graphics cards and other high-draw components.
Power ratings are for continuous delivery – not peak. Over-voltage, under-voltage, over-current and short-circuit protection provide maximum safety for your critical system components.
| EPS Connector | 1 |
|---|---|
| SATA Connector | 8 |
| Fan Bearing Technology | Dual Ball Bearing |
| Dimensions | 150mm x 86mm x 160mm |
| Modular | Semi |
| PSU Compatibility | ATX12V v2.31 and EPS12V 2.91 standards |
| Cable Type | Low-Profile, All Black |
| Floppy Connector | 2 |
| PCIe Connector | 2 |
| Zero RPM Mode | Yes |
| PSU Form Factor | ATX |
| Single Multiple 12V Rail Toggl | No |
|---|---|
| Multi GPU Ready | No |
| Fan Size MM | 140mm |
| Continuous Power W | 650 Watts |
| ATX Connector | 1 |
| ATX12V Version | v2.31 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Bronze |
| Warranty | 5 Year |
| Weight | 2.1kg |
