Steady Power, Spectacular Color

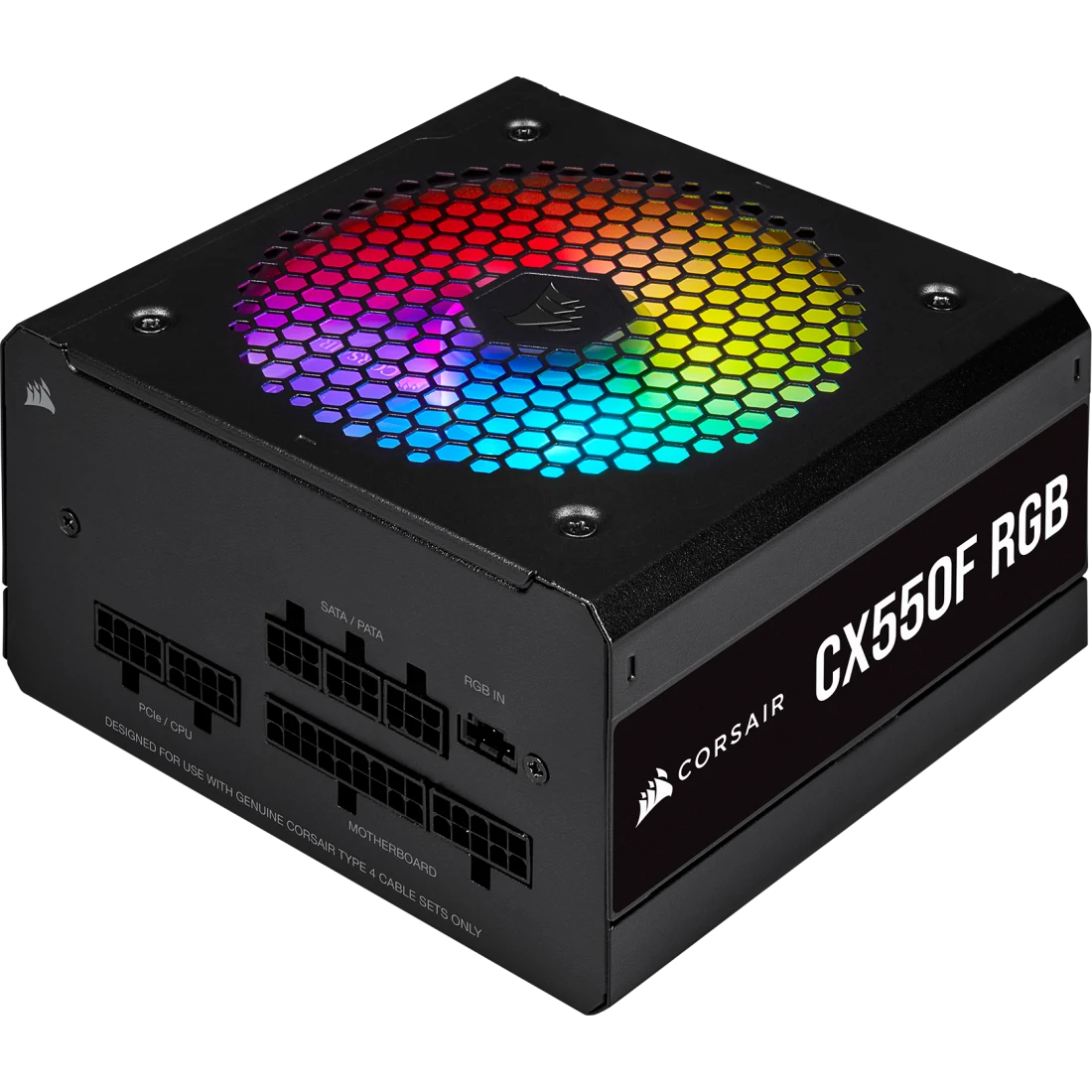

CX-F RGB power supplies light up the internals of your PC with eight individually addressable RGB LEDs and fully modular cables for easy cable management.
Each CX-F RGB PSU features a brilliantly lit 120mm RGB fan with eight individually addressable RGB LEDs to give beautiful accent lighting to your build.
Push the button on the back, connect to a CORSAIR iCUE RGB Lighting Controller (sold separately), or use your motherboard’s built-in ARGB control with the included adapter cable. Control your lighting however you want to.
CORSAIR CX-F RGB Series fully modular power supplies deliver reliable 80 PLUS Bronze efficient power to your system and let you use only the cables you need for a cleaner build.
CX-F features a finely tuned 120mm RGB fan with a dedicated fan curve to keep noise levels down.
For consistent, reliable power and superb electrical performance, each CX-F RGB power supply features a robust LLC topology with DC-DC conversion, and 105°C rated 100% Japanese primary capacitors. And Microsoft Modern Standby Support ensures extremely fast wake-from-sleep times and better low-load efficiency.
Ensures an easy fit in almost all modern enthusiast PC cases.
Reduce cable clutter by only connecting the cables that your system needs.
Five year warranty backed by the CORSAIR global technical support team.
| Special Technology | 120mm RGB Fan | Push-button for manual RGB control | RGB-In port for software control | ARGB Compatible (with included adapter) |
|---|---|
| PATA Connector | 4 |
| Protections | OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power) |
| EPS Connector | 1 |
| SATA Connector | 7 |
| Fan Bearing Technology | Rifle Bearing |
| Modern Standby | Yes |
| Dimensions | 150mm x 86mm x 140mm |
| Modular | Fully |
| PSU Compatibility | ATX12V v2.4 and EPS12V 2.92 standards |
| Intel C6C7 Sleep State Compat | Yes |
| Cable Type | Sleeved and Flat Black Cables |
| PCIe Connector | 2 |
| Zero RPM Mode | No |
|---|---|
| PSU Form Factor | ATX |
| Single Multiple 12V Rail Toggl | No |
| Multi GPU Ready | Yes |
| Fan Size MM | 120mm |
| Continuous Power W | 550 Watts |
| ATX Connector | 1 |
| ATX12V Version | v2.4 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Bronze |
| Warranty | 5 Years |
| Weight | 2.03kg |
