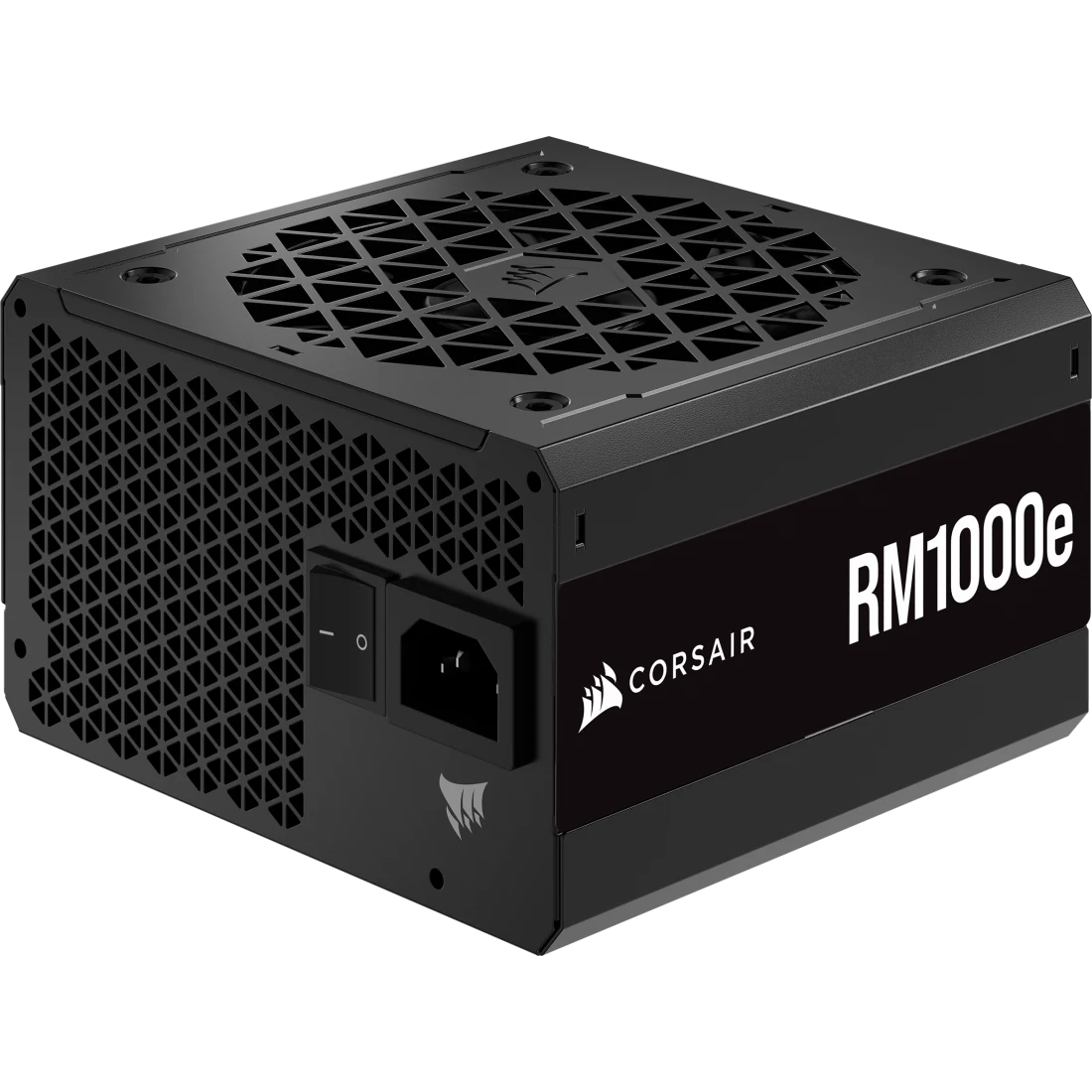

RMe Series™ RM1000e Fully Modular Low-Noise ATX Power Supply

Name: RMe Series™ RM1000e Fully Modular Low-Noise ATX Power Supply
Brand: Corsair
SKU: CP-9020250-NA
Price: 179.99 USD
Availability: OutOfStock

CORSAIR RMe Series Fully Modular Low-Noise Power Supplies with dual 8-pin EPS12V connectors provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.

$179.99USD

SKU: CP-9020250-NA

RMe SERIES

Fully Modular Low-Noise ATX Power Supplies

Steady Power for Your System

FULLY MODULAR CABLING

Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.

Close up shot of the fan on the CORSAIR RMe Series PSU cable section

Close up shot of the fan on the CORSAIR power supply

TUNED FOR LOW NOISE OPERATION

A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.

With Zero RPM Fan Mode for near-silent operation at lower loads.

LOW NOISE

FAN MODE

TECHNOLOGY AND RELIABILITY

For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.

With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

Cybenetics LAMBDA A- Certification Icon Cybenetics ETA GOLD Certification Icon

80 PLUS Gold-Certified

Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.

SEVEN-YEAR WARRANTY

WORLD-CLASS SUPPORT

Our award-winning service means you can enjoy your gear worry-free.

RM1000ePOWER TABLE

Model	RPS0158
Part No.	CP-9020250/75-005037
AC Input Rating
AC Input	100V a.c.-240V a.c	200-240V (仅限中国地区使用)
Input Current	12A-6A	10A
Frequency	47~63Hz
	Max Load	Max Output
+3.3V	20A	150W
+5V	20A	150W
+12V	83.3A	1000W
-12V	0.3A	3.6W
+5Vsb	3A	15W
Total Power	1000W

RM1000eDC CABLE LISTING

QTY	Cable	Connectors per cable	Total connectors	Connector Spacing	Total length	Cable Type
1	Modular ATX Cable (24-PIN) (24)	1	1	-	610mm (± 10mm)	Sleeved
2	Modular EPS/ATX12V Cable (8-PIN) (4+4)	1	2	-	650mm (± 10mm)	Flat
2	Modular PCIe Cable (8-PIN) (6+2)/(6+2)	2	4	600mm, 150mm	750mm (± 10mm)	Flat
2	Modular PCIe Cable (8-PIN) (6+2)	1	2	-	600mm (± 10mm)	Flat
1	Modular SATA Cable (3 SATA)(straight)	3	3	500mm, 115mm	700mm (± 10mm)	Flat
1	Modular SATA Cable (4 SATA)(right angle)	4	4	455mm, 115mm	800mm (± 10mm)	Flat
1	Modular PATA Cable (4 PATA)	4	4	450mm, 100mm	750mm (± 10mm)	Flat
