THE GOLD STANDARD OF POWER SUPPPLIES
RMx SERIES
FULLY MODULAR CABLING
CYBENETICS GOLD-CERTIFIED
ATX 3.1 COMPLIANT, SUPPORTING PCIe 5.1
RMx Series RM750x Fully Modular Power Supply
Power your next build with a CORSAIR RMx Series fully modular PSU for quiet, Cybenetics Gold-certified efficient performance.
- Fully modular, Type-4 connectors
- Cybenetics Gold-certified
- ATX 3.1 compliant, supporting PCIe 5.1
- Zero RPM Fan Mode for near-silent operation at lower loads
Current price: $134.99
PSU Wattage
GET GeForce RTX 50 SERIES READY
See the new GPU requirements and find the right products for your system.
LEARN MORE
MORE TO CONSIDER
CORSAIR ThermalProtect PCIe 5.1 600W 12V-2x6 Cable
Current price: $24.99
SKU: CP-9020285-NA
Current price: $134.99
- Overview
- Tech Specs
- Downloads
- Accessories | Parts
- Guides
- Full Builds
RMx SERIES
THE GOLD STANDARD OF POWER SUPPLIES
QUIET, DEPENDABLE, EFFICIENT
Our best-selling PSU, updated. This fully modular, low noise, Cybenetics Gold-certified power supply is ATX 3.1 compliant and ideal for delivering dependable power to today's top-performing PCs.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your PC, even under high-stress conditions.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
CLEAN CABLING, EVERY TIME
FULLY MODULAR CONNECTORS
Connect only what you need using sleek embossed cables with low-profile combs to make installations a breeze.
Native 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
Native 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
THE STRONG, SILENT TYPE
140mm LOW-NOISE FAN
A fluid dynamic bearing fan with magnetic dome structure keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
ENGAGE MANUAL CONTROLS
MANUAL FAN OVERRIDE KNOB
Want to get more air through the PSU or to exhaust some heat from your case? You can override the Zero RPM Mode and low-noise profile of the RMx Series with our manual fan override knob, increasing fan speed and airflow.
TEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
RM750x POWER TABLE
MODEL
RPS0199
PART NO.
75-005878
AC INPUT RATING
AC INPUT
100–240V
INPUT CURRENT
10A - 5A
FREQUENCY
47~63Hz
MAX LOAD
MAX OUTPUT
+3.3V
20A
150W
+5V
20A
+12V
62.5A
750w
+5VSB
3A
15W
TOTAL POWER
750W
RM750x CABLE LISTING
QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
QTY
1
CABLE
Modular ATX Cable (24-pin)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
610mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
2
CABLE
EPS / ATX 12V 8-pin (4+4)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
-
TOTAL LENGTH
750mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
1
CABLE
PCIe 12V-2x6 to Dual 8-Pin (6+2)
CONNECTORS PER CABLE
2
TOTAL CONNECTORS
2
CONNECTOR SPACING
-
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
1
CABLE
PCIe 12V-2x6-pin (12+4)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
2
CABLE
PCIe 8-pin (6+2)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
-
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
2
CABLE
SATA (4 Connectors)
CONNECTORS PER CABLE
4
TOTAL CONNECTORS
8
CONNECTOR SPACING
505mm,
115mm,
115mm,
115mm
115mm,
115mm,
115mm
TOTAL LENGTH
850mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
1
CABLE
PATA (3 Connectors)
CONNECTORS PER CABLE
3
TOTAL CONNECTORS
3
CONNECTOR SPACING
550mm, 100mm, 100mm
TOTAL LENGTH
750mm
(± 25mm)
(± 25mm)
CABLE TYPE
Embossed
Tech Specs
| Cybenetics Efficiency | Gold |
|---|---|
| Cybenetics Noise | A+ |
| PATA Connector | 3 |
| EPS Connector | 2 |
| SATA Connector | 8 |
| Modern Standby | Yes |
| Dimensions | 160x150x86 |
| Modular | Fully |
| Cable Type | Type 4 |
| PCIe Connector | 4 |
|---|---|
| Zero RPM Mode | Yes |
| Continuous Power W | 750 Watts |
| ATX Connector | 1 |
| ATX12V Version | 3.1 |
| MTBF Hours | 100,000 hours |
| Warranty | 10 Year |
| Weight | 3.19kg |
QUICK START GUIDE
CORSAIR RMx SERIES
This guide will help you install and get familiar with your new CORSAIR RMx 80 PLUS Gold Fully Modular ATX Power Supply.
BLOG

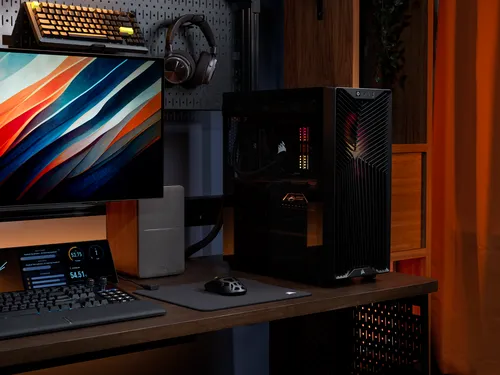

Best 1000W PSU
