WS3000
WORKSTATION PSU
MODULAR 3000W ATX 3.1 POWER SUPPLY

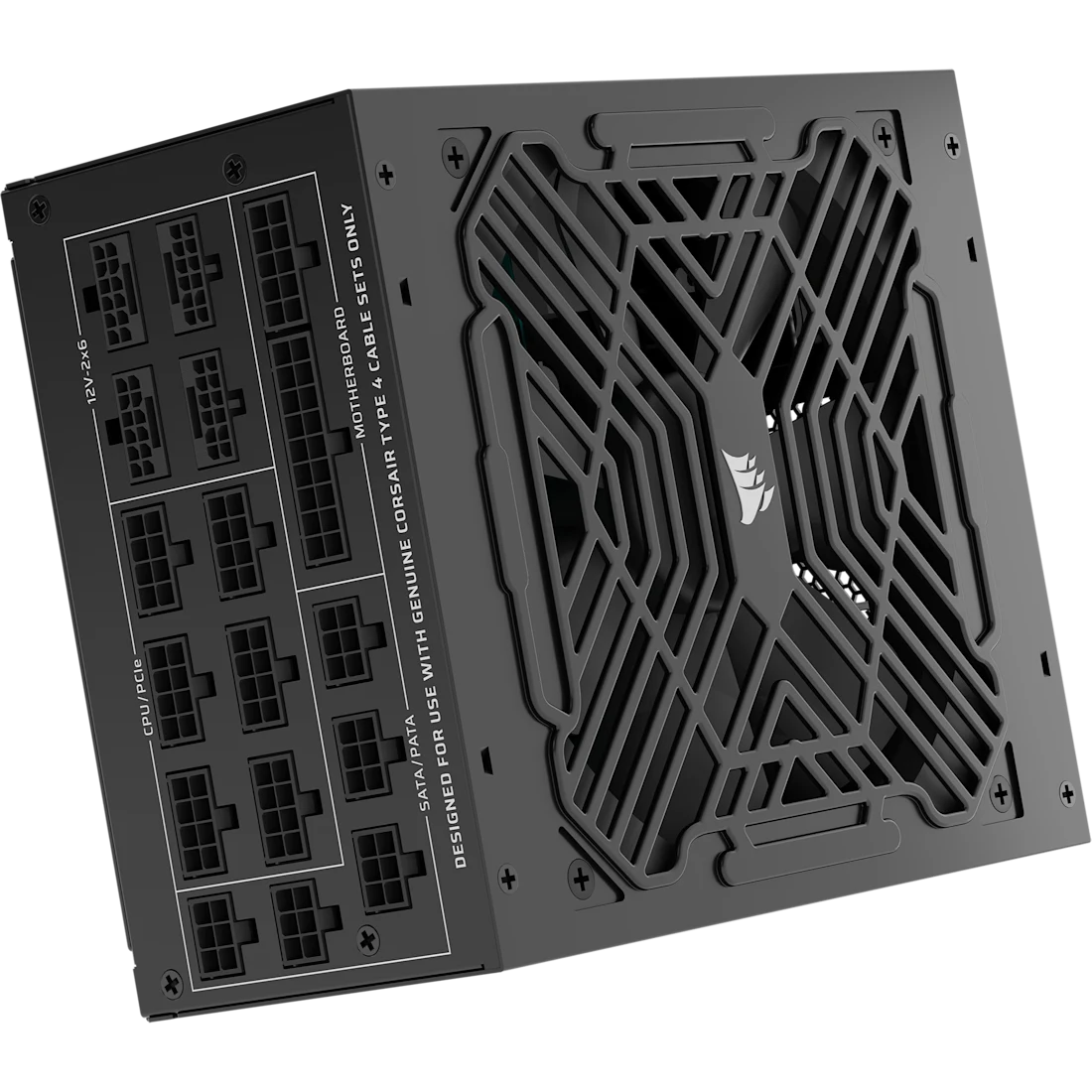

WS3000 3000W ATX 3.1 Fully Modular Workstation Power Supply
Includes:
- 3000W of total power output for demanding workloads
- Four native 12V-2x6 connectors
- 80 PLUS® Platinum-Certified efficiency
- ATX 3.1 compliant and PCIe 5.1 ready
- Fully-Modular design
- 10-year warranty
SKU: CP-9020312-NA
- Overview
- Tech Specs
- Downloads
- Accessories | Parts
- Guides
- Package Contents

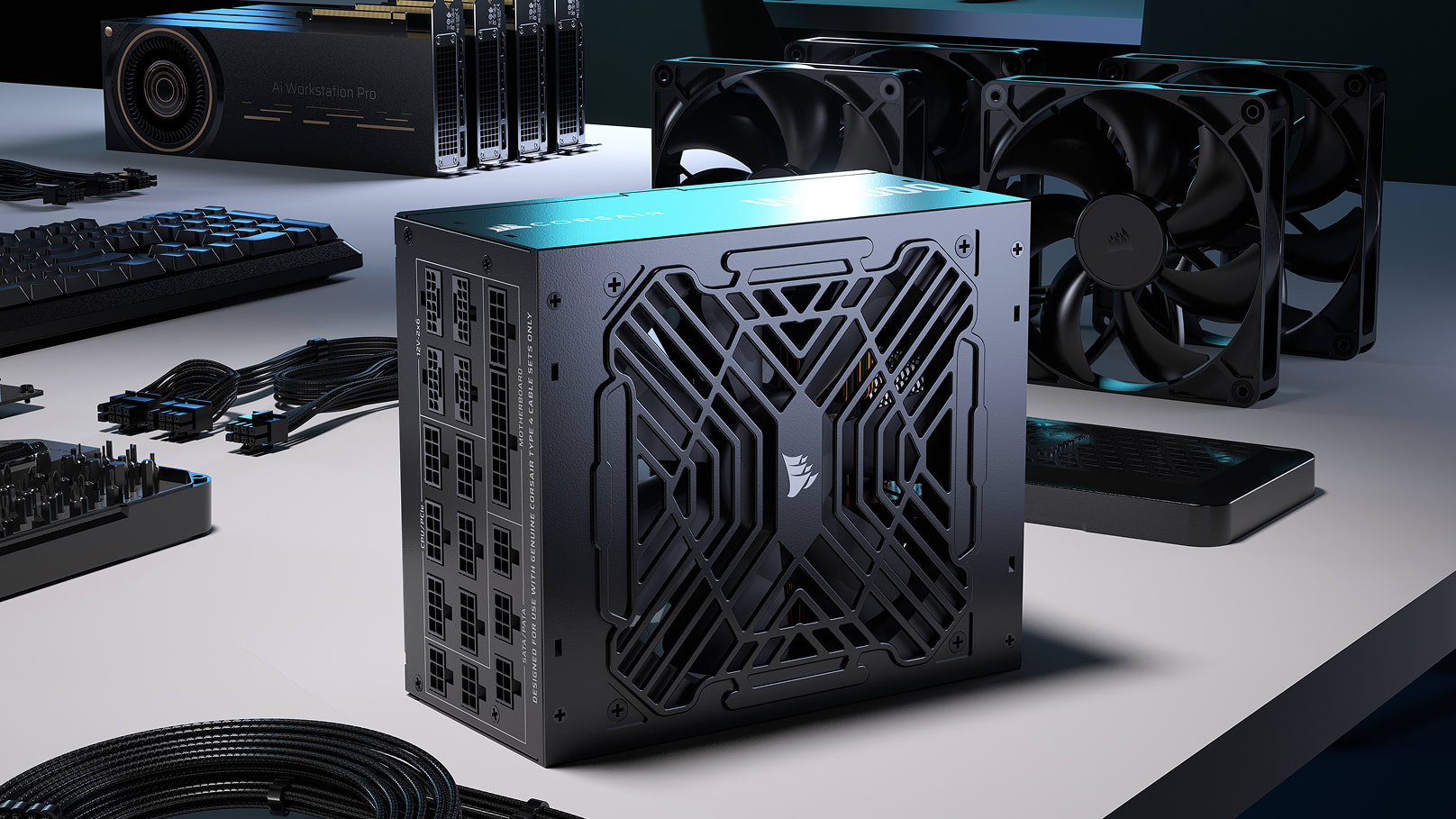

WS3000
ABSOLUTE POWER
THE ULTIMATE WORKSTATION POWER SUPPLY
With 3000W of power, four 12V-2x6 connectors, 80 PLUS® Platinum-certified efficiency, and legendary CORSAIR reliability, the WS3000 can turbocharge any workstation build with ample power, abundant connections, and reliable, clean power delivery.
80 PLUS® PLATINUM CERTIFIED

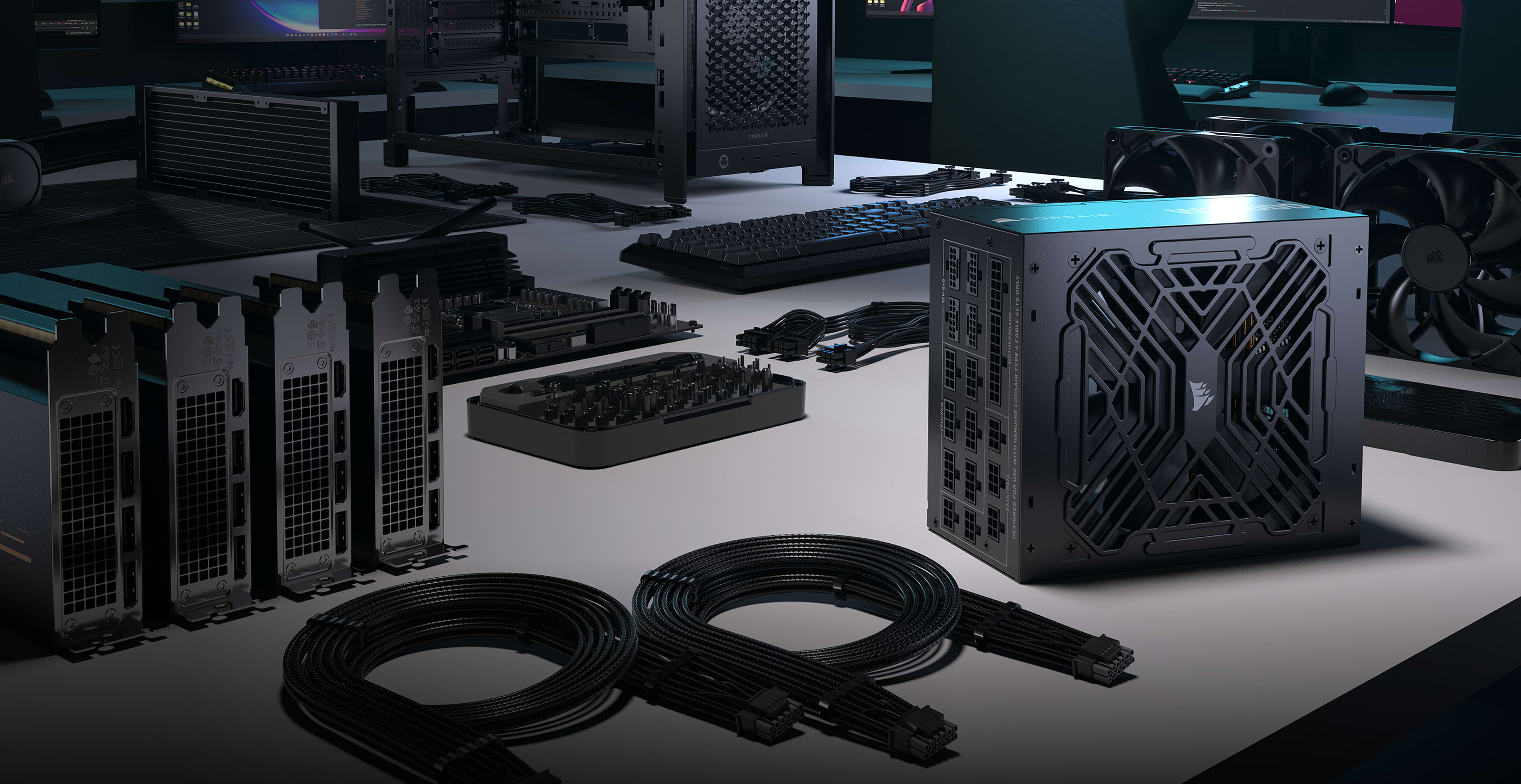

WORKSTATION POWERHOUSE

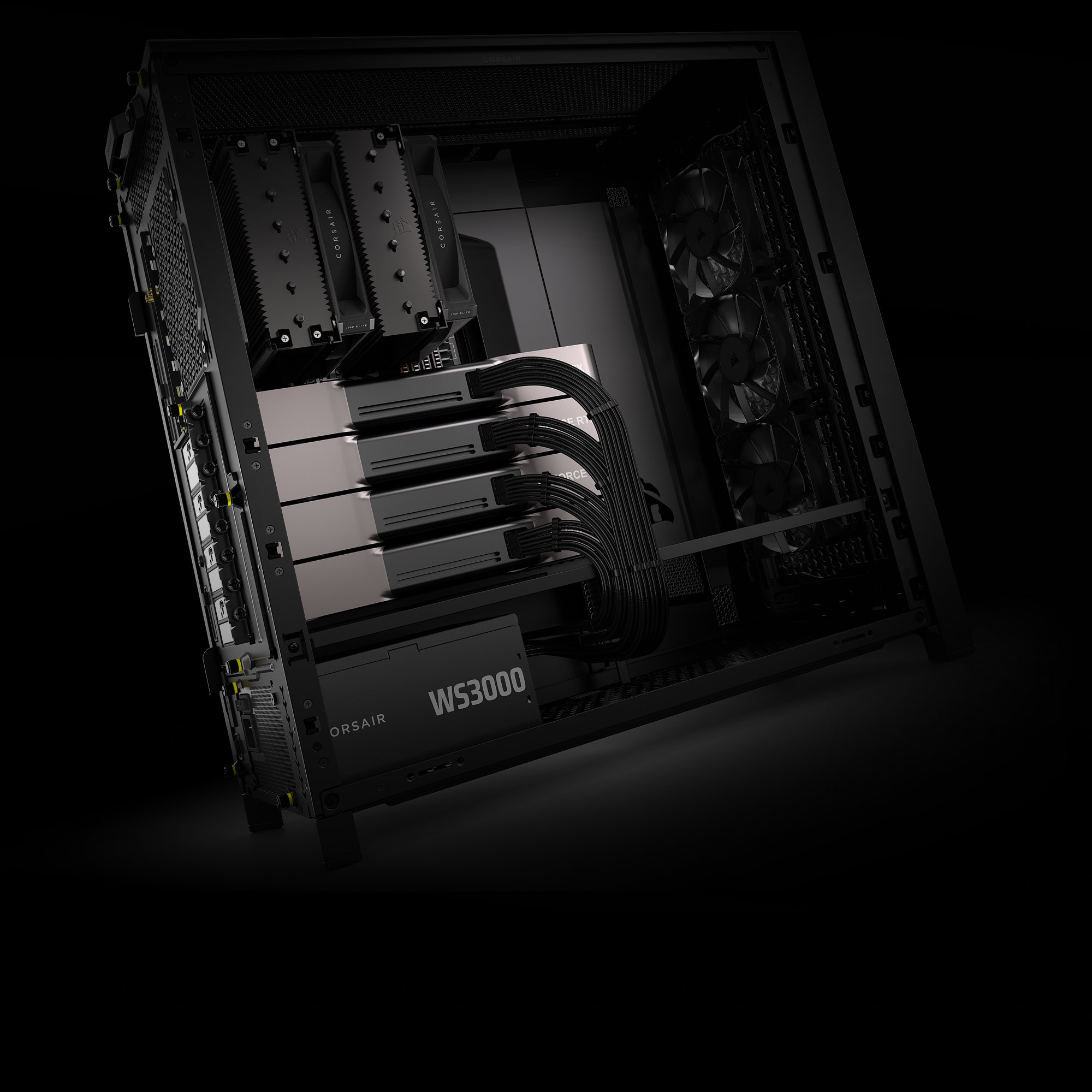

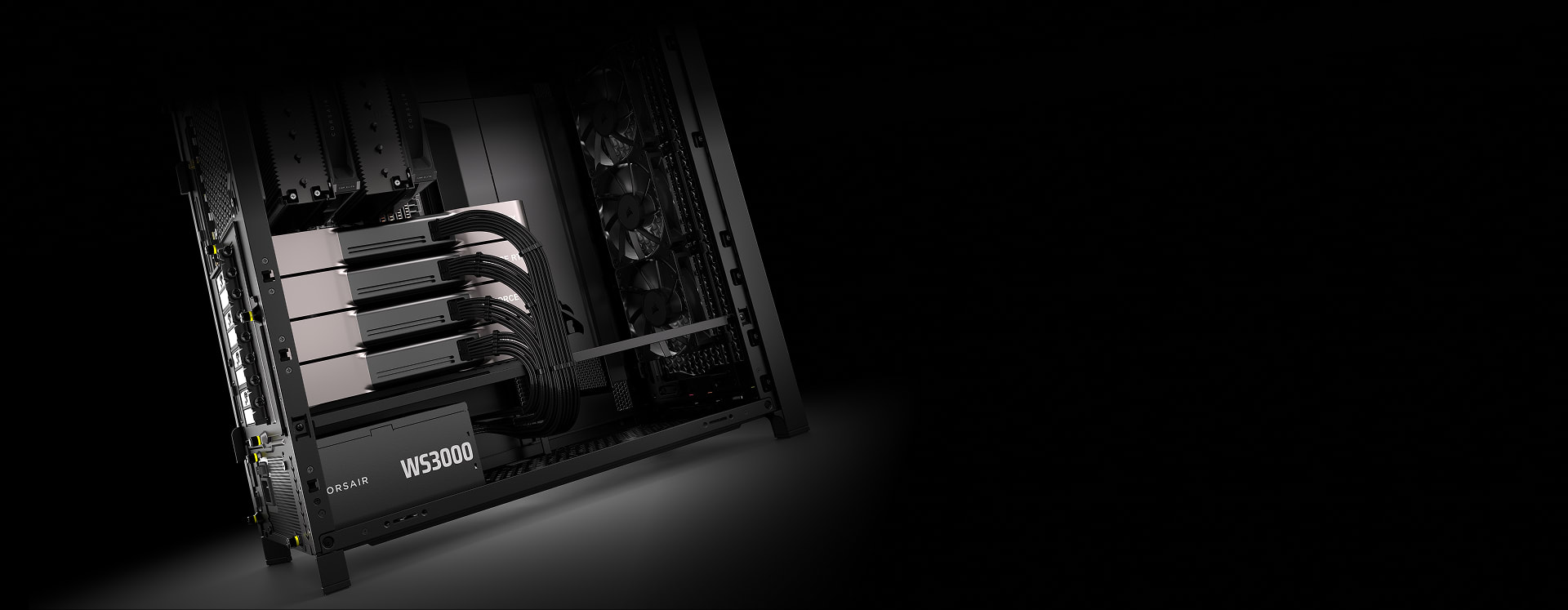

MULTI-GPU READY
Power multiple current and next-gen GPUs for the most demanding workloads including advanced animation and rendering, CAD design, and AI training.
TEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
WS3000 POWER TABLE
MODEL
RPS0237
PART NO.
75-006861
AC INPUT RATING
AC INPUT
220–240V
INPUT CURRENT
16A
FREQUENCY
47~63Hz
MAX LOAD
MAX OUTPUT
+3.3V
25A
130W
+5V
25A
+12V
250A
3000W
-12V
0.8A
9.6W
+5VSB
3.5A
15W
TOTAL POWER
3000W
WS3000 CABLE LISTING
QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
QTY
1
CABLE

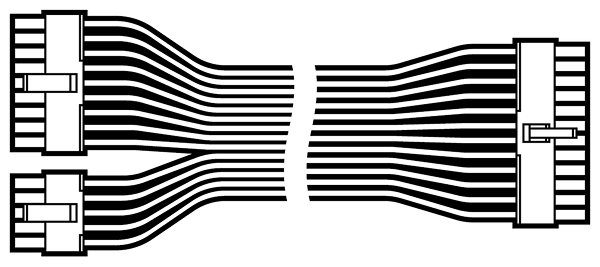

ATX Motherboard (24-pin)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
610mm
TOTAL LENGTH
610mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
2
CABLE

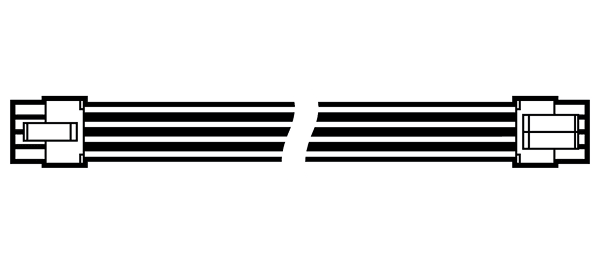

ATX12V/EPS12V (4+4-pin)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
650mm
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
4
CABLE

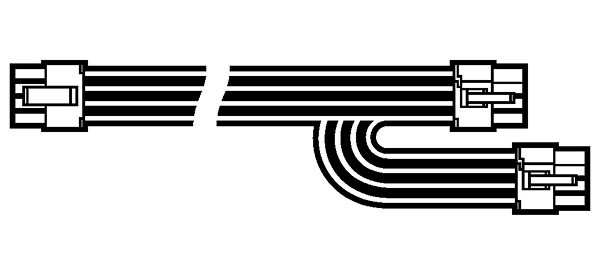

Dual 8-pin PCIe (6+2-pin)
CONNECTORS PER CABLE
2
TOTAL CONNECTORS
8
CONNECTOR SPACING
600mm,
150mm
150mm
TOTAL LENGTH
750mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
4
CABLE

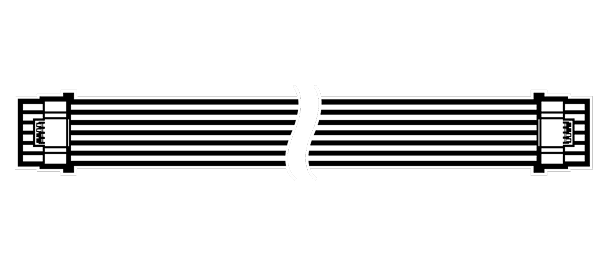

600W 12V-2x6 (12+4-pin)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
4
CONNECTOR SPACING
675mm
TOTAL LENGTH
675mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
3
CABLE

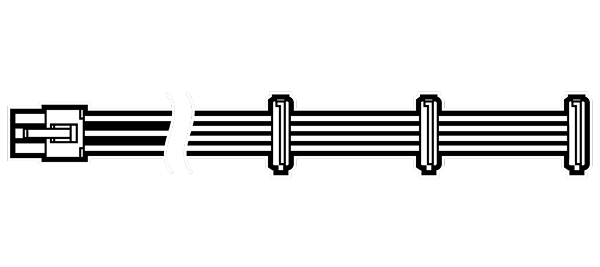

3 SATA
CONNECTORS PER CABLE
3
TOTAL CONNECTORS
9
CONNECTOR SPACING
500mm,
100mm,
100mm
100mm,
100mm
TOTAL LENGTH
700mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
2
CABLE

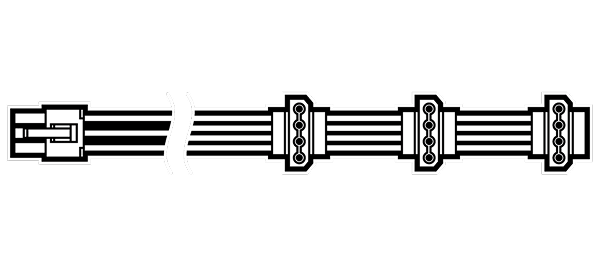

3 PATA
CONNECTORS PER CABLE
3
TOTAL CONNECTORS
6
CONNECTOR SPACING
500mm,
100mm,
100mm
100mm,
100mm
TOTAL LENGTH
700mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
Tech Specs
| PATA Connector | 6 |
|---|---|
| EPS Connector | 2 |
| SATA Connector | 9 |
| Fan Bearing Technology | Dual Ball Bearing |
| Modular | Fully |
| Cable Type | Type 4 |
| PCIe Connector | 8 |
| Zero RPM Mode | No |
| PSU Form Factor | ATX |
| Multi GPU Ready | Yes |
|---|---|
| Fan Size MM | 140mm |
| Continuous Power W | 3000 Watts |
| ATX Connector | 1 |
| ATX12V Version | 3.1 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Platinum |
| Warranty | 10 Year |
| Weight | 4.465kg |
WS Series ATX Power Supply
Power cord
DC Cables
Mounting screws
Cable ties
