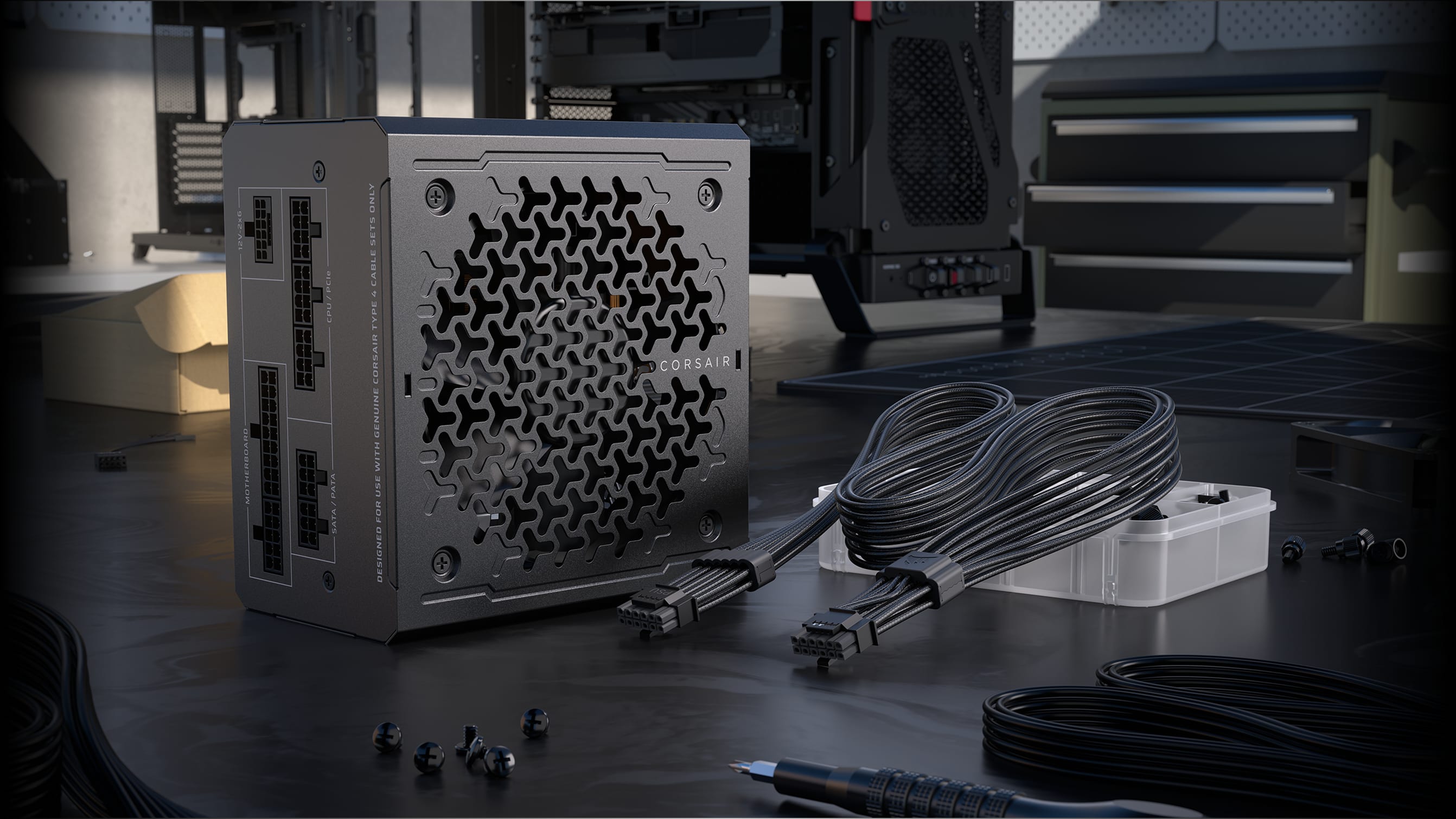

RM850e ATX 3.1 Low-Noise ATX Power Supply with ThermalProtect 12V-2x6 Cable

  • Includes a ThermalProtect 12V-2x6 cable with built-in Over Temperature Protection (OTP)
  • ThermalProtect technology is patent-pending
  • Rated Cybenetics Platinum-certified efficiency
  • Fully modular design for easy cable management
  • Ultra-flexible debossed cables with low-profile combs
  • Compact size for an easy build
  • Intel ATX 3.1 certified, PCIe 5.1 compliant
  • Zero RPM Mode for quiet computing
  • Seven-year warranty
Current price: $139.99
This product qualifies for free shipping
Order today for estimated delivery by 10/02/2026-10/05/2026
60-days risk free returns

Black
White

Color:

PSU Wattage

RM1000e
RM850e
SKU: CP-9020336-NA
Current price: $139.99
This product qualifies for free shipping
Order today for estimated delivery by 10/02/2026-10/05/2026
60-days risk free returns

RMe SERIES WITH THERMALPROTECT 12V-2x6 CABLE

RELIABLE POWER WITH ADVANCED GPU PROTECTION

  • 12V-2x6 CABLE

    WITH OVER

    TEMPERATURE PROTECTION

    INCLUDED

  • RATED CYBENETICS

    PLATINUM-

    CERTIFIED

    EFFICIENCY

  • ATX 3.1 CERTIFIED

    AND PCIe 5.1

    COMPLIANT

  • FULLY MODULAR

    CABLING FOR A

    CLEAN BUILD

BUILD WITH THE BEST

50 SERIES GPUs ARE HERE

Pair a next-gen GPU with a quality CORSAIR power supply for top-shelf performance and no hassles, right out of the box.
LEARN MORE

SILICON SHIELD

ON-CABLE OVER TEMPERATURE PROTECTION

When ThermalProtect detects an unsafe temperature, the OTP technology activates, causing the GPU to shut down to prevent any potential damage. ThermalProtect technology is patent-pending.
RM850e with ThermalProtect 2025 - Black | Fully Modular Cabling | Media

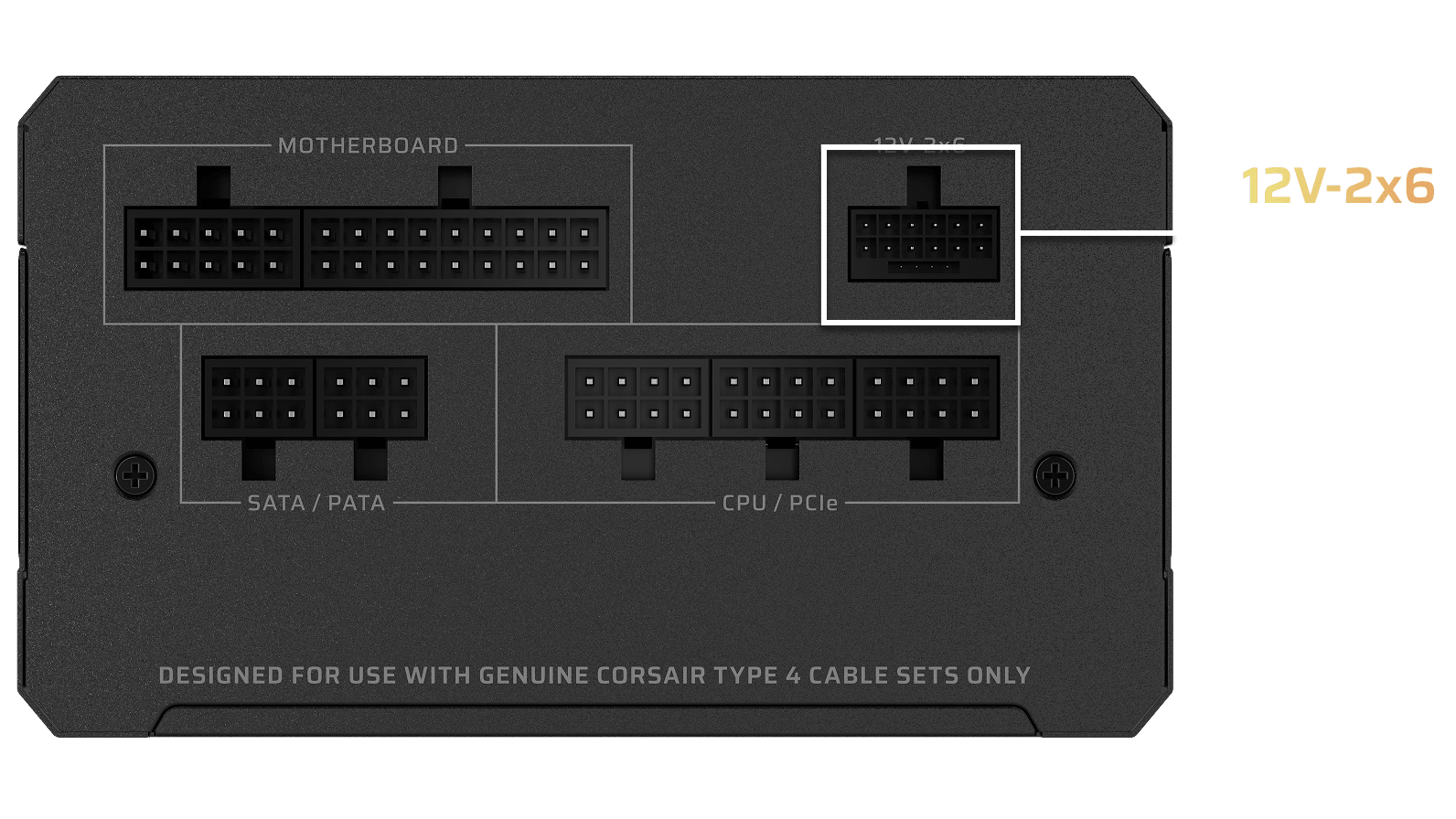

KEEP IT NEAT AND TIDY

FULLY-MODULAR CABLING

Keep cable clutter down by connecting only the cables your system needs. A native 12V-2x6 GPU connector and multiple 8-pin PCIe connectors mean RMe power supplies more than meet the needs of modern and future GPUs and CPUs.

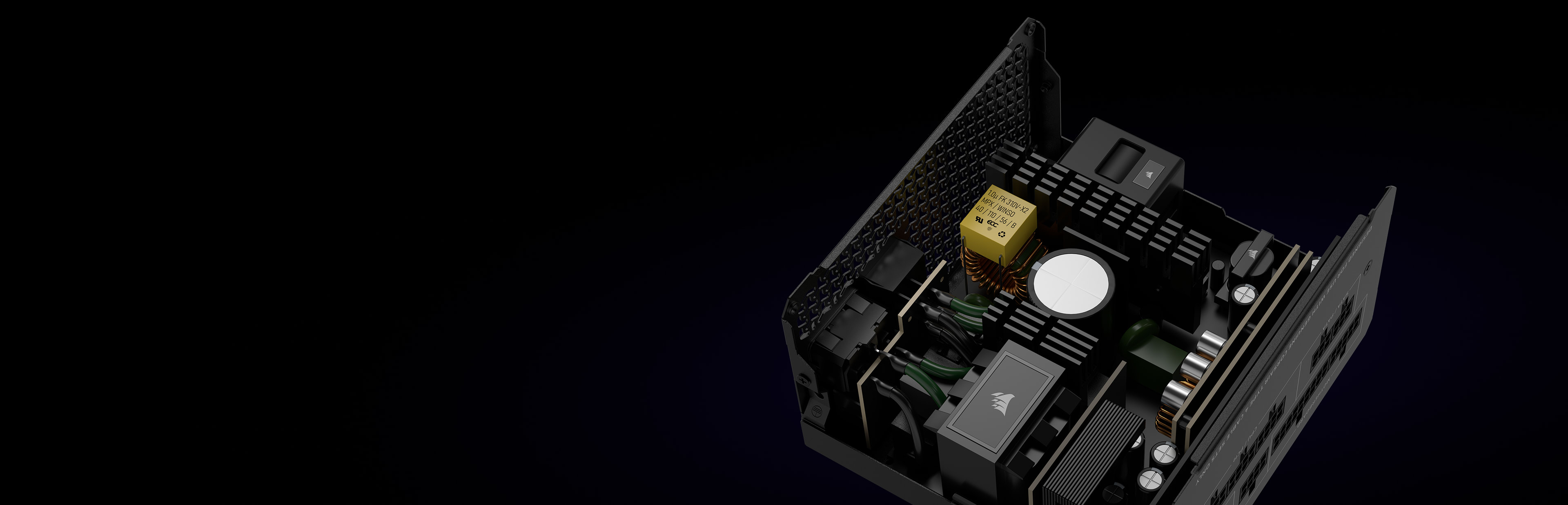

ON THE CUTTING-EDGE

ATX 3.1 CERTIFIED

RMe Series PSUs are ATX 3.1 certified and meet the most rigorous standards available for reliable power delivery and efficient operation.

CYBENETICS PLATINUM CERTIFIED

Steady power output at up to 91% efficiency and Cybenetics™ Platinum certified for lower power consumption, less noise, and cooler temperatures.

BUILT BETTER

QUIET, RELIABLE, COMPACT


LOW-NOISE OPERATION
ZERO RPM Mode eliminates fan noise completely at low and moderate loads and a specially calculated fan curve keeps fan noise down, even at full load.
105°C-RATED CAPACITORS
High-quality 105°C-rated capacitors offer excellent thermal stability for improved reliability.
COMPACT SIZE
RMe power supplies are very compact at 140mm and easily fit in most cases for an easy build with room for cable management.

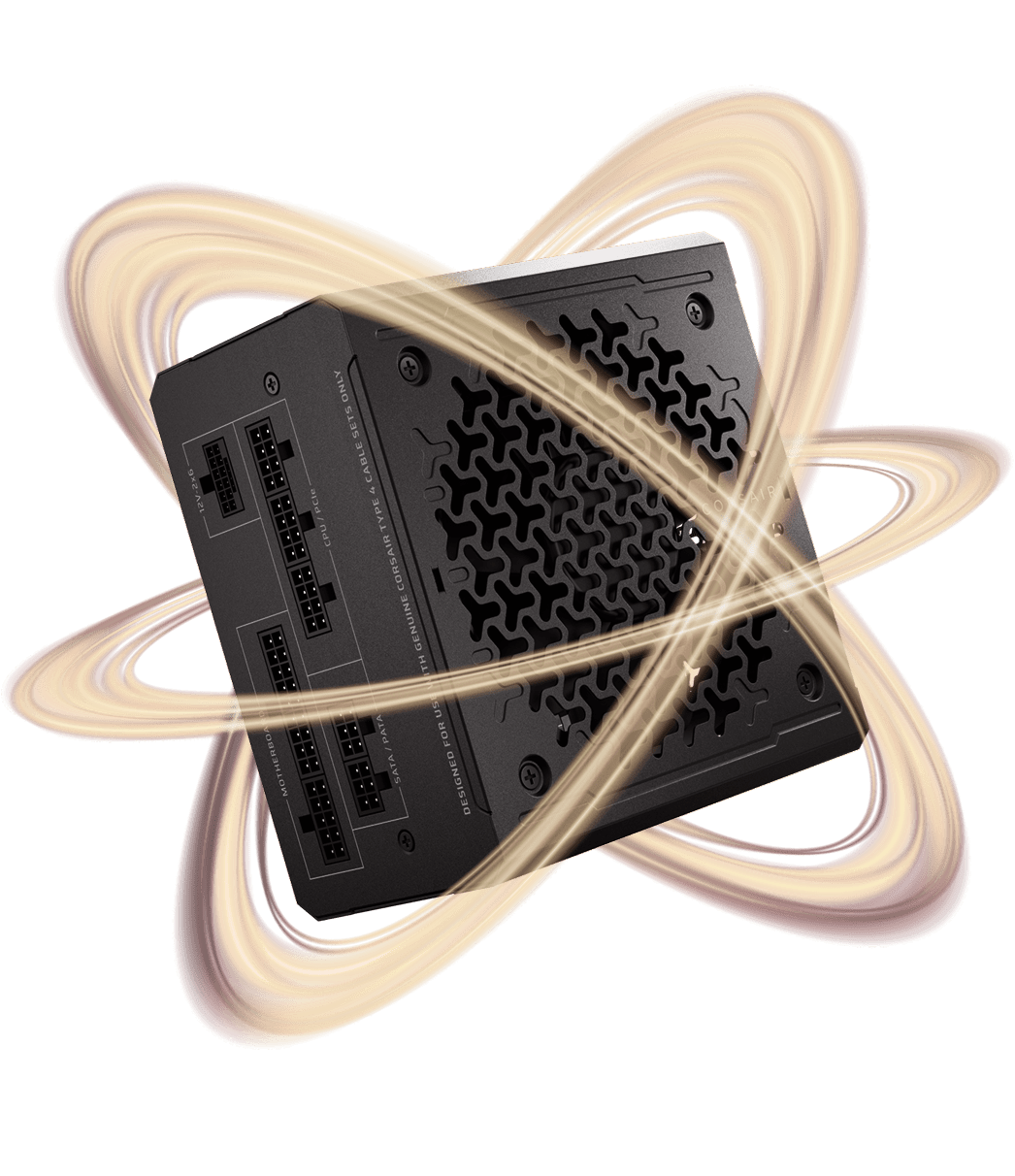

SAFE AND DEPENDABLE

RELIABLE POWER WITH BUILT-IN PROTECTIONS

RM850e/RM1000e with ThermalProtect 2025 | Reliable Power With Built-In Protections | Media

  • Over Voltage Protection

  • Over Temperature Protection

  • Under Voltage Protection

  • Short Circuit Protection

  • Over Current Protection

  • Over Power Protection

warranty logo
SEVEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.

RM850e POWER TABLE

MODEL
RPS0216
PART NO.
75-006461
AC INPUT RATING
AC INPUT
100–240V
INPUT CURRENT
10A - 5A
FREQUENCY
47~63Hz

MAX LOAD
MAX OUTPUT
+3.3V
20A
150W
+5V
20A

+12V
70.8A
850W
+5VSB
3A
15W
TOTAL POWER
850W

RM850e CABLE LISTING

QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
QTY
1
CABLE

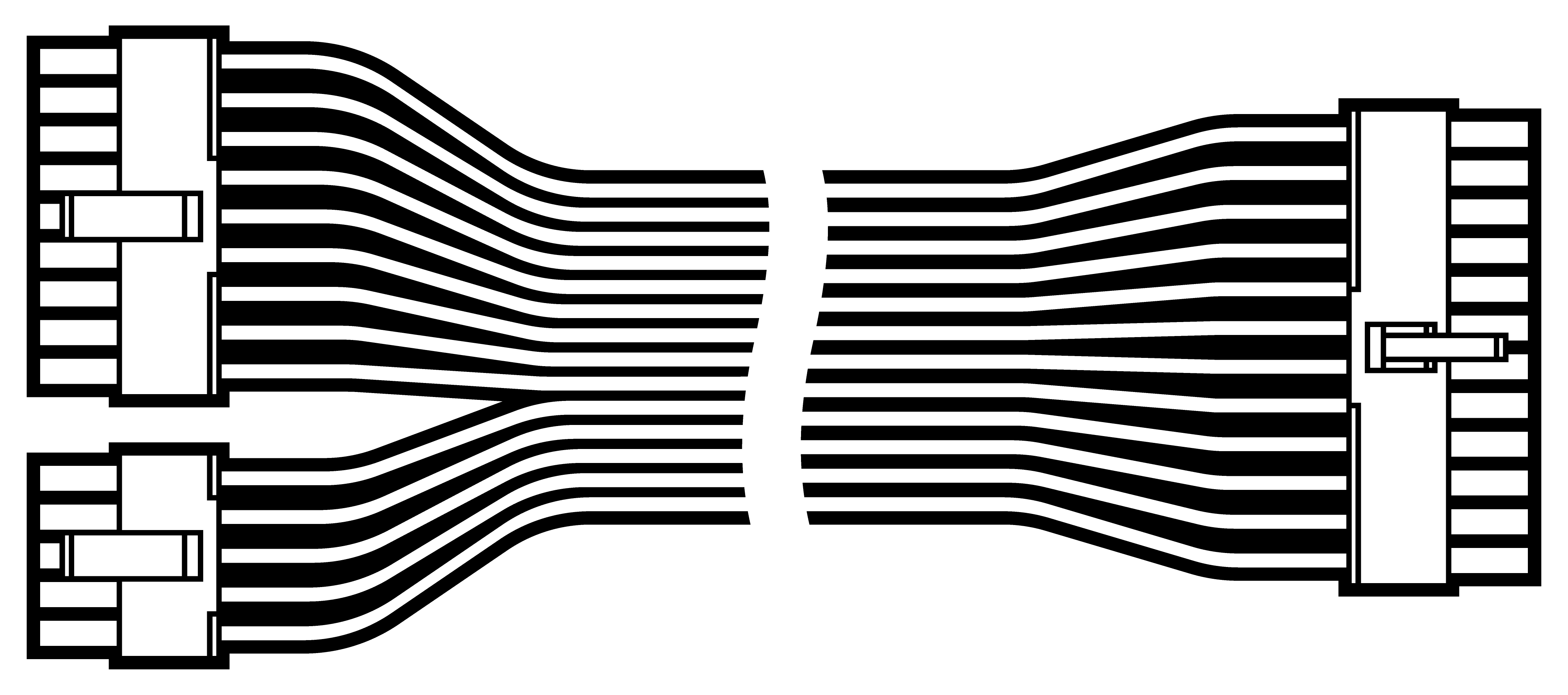

ATX Motherboard (24-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
610mm
(± 10mm)
CABLE TYPE
Debossed
QTY
2
CABLE
ATX12V / EPS12V (4+4-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
-
TOTAL LENGTH
750mm
(± 10mm)
CABLE TYPE
Debossed
QTY
1
CABLE
ThermalProtect PCIe 5.1 600W 12V-2x6 - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
650mm
(± 10mm)
CABLE TYPE
Debossed
QTY
1
CABLE

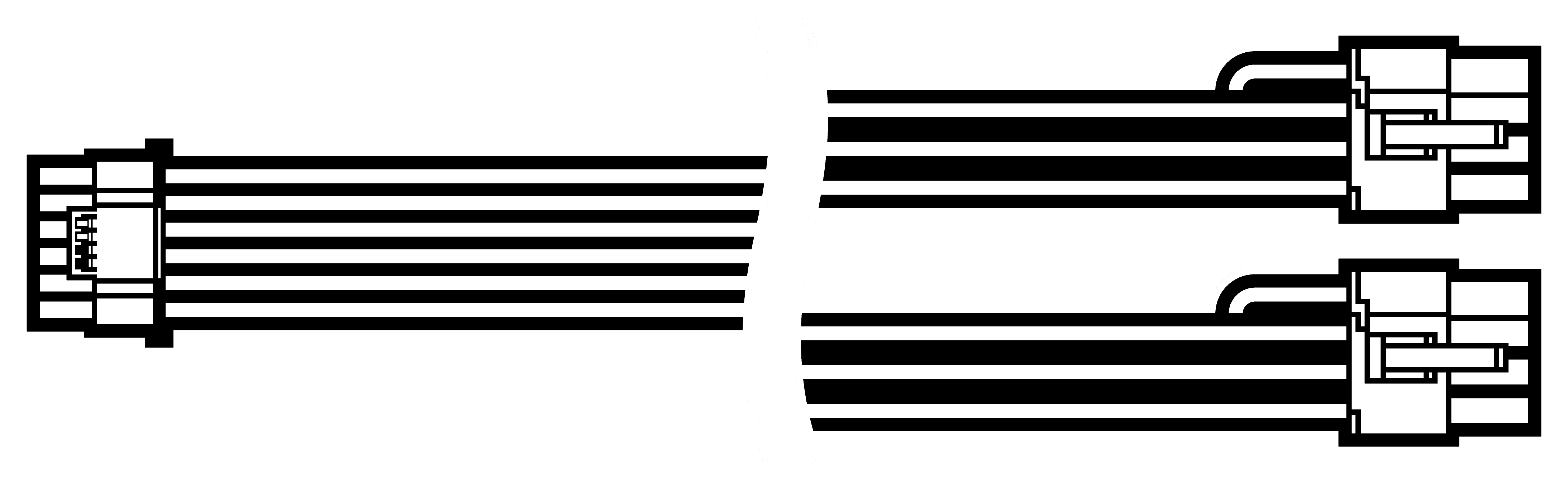

12V-2x6 to 2x8-pin PCIe(6+2-pin) - Modular
CONNECTORS PER CABLE
2
TOTAL CONNECTORS
2
CONNECTOR SPACING
-
TOTAL LENGTH
650mm
(± 10mm)
CABLE TYPE
Debossed
QTY
1
CABLE
8-pin PCIe (6+2-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
650mm
(± 10mm)
CABLE TYPE
Debossed
QTY
1
CABLE

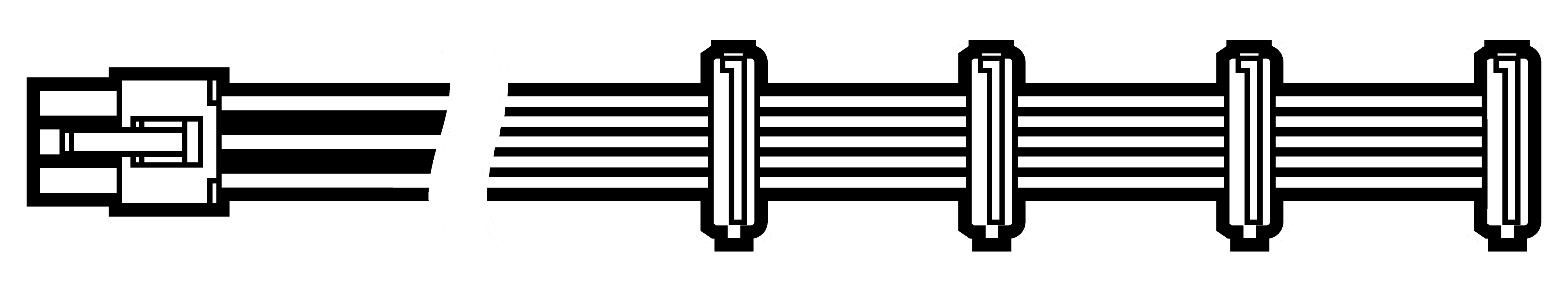

4 SATA - Modular
CONNECTORS PER CABLE
4
TOTAL CONNECTORS
4
CONNECTOR SPACING
450mm, 100mm, 100mm, 100mm
TOTAL LENGTH
750mm
(± 10mm)
CABLE TYPE
Debossed
QTY
1
CABLE
2 SATA / 2 PATA - Modular
CONNECTORS PER CABLE
4
TOTAL CONNECTORS
4
CONNECTOR SPACING
450mm, 100mm, 100mm, 100mm
TOTAL LENGTH
750mm
(± 10mm)
CABLE TYPE
Debossed

Tech Specs

Cybenetics EfficiencyPlatinum
Cybenetics NoiseA
PATA Connector2
SATA Connector6
Modern StandbyYes
Dimensions140x150x86
ModularFully
Cable TypeType 4
Zero RPM ModeYes
Continuous Power W850 Watts
ATX Connector1
ATX12V Version3.1
MTBF Hours100,000 hours
Warranty7 Year
Weight2kg

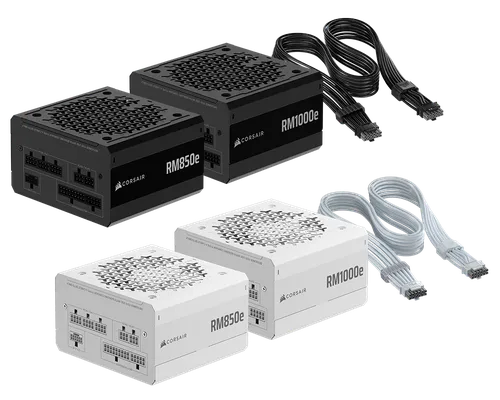

RMe with ThermalProtect

QUICK START GUIDE

RMe with ThermalProtect

This guide will help you install and get familiar with your new CORSAIR RMe with ThermalProtect PSU's features.

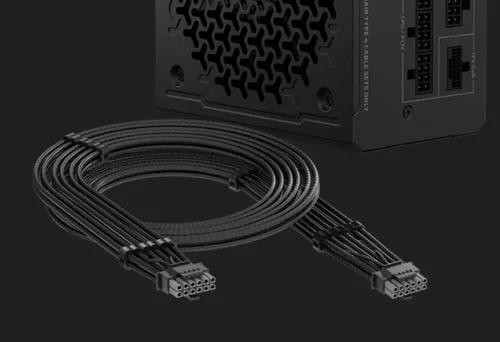

What Is the Difference between PinProtect, PinProtect+, and ThermalProtect?
