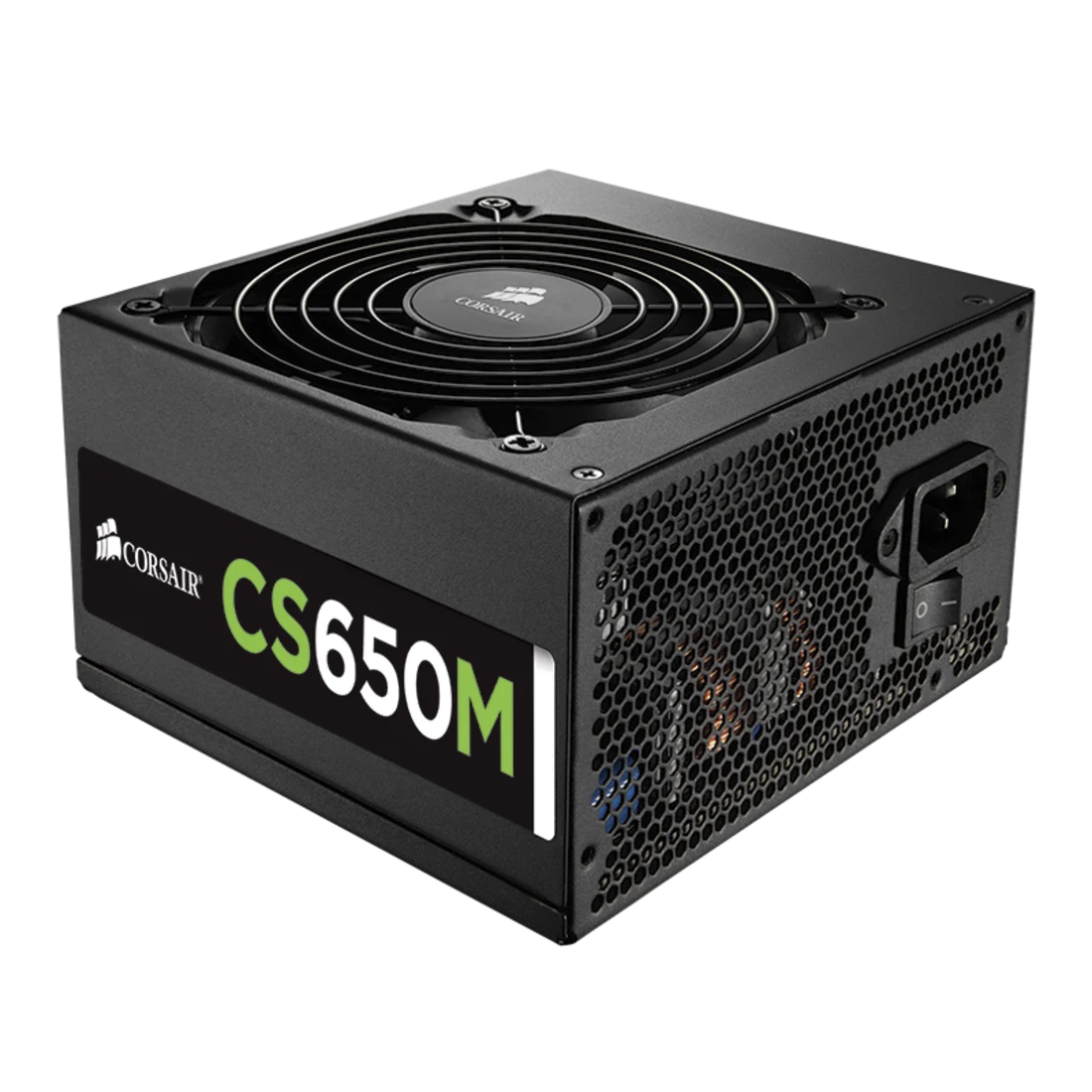

CS Series™ 模块化 CS650M – 650 瓦 80 PLUS® Gold 认证 PSU
CS Series™ 模块化电源特别适合对低功耗、低噪声和简单安装有重点要求的基本台式机系统。
SKU: CP-9020077-NA-RF
- 技术规格
- 技术规格
- 指南
- 指南
技术规格
| EPS Connector | 1 |
|---|---|
| SATA Connector | 6 |
| Fan Bearing Technology | Sleeve Bearing |
| Dimensions | 150mm x 86mm x 140mm |
| Modular | Semi |
| PSU Compatibility | ATX12V v2.4 and EPS12V 2.92 standards |
| Cable Type | Low-Profile, All Black |
| Floppy Connector | 1 |
| PCIe Connector | 4 |
| Zero RPM Mode | No |
| PSU Form Factor | ATX |
|---|---|
| Multi GPU Ready | Yes |
| Fan Size MM | 140mm |
| Continuous Power W | 650 Watts |
| ATX Connector | 1 |
| ATX12V Version | v2.4 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Gold |
| Warranty | 90 Days |
| Weight | 2.4kg |
