XD6 RGB ELITE LCD
PUMP / RESERVOIR COMBO

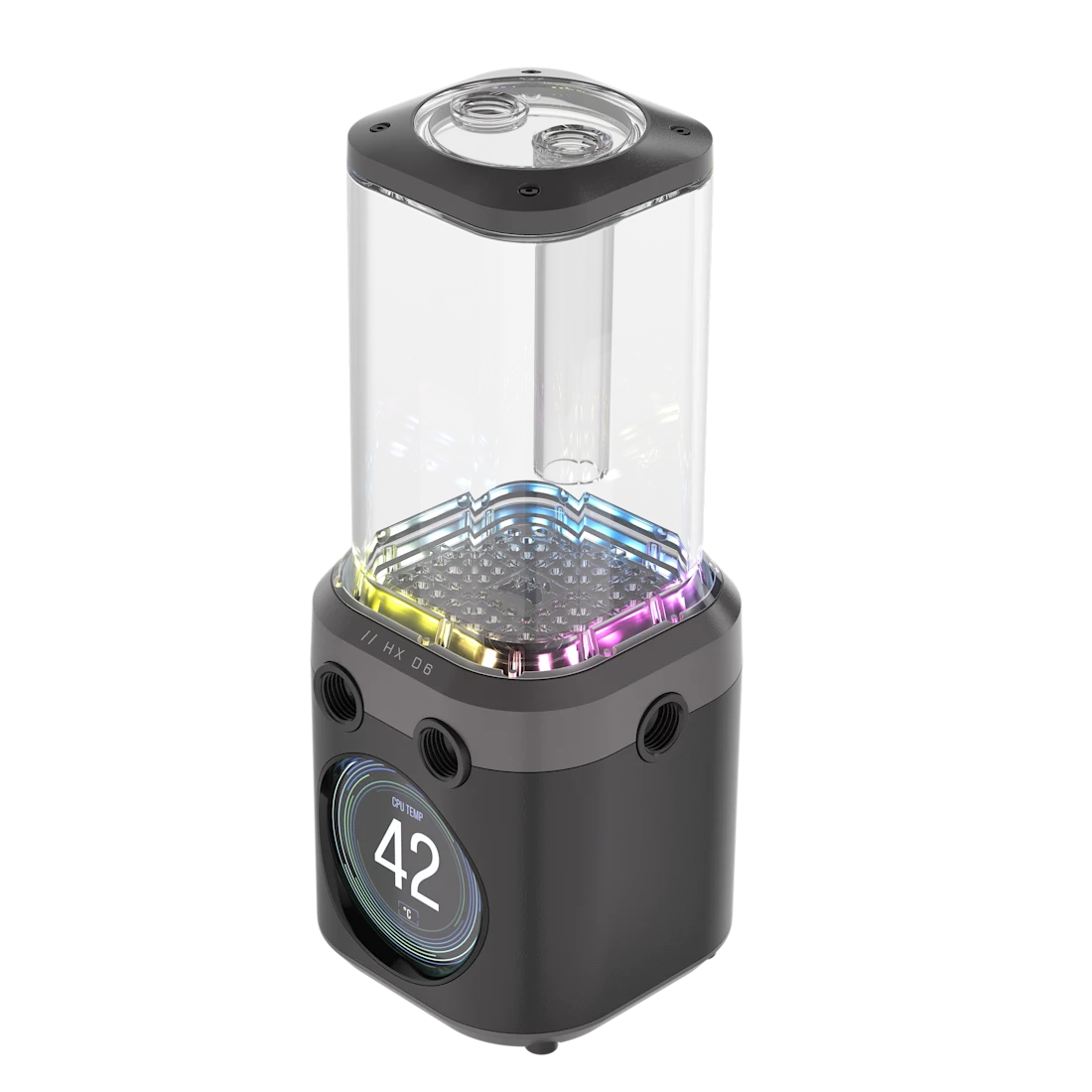

iCUE LINK XD6 RGB ELITE LCD Pump/Reservoir Combo
For DIY enthusiasts seeking high coolant flow, a sleek design, RGB lighting, and streamlined connection to the iCUE LINK Hub.
Includes
Includes
- Customizable 480x480 LCD screen
- 22 Individually addressable RGB LEDs
- FlowDrive Max PWM pump motor
- Integrated coolant temperature sensor
- Effortless iCUE LINK connectivity
Features
iCUE Enabled Product
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.LEARN MORE
SKU: CX-9040015-WW

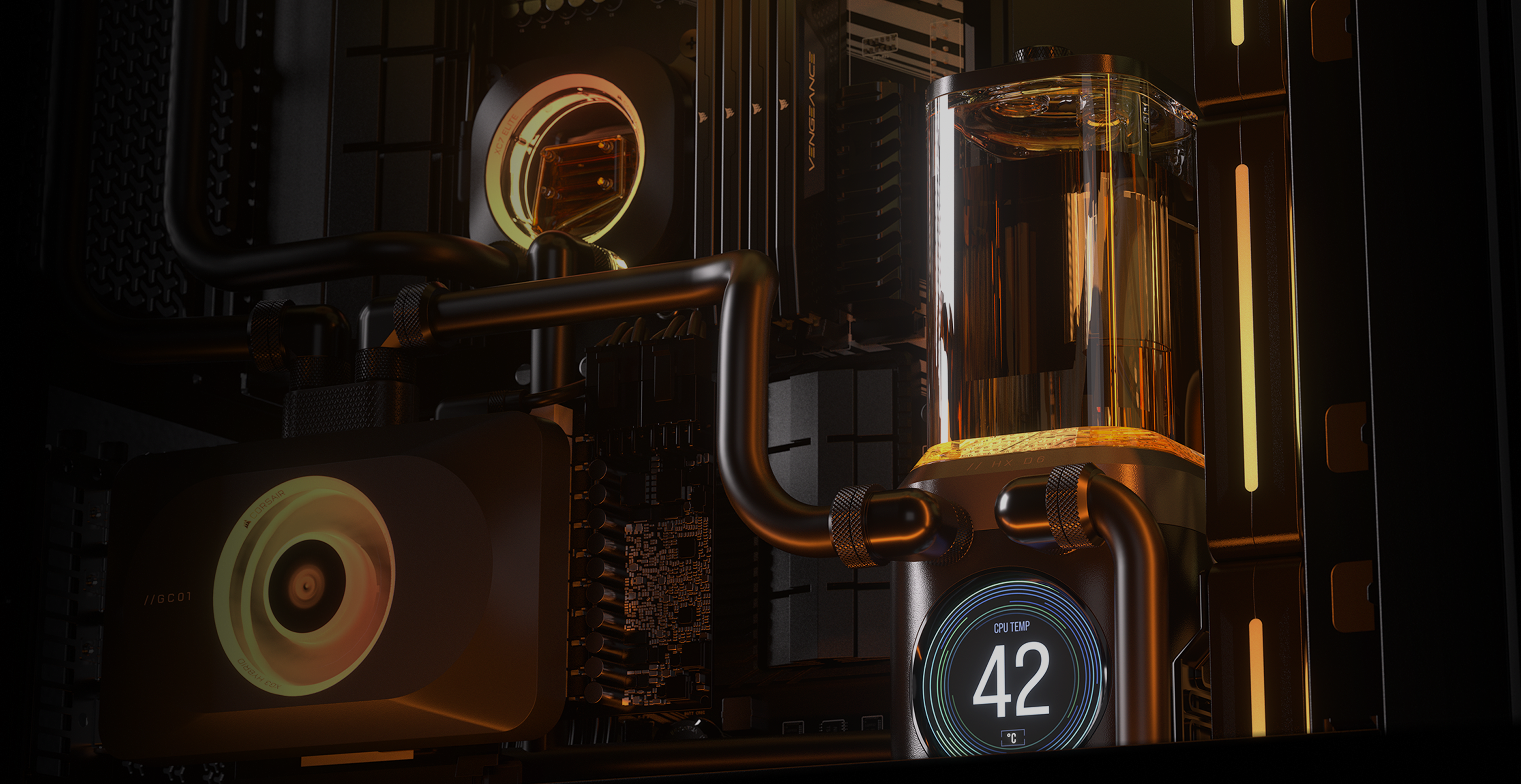

BUILT TO IMPRESS
POWER MEETS PRECISION
The HYDRO X SERIES XD6 RGB ELITE LCD features the new FlowDrive Max pump, delivering a higher overall flow rate and improved performance at lower RPMs. Its vibrant LCD screen, the same found on our award-winning AIO coolers, adds a bold visual touch to any custom cooling setup.
MAKE IT YOUR OWN

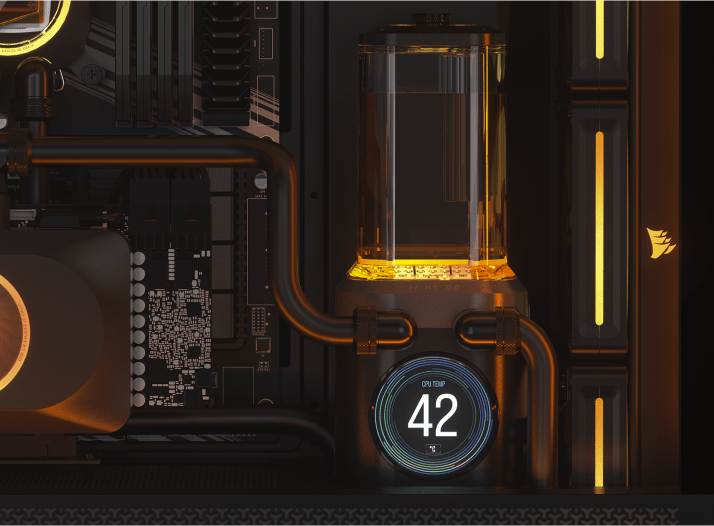

REAL-TIME PUMP DISPLAY
Showcase your creativity and personalize your build with real-time coolant temperature, animated GIFs, memes, or your team’s logo on a custom 30 FPS IPS LCD screen with 480x480 resolution, ultra-bright 600cd/m2 backlight, and 24-bit true color depth.
DISPLAY SCREEN PREVIEW

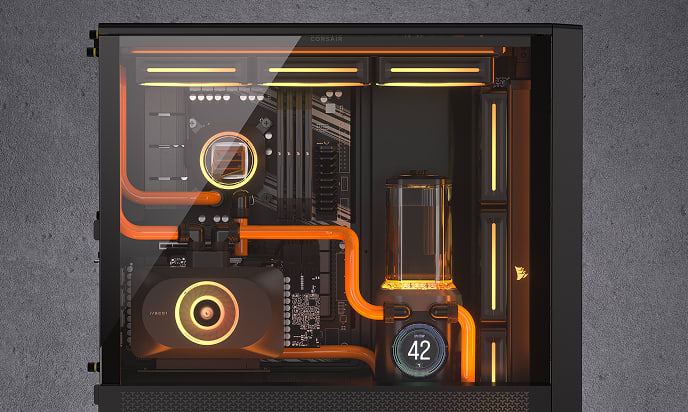

THE FUTURE OF DIY PC BUILDING
iCUE LINK SMART COMPONENT ECOSYSTEM
Redefine the way you build a DIY PC with a groundbreaking single-cable technology that automatically detects and configures your PC fans, CPU coolers, and other internal components.
THE EASY WAY TO BUILD A PC
Reduce cable clutter with a network of smart, interconnected components.
LINK YOUR COMPONENTS
The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.
UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.
PRO FLOW
CUSTOM COOLING TOTAL CONTROL
The XD6 RGB ELITE features a high-performance FlowDrive Max pump and integrated coolant temperature sensor to provide outstanding cooling performance and precise control of your pump speed and flow rate.
LIVING COLOR

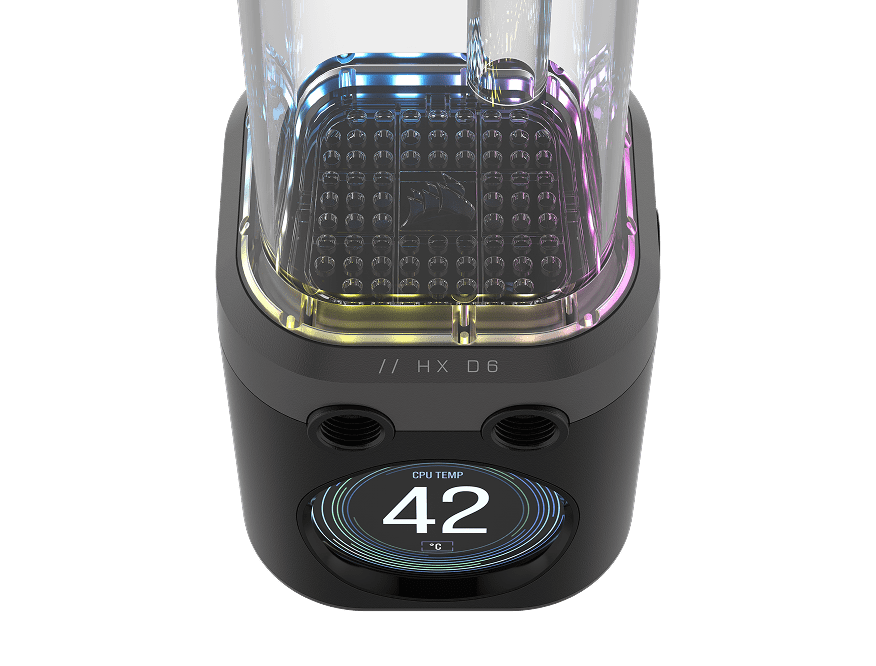

STUNNING RGB LIGHTING
Illuminate your coolant and reservoir with 22 individually addressable RGB LEDs for a dazzling display of glorious lighting. Each RGB LED is easily customizable with CORSAIR iCUE software, which allows you to choose from a wide array of eye-catching lighting patterns.
FLEXIBLE PERFECTION
EASY AND FLEXIBLE INSTALLATION

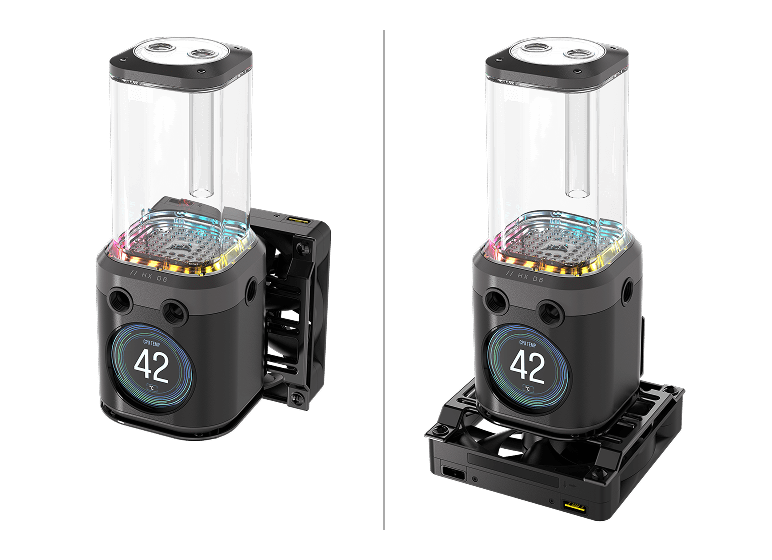

The XD6 RGB ELITE features multiple G1/4 ports and practical additions for easy setup, including an integrated fill port, a 24-pin power supply jumper bridge, and a rubberized mounting system with adjustable brackets for flexible installation in multiple locations.
TWO-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Tech Specs
| Lighting | RGB |
|---|---|
| Compatible Materials | Only mix with other copper / brass products |
| Port Thread | G1/4" BSPP |
| Max Operating Temperature | 60°C coolant temperature |
| Pump Voltage | 12V |
| Max Hydraulic Performance | 800L/h at 2.1m pressure head (1500L/H theoretical max) |
| Pump Type | CORSAIR PWM |
| Fluid Chamber Material | Nylon |
|---|---|
| Compatible Coolants | CORSAIR XL or equivalent |
| Color | BLACK |
| Cooling Warranty | 3 Year |
| Model | Pump / Reservoir Combo |
| Weight | 1.319 |
XD6 Pump Res Combo
120 mm fan bracket
140 mm fan bracket
ATX Jumper Bridge
G1/4" Temperature Sensor
3 x G1/4" stop plugs
mounting screws
