2800X RS-R
ARGB
PANORAMIC GLASS MICRO-ATX PC CASE

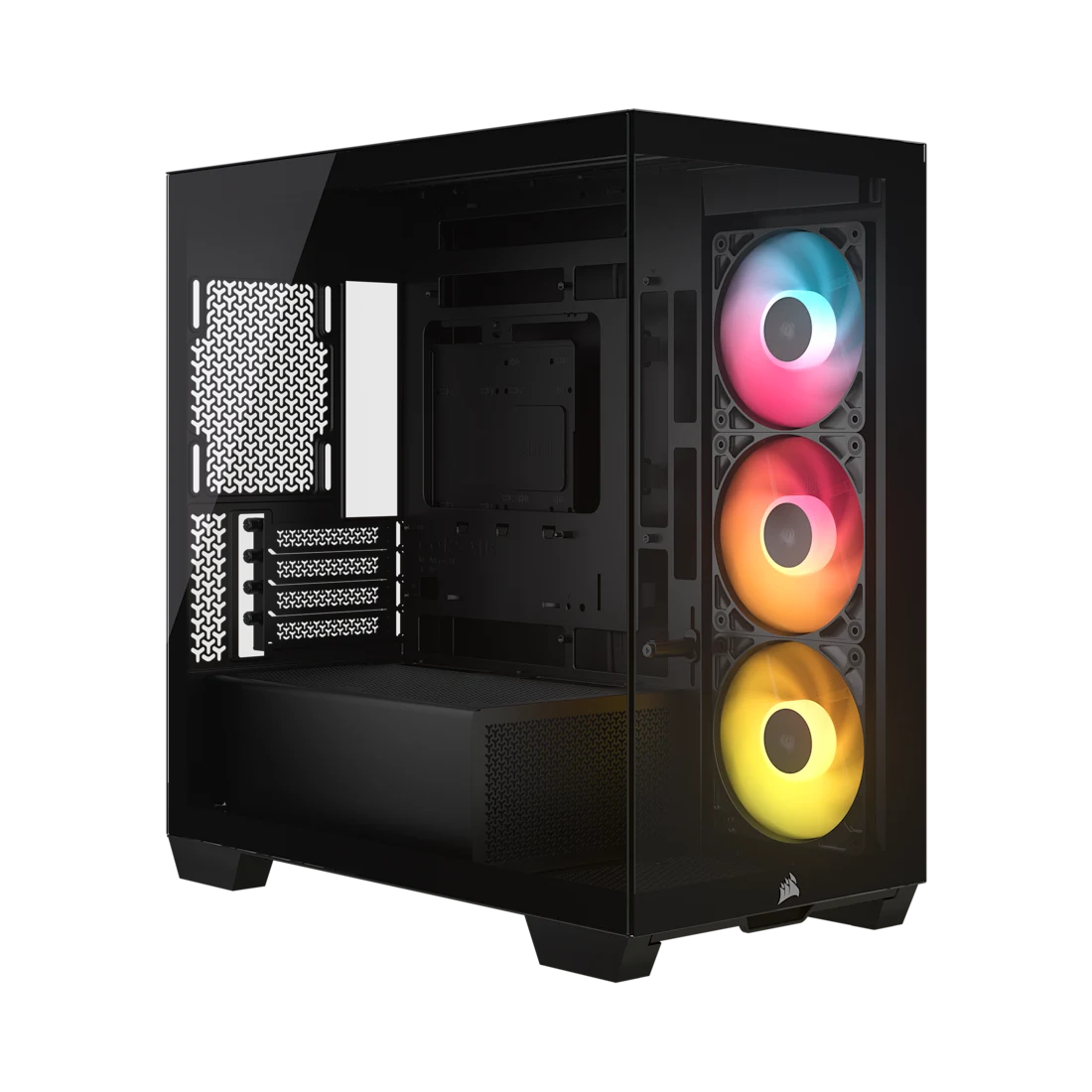

2800X RS-R ARGB Micro-ATX PC Case
- 410mm of GPU clearance for big GPUs
- Supports a top-mounted 360mm AIO CPU Cooler
- A smaller desktop footprint with room to build
- 3x pre-installed RS120-R ARGB reverse-rotor intake fans

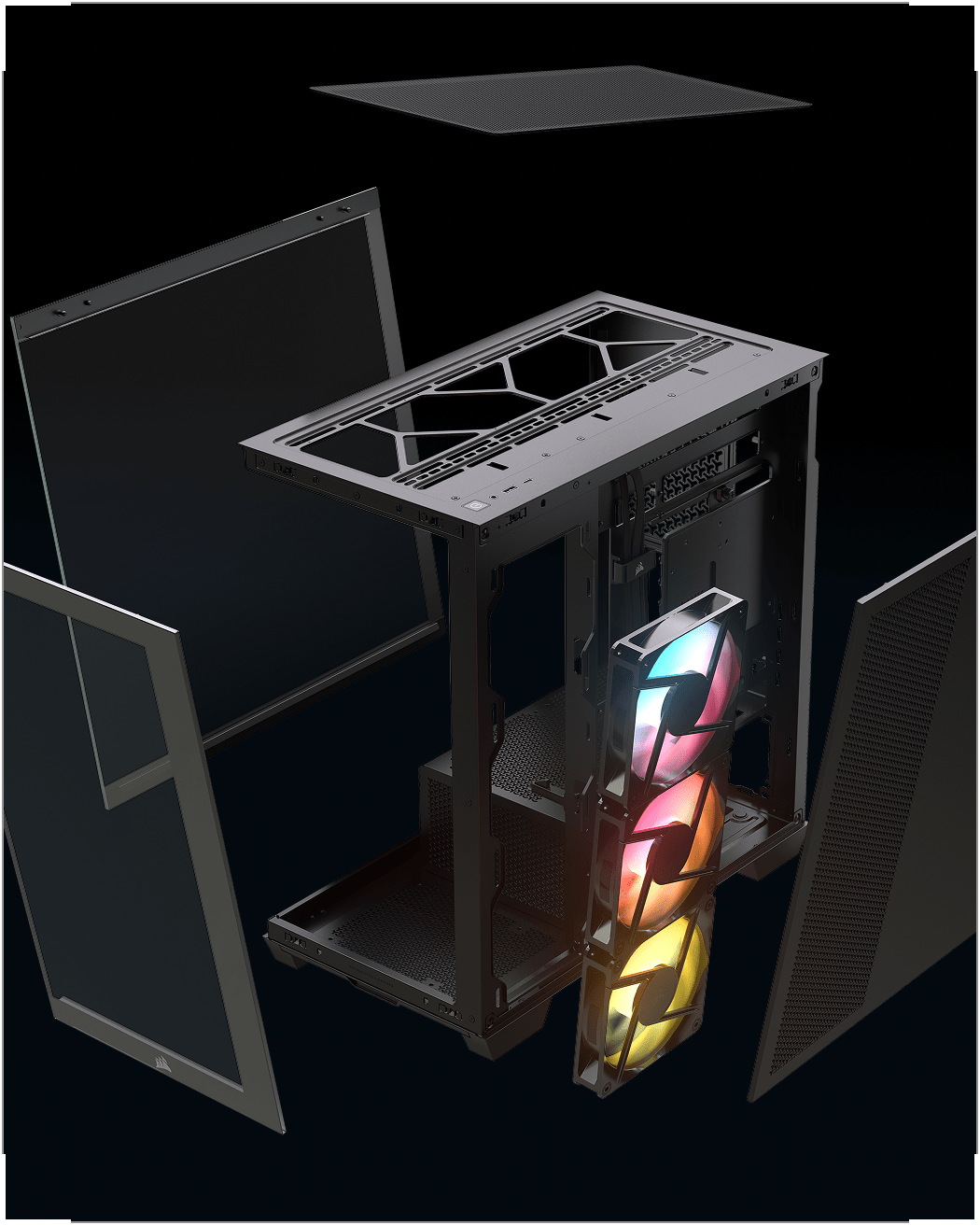

- Wraparound glass front and side panels
- Supports up to 10x 120mm fans for effective cooling

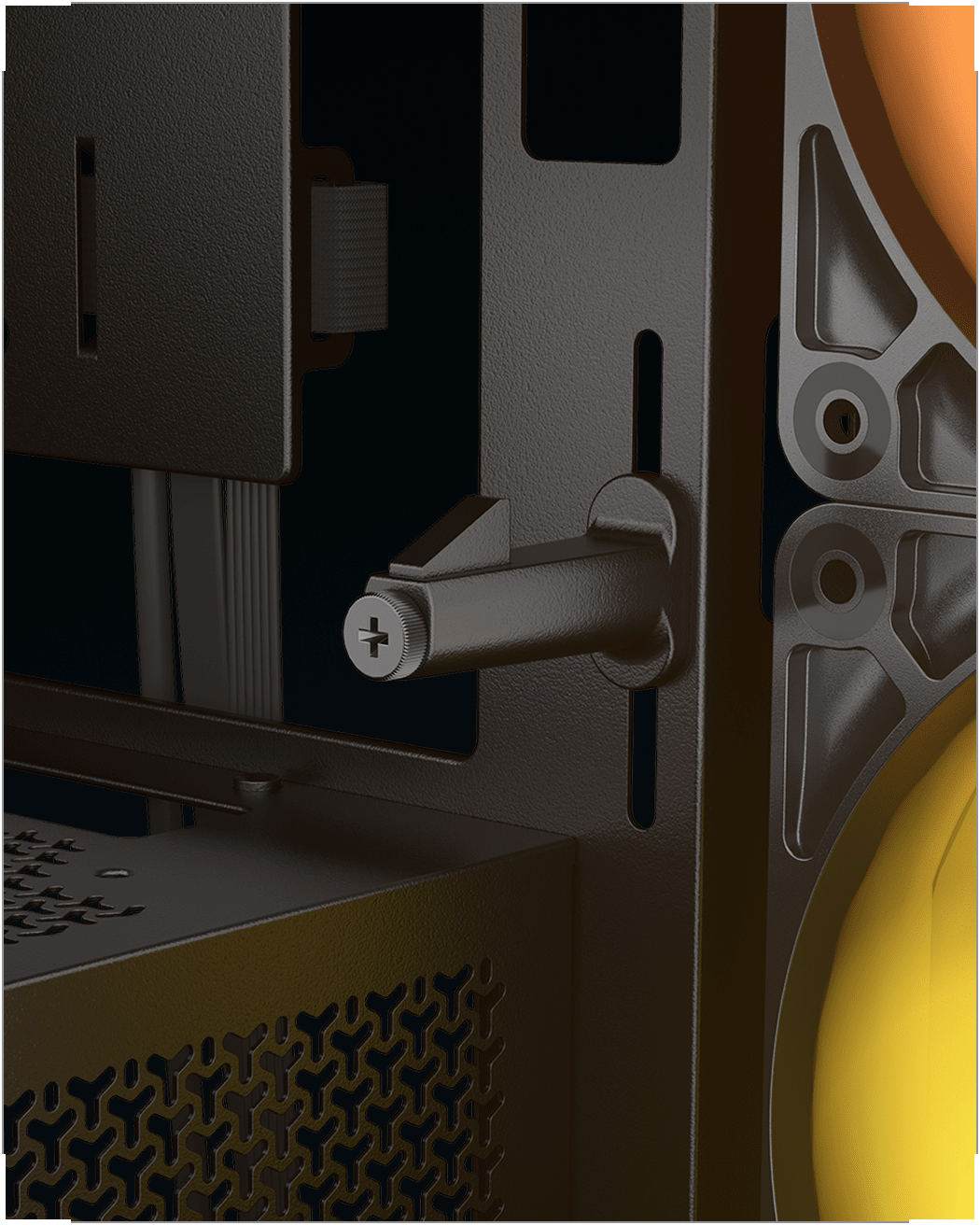

- Built-in GPU Anti-sag Stabilization Arm
- Compatible with reverse-connector mATX motherboards
Color
Black
White
Color:
SKU: CC-9011347-WW
- Overview
- Tech Specs
- Downloads
- Guides
2800X RS-R
COMPACT SIZE

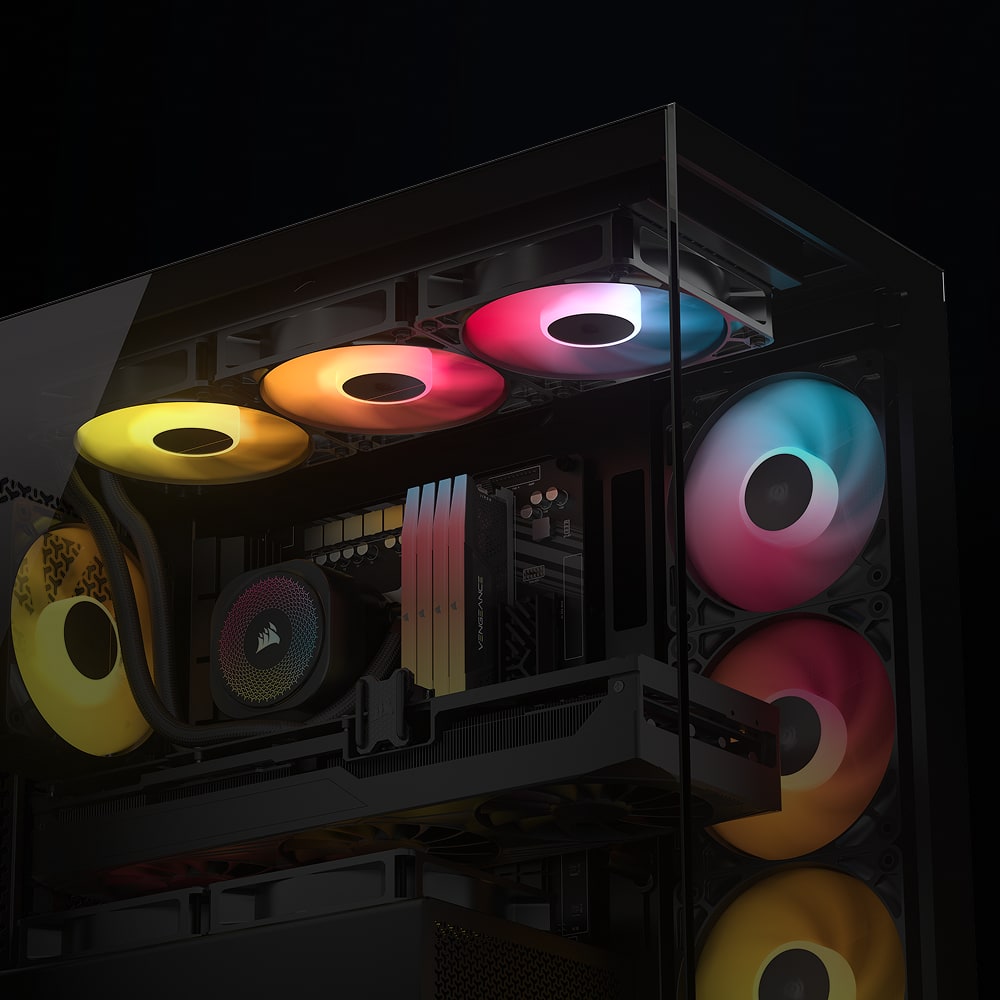

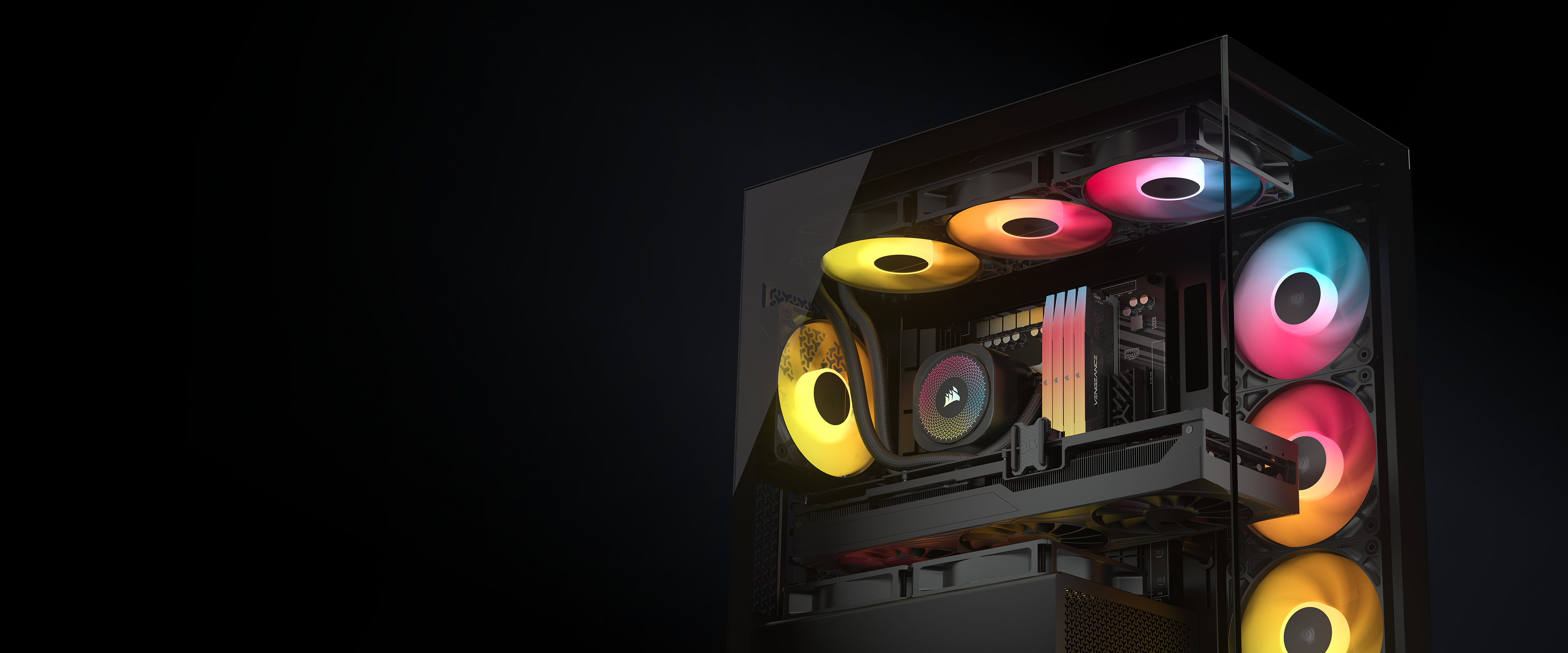

BIG COOLING
The CORSAIR 2800X is a compact Micro-ATX case that offers plenty of cooling power with room for a 360mm radiator in the top of the case and 10x 120mm fan mounts on the side, top, rear, and bottom of the chassis.
BUILT FOR GAMING

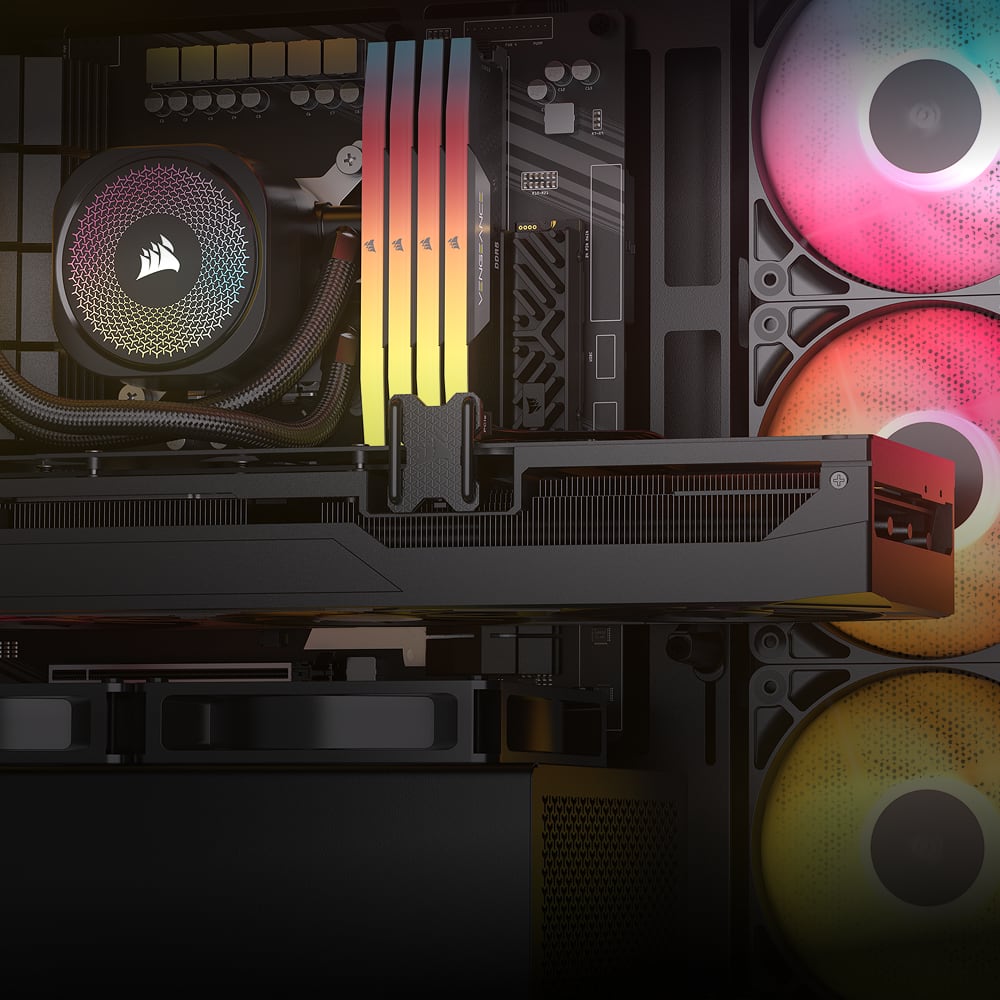

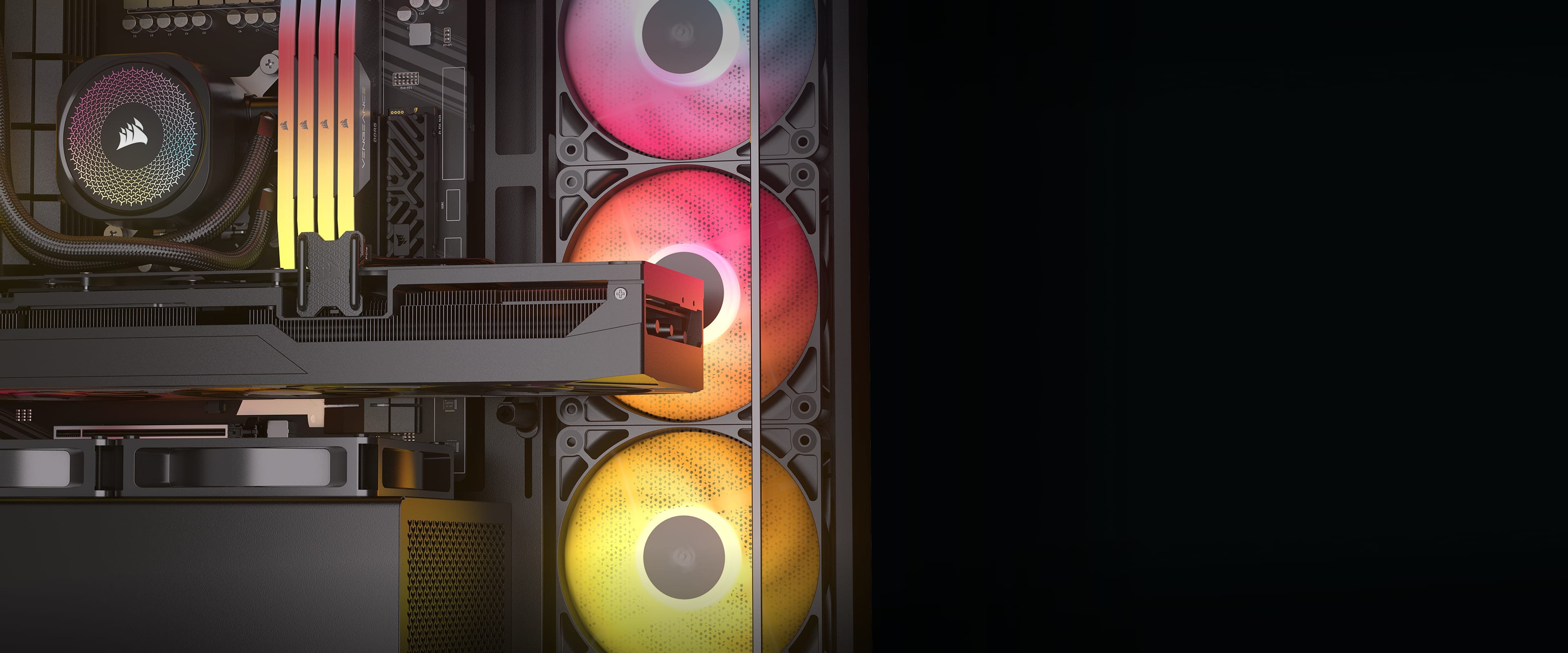

PLENTY OF ROOM FOR BIG GPUs
The 2800X offers 410mm of GPU clearance so even the biggest GPUs available will easily fit, ensuring maximum gaming performance and providing an easy upgrade path for future builds.
A FAN FAVORITE

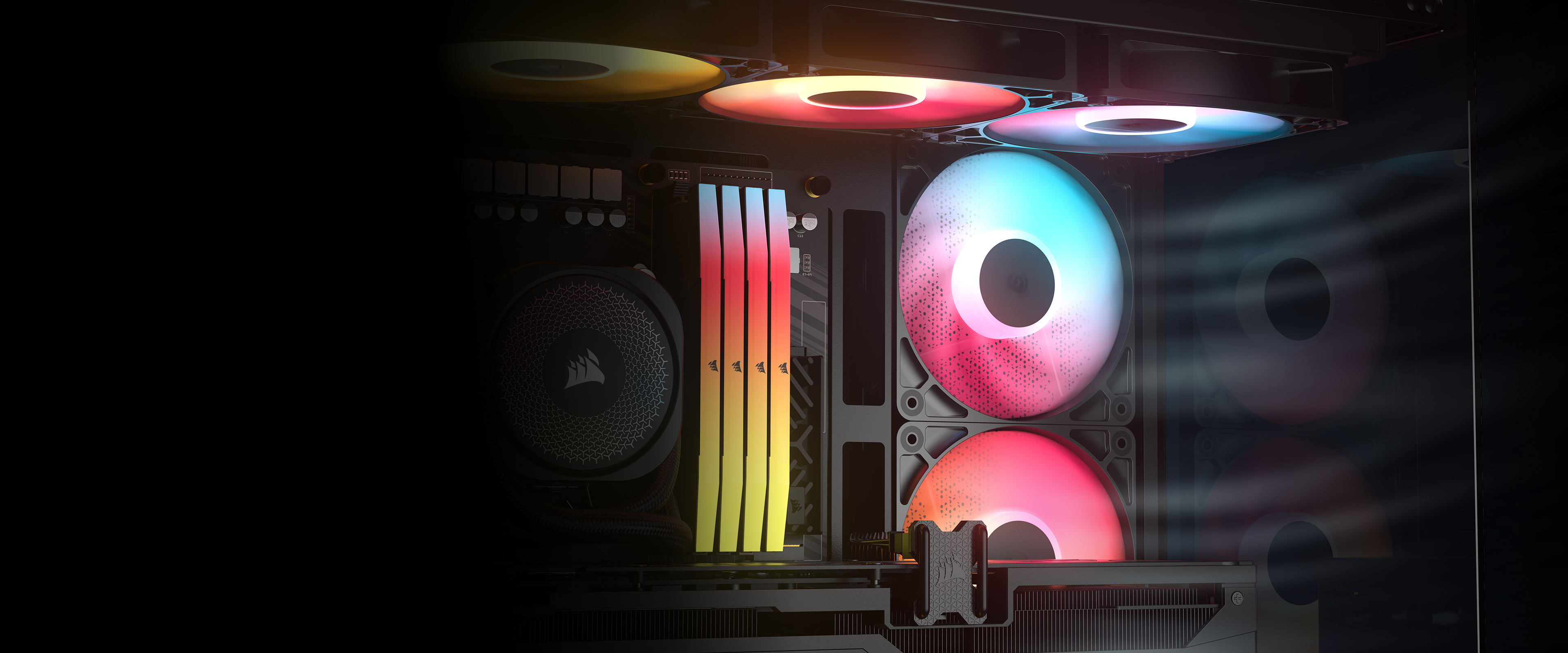

RS-R REVERSE ROTOR INTAKE FANS INCLUDED

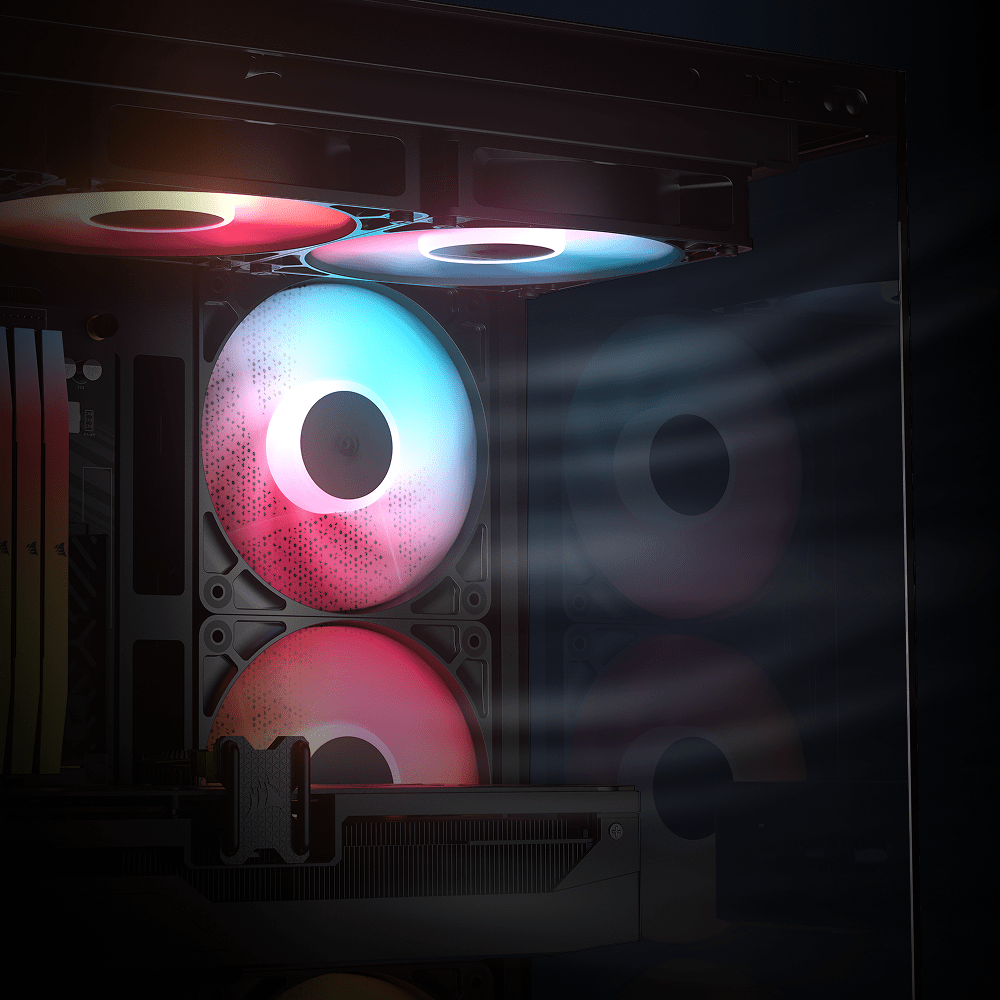

Three RS120-R fans are pre-installed for unobstructed RGB lighting and low-noise cooling. Fresh air is pulled through the ventilated side and into the spacious chassis for effective cooling and plenty of airflow to ensure maximum performance.
BUILDER-FRIENDLY DESIGN
SMART DIY FEATURES

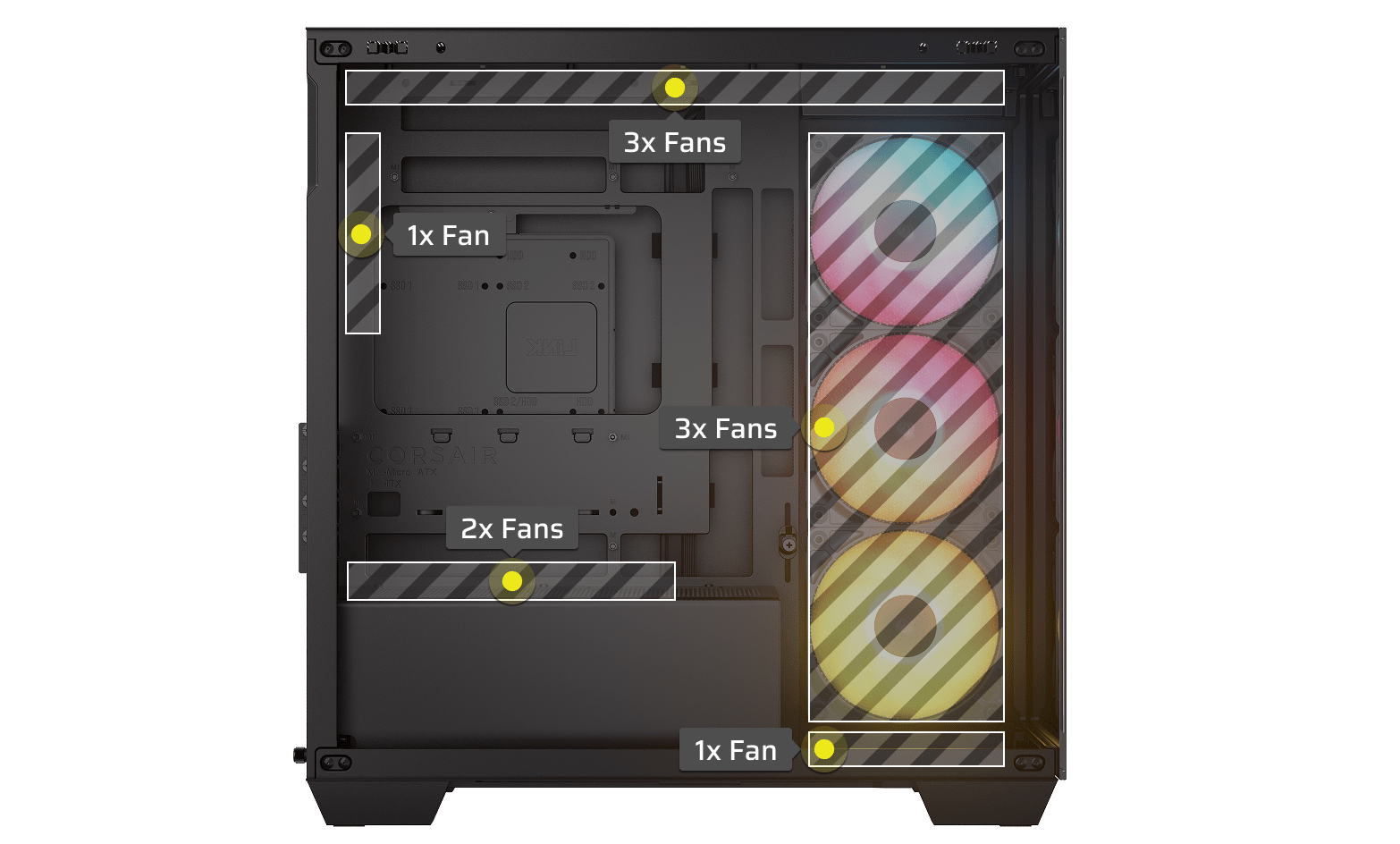

WIDE COOLING FLEXIBILITY

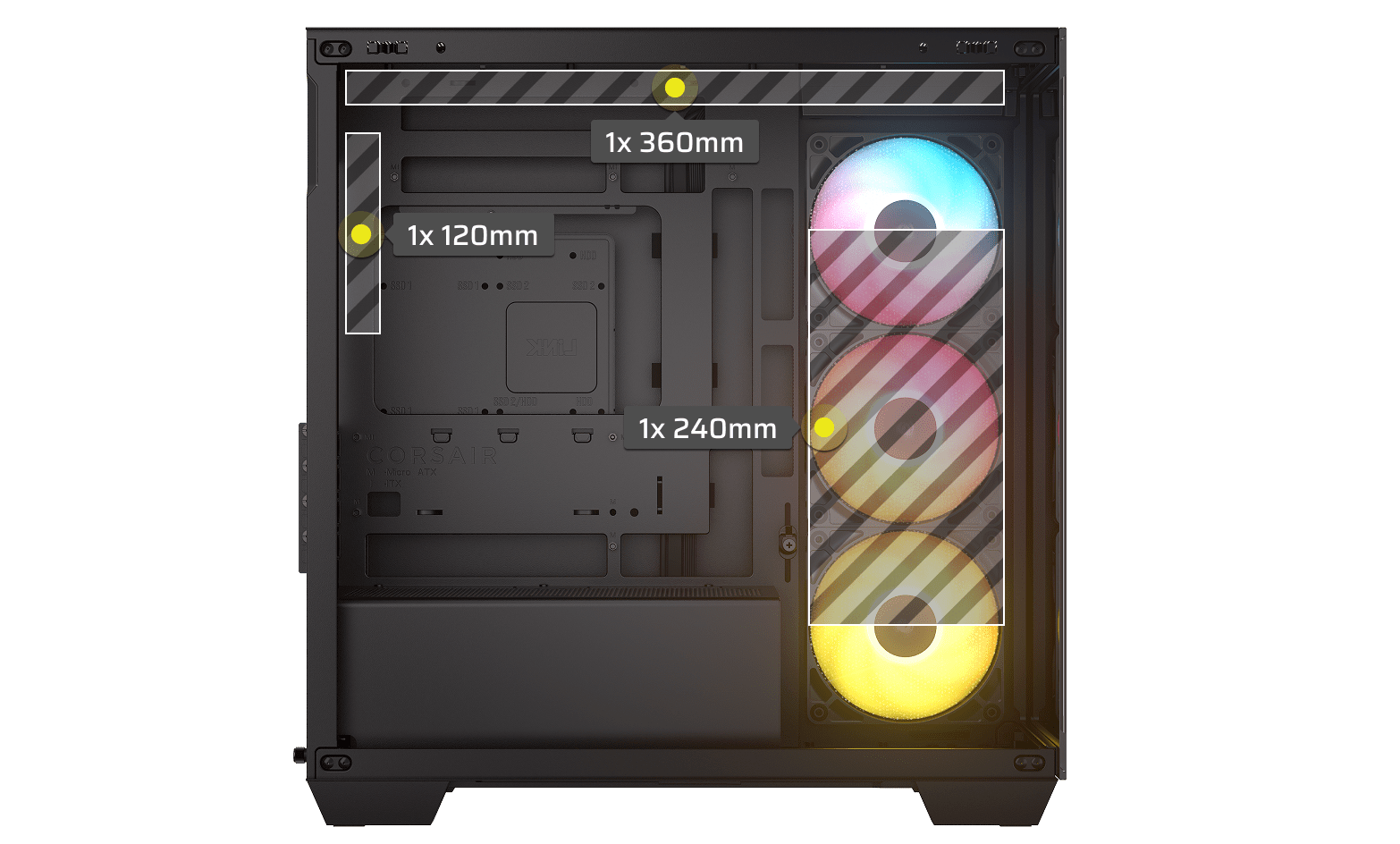

Customize your cooling setup with support for a 360mm radiator in the top of the case and 10x 120mm fan mounts. Big GPUs are welcome with 410mm of GPU clearance.
The 2800X has a roomy interior designed for ambitious builds with powerful cooling.
TWO-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.

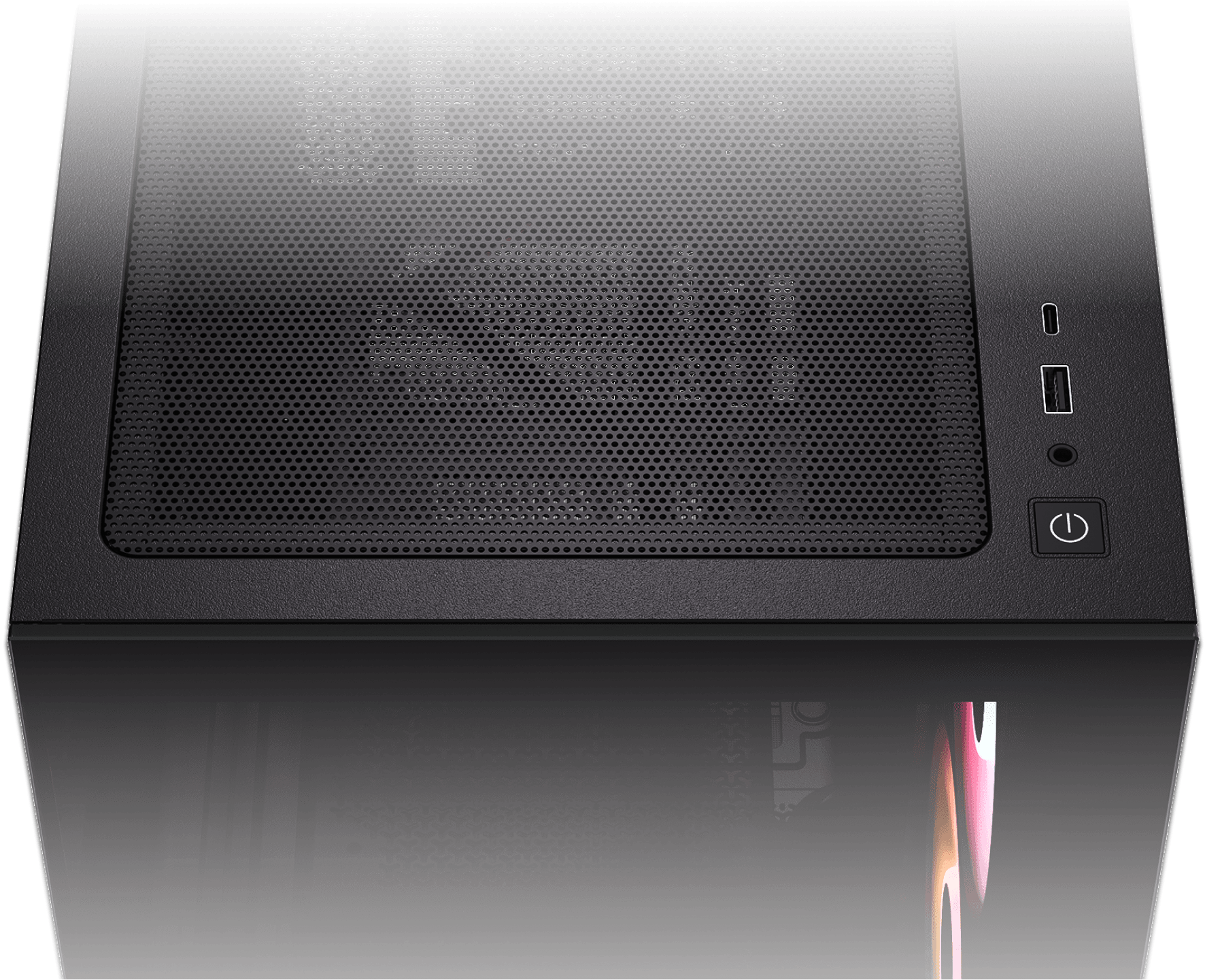

MODERN FRONT PANEL I/O
The top-mounted I/O ports grant easy access to 1x USB 3.2 Gen 2x2 Type-C 20Gb/s port for lighting-fast data transfers, 1x USB 3.2 Gen 1 Type-A for wide compatibility, a combo audio/headphone jack, and a power button.
Tech Specs
| Case Supported | Mini-ITX | MicroATX |
|---|---|

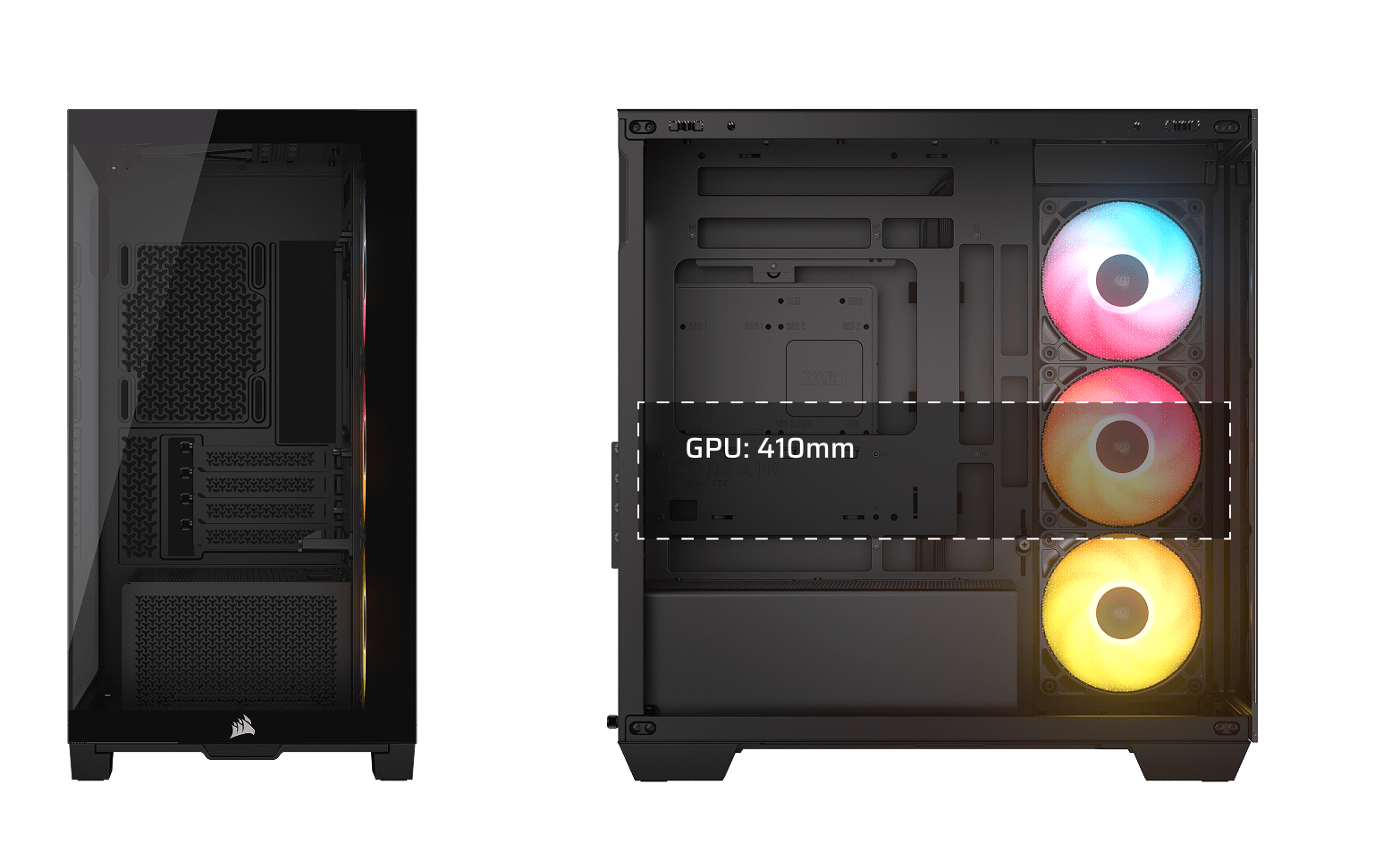

| Case Height | 447mm |
| Case Length | 436.4mm |
| Case Width | 232mm |
| Material | Steel, Tempered Glass, Plastic |
| Color | BLACK |
| Case Size | Micro-ATX |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Case Window | Tempered Glass |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Case Warranty | 2 Year |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Case Front IO | (1x) USB 3.2 Gen 2x2 Type-C, (1x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out |
| Weight | 8.425kg |
| Case Expansion Slots | 4 Horizontal |
| Case Power Supply | ATX |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Front | None |
|---|---|
| Radiator Support - Bottom | None |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 120mm |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | None |
| Fan Support - Bottom | 3x 120mm |
| Fan Support - Side | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Front IO Motherboard Connections | 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS-R ARGB Series |
| Dust Filtration | Yes |
| Cable Routing Space | 24mm |
| RapidRoute Included | No |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Unsupported |
QUICK START GUIDE
CORSAIR 2800X SERIES
This guide will walk you through the installation process and introduce you to the features of CORSAIR's 2800X Series Panoramic Glass Micro-ATX PC Case.
BLOG

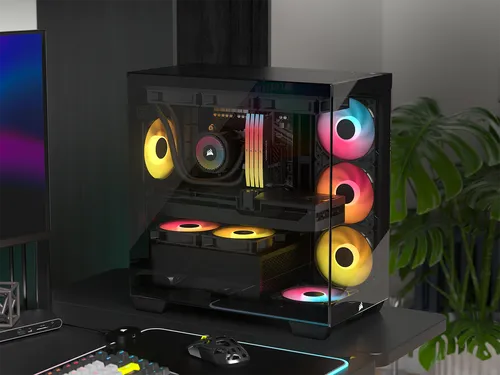

CORSAIR 2800X GPU Compatibility
Despite its compact size, the 2800X will support even the largest GPUs on the market.
BLOG

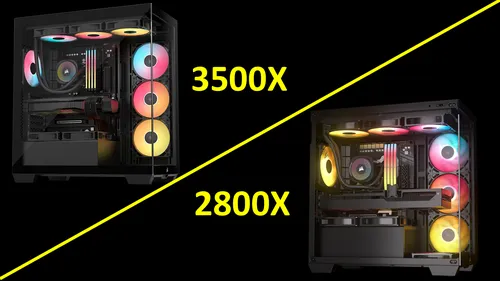

CORSAIR 2800X vs 3500X: What's the Difference?
We go over the differences between the 2800x and the 3500x so you know which suits your next build the best.
BLOG

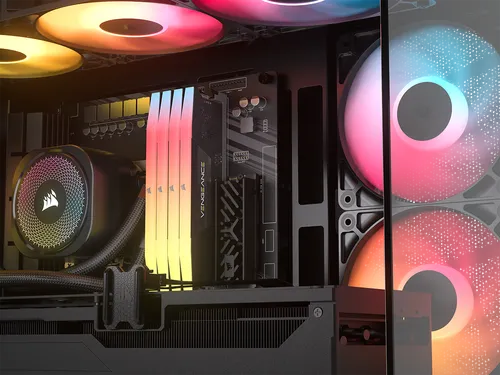

CORSAIR 2800X: Best fan configuration
