HXi SERIES
DIGITAL POWER SUPPLIES

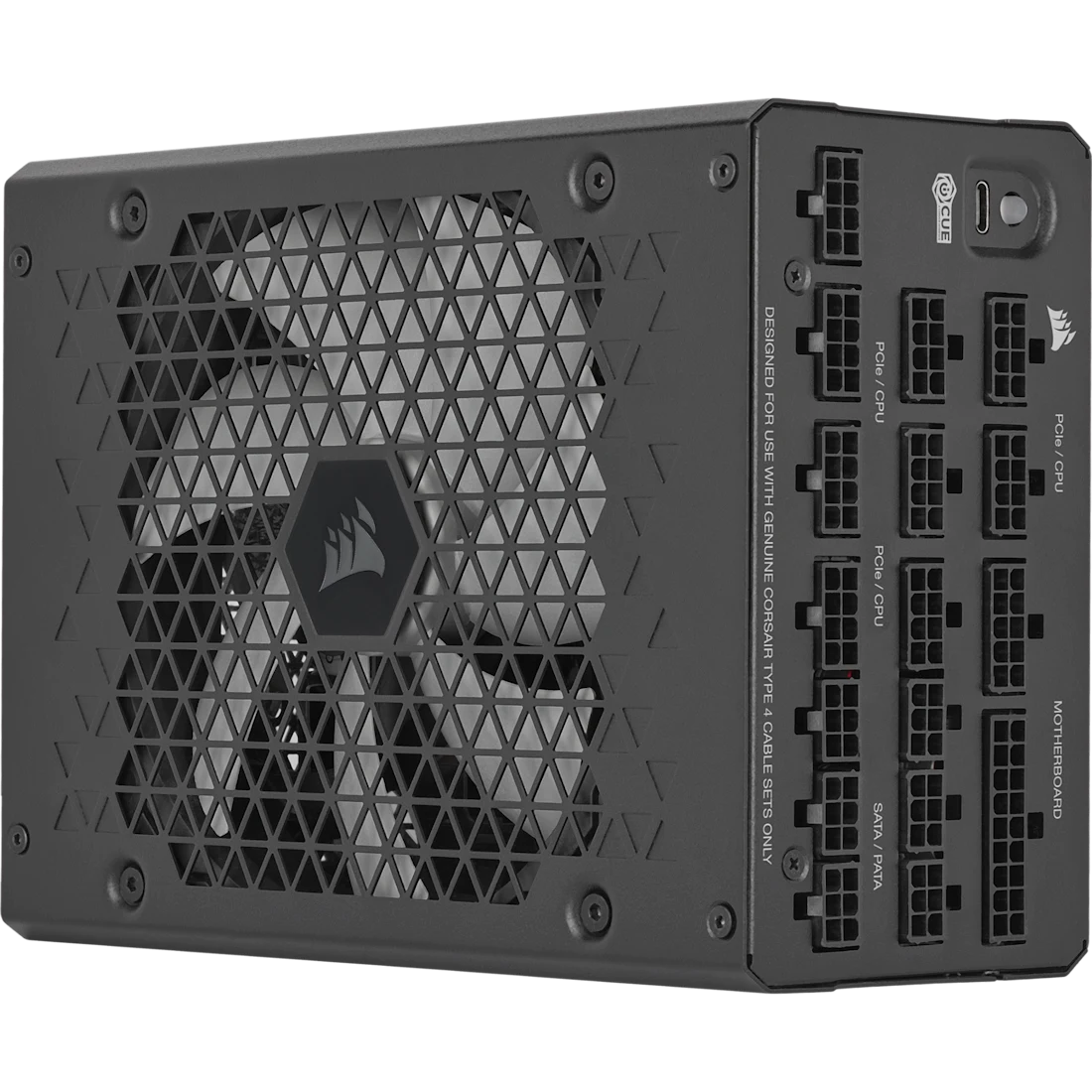

HX1200i Fully Modular Ultra-Low Noise Platinum ATX 1200 Watt PC Power Supply (IN)
Includes:
- Compatible with next-gen GPUs
- Dual 12V-2x6 cables
- Fluid Dynamic Bearing fan with Zero RPM mode
- 105°C rated 100% Japanese electrolytic capacitors
- 10-year warranty
- Intel® ATX 3.1 certified, PCIe 5.1 compatible
Features
iCUE Enabled Product
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.LEARN MORE
GEFORCE RTX 50 SERIES READY
Let us show you the best products and explain the new requirements for the next-generation of GPUs so you can get the best out of your new system.LÄS MER
SKU: CP-9020307-IN
BYGG MED DE BÄSTA
50-SERIENS NÄTAGGREGAT HAR KOMMIT
NEXT-GEN READY
POWERFUL CONNECTIONS
With dual 12V-2x6 cables and fully modular cabling, HXi Series platinum power supplies have every connection needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and processors.
iCUE SOFTWARE
YOUR SETUP AT YOUR COMMAND
With CORSAIR iCUE software, you can monitor your power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop.
LEARN MORE ABOUT iCUE
CYBENETICS PLATINUM CERTIFIED
ON THE CUTTING-EDGE
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, HXi Series PSUs are formally certified for ATX 3.1 compliance.
Every HXi Series PSU is ready for high-end GPUs with two PCIe 5.1 12V-2x6 GPU power cables featuring dual-color connectors for visual confirmation of a secure connection.
Every HXi Series PSU is ready for high-end GPUs with two PCIe 5.1 12V-2x6 GPU power cables featuring dual-color connectors for visual confirmation of a secure connection.
QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
100% JAPANESE CAPACITORS
Sourced from world-renowned Japanese vendors, every HXi power supply features 100% industrial-grade electrolytic capacitors for unwavering reliability and a long lifespan.
HX1200i POWER TABLE
MODEL
RPS0202
PART NO.
75–006828
AC INPUT RATING
AC INPUT
100–240V
INPUT CURRENT
15A–7.5A
10A
FREQUENCY
47Hz–63Hz
MAX LOAD
MAX OUTPUT
+3.3V
25A
150W
+5V
25A
+12V
100A
1200W
+5VSB
3A
15W
TOTAL POWER
1200W
HX1200i CABLE LISTING
QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
QTY
1
CABLE
Modular ATX 24-Pin
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
610mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
2
CABLE
EPS / ATX 12V 8-Pin (4+4)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
-
TOTAL LENGTH
750mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
2
CABLE
2x8-Pin to 12V-2x6 Cable
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
-
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
5
CABLE
PCIe 8-Pin (6+2)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
5
CONNECTOR SPACING
-
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
2
CABLE
SATA (4 Straight SATA)
CONNECTORS PER CABLE
4
TOTAL CONNECTORS
8
CONNECTOR SPACING
505mm,
115mm,
115mm,
115mm
115mm,
115mm,
115mm
TOTAL LENGTH
850mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
2
CABLE
PATA (3 Straight PATA)
CONNECTORS PER CABLE
3
TOTAL CONNECTORS
6
CONNECTOR SPACING
550mm,
100mm,
100mm
100mm,
100mm
TOTAL LENGTH
750mm
(± 10mm)
(± 10mm)
CABLE TYPE
Embossed
QTY
1
CABLE
USB (Type-C) to 10-1-Pin
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
525mm
(± 25mm)
(± 25mm)
CABLE TYPE
Round
TEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
