FRAME 4000D
MODULAR MID-TOWER PC CASE

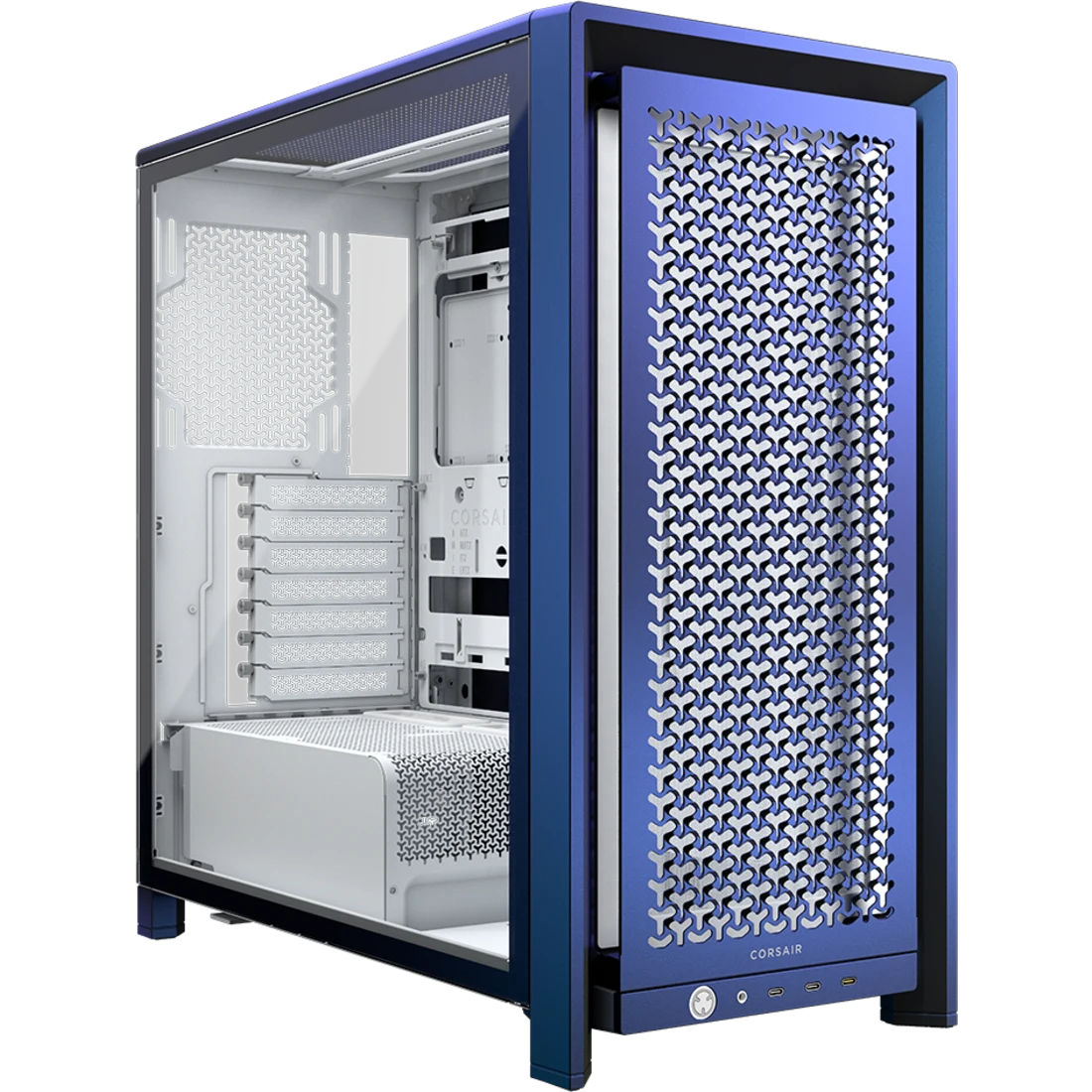

FRAME 4000D Vault Series Modular Mid-Tower PC Case – Nova
- Chromatic paint that shifts color with viewing angle and lighting
- Aluminum badge with limited edition etching, only 1337 of each color made
- Full-Tempered Glass Side Panel and Compact PSU Shroud
- Modern Front I/O panel with 3x USB Type-C ports
- InfiniRail™ Fan Mounting System for easier building
- Dual 360mm radiator support
- GPU Anti-sag Stabilization Arm
- Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH
£129.99Current price: £129.99
SKU: CC-9011343-WW
- Overview
- Tech Specs
- Guides
FAN FOCUSED
CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM
The steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail between 120mm and 140mm fan sizes and adjust the fan locations to ensure targeted airflow without limitations of fixed mounting points.
FIND YOUR PERFECT FRAME 4000D
FRAME 4000D VAULT SERIES
INCLUDED FANS
None
USB PORTS
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-C
LEFT SIDE PANEL
Full-Tempered Glass
PSU SHROUD
Compact
BOTTOM FAN SUPPORT
1x 120mm
LIMITED EDITION
Aluminum Badge Etching
INCLUDED FANS
None
USB PORTS
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-A
LEFT SIDE PANEL
Glass + Mesh
PSU SHROUD
Full Length
BOTTOM FAN SUPPORT
None
LIMITED EDITION
None
INCLUDED FANS
3x RS120 ARGB PWM Fans
USB PORTS
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-A
LEFT SIDE PANEL
Glass + Mesh
PSU SHROUD
Full Length
BOTTOM FAN SUPPORT
None
LIMITED EDITION
None
INCLUDED FANS
4x RS120 ARGB PWM Fans
USB PORTS
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-C
LEFT SIDE PANEL
Two-thirds Tempered Glass
PSU SHROUD
Compact
BOTTOM FAN SUPPORT
1x 120mm
LIMITED EDITION
None
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators. Install a GPU up to 405mm, even with fans installed in the front.
TWO-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Tech Specs
| Case Supported | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
|---|---|

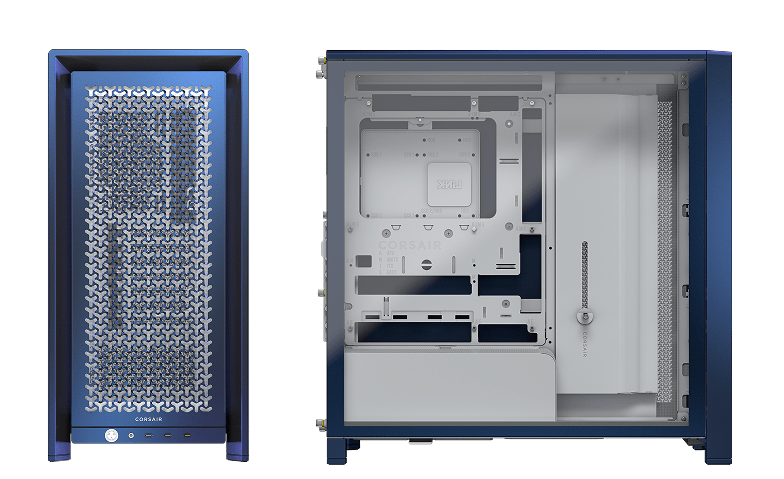

| Case Height | 486mm |
| Case Length | 490mm |
| Case Width | 239mm |
| Material | Steel, Tempered Glass, Plastic |
| Color | WHITE |
| Case Size | Mid-Tower |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Case Window | Tempered Glass |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Case Warranty | 2 Year |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Case Front IO | (1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out |
| Maximum GPU Length | 430mm |
| Weight | 12.54kg |
| Case Expansion Slots | 7 Horizontal or 3 Vertical |
| Case Power Supply | ATX |
| Radiator Support - Top | 360mm, 280mm, 240mm |
|---|---|
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Bottom | None |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 140mm, 120mm |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support - Bottom | 3x 120mm |
| Fan Support - Side | 3x 120mm; 2x 140mm |
| Fan Support - Rear | 1x 120mm, 1x 140mm |
| Front IO Motherboard Connections | 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | No Fans Included |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| RapidRoute Included | No |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
