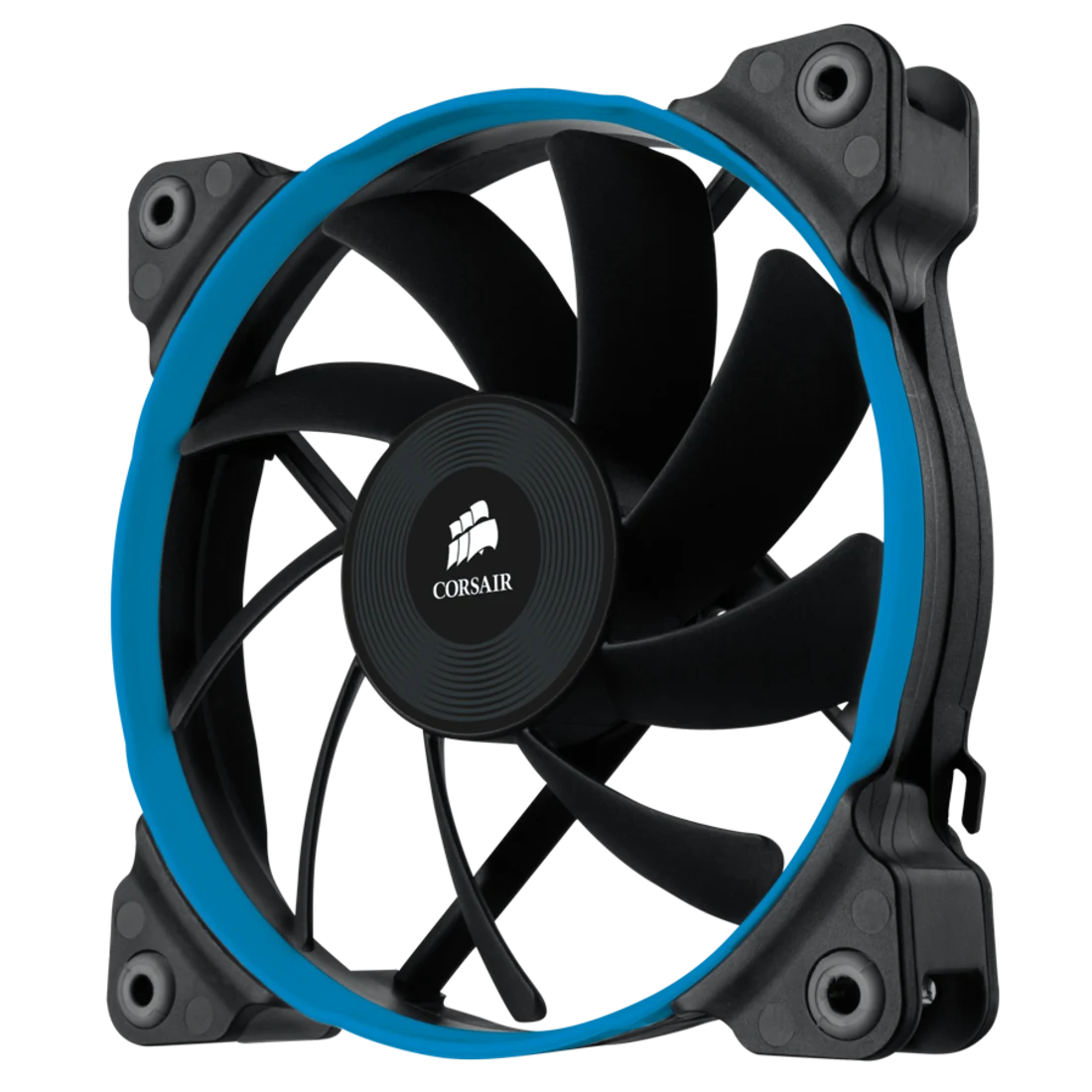

High Airflow for Efficient Large-Volume Cooling

Air Series AF case fans perform best in unrestricted spaces with at least 3 cm (1.2”) of clearance, and they’re ideal for mounting at the rear or top of your PC case as exhaust fans for your PC’s motherboard and CPU, graphics accelerators, and other components that fill the case with heat. They work equally well as unrestricted intake fans for areas like side panels or bottom intakes.

For high restriction areas like hard drive cages or in other tight spaces where there’s less air volume, check out our Air Series SP models of high static pressure fans.

Performance

AF120 Performance Edition AF120 Quiet Edition
Size 120mm x 25mm 120mm x 25mm
Operating Voltage 7V - 12V 7V - 12V
Performance at 12V Performance at 12V
Airflow 63.47 CFM 39.88 CFM
Static Pressure 1.1 mmH20 .5 mmH20
Sound Level 30 dBA 21 dBA
Speed 1650 RPM 1100 RPM
Power Draw 0.13 A 0.08 A
