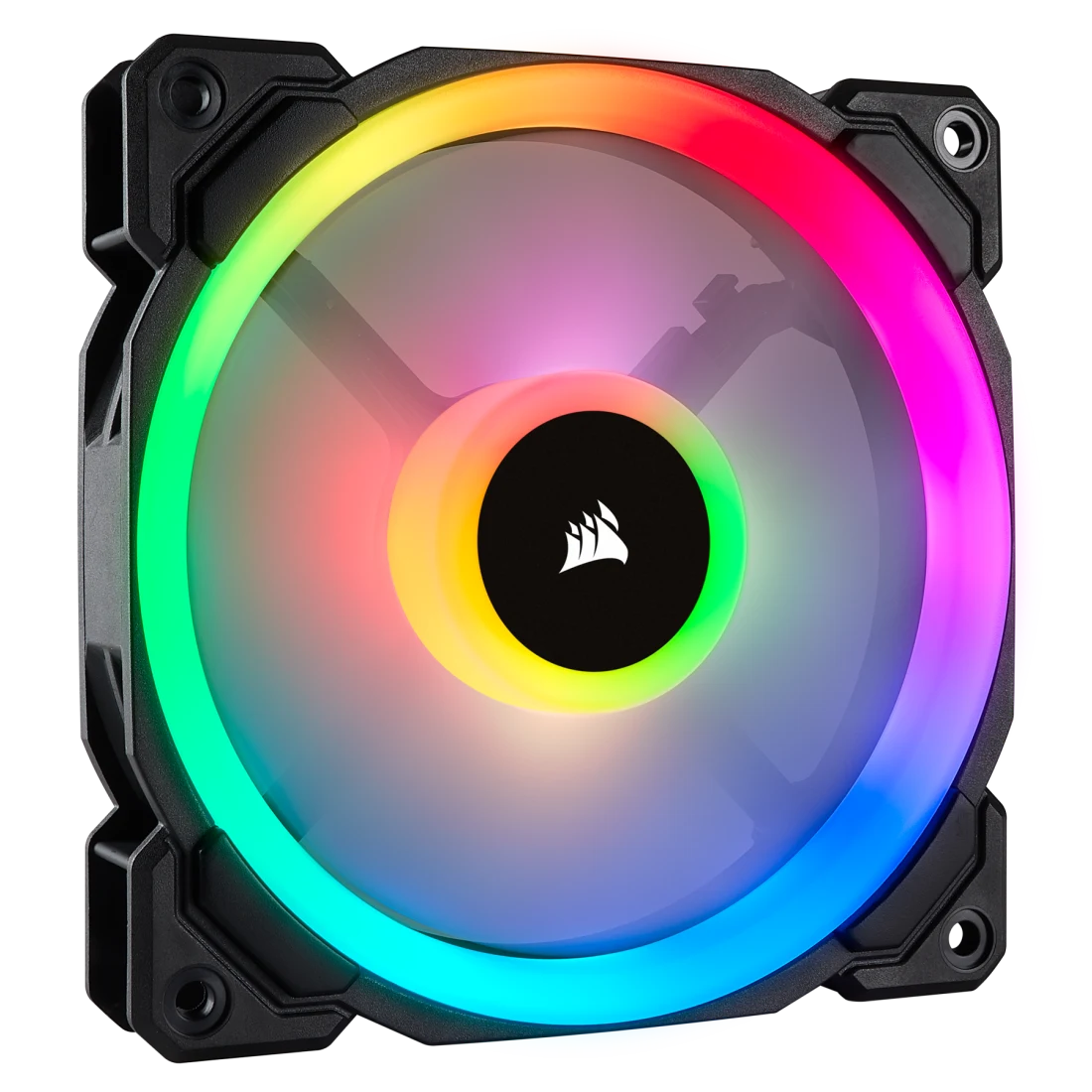

Made for those seeking excellent airflow, quiet operation, and powerful lighting, the CORSAIR LL120 RGB fan puts your PC back in the loop.

The CORSAIR LL120 RGB LED PWM fan boasts 16 independent RGB LEDs across two separate light loops to create vibrant lighting and visual effects.
16 Independent RGB LEDs in every fan, split between two separate light loops, allow for nearly endless customization.
This product is intended as an expansion of the LL120 RGB LED 3 fan kit with Lighting Node PRO. The RGB functionality of this product requires an RGB Lighting hub and Lighting Node PRO.
Dynamically control fan speed from 600 RPM to 1,500 RPM to minimize noise or maximize airflow.
120mm Fan blade engineered for low-noise operation without sacrificing performance.
Using an optimized 120mm fan blade and PWM control, set the speed of the fan anywhere from 600 RPM to 1,500 RPM for precise noise and airflow adjustment.
| Weight | 0.26kg |
|---|---|
| Fan Airflow | 43.25 CFM |
| Fan Model | LL Series |
| Flow Type | STATIC PRESSURE |
| LINK Compatibility | RGB |
| Fan Static Pressure | 1.61 mm-H2O |
| Speed | 600 - 1500 RPM |
| Sound Level | 24.8 dBA |
| PWM Control | Yes |
|---|---|
| Power Draw | 0.3 A |
| Package Quantity | 1 |
| Operating Voltage | 7V - 13.2V |
| LED Color | RGB |
| Fan Size | 120mm x 25mm |
| Bearing Type | Hydraulic |
| Fan Warranty | 2 Year |
