Use PWM control to set your precise fan speed from 600 RPM up to 2,000 RPM, pushing up to 56.3 CFM of air with 1.9mm-H2O of static pressure.
Make your SFF PC shine with eight individually addressable RGB LEDs per fan, controlled by a CORSAIR iCUE Lighting Node CORE.*

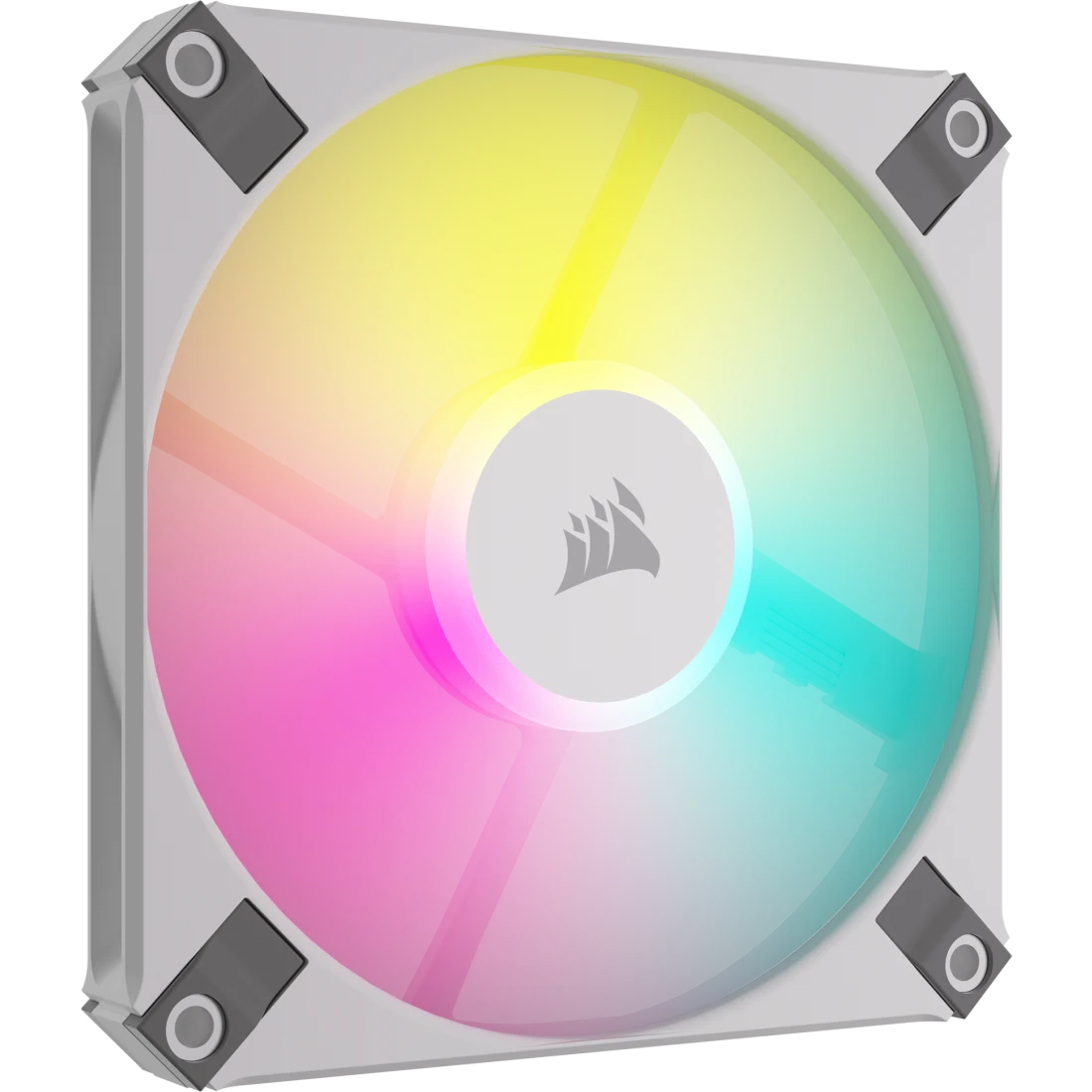

With an ultra-thin 15mm profile, AF120 RGB SLIM fans are a perfect fit for small form-factor builds in Mini-ITX cases, or any compact build where space is at a premium.
*Non-RGB model shown.
A low-noise 120mm fan blade maxes out at just 27.5 dBa, with support for Zero RPM mode to completely eliminate fan noise at low loads.
The AF120 RGB SLIM’s fluid dynamic bearing ensures low-noise operation in addition to exceptional durability.
Our award-winning service means you can enjoy your gear worry-free.
Our award-winning service means you can enjoy your gear worry-free.
| Weight | 0.164kg |
|---|---|
| Fan Airflow | 13.4 - 56.3 CFM |
| Fan Model | AF Series |
| Flow Type | STATIC PRESSURE |
| LINK Compatibility | RGB |
| Fan Static Pressure | 0.2 - 1.9 mm-H2O |
| Speed | 600 – 2000 RPM ±10% |
| Sound Level | 27.5 dBA |
|---|---|
| PWM Control | Yes |
| Power Draw | 0.55A |
| Package Quantity | 1 |
| Fan Size | 120mm x 15mm |
| Bearing Type | Fluid Dynamic Bearing |
