MP700 PRO 2TB PCIe Gen5 x4 NVMe 2.0 M.2 SSD
Experience the incredible performance of PCIe Gen5 storage in your system, with unbelievable sequential read and write speeds using the high-bandwidth NVMe 2.0 interface for great performance and longevity.
$474.99Current price: $474.99
SKU: CSSD-F2000GBMP700PNH
$474.99Current price: $474.99
- Overview
- Tech Specs
- Downloads
- Guides
- Package Contents
UNPRECEDENTED GEN5 STORAGE PERFORMANCE
PCIe Gen5 x4 combines with the massively high-bandwidth NVMe 2.0 interface to unleash higher-speed data transfers and greater M.2 SSD performance than ever before.*
UP TO 12,400MB/sec Sequential Read
UP TO 11,800MB/sec Sequential Write
UP TO 12,400MB/sec Sequential Read
UP TO 11,800MB/sec Sequential Write
* SSD cooling required. Check your motherboard for details.
HIGH-DENSITY 3D TLC NAND
Combines high-speed performance with outstanding endurance, ensuring that your drive will last and perform well through many years of use.
COMPACT FORM FACTOR
Fits directly into your motherboard.*
*Select Intel Z690 and Z790 and AMD 600 Series motherboards. Lower performance on PCIe Gen4 M.2 motherboards
MICROSOFT DIRECTSTORAGE**
Enables the MP700 PRO to communicate directly with your graphics card when playing compatible games, for unbelievably fast load times.
**DirectStorage requires a DirectX12 GPU with Shader Model 6.0 support
COMPREHENSIVE FIVE-YEAR WARRANTY
Tech Specs
| Storage Form Factor | M.2 2280 |
|---|---|
| Heatsink Color | BLACK |
| Storage Temperature | -40°C to +85°C |
| Storage Humidity | 93% RH (40° C) |
| SSD Package Contents | MP700 PRO M.2 SSD (no included heatsink, separate cooling required) |
| SSD Compatibility | M.2 2280 Interface Connector Windows 10, 11, Mac OS X |
| Form Factor | M.2 2280 |
| Voltage | 3.3V, +/- 5% |
| Vibration | 20 Hz~80 Hz/1.52 mm, 80 Hz~2000 Hz/20G |
| SSD Shock | 1,500 G |
| SSD Operating Temperature | 0°C to +70°C |
| DEVSLP | PS4: <85mW |
| Encryption | AES 256-bit Encryption |
|---|---|
| NAND Technology | 3D TLC |
| SSD Smart Support | Yes |
| SSD TBW | 1400 |
| SSD Max Sequential Write CDM | Up to 11800MB/s |
| SSD Max Sequential Read CDM | Up to 12400MB/s |
| Max Random Read QD32 IOMeter | Up to 1.5M |
| Max Random Write QD32 IOMeter | Up to 1.6M |
| Interface | PCIE* 5 x 4 |
| Weight | 0.030kg |
| Memory Type | PCIe Gen 5.0 x4 |
- Capacity: 1 GB is 1 Billion Bytes. Some of the listed capacity on a flash storage device is used for formatting and thus not available for data storage. The actual available capacity for data storage is less than the capacity stated on the products.
- Performance: Performance rating based on internal testing at CORSAIR at the time of launch. Performance depends on the host platform, usage, and other variables.
- Endurance: Endurance rating based on JEDEC JESD218 standard client workload. Individual drive endurance and health status depends on actual usage and may be less than rated endurance.
QUICK START GUIDE
M.2 SSD
BLOG

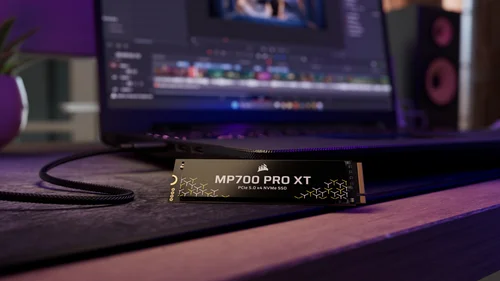

MP700 PRO XT vs PRO SE vs PRO vs ELITE
