344mm
423mm
505mm
120mm
140mm
3x RGB 120mm INCLUDED
1x 120mm INCLUDED
280mm
360mm

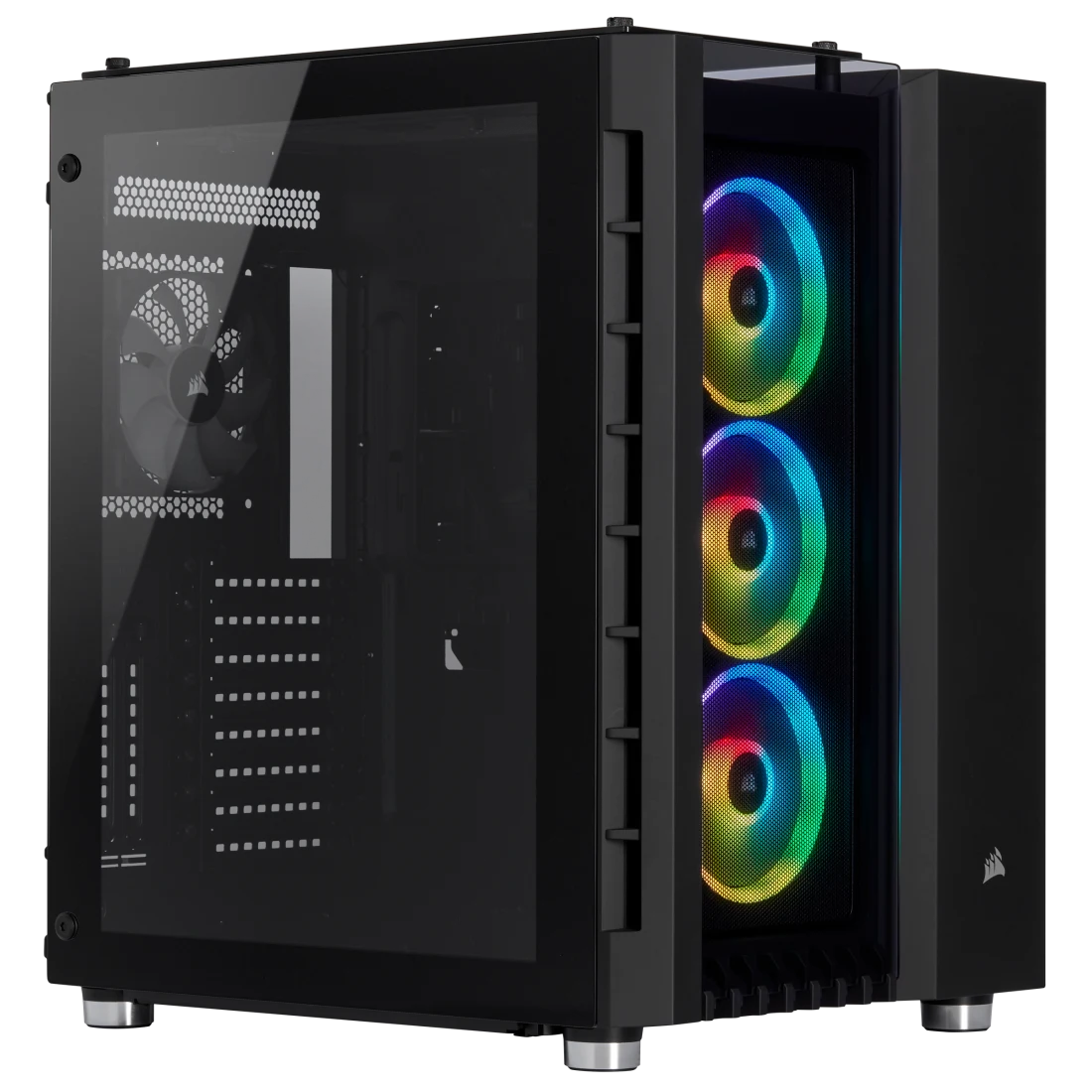

Crystal Series 680X RGB ATX High Airflow Tempered Glass Smart Case — Black
The CORSAIR Crystal Series 680X RGB is a dual-chamber tempered glass ATX smart case boasting superb airflow and brilliant software-controlled RGB fans to efficiently cool and illuminate the most demanding systems.
Cases Color
MORE TO CONSIDER
Features
iCUE Enabled Product
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.LEARN MORE
SKU: CC-9011168-WW
OUTSTANDING HIGH AIRFLOW COOLING
Four included 120mm cooling fans and a Direct Airflow Path™ layout deliver cool air to your PC’s hottest components.
THREE INCLUDED LL120 RGB FANS
Three award-winning LL series fans light up your system with a total of 48 individually addressable RGB LEDs.
INTELLIGENT CONTROL, UNLIMITED POSSIBILITIES
The CORSAIR Crystal Series 680X RGB is a dual-chamber tempered glass ATX smart case boasting superb airflow and brilliant software-controlled RGB lighting to efficiently cool and illuminate the most demanding systems.
An included CORSAIR Lighting Node PRO turns the 680X RGB into a smart case. Powerful CORSAIR iCUE software enables dynamic RGB lighting synchronized across all your iCUE compatible products, including fans, RGB LED light strips, DDR4 memory, keyboards, mice and more.
Switch through various profiles.
-
Spiral Rainbow
-
Color Pulse
-
Color Shift
-
Arc
-
Rain
-
Rainbow Wave
-
Visor
DUAL-CHAMBER LAYOUT
An evolution of one of the most popular CORSAIR case layouts, the 680X RGB is the peak of our dual-chamber cooling product lineup. While one chamber is actively cooled with plenty of fan and radiator mounts, the other provides ample room for cable routing, drive storage, and PSU mounting, making it easier than ever to assemble an immaculate system.
THREE CRYSTAL-CLEAR TEMPERED GLASS PANELS
Fitted in the front, roof, and a hinged side panel door, providing a stunning view of your PC’s high-profile components.
MASSIVE COOLING POTENTIAL
Install up to 8x 120mm or 7x 140mm fans for massive cooling potential, with room to mount up to four radiators.
HIGH-SPEED USB 3.1 GEN-2 TYPE-C PORT
Access high-bandwidth 10Gbit/s via a reversible type-C connector.
FLEXIBLE STORAGE OPTIONS
Easily install up to 3x 3.5in and 4x 2.5in drives in tool-free drive mounts, for high-capacity, flexible storage configurations.
VERTICAL GPU MOUNT
Put your graphics card center stage, perfect for showing off custom GPU cooling or your latest upgrade.
UNITE YOUR SETUP
LOOKING FOR YOUR DREAM PC?
Get a custom-built system from ORIGIN PC in your choice of CORSAIR case.
Tech Specs
| Case Height | 505 |
|---|---|
| Case Length | 423 |
| Case Width | 344 |
| Lighting | RGB |
| Case Form Factor | MID TOWER |
| Motherboard Support | Mini-ITX | MicroATX | ATX | E-ATX |
| Color | BLACK |
| Case Size | NA |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Corsair Link Enabled | No |
| Case Window | Tempered Glass |
| Case Dimensions | 423mm x 344mm x 505mm |
| Compatible Liquid Coolers | H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i |
| Case Warranty | 2 Year |
|---|---|
| Internal 3.5" Drive Bays | 3 |
| Internal 2.5" Drive Bays | 4 |
| Lighting Effects | RGB |
| Maximum CPU Cooler Height | 180 |
| Maximum PSU Length | 225 |
| Case Front IO | (2x) USB 3.0, (1x) USB 3.1 Type C, (1x) Audio in/out |
| Case Drive Bays | (x3) 3.5in (x4) 2.5in |
| Maximum GPU Length | 330 |
| Weight | 13.32 |
| Case Expansion Slots | 8 horizontal + 2 vertical |
| Case Power Supply | ATX |
| Case Material | Steel, Tempered Glass |
