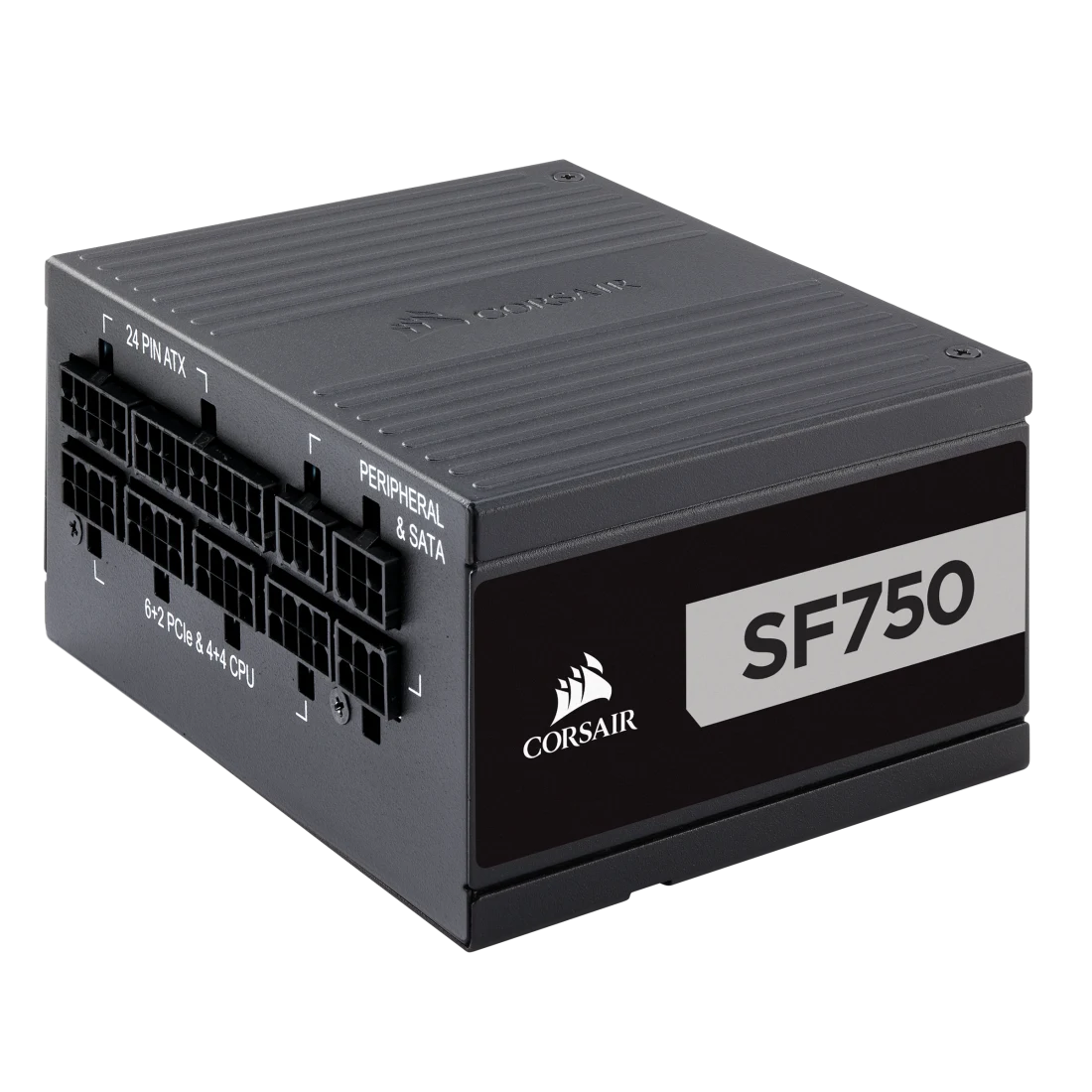

SF Series™ SF750 — 750 Watt 80 PLUS® Platinum Certified High Performance SFX PSU

The CORSAIR SF750 80 PLUS Platinum SFX Power Supply is an extraordinarily power-dense PSU, ready to power the most cutting-edge small form factor PCs with 750 continuous watts.

MORE TO CONSIDER

SKU: CP-9020186-NA

CORSAIR POWER SUPPLIES

SF750 PLATINUM
SFX POWER SUPPLY

MAXIMUM POWER, MINIMUM SIZE

WATCH VIDEO

An Unprecedented 750 Watt SFX PSU

The most powerful SFX power supply in the market, perfect for the most power-dense small-form-factor PCs.

80 PLUS PLATINUM CERTIFIED

The SF750 Platinum delivers power at up to 92% efficiency, lowering energy consumption, noise, temperatures, and your power bill.

JAPANESE 105°C CAPACITORS

Using high-end electrolytic capacitors, the SF750 Platinum offers the unwavering power and long-term reliability you demand from a CORSAIR power supply.

ZERO RPM FAN MODE

The SF750 Platinum’s 92mm cooling fan doesn’t spin until you need it, for near-silent operation at low and medium loads.

92mm PWM Low Noise Cooling Fan

Utilizing PWM instead of the standard DC voltage control, the SF750 Platinum keeps noise low and delivers precise fan speed. The SF750 Platinum also utilizes a copper alloy heatsink, ensuring optimal thermal performance.

FULLY MODULAR CABLES

SF Platinum Series power supplies come equipped with premium, individually sleeved cables featuring a flexible paracord sleeve, ready to fit right into your new high-end PC. The individually sleeved cables also make routing and cable management a breeze, with a lower profile and improved flexibility.

SFX-TO-ATX BRACKET INCLUDED

SF Platinum Series power supplies include an SFX-to-ATX power supply adapter bracket enabling installation into any ATX compatible case.

SEVEN-YEAR WARRANTY

CORSAIR offers a seven-year warranty on all SF Platinum Series power supplies, your guarantee of reliable operation that will last across several system builds. If you need help, CORSAIR customer service and tech support are always on hand.

CORSAIR SF750 DC CABLE LISTING

QTY Cable Connectors
per cable
Total
connectors
Connector
spacing
Total length
1 11- 300mm
(± 10mm)
2 12- 400mm
(± 10mm)
2 24400mm, 100mm 500mm
(± 10mm)
2 48100mm, 115mm, 115mm, 115mm 445mm
(± 10mm)
1 33100mm, 115mm, 115mm 330mm
(± 10mm)

Tech Specs

PATA Connector3
ProtectionsOVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power)
EPS Connector2
SATA Connector8
Fan Bearing TechnologyRifle Bearing
Modern StandbyNo
Dimensions100mm x 63mm x 125mm
ModularFully
PSU CompatibilityATX12V v2.4 and EPS 2.92 standards
Intel C6C7 Sleep State CompatYes
Cable TypePremium Individually Sleeved, All Black
PCIe Connector4
Zero RPM ModeYes
PSU Form FactorSFX
Single Multiple 12V Rail TogglNo
Multi GPU ReadyYes
Fan Size MM92mm
Continuous Power W750 Watts
ATX Connector1
ATX12V Versionv2.4
MTBF Hours100,000 hours
80 PLUS EfficiencyPlatinum
Warranty7 Year
Weight2.1
SF Series High-Performance SFX Power Supply
AC Power cord
DC Modular Cable Set
Cable Ties
Corsair Case Badge
User Manual
