CORSAIR POWER SUPPLIES

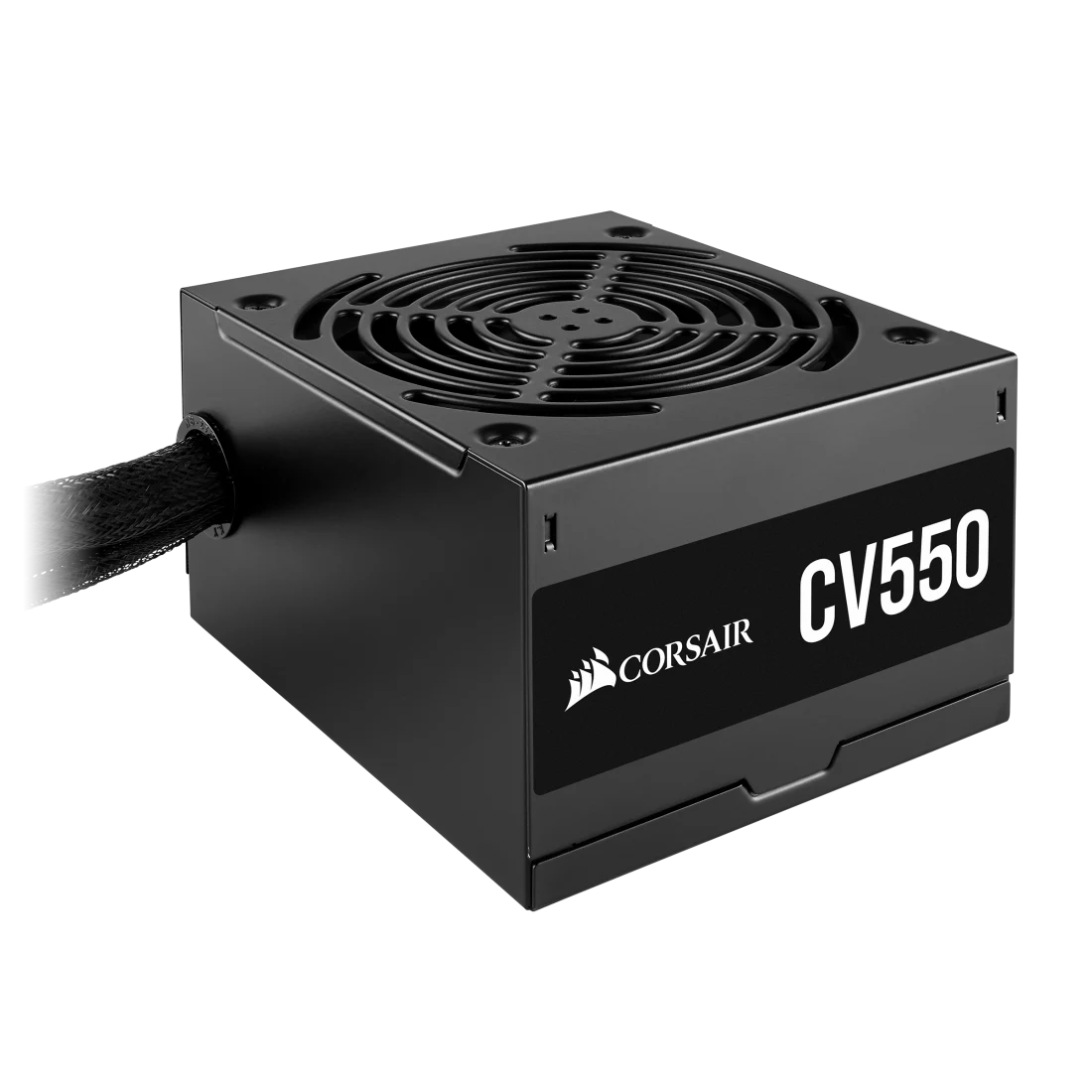

CV SERIESCV550
POWER SUPPLY

QUIET AND DEPENDABLE 80 PLUS BRONZE EFFICIENCY

ULTRA EFFICIENT

CV series is 80 PLUS Bronze certified, providing up to 88% efficiency for less heat and lower energy costs.



CV SERIES POWER SUPPLIES - EFFICIENCY GRAPH

CONTINUOUS, RELIABLE OUTPUT

Like all CORSAIR power supplies, the CV Series does exactly what it says it does: deliver continuous power at full capacity, no matter which wattage variant you choose.

OUTPUT WATTAGE

550W

CV Series PSU

"Peak" rated PSU

CV SERIES POWER SUPPLIES - LOW-NOISE OPERATION

Low-Noise Operation

A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.

Compact Design

CV series enclosures are only 125mm long, ensuring an easy fit in almost all modern PC cases.

CV550 POWER SUPPLY - COMPACT DESIGN

Stealth Mode

Black sleeved cables and a black powder-coated casing seamlessly fits your PC's style.

Three-Year Warranty

Guaranteed Reliability

Three-year warranty backed by the CORSAIR global technical support team.

BUILDING A BUDGET PC WITH CORSAIR COMPONENTS



CV550 POWER TABLE

ModelRPS0127
Part No.CP-9020210
AC Input Rating
AC Input100-240V
Input Current10A-5A
Frequency47~63Hz
 Max LoadMax Output
+3.3V24A120W
+5V20A
+12V44A528W
-12V0.3A3.6W
+5Vsb3A15W
Total Power550W

CV550 DC CABLE LISTING

QTYCableConnectors
per cable
Total
connectors
Connector
Spacing
Total length
1

ATX Cable 24 pin

CORSAIR CV SERIES ATX 24 pin cable
11-550mm
(± 10mm)
1

EPS/ATX12V 8 pin (4+4) cable

CORSAIR CV SERIES EPS/ATX12V 8 pin cable
11-600mm
(± 10mm)
1

PCIe 8 pin (6+2) cable

CORSAIR CV SERIES PCIe 8 pin cable
22550mm, 120mm670mm
(± 10mm)
2

SATA Cable (3 SATA)

CORSAIR CV SERIES SATA cable
36450mm, 120mm, 120mm690mm
(± 10mm)
1

SATA-PATA-PATA-FDD

CORSAIR CV SERIES SATA-PATA-PATA-FDD cable
44450mm, 120mm, 120mm, 120mm810mm
(± 10mm)
