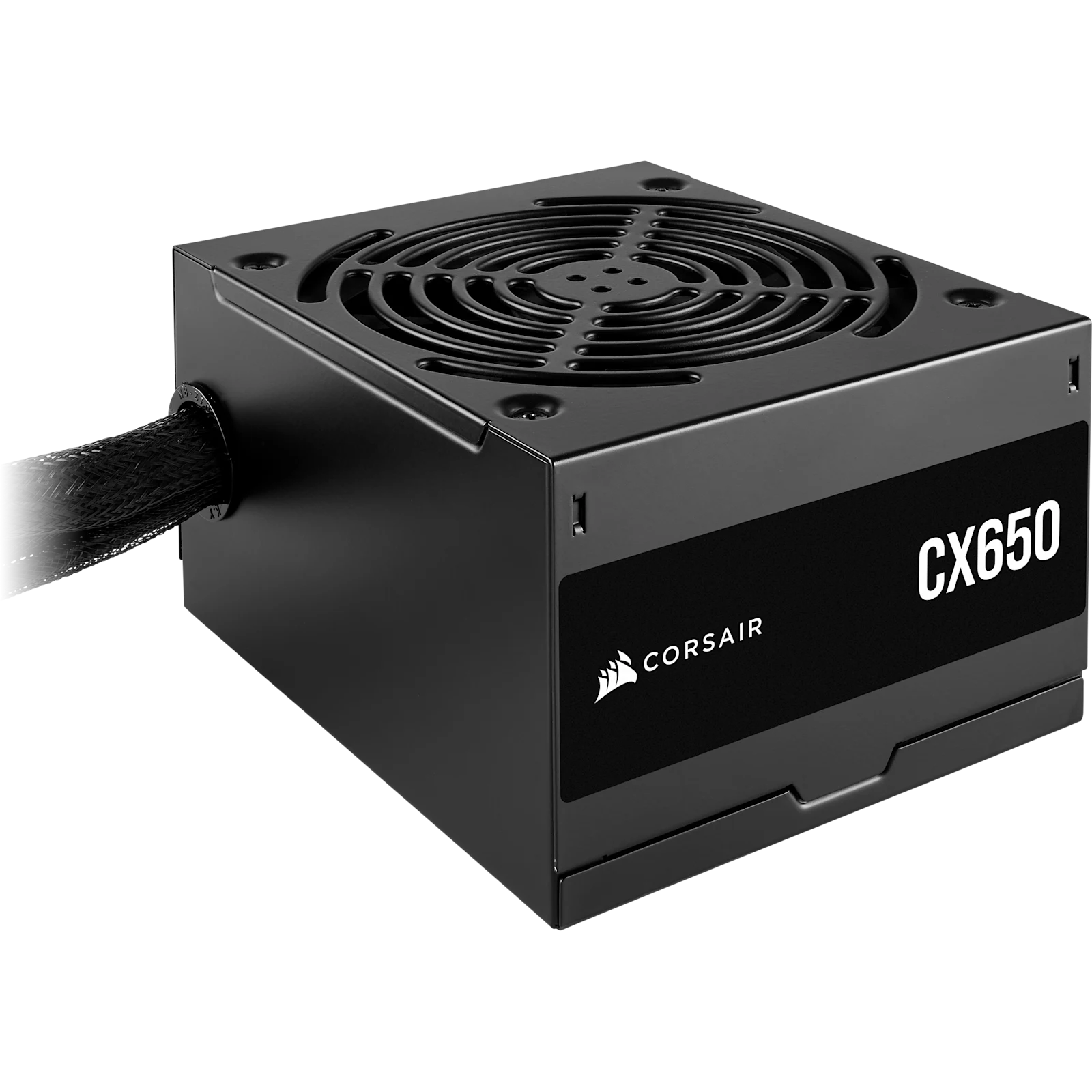

CX Series™ CX650 – 650 Watt 80 PLUS Bronze ATX Power Supply
CORSAIR CX Series Power Supplies feature low-noise cooling and a compact design for an easy fit in nearly any modern case.
- 80 PLUS Bronze efficiency up to 88%
- Guaranteed continuous power
- 120mm low-noise cooling fan
- Compact 125mm length
$79.99Current price: $79.99
SKU: CP-9020278-NA
- Overview
- Tech Specs
- Downloads
- Guides
- Package Contents
CORSAIR CX650
ATX POWER SUPPLIES
80 PLUS BRONZE POWER
Delivers consistent power to your PC with up to 88% operational efficiency, generating less heat and lowering your energy costs.
120mm LOW-NOISE FAN
Fitted with a thermally controlled fan that only spins at high speed when your power supply is under heavy load, automatically slowing down for quieter operation at lower loads.
AN EASY FIT
A compact 125mm-long casing ensures an easy fit in almost all modern PC cases.
CX650 POWER TABLE
MODEL
RPS0128
PART NO.
CP-9020278/75-005934
AC INPUT RATING
AC INPUT
100–240V
INPUT CURRENT
10A-5A
FREQUENCY
47~63Hz
MAX LOAD
MAX OUTPUT
+3.3V
24A
130W
+5V
20A
+12V
52A
624W
-12V
0.3A
3.6W
+5VSB
3A
15W
TOTAL POWER
650W
CX650 CONNECTORS
QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
QTY
1
CABLE
ATX (24-pin)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Sleeved
QTY
1
CABLE
EPS / ATX 12V 8-pin (4+4)
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Flat
QTY
1
CABLE
PCIe 8-pin (6+2) (6+2)
CONNECTORS PER CABLE
2
TOTAL CONNECTORS
2
CONNECTOR SPACING
500mm, 100mm
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Flat
QTY
1
CABLE
SATA (3 SATA) Straight
CONNECTORS PER CABLE
3
TOTAL CONNECTORS
3
CONNECTOR SPACING
400mm, 100mm, 100mm
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Flat
QTY
1
CABLE
PATA (2 PATA) (4-pin)
CONNECTORS PER CABLE
2
TOTAL CONNECTORS
2
CONNECTOR SPACING
400mm, 100mm
TOTAL LENGTH
500mm
(± 10mm)
(± 10mm)
CABLE TYPE
Flat
Tech Specs
| EPS Connector | 1 |
|---|---|
| SATA Connector | 3 |
| Fan Bearing Technology | Sleeve |
| Modular | No |
| Cable Type | Type 4 |
| PCIe Connector | 2 |
| PSU Form Factor | ATX |
| Fan Size MM | 120mm |
| Continuous Power W | 650 Watts |
|---|---|
| ATX Connector | 1 |
| ATX12V Version | v2.31 |
| MTBF Hours | 100,000 hours |
| 80 PLUS Efficiency | Bronze |
| Warranty | 5 Year |
| Weight | 2.32kg |
Power Supply Quick Start Guide
CX Series ATX Power Supply
AC Power Cord
Mounting Screws
Warranty Documentation
