RMx SHIFT
SERIES
FULLY MODULAR ATX PSU
WITH SHIFT CABLE INTERFACE
RM850x SHIFT Fully Modular ATX Power Supply
- Fully modular, Type-5 connectors
- Native 12V-2x6 GPU cable
- ATX 3.1-certified and PCIe 5.1 compliant
- Fan speed control knob
- 105°C-rated 100% Japanese electrolytic capacitors
- Zero RPM Mode for near-silent operation at lower loads
- 10-year warranty
$184.99Current price: $184.99
PSU Wattage
SKU: CP-9020299-NA
- Overview
- Tech Specs
- Guides
RMx SHIFT
EASY ACCESS
SIDE-MOUNTED CONNECTIONS
A patented PSU panel features modular, compact Type-5 connectors located on the side of the power supply, making it easier to plug in and manage your cables.
*30mm of clearance between the PSU and side panel is required.
*30mm of clearance between the PSU and side panel is required.
PLUG AND PLAY
NATIVE 12V-2x6 GPU POWER CABLE
Power modern graphics cards, such as the NVIDIA® GeForce RTX™ 50 Series, using the included 12V-2x6 cable with a dual-color connector for visual confirmation of a secure GPU-side connection for easy, worry-free power delivery.
CYBENETICS GOLD CERTIFIED
Steady power output at up to 89% overall efficiency and Cybenetics™ Gold certified for lower power consumption, less noise, and cooler temperatures.
FUTURE PROOF
ATX 3.1 COMPLIANT and PCIe 5.1 READY
The RMx SHIFT Series features the latest standards for power delivery and connectivity to provide efficient, reliable power. RMx SHIFT Series are built with a robust resonant LLC topology with DC-DC conversion and 105°C-rated Japanese industrial-grade capacitors.
*Illustration for reference only, models may differ.
*Illustration for reference only, models may differ.
CUSTOM FIT
FULLY MODULAR TYPE-5 CONNECTORS
CORSAIR Type-5 PSU cables take up less space, which combines with the modular design to allow for easier cable management.
TIDY WIRING
DEBOSSED-PVC CABLE KIT INCLUDED
The ultra-flexible cable kits make cable management easy and the included low-profile cable combs keep cables tidy for a sophisticated look and an easier build.
FULL SPEED AHEAD
MANUAL FAN SPEED CONTROL KNOB
Want to get more air through the PSU or to exhaust heat from your case? Override the Zero RPM Mode and low-noise profile with the manual fan override knob, increasing fan speed and airflow.
SILENT RUNNING
140mm FLUID DYNAMIC BEARING FAN
A Fluid Dynamic Bearing fan with a magnetic dome structure minimizes noise, while Zero RPM Mode eliminates fan noise entirely at low to medium loads.
FAMOUSLY RELIABLE
DESIGNED TO TAKE THE HEAT
105°C-RATED JAPANESE CAPACITORS
Built with 100% industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power even under high-stress conditions.
TEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
RM850x SHIFT POWER TABLE
MODEL
RPS0221
PART NO.
75-006527
AC INPUT RATING
AC INPUT
100V–240V
INPUT CURRENT
10A–5A
FREQUENCY
47Hz–63Hz
Max LOAD
Max OUTPUT
+3.3V
20A
120W
+5V
20A
+12V
70.8A
850w
+5VSB
3A
15W
TOTAL POWER
850W
RM850x SHIFT CABLE LISTING
QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
QTY
1
CABLE

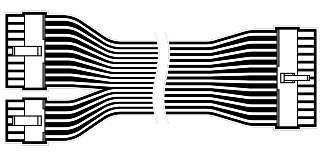

ATX Motherboard (24-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
610mm
TOTAL LENGTH
610mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
2
CABLE

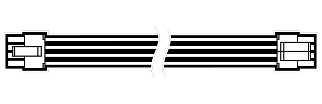

ATX12V / EPS12V (4+4-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
650mm
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
2
CABLE

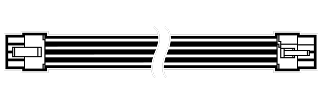

8-pin PCIe (6+2-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
2
CONNECTOR SPACING
650mm
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
1
CABLE

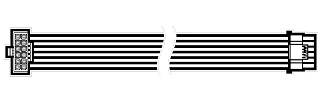

90° 12V-2x6 to 600W 12V-2x6 (12+4-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
650mm
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
1
CABLE

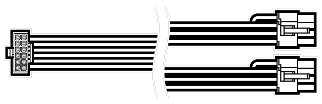

600W 90° 12V-2x6 to 2x 8-pin PCIe (6+2-pin)
CONNECTORS PER CABLE
2
TOTAL CONNECTORS
2
CONNECTOR SPACING
650mm
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
3
CABLE

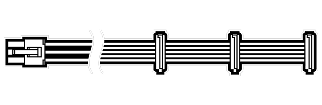

3 SATA - Modular
CONNECTORS PER CABLE
3
TOTAL CONNECTORS
9
CONNECTOR SPACING
500mm,
100mm,
100mm
100mm,
100mm
TOTAL LENGTH
700mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
QTY
1
CABLE

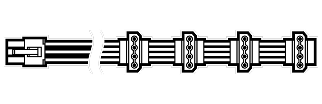

4 PATA - Modular
CONNECTORS PER CABLE
4
TOTAL CONNECTORS
4
CONNECTOR SPACING
450mm, 100mm, 100mm, 100mm
TOTAL LENGTH
750mm
(± 10mm)
(± 10mm)
CABLE TYPE
Debossed
Tech Specs
| Cybenetics Efficiency | Gold |
|---|---|
| Cybenetics Noise | A+ |
| PATA Connector | 4 |
| EPS Connector | 2 |
| SATA Connector | 9 |
| Fan Bearing Technology | FDB |
| Modern Standby | Yes |
| Dimensions | 160mm x 150mm x 86mm |
| Cable Type | Type 5 |
| PCIe Connector | 4 |
|---|---|
| Fan Size MM | 140mm |
| Continuous Power W | 850 Watts |
| ATX Connector | 1 |
| ATX12V Version | 3.1 |
| MTBF Hours | 100,000 hours |
| Warranty | 10 Year |
| Weight | 2.89kg |
