CX-M Series CX650M ATX 3.1 Cybenetics Bronze Semi-Modular PSU
- Native 12V-2x6 GPU power cable
- ATX 3.1 and PCIe 5.1
- Semi-modular design for easy cable management
- Low-noise 120mm fan
- 7-Year warranty
$79.99Current price: $79.99$89.99Original price: $89.99Save $10.00Discount: $10.00
SKU: CP-9020310-NA
- Overview
- Tech Specs
- Accessories | Parts
- Guides
- Package Contents
ATX 3.1
PLUG AND PLAY
NATIVE 12V-2x6 GPU POWER CABLE
Upgrade to the latest graphics cards and power them with just a single cable with a CX-M power supply. The included cable provides up to 450W of power, easily powering next-gen GPUs and features a two-tone connector for visual confirmation of a secure connection.
FUTURE PROOF
ATX 3.1 COMPLIANT AND PCIe 5.1 READY
The CX-M Series features the latest standards for power delivery and connectivity to provide efficient, reliable power. CX-M Series are built with a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
EASY CABLE MANAGEMENT
SEMI-MODULAR CABLES
The power cables that every build requires are already connected and the rest are modular, so only use what you need.
AN EASY UPGRADE
COMPACT AND QUIET
The CX-M Series features a compact 140mm (length) design that easily fits into any build, and is tuned for quiet operation with a low-noise 120mm fan with a custom fan curve that keeps it silent under low-to-moderate loads.
CYBENETICS BRONZE CERTIFIED
CX650M POWER TABLE
MODEL
RPS0228
PART NO.
75-006837
AC INPUT RATING
AC INPUT
100V–240V
INPUT CURRENT
10A–5A
FREQUENCY
47Hz-63Hz
MAX LOAD
MAX OUTPUT
+3.3V
20A
130W
+5V
20A
+12V
54.2A
650W
+5VSB
3A
15W
TOTAL POWER
650W
CX650M CABLE LISTING
QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
QTY
1
CABLE

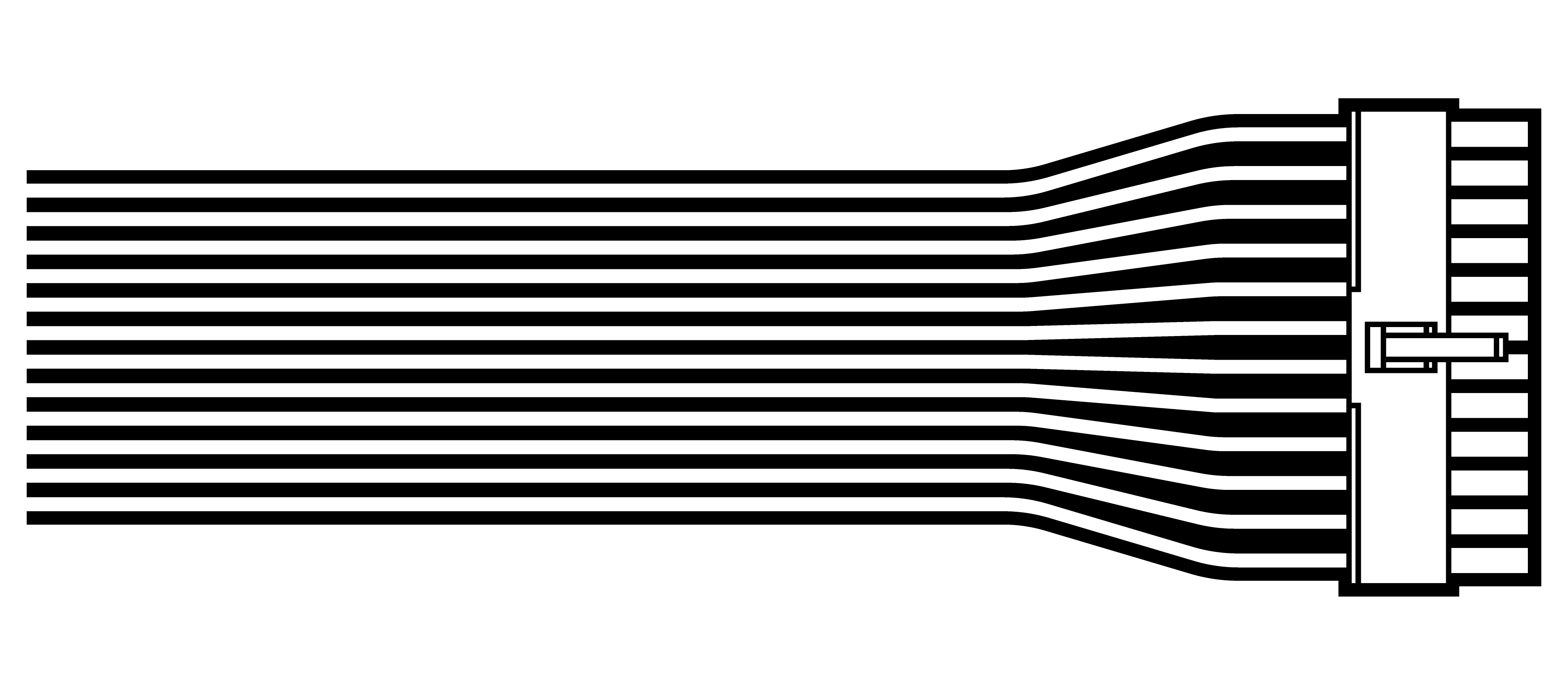

ATX Motherboard (24-pin) - Fixed
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Sleeved
QTY
1
CABLE
Dual ATX12V / EPS12V (4+4-pin, 8-pin) - Fixed
CONNECTORS PER CABLE
2
TOTAL CONNECTORS
2
CONNECTOR SPACING
500mm,
100mm
100mm
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Sleeved
QTY
1
CABLE
Dual 8-pin PCIe (6+2-pin) - Fixed
CONNECTORS PER CABLE
2
TOTAL CONNECTORS
2
CONNECTOR SPACING
500mm,
100mm
100mm
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Sleeved
QTY
1
CABLE
Dual 8-pin PCIe (6+2-pin) - Modular
CONNECTORS PER CABLE
2
TOTAL CONNECTORS
2
CONNECTOR SPACING
500mm,
100mm
100mm
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Flat
QTY
1
CABLE
450W 12V-2x6 (12+4-pin) - Modular
CONNECTORS PER CABLE
1
TOTAL CONNECTORS
1
CONNECTOR SPACING
-
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Flat
QTY
1
CABLE
3 SATA - Modular
CONNECTORS PER CABLE
3
TOTAL CONNECTORS
3
CONNECTOR SPACING
400mm,
100mm,
100mm
100mm,
100mm
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Flat
QTY
1
CABLE
3 SATA - Fixed
CONNECTORS PER CABLE
3
TOTAL CONNECTORS
3
CONNECTOR SPACING
400mm,
100mm,
100mm
100mm,
100mm
TOTAL LENGTH
600mm
(± 10mm)
(± 10mm)
CABLE TYPE
Flat
QTY
1
CABLE

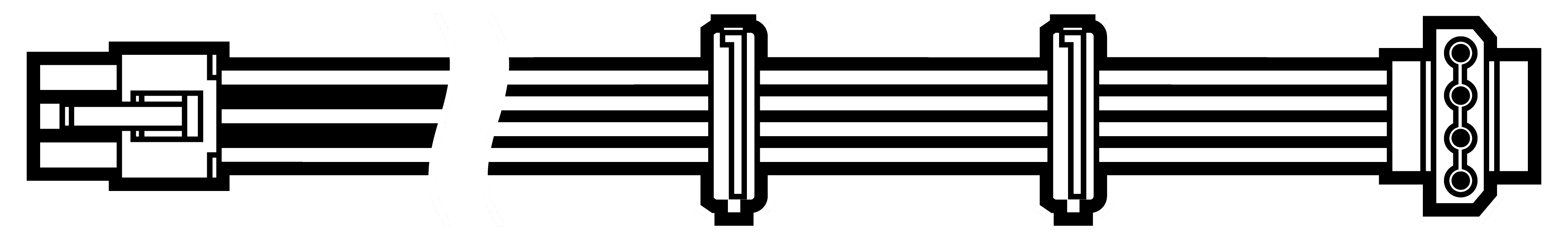

2 SATA / 1 PATA - Modular
CONNECTORS PER CABLE
3
TOTAL CONNECTORS
3
CONNECTOR SPACING
350mm,
150mm,
150mm
150mm,
150mm
TOTAL LENGTH
650mm
(± 10mm)
(± 10mm)
CABLE TYPE
Flat
SEVEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Tech Specs
| PATA Connector | 1 |
|---|---|
| EPS Connector | 2 |
| SATA Connector | 8 |
| Fan Bearing Technology | Sleeve |
| Dimensions | 150mm x 86mm x 140mm |
| Modular | Semi |
| Cable Type | Type 4 |
| PCIe Connector | 4 |
| Zero RPM Mode | No |
| PSU Form Factor | ATX |
|---|---|
| Multi GPU Ready | NO |
| Fan Size MM | 120mm |
| Continuous Power W | 650 Watts |
| ATX Connector | 1 |
| ATX12V Version | v3.1 |
| MTBF Hours | 100,000 hours |
| Warranty | 7 Year |
| Weight | 2.49kg |
CX-M Series ATX Power Supply
Modular DC Cable Set
AC Power Cable
Warranty & Safety Documentation
