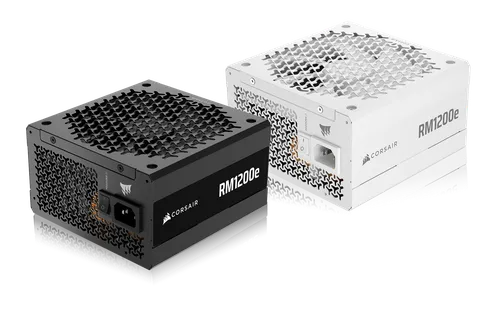

RMe Series RM1200e Fully Modular Low-Noise ATX Power Supply
- 12V-2x6 PinProtect per-pin overcurrent protection (OCP)
- Cybenetics Platinum-certified efficiency
- 3D-Y pattern fan grille for enhanced cooling
- Fully-modular cables for a cleaner build
- Debossed cable kit with low-profile combs
- Zero RPM Mode for silent operation at low loads
- 10-year warranty
Current price: $204.99
Color
Black
White
Color:
PSU Wattage
1000 Watts
1200 Watts
650 Watts
750 Watts
850 Watts
MORE TO CONSIDER
CORSAIR ThermalProtect PCIe 5.1 600W 12V-2x6 Cable
Current price: $24.99
NAUTILUS II 360 RS ARGB Liquid CPU Cooler
Current price: $129.99
NAUTILUS II 360 RS ARGB Liquid CPU Cooler
Current price: $129.99
FRAME 4000D RS ARGB Modular Mid-Tower PC Case
Current price: $124.99
SKU: CP-9020316-NA
Current price: $204.99
- Overview
- Tech Specs
- Guides

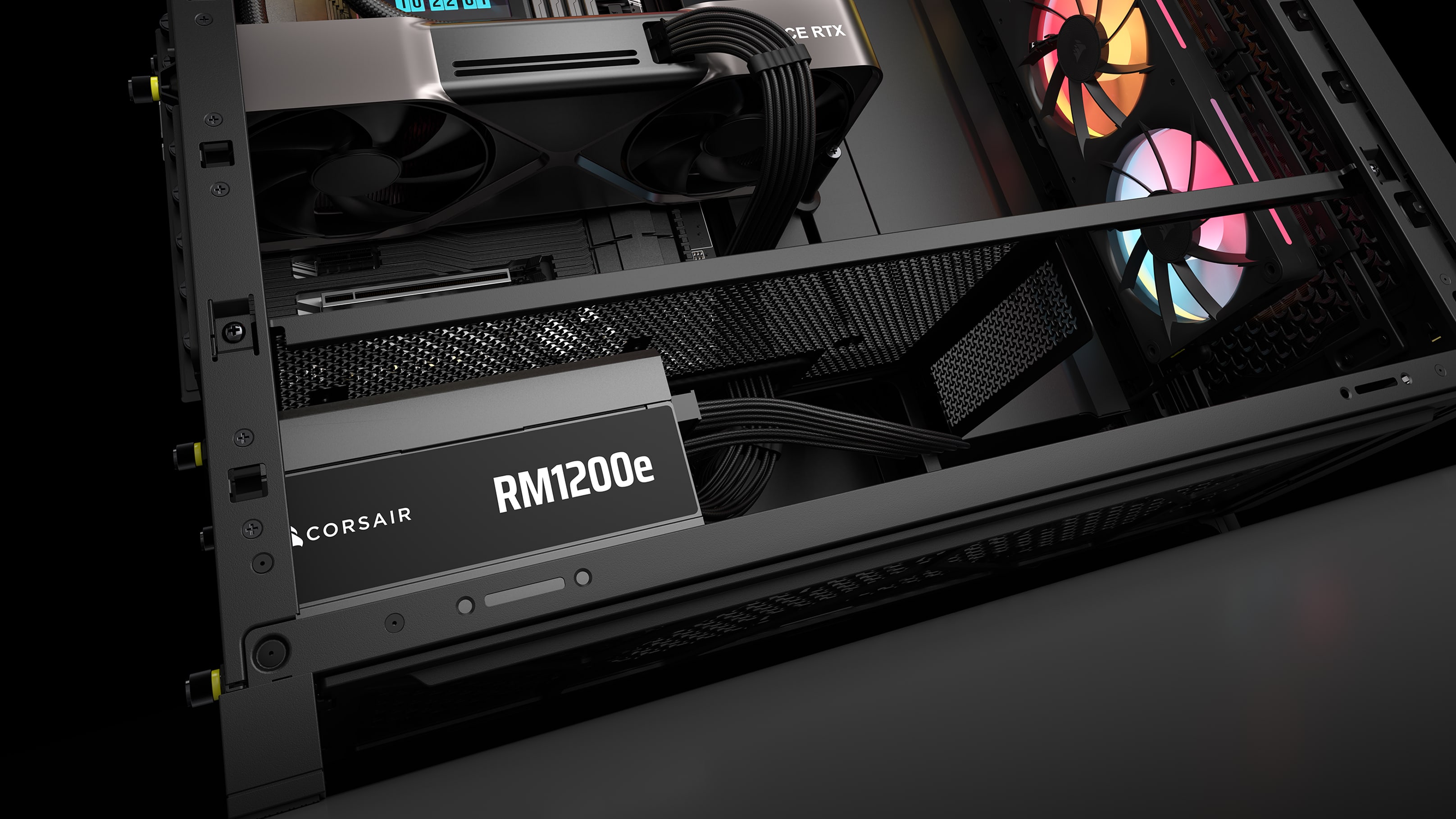

FULLY MODULAR LOW-NOISE ATX POWER SUPPLY
RM1200e

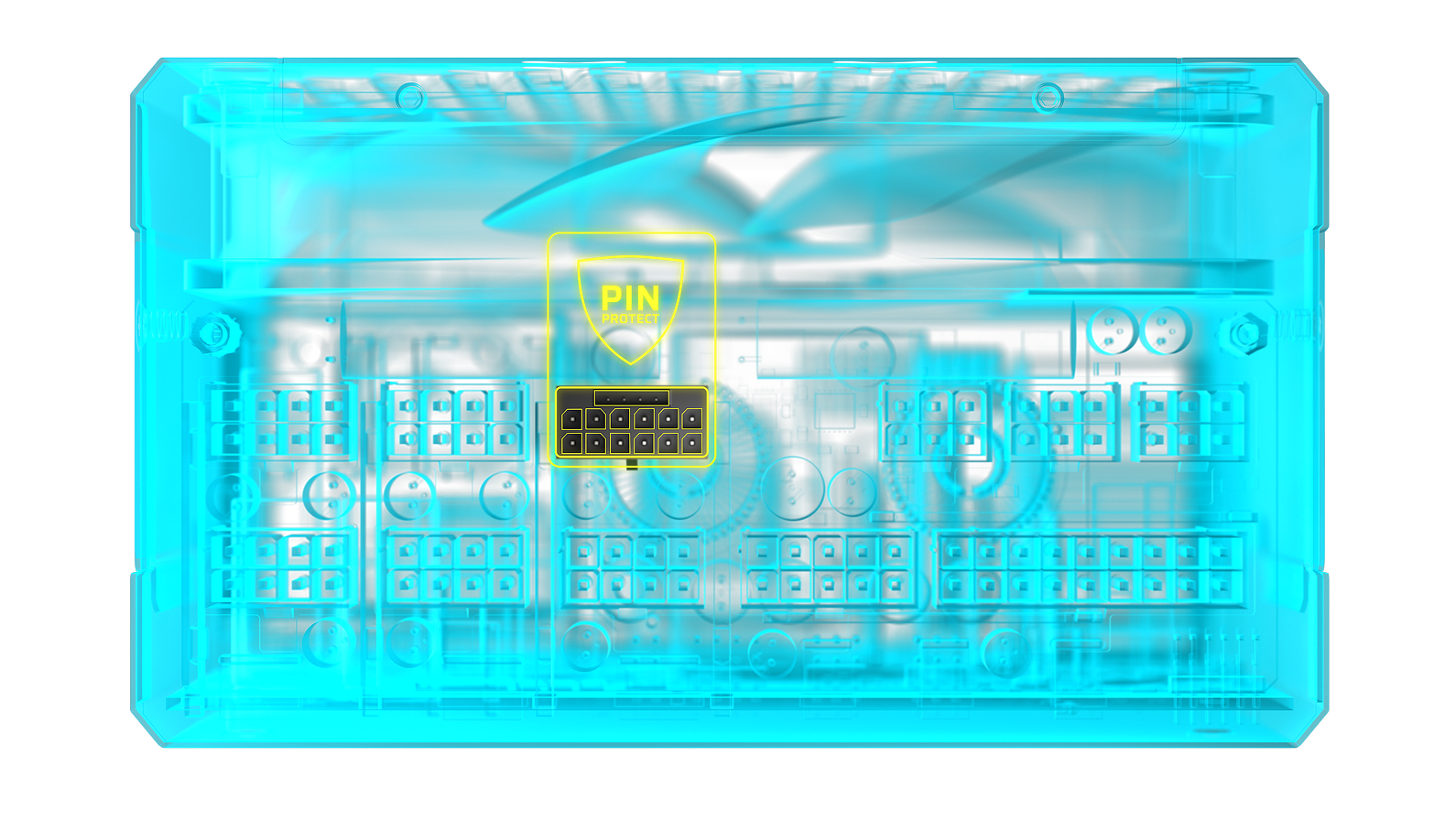

BUILT-IN GPU PROTECTION
CORSAIR PINPROTECT
The RM1200e features cutting-edge protection for modern graphics cards with PinProtect 12V-2x6 overcurrent protection (OCP). It monitors each individual pin carrying power to the GPU in real-time to protect it from unexpected power fluctuations.

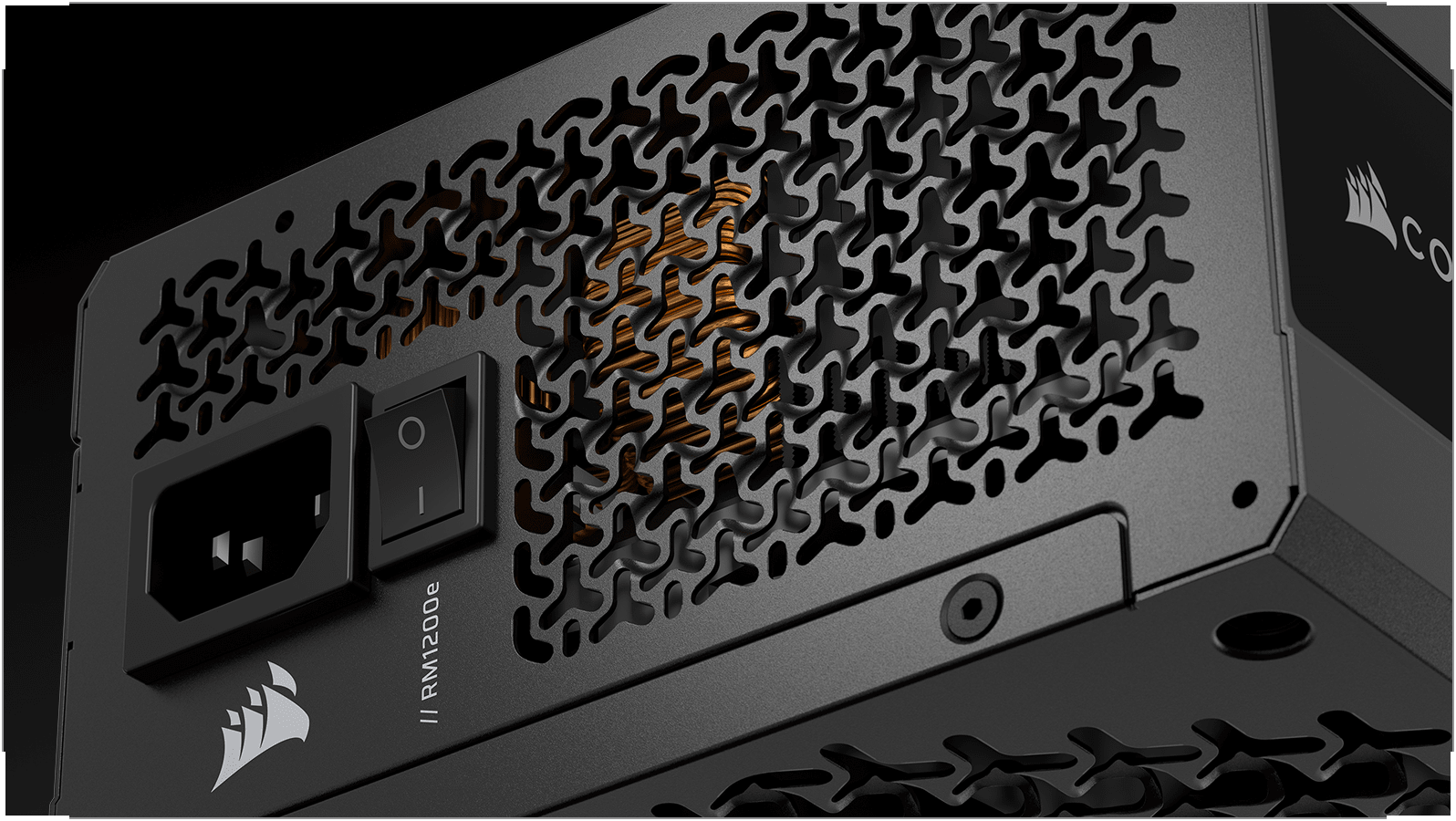

A BREATH OF FRESH AIR

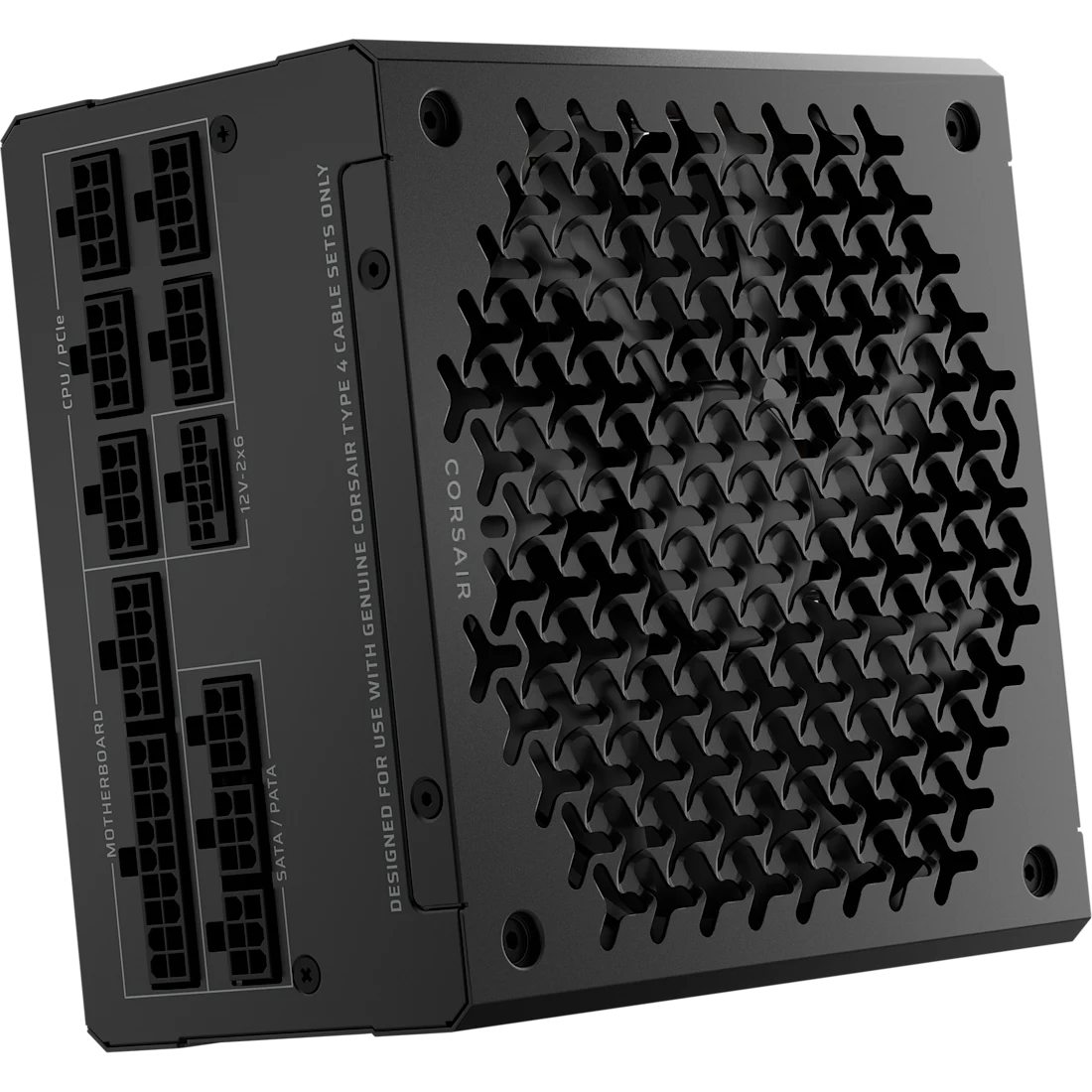

3D Y-PATTERN FAN GRILLE
A three-dimensional Y-pattern fan grille inspired by CORSAIR FRAME series cases offers excellent airflow with minimal resistance, improving cooling performance with less fan activity and quieter operation compared to PSUs with a 2D fan grille.

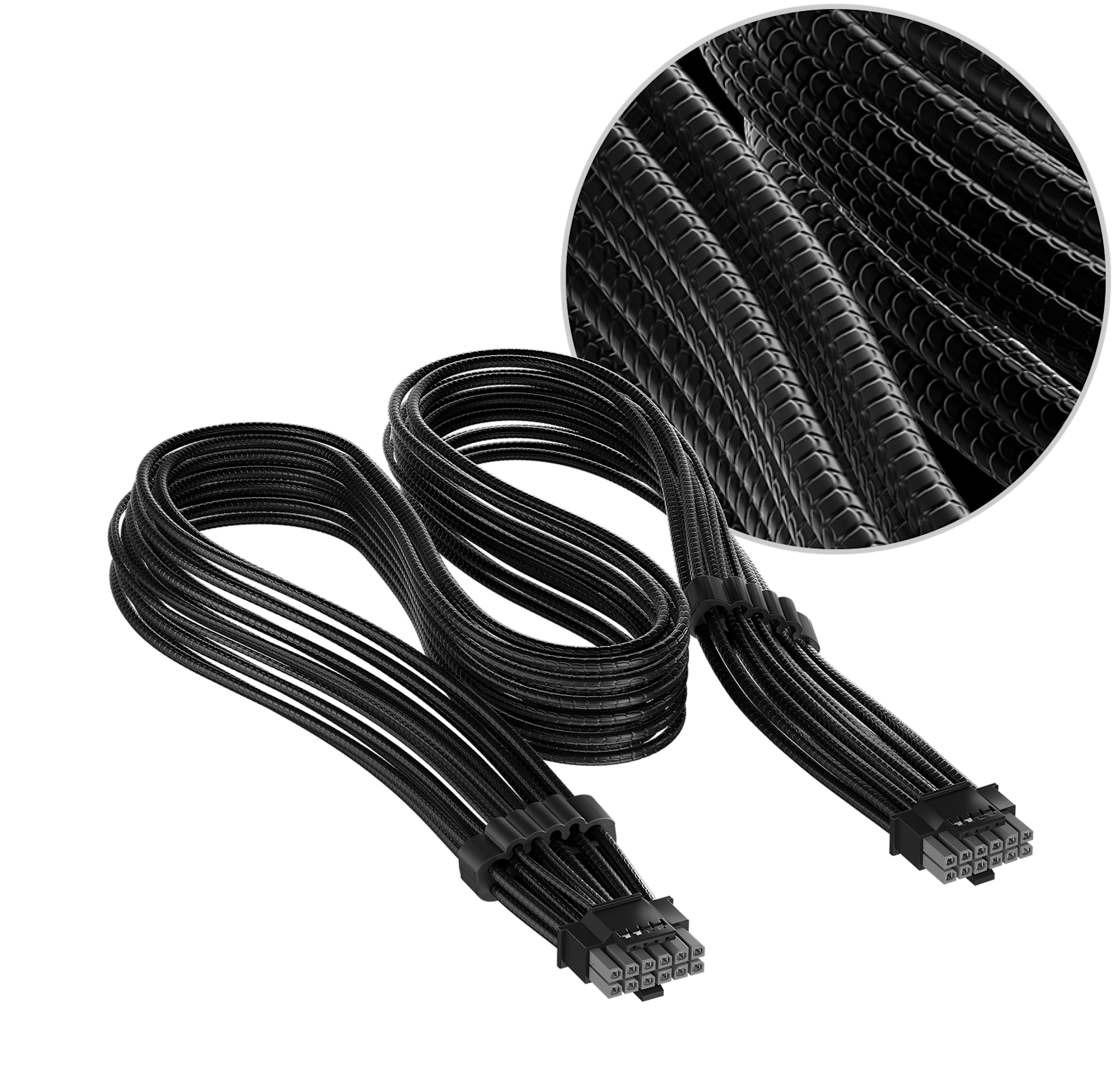

BUILD LIKE A PRO
PREMIUM DEBOSSED CABLE KIT
High-quality debossed cables with low-profile combs let you easily and precisely route cables exactly where they need to go for a super-clean build.
CYBENETICS PLATINUM CERTIFIED
Steady power output at up to 91% efficiency and Cybenetics™ Platinum certified for lower power consumption, less noise, and cooler temperatures.

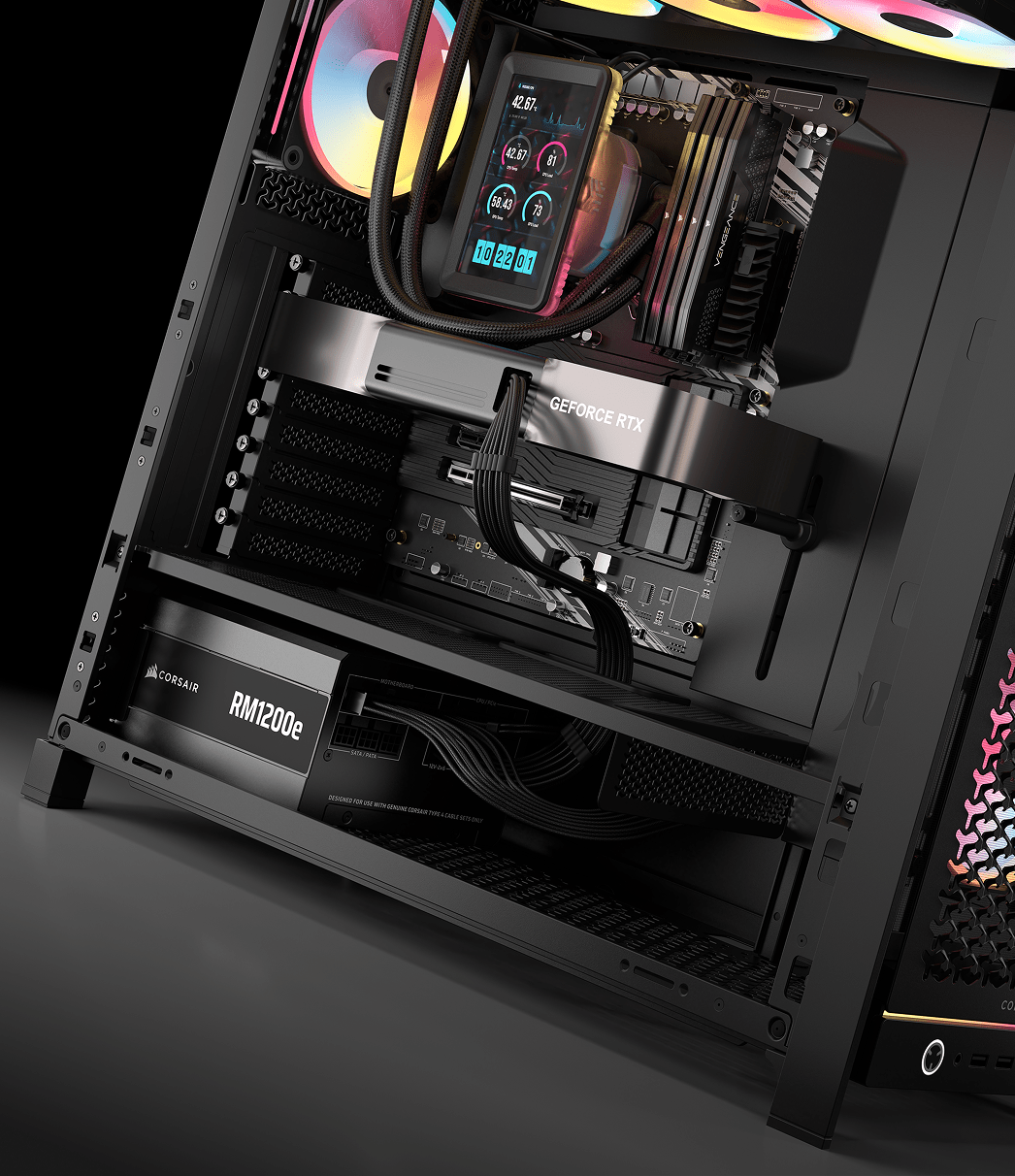

POWER FOR THE FUTURE
ATX 3.1 & PCIe COMPLIANT
With 1200W of reliable power, take on demanding builds with confidence. It is also ATX 3.1 certified and PCIe 5.1 compliant with a 10-year warranty, making it a power supply that will last through several builds. Built-in protections for dangerous current, voltage, short circuits, and temperature ensure reliable operation.
Overvoltage Protection
Short Circuit Protection
Undervoltage Protection
Overpower Protection
Overcurrent Protection
No Load Operation
Overtemperature Protection
Surge & Inrush Protection

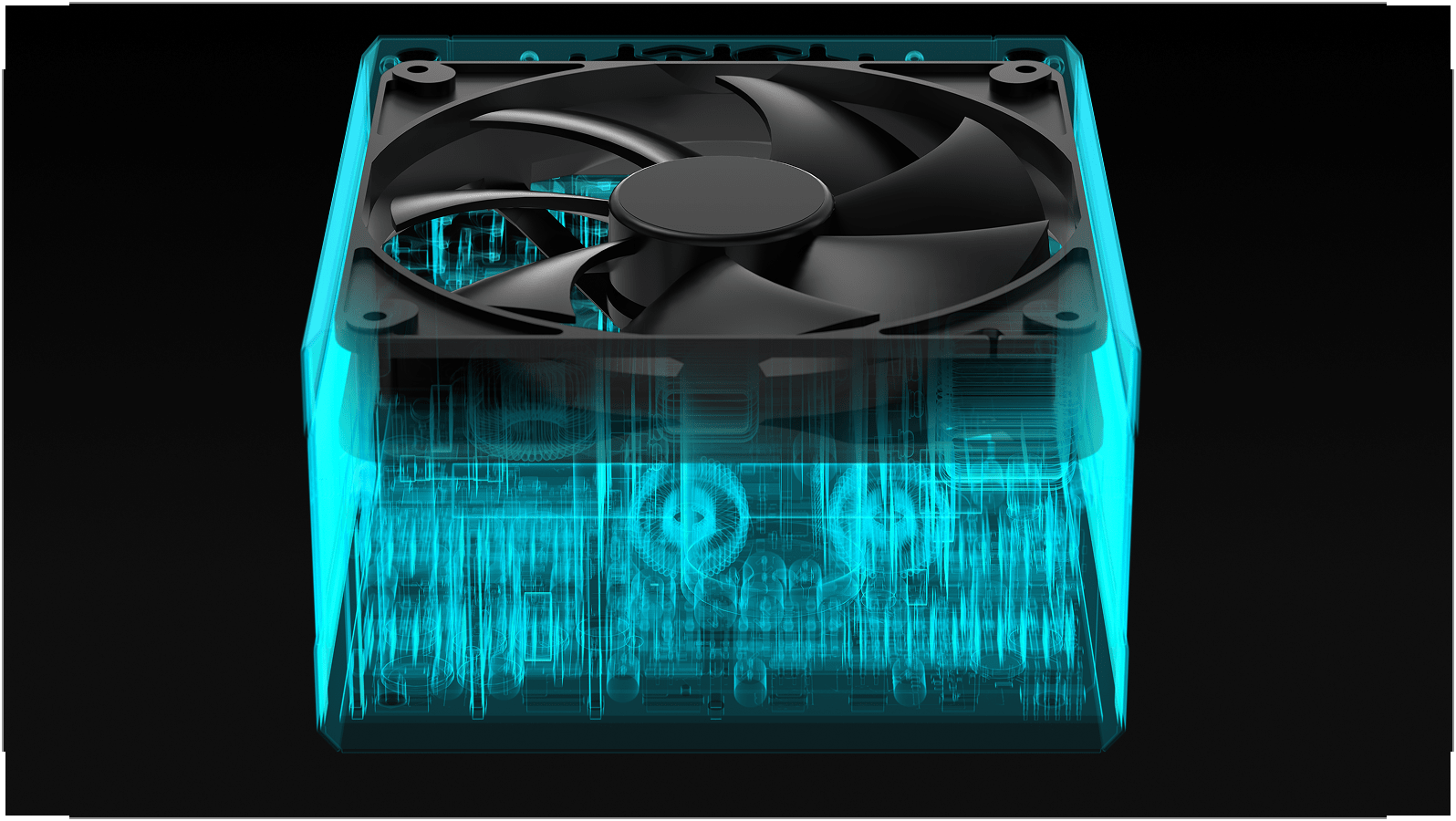

IS IT EVEN ON?
ZERO RPM MODE
Under low and moderate loads, the 140mm fan inside the RM1200e does not spin, allowing for truly silent computing for everyday tasks. When the load increases, its custom-tuned fan curve ensures continuous low-noise operation.
BUILT TO LAST
MADE WITH HIGH-QUALITY COMPONENTS
The RM1200e offers advanced features and is made with premium components including 105°C-rated Japanese capacitors and a robust LLC half-bridge topology for improved efficiency.
105°C-RATED JAPANESE CAPACITORS
Built with 100% industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power even under high-stress conditions.
TEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
RM1200e POWER TABLE
| MODEL | RPS0254 |
|---|---|
| PART NO. | 75-007013 |
INPUT (AC)
| INPUT VOLTAGE | 100–240V a.c. | |
|---|---|---|
| INPUT CURRENT | 15A–7.5A | |
| INPUT FREQUENCY | 47–63Hz | |
OUTPUT (DC)
| RAIL | MAX LOAD | MAX OUTPUT |
|---|---|---|
| +3.3V | 20A | 150W Combined |
| +5V | 20A | |
| +12V | 100A | 1200W |
| +5VSB | 3A | 15W |
TOTAL POWER: 1200W
RM1200e CABLE LISTING
| QTY | CABLE |
|---|---|

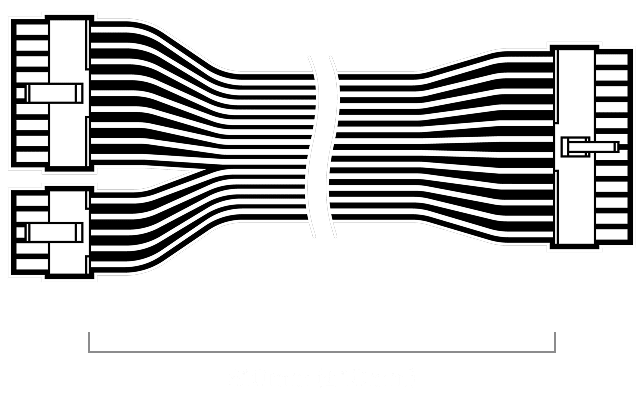

1 | ATX Motherboard (24-pin) - Modular - Debossed  |

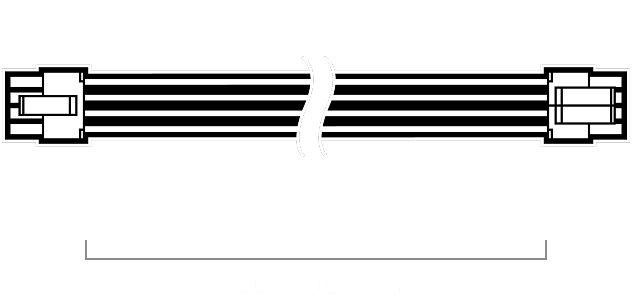

2 | ATX12V / EPS12V (4+4-pin) - Modular - Debossed  |

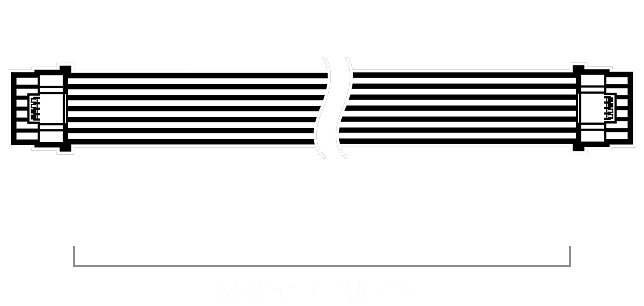

1 | 600W 12V-2x6 - Modular - Debossed  |

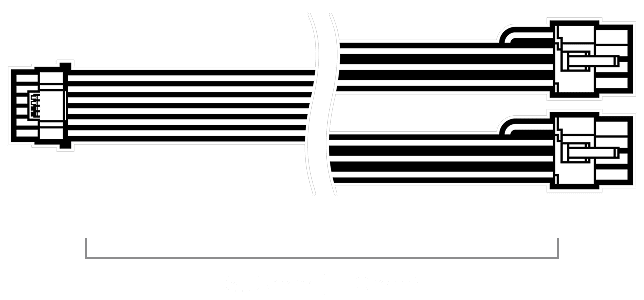

1 | 12V-2x6 to 2x8-pin PCIe (6+2-pin) - Modular - Debossed  |

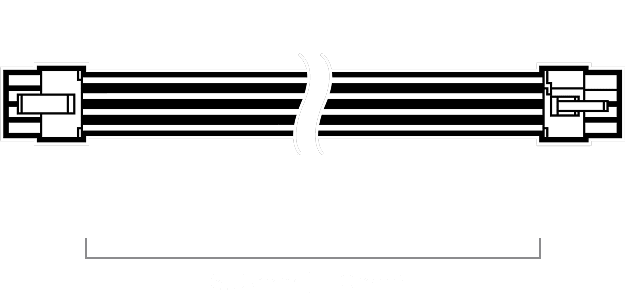

3 | 8-pin PCIe (6+2-pin) - Modular - Debossed  |

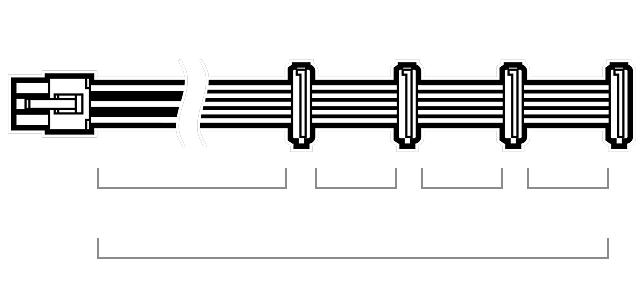

2 | 4 SATA - Modular - Debossed  |

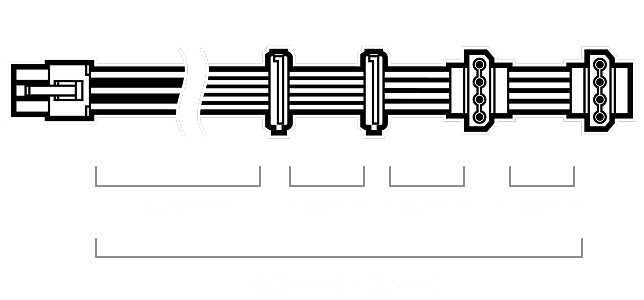

1 | 2 SATA / 2 PATA - Modular - Debossed  |
Tech Specs
| Cybenetics Efficiency | Platinum |
|---|---|
| Cybenetics Noise | A |
| PATA Connector | 2 |
| Protections | OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power) | OCP (Over Current) | PinProtect (12V-2x6 per Pin Overcurrent Protection) |
| SATA Connector | 10 |
| Modern Standby | Yes |
| Modular | Fully |
| Cable Type | Type 4 |
| Zero RPM Mode | Yes |
|---|---|
| Continuous Power W | 1200 Watts |
| ATX Connector | 1 |
| ATX12V Version | 3.1 |
| MTBF Hours | 100,000 hours |
| Warranty | 10 Year |
| Weight | 3kg |
