FRAME 4000D
WOOD RS
PREMIUM MODULAR MID-TOWER PC CASE

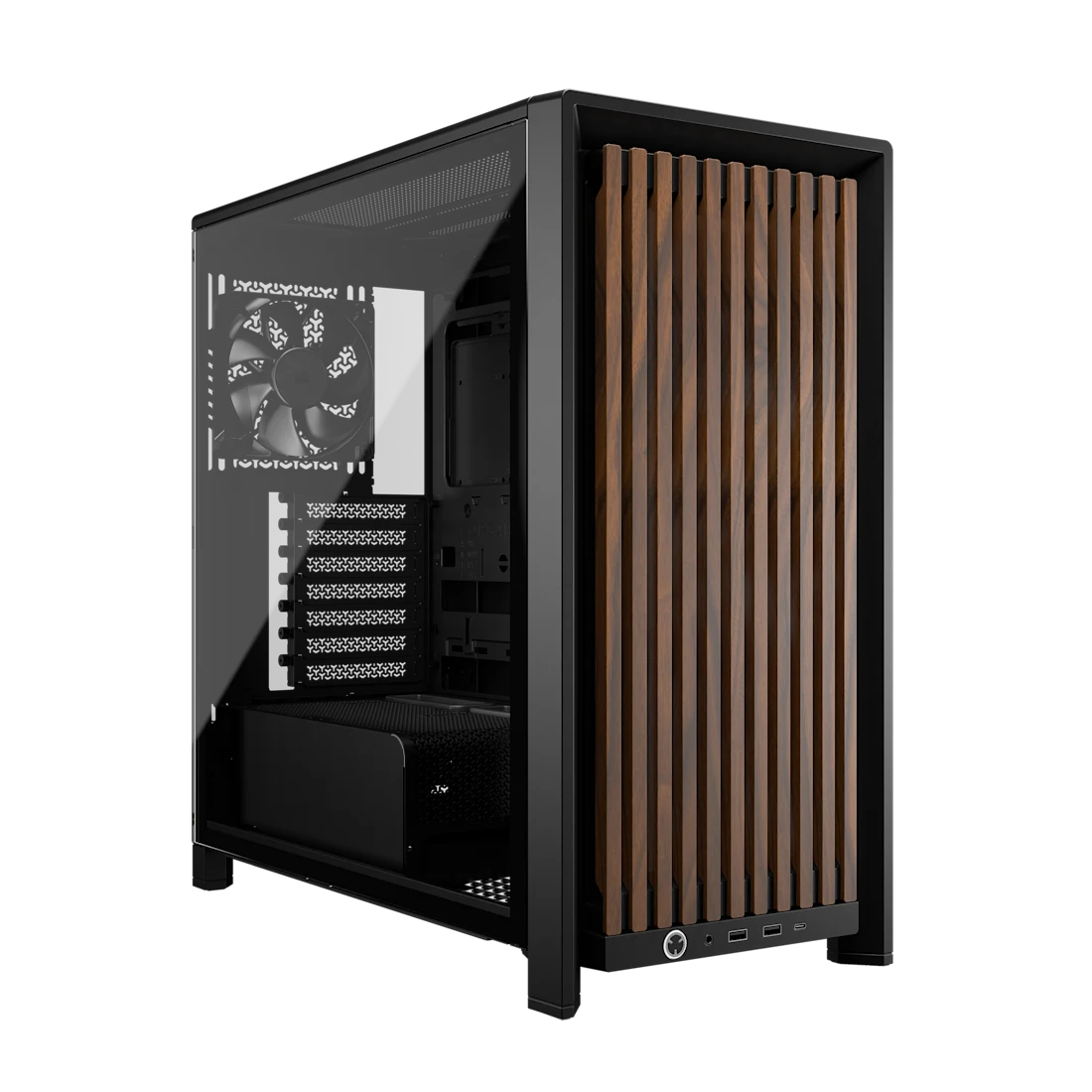

FRAME 4000D WOOD RS Modular Mid-Tower PC Case - Black/Walnut
- Real wood front panel for a natural aesthetic
- 4x RS120 PWM fans for effective low-noise cooling
- Fully-modular design for next-level customization
- InfiniRail™ Fan Mounting System for easier building
- 3x 360mm radiator mounting locations
- Built-in GPU Anti-sag Stabilization Arm
- Compatible with reverse-connector motherboards
Color
CUSTOMIZE YOUR FRAME 4000 SERIES CASE
Build your own FRAME 4000 Series case from step one or choose from a wide array of accessories to upgrade your current setup.
START CUSTOMIZING
SKU: CC-9011340-WW
- Overview
- Tech Specs
- Guides
FRAME 4000D
NATURALLY COOLER

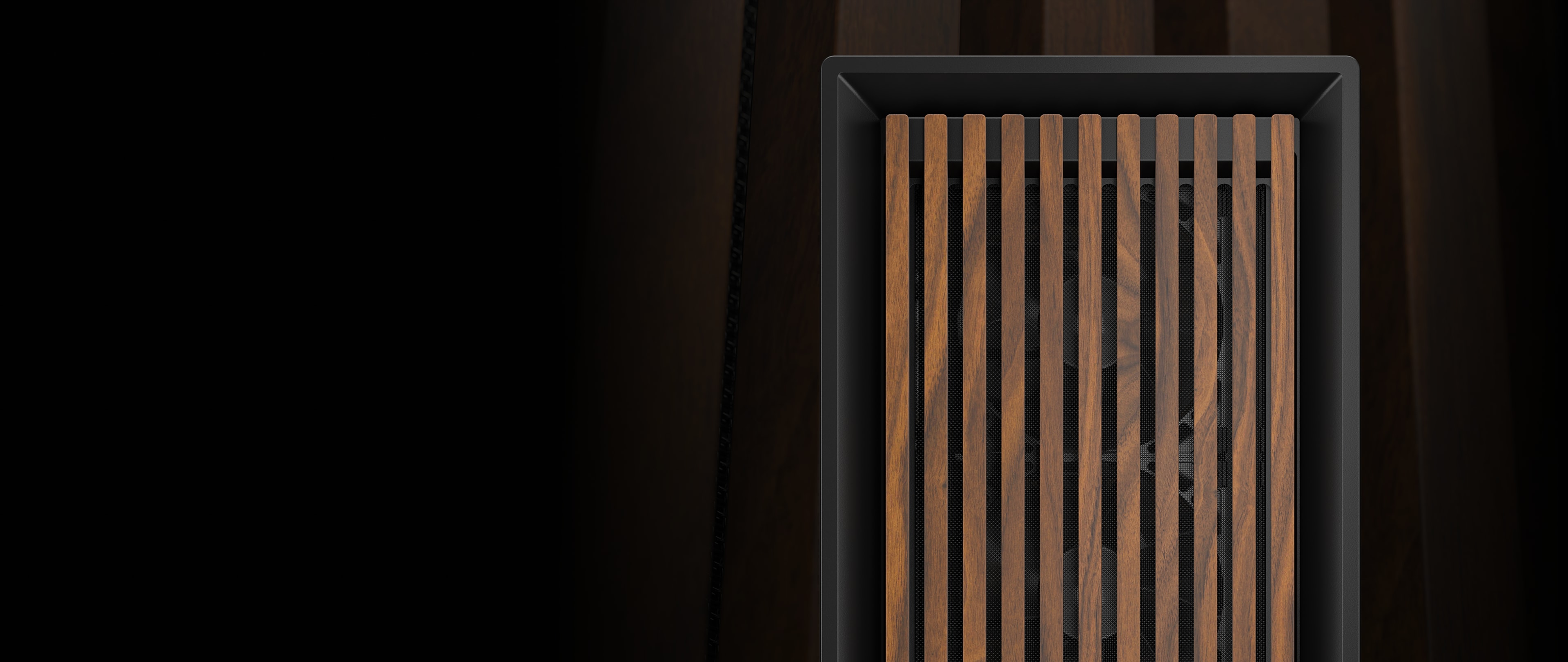

NATURAL WOOD FRONT PANEL
The FRAME 4000D WOOD RS lets you create a standout build that blends right in thanks to a refined front panel featuring real wood for the perfect mix of style and cooling performance.
BUILD YOUR WAY
EXPANSIVE MODULAR POSSIBILITIES
The revolutionary FRAME Modular Case System redefines customization by offering a modular design with an array of easily-swappable parts so you can customize the look and performance of your PC.
FAN FOCUSED
CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM
This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.
BUILD AND CHILL
THREE 360mm RADIATOR MOUNTS
Customize your cooling with three dedicated mounting locations for 360mm radiators in the front, roof, or side. Mount up to dual 360mm radiators simultaneously while still having space for additional intake/exhaust fans for extra cooling performance.
GO WITH THE FLOW

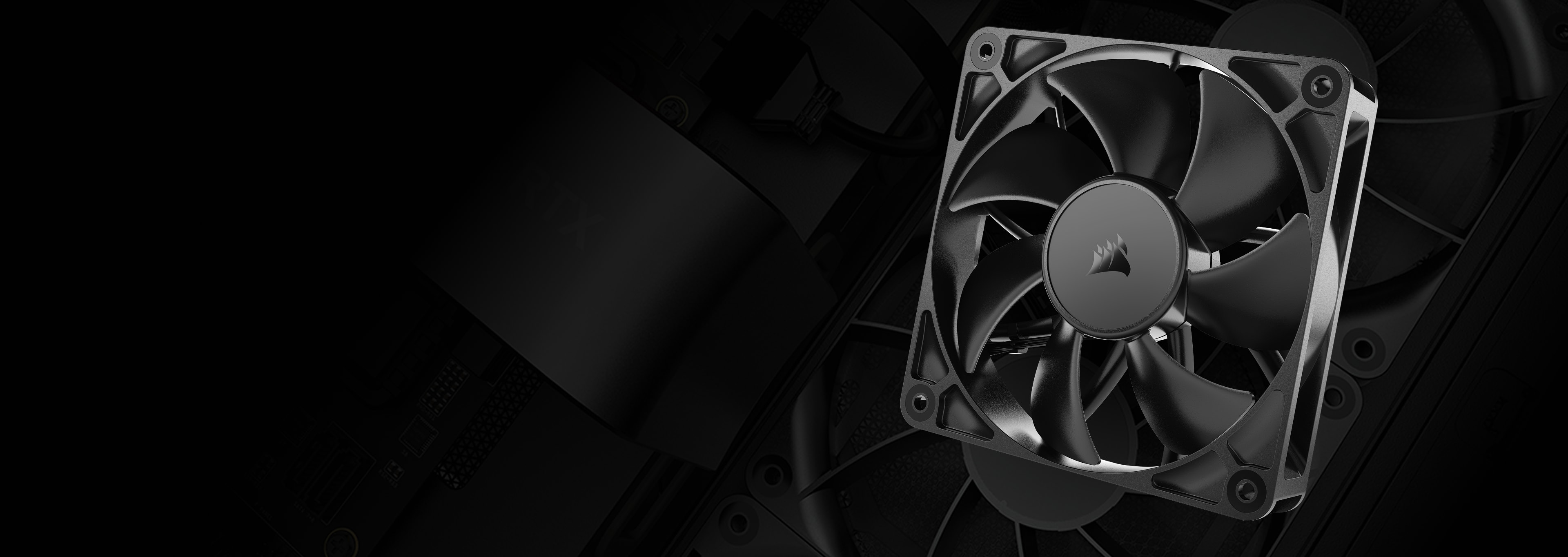

FOUR RS120 PWM FANS INCLUDED
RS120 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.
FUTURE PROOF
A BREEZE TO BUILD IN
With a modern design approach to a mainstream PC format, the FRAME 4000D WOOD RS has the convenient features to take the hassle out of your build.
EXTRA AIRFLOW
An additional 120mm fan is pre-installed in the rear mount to help keep components cooler right out of the box.
SAG-FREE GRAPHICS CARDS
Every CORSAIR FRAME 4000D WOOD RS includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.
CABLE SHROUD
Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators.
FIND YOUR PERFECT FRAME 4000 CASE
FRAME 4000D WOOD RS
SIDE PANEL
Full-Tempered Glass
INCLUDED FANS
4x RS120 PWM Fans
USB PORTS
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-A
PSU SHROUD
Compact
FRONT PANEL
3D-Y Airflow
SIDE PANEL
Glass + Mesh
INCLUDED FANS
3x RS120 ARGB PWM Fans
USB PORTS
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-A
PSU SHROUD
Full Length
FRONT PANEL
3D-Y Airflow
SIDE PANEL
Two-thirds Tempered Glass
INCLUDED FANS
4x RS120 ARGB PWM Fans
USB PORTS
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-C
PSU SHROUD
Compact
FRONT PANEL
RGB Flow
SIDE PANEL
Full-Tempered Glass
INCLUDED FANS
4x RS120 PWM Fans
USB PORTS
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-A
PSU SHROUD
Compact
TWO-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.

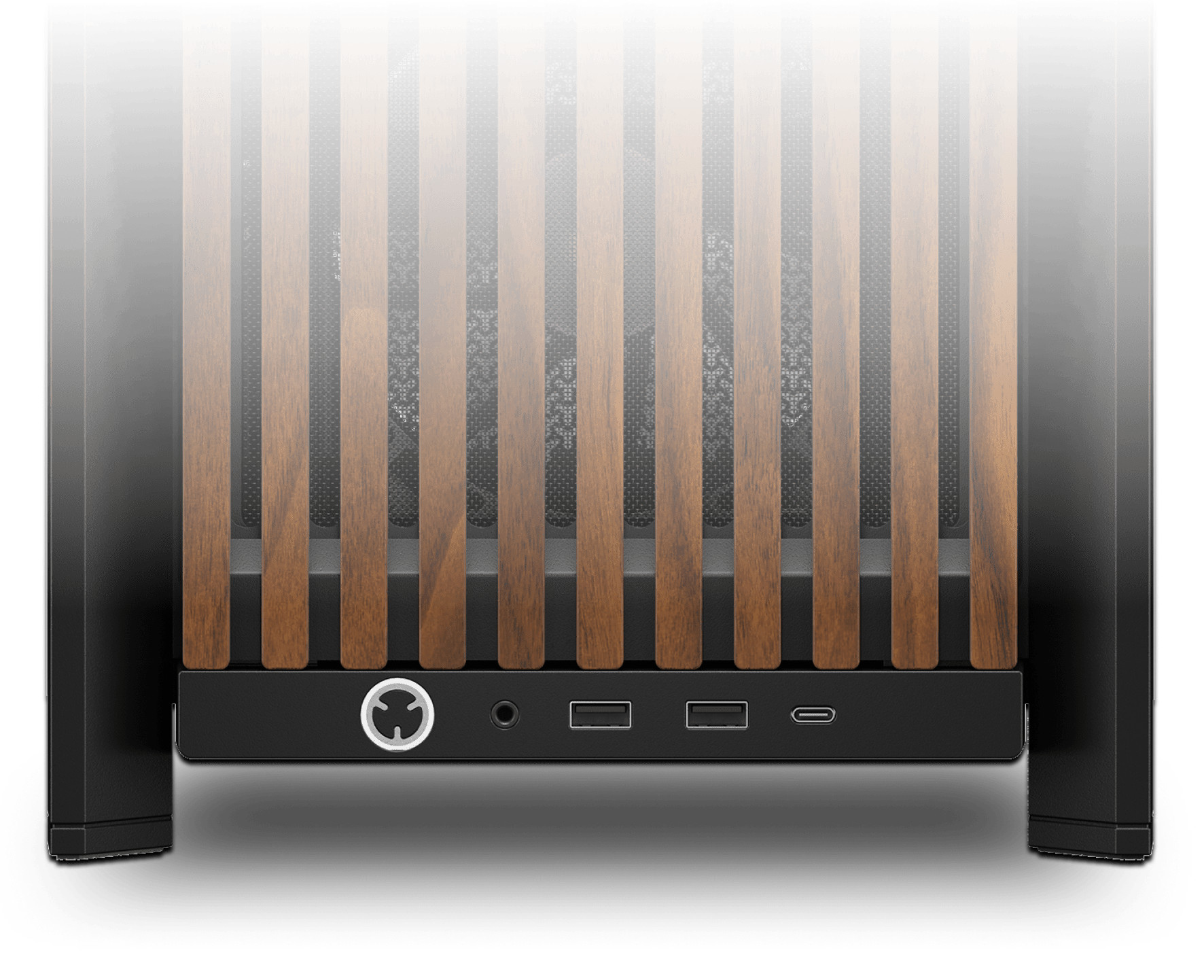

MODERN I/O WITH ARGB POWER BUTTON
Fast I/O including a USB 3.2 Gen 2x2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack. The power button features a swappable mechanical switch and ARGB to compliment your build’s lighting.
Tech Specs

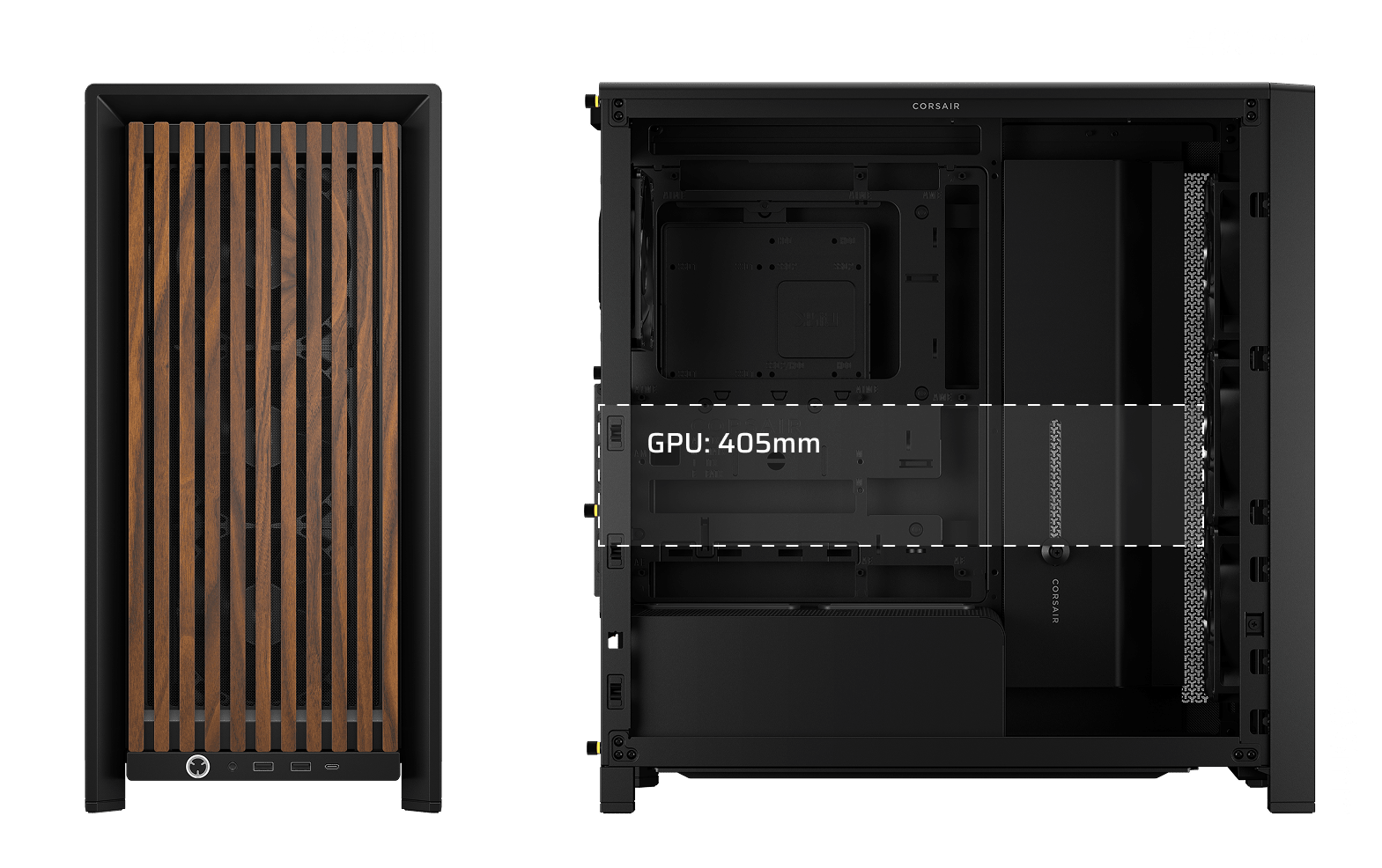

| Case Supported | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
|---|---|
| Case Height | 486mm |
| Case Length | 490mm |
| Case Width | 239mm |
| Material | Steel, Solid Wood, Tempered Glass, Plastic |
| Color | BLACK |
| Case Size | Mid-Tower |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Case Window | Tempered Glass |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Case Warranty | 2 Year |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Case Front IO | (1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out |
| Maximum GPU Length | 430mm |
| Weight | 11.82kg |
| Case Expansion Slots | 7 Horizontal or 3 Vertical |
| Case Power Supply | ATX |
| Radiator Support - Top | 360mm, 280mm, 240mm |
|---|---|
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Bottom | None |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 140mm, 120mm |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support - Bottom | 3x 120mm |
| Fan Support - Side | 3x 120mm; 2x 140mm |
| Fan Support - Rear | 1x 120mm, 1x 140mm |
| Front IO Motherboard Connections | 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | RS Series |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| RapidRoute Included | No |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
