EXTREME PCIe 4.0 STORAGE PERFORMANCE
The PCIe Gen 4 x4 controller delivers phenomenal read, write, and response times that leave standard M.2 SSDs in the dust. *
Sequential Read/Write Speed Up to 7,000/6,500 MB/s.
Sequential Read/Write Speed Up to 7,000/6,500 MB/s.
*Performance and endurance vary by capacity. Reduced performance on Gen 3
YOUR PC MADE FASTER
Load games, boot Windows, open and transfer files, all faster than ever.
HIGH-SPEED PCIe 4.0 X4 NVMe M.2 INTERFACE
Leveraging PCIe Gen4 NVMe 1.4 technology for maximum bandwidth, the MP600 ELITE delivers incredible storage performance.
HIGH-DENSITY 3D TLC NAND
Provides the ideal mix of performance and endurance to ensure that your drive will last and perform well through many years of use.
COMPACT M.2 2280 FORM-FACTOR
Fits directly into most motherboards and laptops, with no heatsink attached for maximum compatibility.
COMPREHENSIVE FIVE-YEAR WARRANTY
Tech Specs
| Storage Form Factor | M.2 2280 |
|---|---|
| Storage Temperature | -40°C to +85°C |
| Storage Humidity | 93% RH (40° C) |
| SSD Package Contents | MP600 ELITE M.2 SSD |
| SSD Compatibility | M.2 2280 Interface Connector Windows 11, Windows 10, Mac OS X |
| Form Factor | M.2 2280 |
| Voltage | 3.3V, +/- 5% |
| Vibration | 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G |
| SSD Shock | 1,500 G |
| SSD Operating Temperature | 0°C to +65°C |
| DEVSLP | PS4: <5mW |
| NAND Technology | 3D TLC |
|---|---|
| SSD Smart Support | Yes |
| SSD TBW | 600 |
| SSD Max Sequential Write CDM | Up to 6200MB/s |
| SSD Max Sequential Read CDM | Up to 7000MB/s |
| Max Random Read QD32 IOMeter | Up to 1.0M |
| Max Random Write QD32 IOMeter | Up to 1.0M |
| Capacity | 1TB |
| Interface | PCIE* 4 x 4 |
| Weight | 0.03kg |
- Capacity: 1 GB is 1 Billion Bytes. Some of the listed capacity on a flash storage device is used for formatting and thus not available for data storage. The actual available capacity for data storage is less than the capacity stated on the products.
- Performance: Performance rating based on internal testing at CORSAIR at the time of launch. Performance depends on the host platform, usage, and other variables.
- Endurance: Endurance rating based on JEDEC JESD218 standard client workload. Individual drive endurance and health status depends on actual usage and may be less than rated endurance.
QUICK START GUIDE
M.2 SSD
BLOG

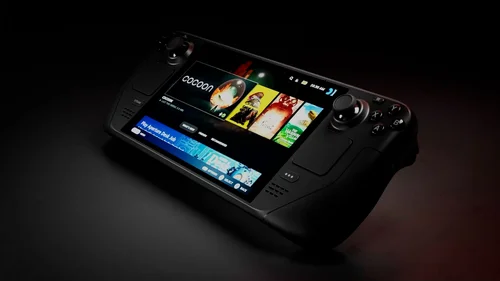

What is Dual Booting and is it Worth It?
